RX-A2A AVENTAGE 7.2-Channel AV Receiver with 8K HDMI and MusicCast

• 7.2-channel 100 Watt surround sound with Zone 2
• 4K60, Dolby Vision^™, Hybrid-Log Gamma and BT.2020
• 4K120_AB and 8K60_B HDMI^™ and HDR10+ with HDCP 2.3 and eARC (7 in/1 out)
• Supports enhanced media and gaming - ALLM, VRR, QFT, QMS (with future update)
• Dolby Atmos^®, DTS:X^™ and Dolby Atmos Height Virtualization
• Wi-Fi^®, AirPlay 2 and Spotify Connect
• Voice Control with Alexa, Google Assistant and Siri^®
• MusicCast multi-room audio app control
• Pandora^®, Spotify, Amazon Music, SiriusXM, TIDAL, Deezer, Napster and more
• YPAO automatic room calibration with R.S.C. and multipoint
• Phono input
• MusicCast Surround-capable: add optional MusicCast speakers to provide wireless surrounds for a 5.1-channel setup

The Reference Standard in AV Receivers

AVENTAGE AV receivers are the reference standard to which all others are compared. Passionate engineering and meticulous attention to detail produce the Yamaha hallmark of True Sound. You can feel the quality in the design and fabrication – from every electrical path, component and piece of material. Each element was scrutinized with intense detail to produce the finest, first-class performance. The AVENTAGE AV receiver is a work of visual and acoustic art.

Power and Processing:

• 7-channel amplifier
• 100 watts per channel into 8 ohms (20-20,000 Hz) at 0.06% THD, with 2 channels driven
• Dolby® and DTS® surround sound decoding
  • Dolby Atmos® and DTS:X™ processing for use with in-ceiling or "height" speakers for more enveloping home theater sound
  • Dolby Atmos Height Virtualization creates three-dimensional effects without height speakers
• Cinema DSP 3D adds richness and depth to music and movie soundtracks
• YPAO (Yamaha Parametric Room Acoustic Optimizer) automatic speaker calibration
  • included microphone helps fine-tune your system to best match your room's acoustics
  • R.S.C. (Reflected Sound Control) helps deliver smooth, well-balanced surround sound across different seating positions

Digital and Streaming Music Options:

• Built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
• MusicCast wirelessly connects compatible Yamaha components together for seamless whole-home audio
  • includes support for Pandora®, SiriusXM, and Spotify® (subscription required for some services)
  • free MusicCast app offers easy Wi-Fi control, settings adjustments, and music selection and playback
  • supports wireless rear surround sound when paired with MusicCast 50 or MusicCast 20 wireless speakers
• Works with Amazon Alexa and Google Assistant voice control devices
• Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music®
• Built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers

Multi-Room Audio:

• Dual-room/dual-source output
  • amp assign function lets you use the surround back speaker outputs in different configurations like bi-amping the front speakers, or for use in Zone 2
  • using powered 2nd-room output allows 5.2-channel sound in main room
  • cannot select different USB/Bluetooth/network sources for each zone
• Zone 2 stereo preamp outputs for use with an optional external amplifier

HDMI Features:

• HDMI 2.1 audio/video switching: 7 in, 1 out
  • 3 HDMI connections support 8K/60Hz and 4K/120Hz video
  • all HDMI connections support 4K/60Hz video
  • HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
  • HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
  • supports HDR10, HDR10+, Dolby Vision™, and HLG (Hybrid Log Gamma)
• Gaming-optimized video processing technologies for a smooth, lag-free gaming experience
  • Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing
• Supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
  • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV

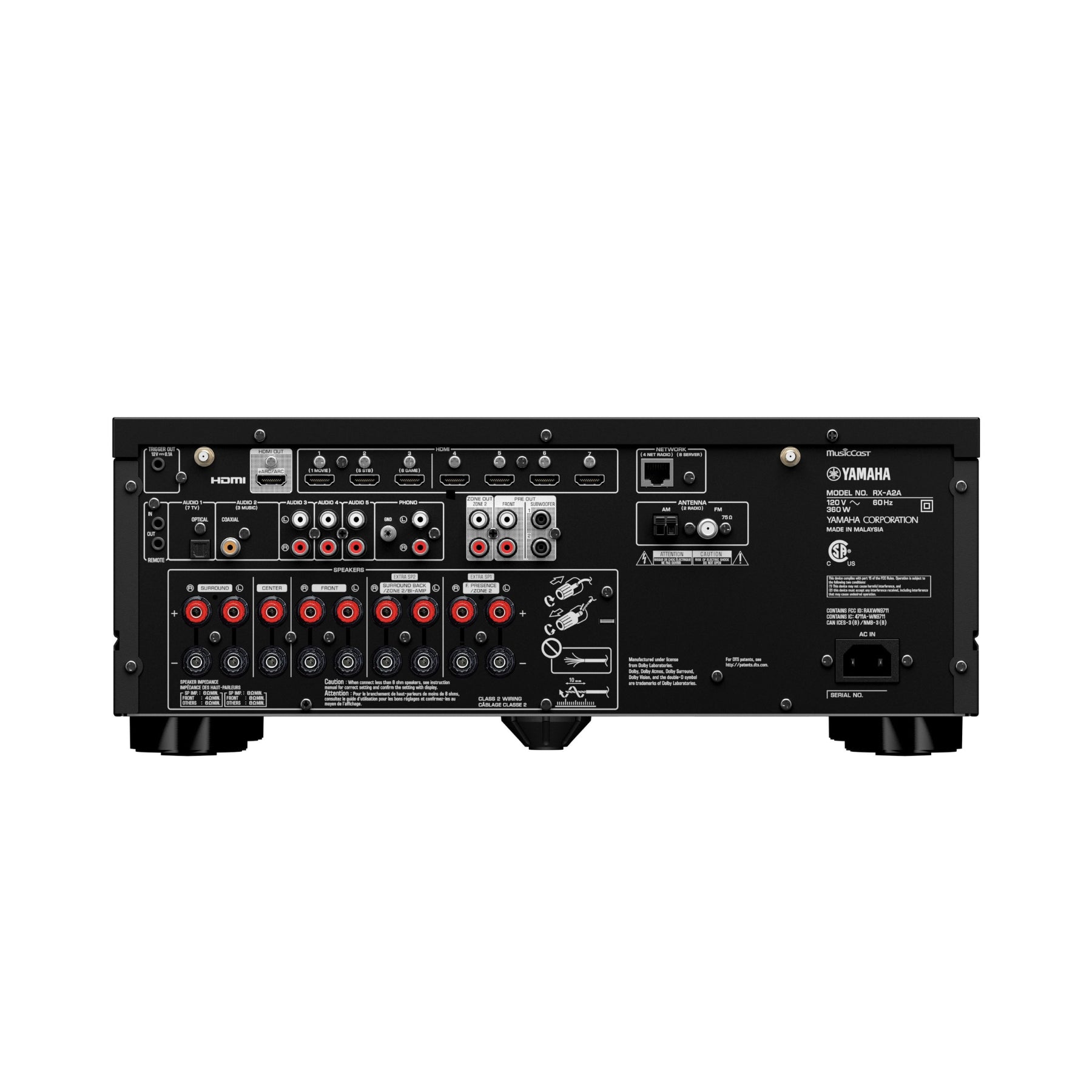

Other Connections:

• Digital audio inputs: 1 Toslink optical, 1 coaxial
• 3 analog stereo RCA audio inputs
• MM (moving magnet) phono input for connecting a turntable
• Two line-level subwoofer outputs
• Front-panel USB port for audio playback from USB flash drives
• Outputs for 9 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Front Presence L/R)
• Receiver can power a maximum of 7 channels at once
• Full-sized front-panel headphone jack

Dimensions and Other Info:

• Free MusicCast app lets you use your Apple® or Android™ device as a Wi-Fi remote
• Yamaha AV Setup Guide app guides you through the connection process and initial settings

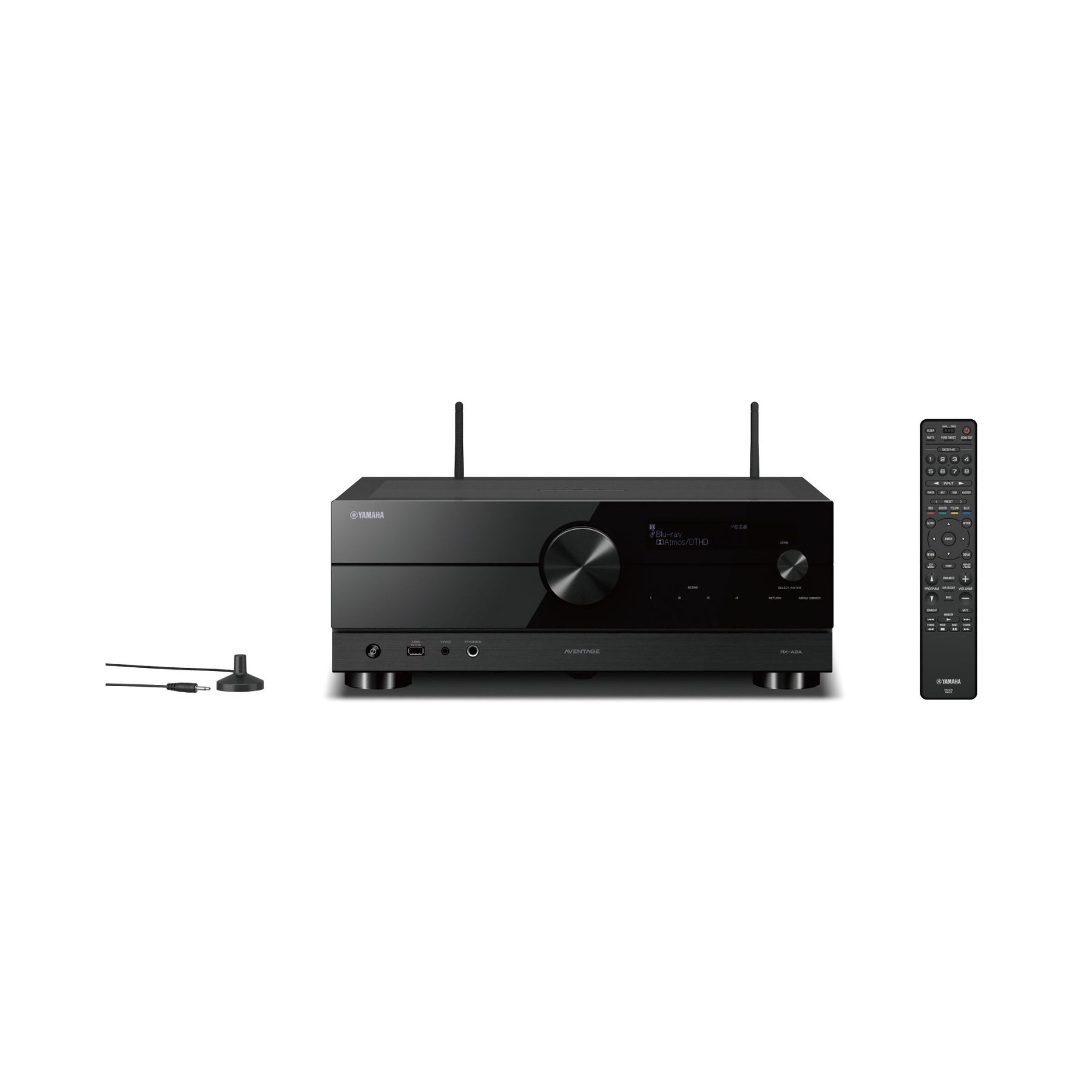

• Handheld remote control included
• AM/FM tuner
• 17-1/8"W x 6-3/4"H x 14-5/8"D (9-5/8"H with Bluetooth and Wi-Fi antennas raised)
• Weight: 22.5 lbs.
