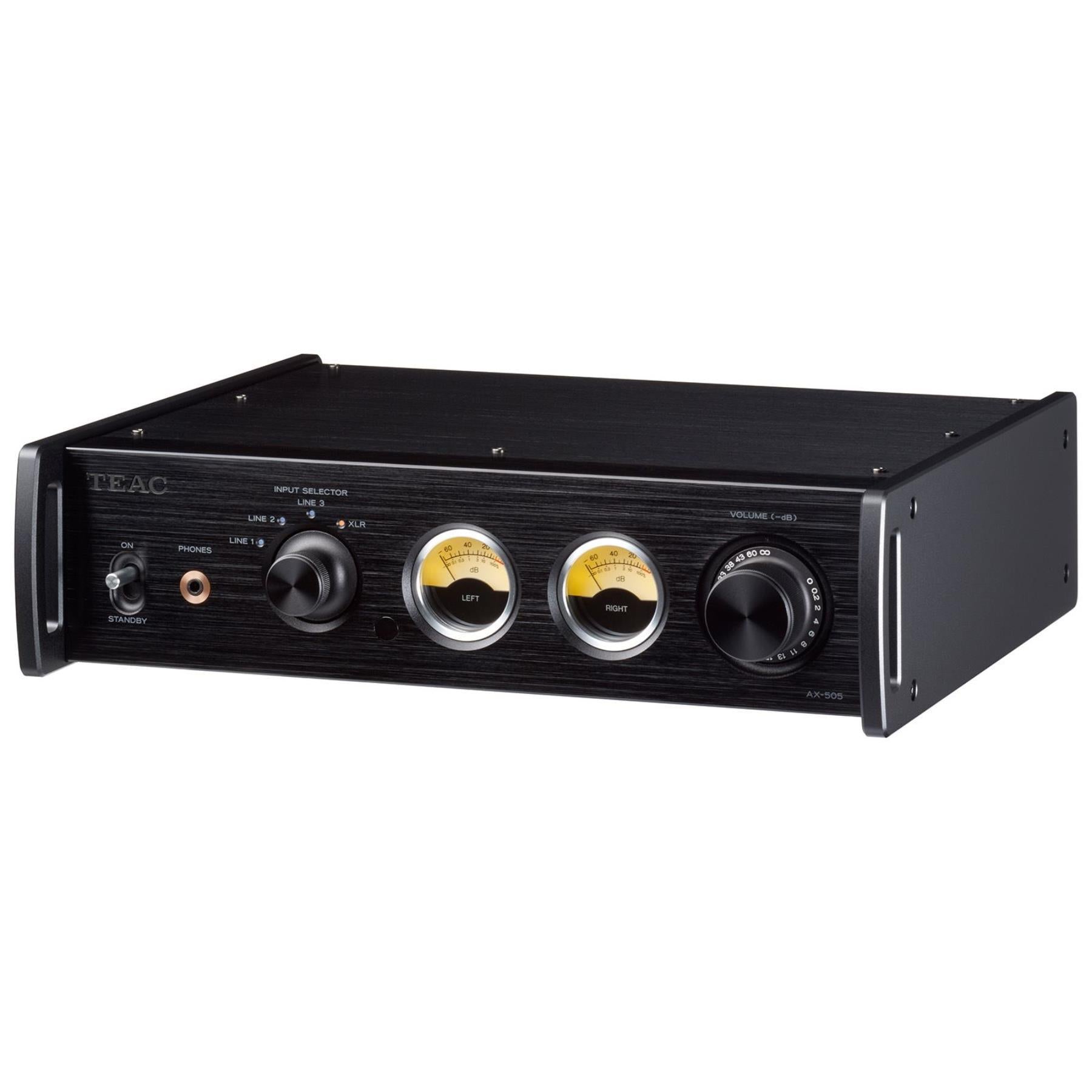

TEAC AX-505 Stereo Integrated Amplifier

Experience the pinnacle of audio performance with the TEAC AX-505 Stereo Integrated Amplifier, featuring advanced technology and meticulous engineering for audiophile-grade sound reproduction.

TEAC AX-505 Key Features:

• High-Performance Hypex Ncore Amplifier: Delivers 130W + 130W (4Ω, 1kHz) of clean power
• Balanced Input Capability: XLR inputs minimize external noise for pristine audio
• CCLC Headphone Amplifier Circuit: Ensures maximum linearity and reduced sonic coloration
• High Capacity Toroidal-Core Power Transformer: Provides stable power supply for enhanced audio clarity
• Passive Cooling Design: Operates silently without compromising performance
• Full-Metal Body: Offers rigidity and reduces mechanical vibration for optimal sound quality
• User-Friendly Interface: Machined aluminum volume knob and remote control for precise control

TEAC AX-505 Specifications:

• Amplifier Section:
  • Max Output Power: 130W + 130W (4Ω, 1kHz), 90W + 90W (8Ω, 1kHz)
  • Total Harmonic Distortion: 0.002% (8Ω, 1kHz, 12.5W)
  • Signal-to-Noise Ratio: 110dB (8Ω, 1kHz)
  • Frequency Response: 10Hz to 50kHz (-5dB, 8Ω, 1W)
• Input Section:
  • Balanced Input: XLR (max input level 3Vrms)
  • Unbalanced Input: RCA (gold-plated, max input level 2.5Vrms)
• Speaker Output:
  • Screw-Type Terminals: Compatible with AWG8 and Banana Plugs
  • Supported Impedance: 4Ω to 8Ω
• Headphone Output:
  • Connector: 1/8" (3.5mm) 4-Pole Stereo Jack
  • Type of Connection: Ground Separate
  • Max Output Power: 360mW + 360mW (32Ω loaded, THD 10%)
  • Frequency Response: 5Hz to 150kHz (-3dB)
• Power:
  • AC220 to 240V, 50Hz
  • Power Consumption: 110W (Standby Power: 0.1W or less)
• Dimensions and Weight:
  • Dimensions: 11.4" × 3.2" × 10.4" / 290 × 81.2 × 264mm (W × H × D)
  • Weight: 9.27 lbs. / 4.2kg

Ideal for both compact and full-scale hi-fi setups, the TEAC AX-505 sets a new standard in audio excellence. Elevate your listening experience with precision engineering and sophisticated design.
