OREI UHD-IPC230-CS 4K HDMI Extender Balun up to 230Ft
- Supports HDMI 2.0 & HDCP 2.2 compliance
- Transfers video signals at Zero latency

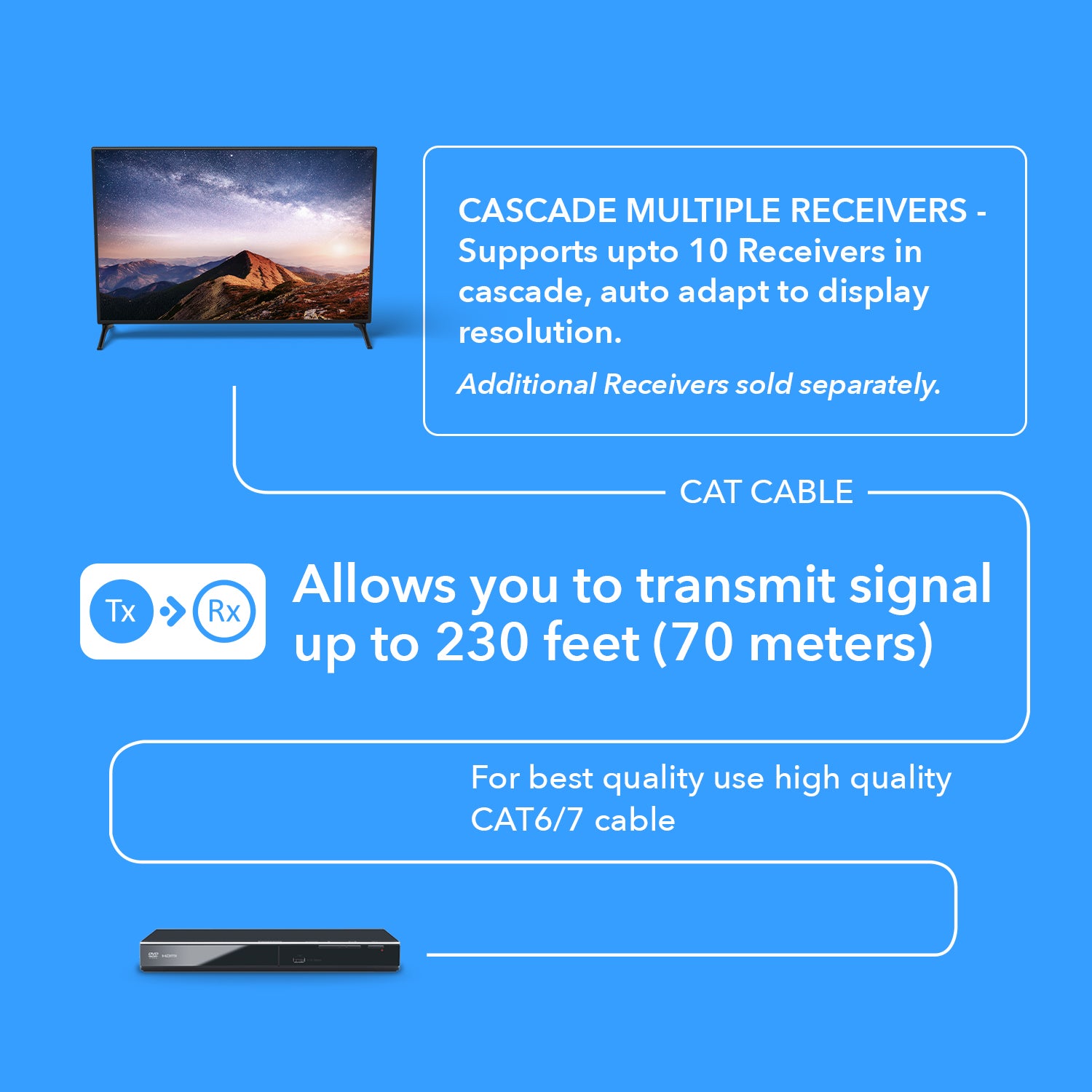

- Extends 4K@60Hz up to 230ft, distance decreases to 165ft when cascading receivers
- Supports up to 10 receivers in cascade
- Auto adapt to display resolution
- The receiver can extract the digital audio from the transmitter through S/PDIF port
- Supports Dolby TrueHD 7.1Ch, Dolby Digital 5.1Ch audio formats
- Supports HDR (YUV4:4:4), EDID pass back
- Transmitter support one HDMI loop-out port
- Supports bi-directional IR pass back function (20-60Hz)
- Anti-lightning, anti-surge, anti-static protection
This HDMI Extender - UHD-IPC230-CS with HDMI loop out port can extend 4K@60Hz 4:4:4 HDMI signal over 230 feet via shielded CAT6 cable.
It supports EDID passthrough, auto downscaling & cascading up to 10 receivers (distance decreases to 165ft when cascading receivers). It also supports bi-directional IR control which allows you to easily control your DVD player at TV side or control your TV at DVD player side when using this extender. Besides, the receiver can extract the digital audio from the transmitter through the S/PDIF port.
[shortdes]
- Supports up to 10 receivers in cascade
- Auto adapt to display resolution
- Support bi-directional IR, Dolby 5.1, 7.1Ch
[/shortdes]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
[tab]
AUDIO AND VIDEO
| Transmitter: | INPUT PORTS: | 1x HDMI Input | ||
| 1x IR Input | ||||
| OUTPUT PORTS: | 1x HDMI Output | |||
| 1x IR Out | ||||
| 1x RJ45 Out | ||||
| Receiver: | INPUT PORTS: | 1x IR Input | ||
| 1x RJ45 Input | ||||
| OUTPUT PORTS: | 1x IR Output | |||
| 1x RJ45 Output | ||||
| 1x Optical Output |
COMPLIANCES
| HDMI Compliance: | HDMI 2.0 |
| HDCP Compliance: | HDCP 2.2 |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | Up to 230 feet |
| Cascaded receivers: | Up to 165 feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | 480i@60Hz, 480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1600x900, 1024x768, 800x600 |
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
| CEC Function: | No |
| ARC Function: | No |
| USB KVM Function: | No |
| PoC/PoE Function: | No |
| IR Controller: | Bi-directional |
| Downscaler Function: | Yes |
| Over Network/IP Function: | No |
| HDBaseT Function: | No |
| RS-232 Function: | No |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
AUDIO OUTPUT
| HDMI Audio Formats: | LPCM/DTS-HD/DTS-Audio/Dolby TrueHD 7.1Ch/Dolby Digital 5.1Ch |
| SPDIF/Optical Audio Formats: | Up to 5.1Ch. |
SIGNALS
| TMDS Signals: | 0.7-1.2Vp-p(TMDS) |
| DDC Signals: | 5Vp-p(TTL) |
DIMENSIONS & WEIGHT
| Height: | 26.2mm | |
| Width: | 99mm | |
| Depth: | 106mm | |
| Weight: | Transmitter: | 210g |
| Receiver: | 210g |
PROTECTION
| Operation Temperature: | -20 ~ 60°C |
| Storage temperature: | -30 ~ 70°C |
| Relative Humidity: | 0 ~ 90% RH |
| Electrostatic Protection of the whole Machine: | 1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 |
RJ-45 CONNECTOR Type
| WE/SS 8P8C |
POWER
| Power Consumption (Max): | Transmitter: | 4W |
| Receiver: | 4W | |
| Power Supply: | DC 5V/2A |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | Aluminium Alloy Material + Crystal Panel |
| Treatment Process: | Grit Blast |
| Input Cable Length: | <=8m(AWG24) |
| Output Cable Length: | <=8m(AWG24) |
PACKAGE CONTENTS
| 1x HDMI Transmitter |
| 1x HDMI Receiver |
| 1x IR Blaster Extension Cable |
| 1x IR Receiver Extension Cable |
| 8x Mounting Brackets |
| 18x Screw |
| 2x DC5V/2A Power Supply |
| 1x User Manual |
WARRANTY
| 1 - Year Manufacturer's Warranty |
