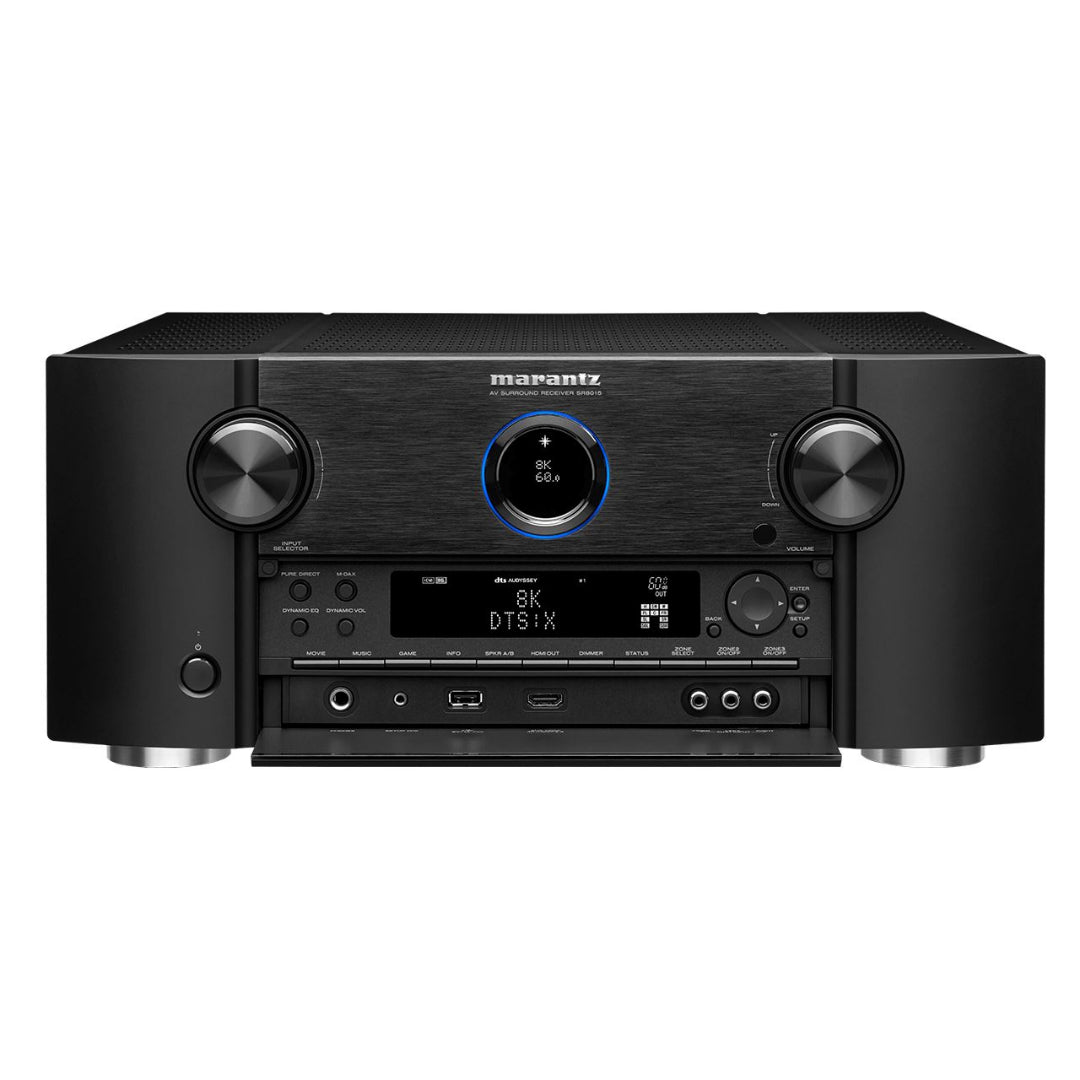

Marantz SR8015 - The Most Musical Sound

Now experience exquisitely detailed home cinema with the 11.2 channel 8K UHD AV receiver. Totally immerse yourself in movies and TV with elevated, Hi-Res surround sound formatting from Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X, IMAX Enhanced and Auro-3D. Stream music from leading music services and control the SR8015 with voice control compatibility via Amazon Alexa, Google Assistant, Apple Siri and Josh.ai. The SR8015 features the latest HDMI technologies such as 8K/60Hz pass-through or upscaling, various HDR format support including HDR10, HDR10+, Dolby Vision, Hybrid Log-Gamma (HLG) and Dynamic HDR, as well as the latest gaming technologies such as 4K/120Hz pass-through, Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM). Extensively tuned by world-renowned sound acousticians at the most state-of-the-art facilities, the new Marantz SR8015 leverages decades of experience in Hi-Fi to drive exceptional, audiophile-quality surround sound for all your entertainment.

High-performance Discrete 11-Channel Amplifier

Featuring discrete high-current power amplifiers on all channels, the SR8015 delivers 140W of power per channel (8 Ohm, 20Hz-20kHz, THD: 0.05%, 2ch drive). With low impedance driver capability, it offers operational stability with a wide range of speakers for balanced, quality sound. Auto Eco Mode adjusts power output to speakers based on volume level and on-screen eco meter, providing power consumption reduction in real-time without sacrificing superb Marantz sound.

Advanced 8K HDMI Connectivity with eARC

The new Marantz SR8015 includes eight HDMI inputs and 3 outputs for all your favorite sources. One dedicated 8K HDMI input supports 8K/60Hz and 4K/120Hz pass-through capability, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, HDR10, 21:9 video, 3D and BT.2020 pass-through. HDCP 2.3, the latest in copy protection standards, is supported on all HDMI inputs. Also, the SR8015 allows you to take your home entertainment to the next level with HDR10+, Dynamic HDR, ALLM, VRR, QMS and QFT support. The video processor is also capable of upscaling your native video source up to 8K quality. The SR8015 also features HDMI eARC capability, which supports 3D audio formats like Dolby Atmos and DTS:X in masterful quality from your TV source. Your HDMI inputs automatically rename themselves with information provided by the source when available to further your ease of use.

Dolby Atmos and Dolby Atmos Height Virtualization Technology

Enjoy a 5.1 or 7.1 surround sound speaker system and four additional overhead speakers or four Dolby Atmos elevation speakers for the ultimate home theater experience - including Dolby Surround upmixer for legacy content. For those without in-ceiling speakers, Dolby Atmos Height Virtualization Technology takes advantage of Dolby’s deep understanding of human audio perception to create the sensation of overhead sound from listener-level speakers.

DTS:X and DTS Virtual:X

DTS:X immersive audio content places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X offers improved immersion and heightened realism in all your favorite movies. DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 7.1, 5.1 or 2.1 speaker arrangement.

DTS:X Pro

With future firmware update, enjoy your entertainment decoded with the latest in DTS 3D audio technology. Enjoy up to 13.2 channels of audio processing with DTS:X Pro to enjoy a full surround sound in exquisite detail. You will need an additional external stereo amplifier connected to the SR8015 to drive an additional 2 channels.

Marantz SR8015 Specifications

Multichannel Surround

• DTS HD Master / DTS:X / DTS:X Pro: Yes / Yes / Yes (update)
• DTS Neo:X / DTS Neural:X: No / Yes
• DTS Virtual:X: Yes
• IMAX Enhanced: Yes
• Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization: Yes / Yes / Yes
• Dolby ProLogic Ilz / Dolby Surround: No / Yes
• Auro 3D: Yes
• Audyssey DSX: No
• Multichannel Stereo: Yes
• Max Number of Processing (Preamp) Channels: 13.2

Sound Enhancements

• Discrete Power Amplifier: Yes
• Copper Plated Chassis: Yes
• Power Transformer: Toroidal / EI: Toroidal
• Current Feedback Topology: Yes
• Hyper Dynamic Amplifier Modules (HDAM): Yes
• Pure Direct: Yes
• Gold plated RCA terminals: Yes
• Clock Jitter Reducer: Yes
• Audyssey: MultEQ XT32
• Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
• Audyssey LFC: Yes
• Audyssey APP Support: Yes
• Compressed Audio Enhancer: MDAX2: Yes

Network

• HEOS Multi-room and Streaming: Yes
• Bluetooth Re-transmit for Bluetooth headphones: Yes
• Alexa / Google Voice Assistant / Apple HomePod: Yes / Yes / Yes
• Network Audio Sharing: Yes
• Lossy Formats: MP3 / WMA / AAC: Yes / Yes / Yes
• Lossless formats FLAC / ALAC / WAV: Yes / Yes / Yes
• Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
• DSD Audio Streaming: Yes (2.8/5.6MHz)
• FLAC HD 192/24: Yes
• WAV 192/24: Yes
• ALAC 192/24: Yes
• Gapless Playback: Yes (FLAC, WAV, ALAC, DSD)
• AirPlay Audio Streaming: Yes (AirPlay2)
• Internet radio: Yes (TuneIn)
• Spotify: Yes (connect)
• Pandora: Yes
• SiriusXM: Yes
• Compatible with Remote APP for Smart Phones: Marantz 2016 AVR Remote
• Compatible with Remote APP for Tablets: Android / iOS / Amazon Kindle
• Ethernet Ports: Yes
• Wi-Fi: Yes
• Bluetooth: Yes

HDMI

• HDMI Inputs: Back / Front: 7 / 1
• HDCP2.3 support: Yes
• HDMI Outputs: Main / Zone: 2 / 1
• Video Conversion Analog -> HDMI: Yes
• Analog to HDMI Scaling: 480i/576i up to 8K 60/50
• HDMI to HDMI Scaling: up to 8K 60/50
• GUI Overlay on HDMI: Yes
• HDMI 2.1: 8K/60Hz / 4K/120Hz: Yes / Yes
• HDMI 2.0: 3D / 4K / CEC / ARC: Yes / Yes / Yes / Yes / No
• Enhanced ARC: Yes
• HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes (update)
• ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
• Variable Refresh Rate / Quick Flame Transport / Quick Media Switching: Yes (update) / Yes (update) / Yes (update)
• 3D Signal Pass-Through: Yes
• 8K signal pass-through / scaling / GUI overlay: Yes / Yes / Yes
• 4K Signal Pass-Through / Scaling / GUI Overlay: Yes / Yes / Yes
• HDMI Pass-Through in Standby Mode: Yes
• Picture Adjust / Noise Reduction: Yes / Yes
• CEC: Yes
• DSD Audio Capability: Yes
• Audio Return Channel: Yes
• Auto LipSync: Yes

Multi-Room / CI

• HEOS Multi-Room Integrated: Yes
• HEOS Link Compatibility: IR/ IP: Yes / Yes
• Multi-Room Zones: 3
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
• Zone Audio Output: Speaker / Preout: Yes / Yes
• Zone HDMI Output from HDMI Source: Yes
• IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Output: 2
• HDMI Diagnostics: Yes

Others

• Auto Speaker Setup by Microphone: Audyssey MultEQ XT32
• FL Display: 2 lines + port hole
• Graphic User Interface - GUI: Advanced
• ISF Certification: Yes
• GUI Languages: 3
• Setup Assistant: Yes
• Smart Select: Yes
• Firmware Update by Network / USB: Yes / Yes
• Variable Cross Over: Yes
• Optimized Bass Redirection: Yes
• Bass Sync: Yes
• ECO Mode: Yes
• Auto Power off: Yes
• Sleep / Timer: Yes

Inputs/Outputs

• Composite In / Out: 4+1 / 2
• Component In / Out: 3 / 1
• HDMI In / Out: 7+1 / 3
• Multi-Room Video Out: Video / HDMI: Yes / Yes
• Analog In / Out: 6+1 / No
• Phono (MM) In: Yes
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: Analog / Digital: 2 / No
• Multichannel Pre Out: Yes (11.2)
• Subwoofer Out: 2 (independent)
• 7.1 Multichannel Input: Yes
• Speaker Terminal: Gold Plated Screw / Regular Screw: Yes / No
• Number of Speaker Terminals: 13
• Speaker A / B: assignable
• Bi-Amp Drive: assignable
• Multi-Room Speaker Terminal: assignable
• Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: Yes / Yes / No / Yes / Yes
• USB Audio / Made for iPod / Made for iPhone: Yes / No / No
• AM/FM Tuner: Yes

Specifications

• Number of power amps: 11
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive):
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 140 W
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 175 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 250 W
• 70% Guarantee: Yes

General

• Metal Front Panel: Yes
• System Remote Control: RC045SR
• Pre-Programmed / Learnable / LCD Display: Yes / Yes / Yes
• Power Consumption in W: 780
• Power Consumption No-Sound (ECO on/off) in W: 65 W / 110 W
• Standby Consumption in W: 0.2
• CEC Standby Consumption in W: 0.5
• Network Standby Consumption in W: 3.5
• Network Control On Consumption in W: (TBD)

Maximum Dimensions

• Antenna: Horizontal: (W x D x H) in inches
• Antenna: Vertical: (W x D x H) in inches
• W/o Antenna: (W x D x H) in inches: 17.3 x 18.1 x 7.3
• Weight in lbs.: 38.4
