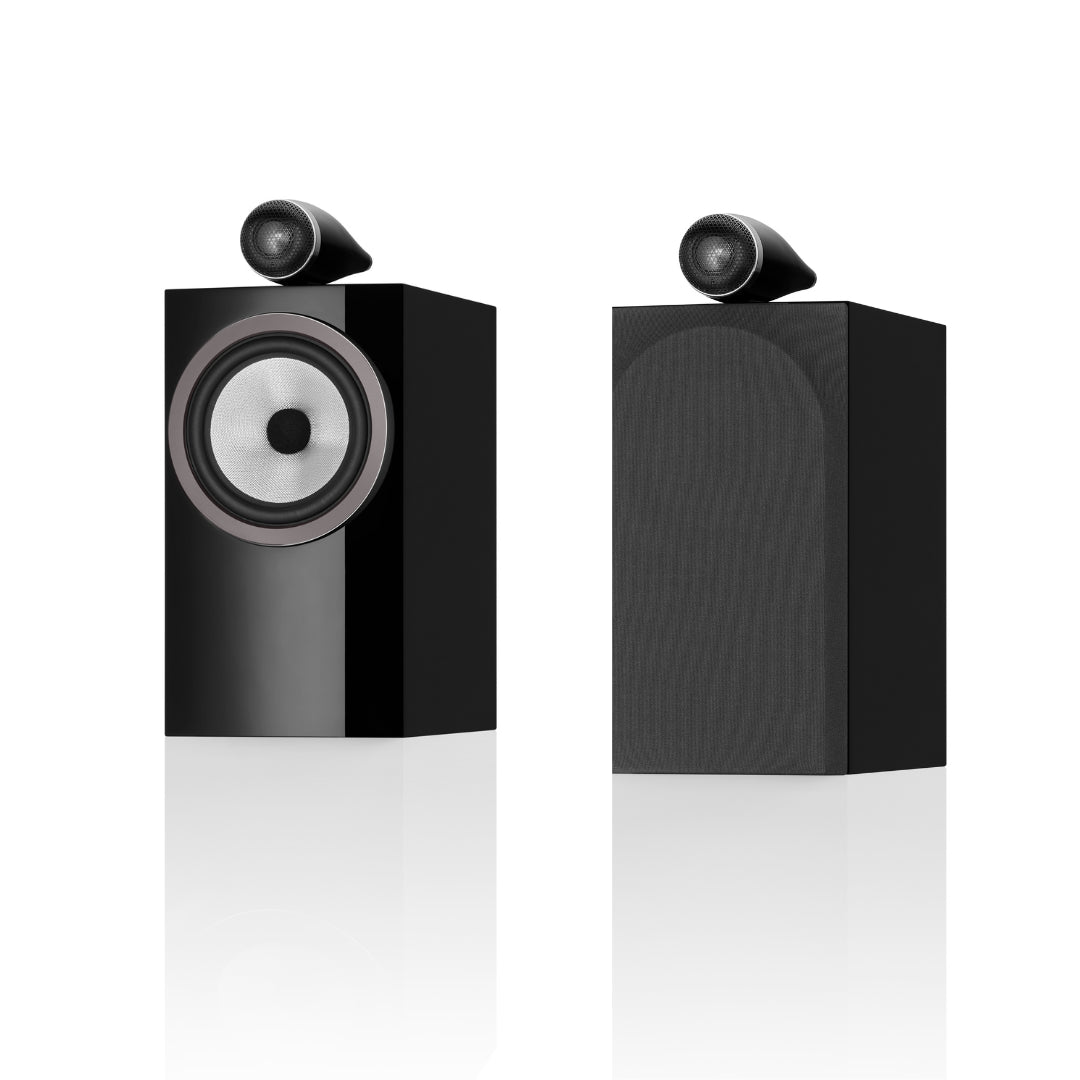

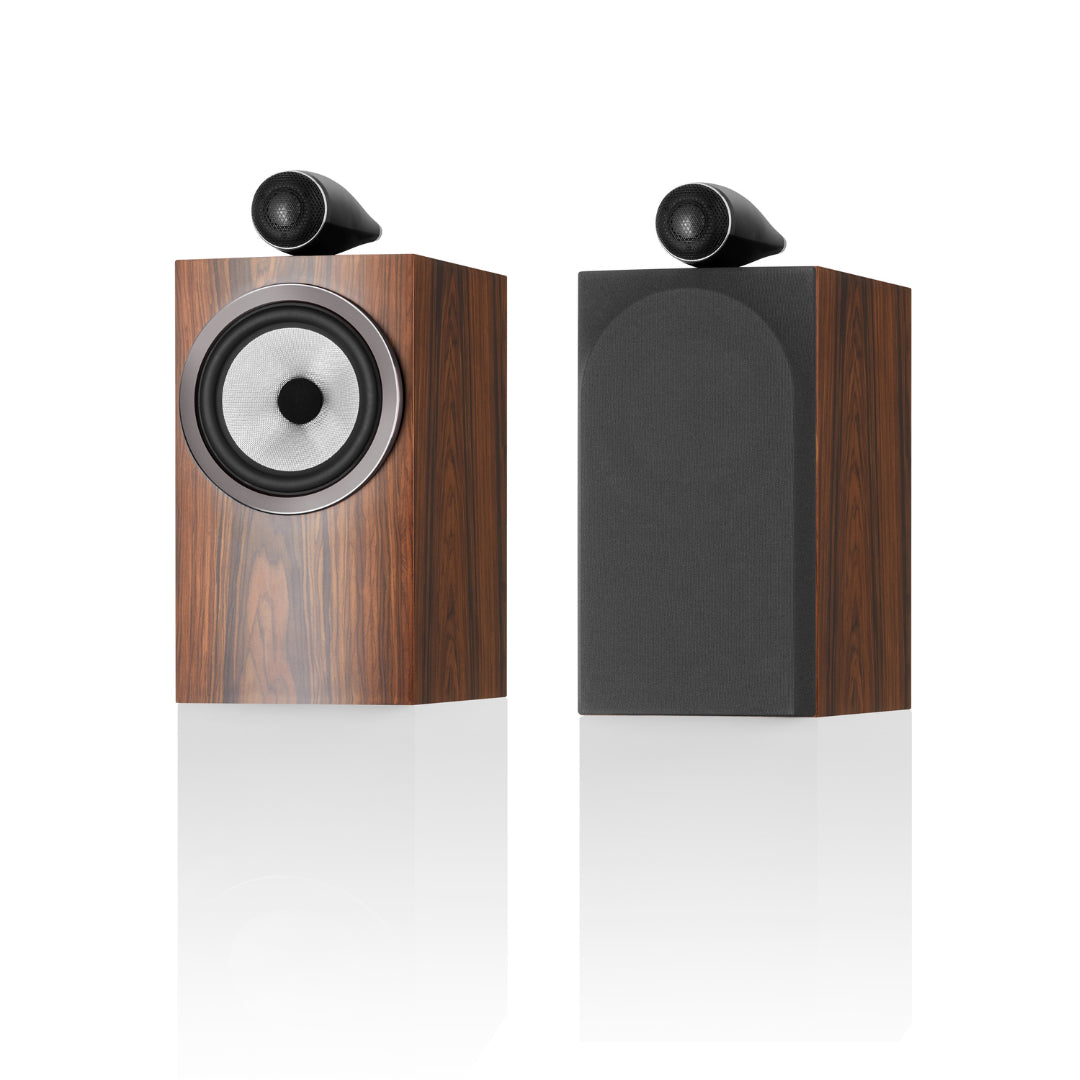

Uncover Sonic Brilliance with the 705 S3 Two-Way Speaker

Immerse yourself in unparalleled audio precision with the 705 S3, a speaker that elevates your music experience by capturing subtle nuances often overlooked by others. Boasting high-performance features inspired by the renowned 800 Series Diamond, this uncompromising two-way speaker is designed to redefine your auditory senses.

A Sanctuary for High Frequencies

Our 700 Series introduces the latest iteration of the Solid Body Tweeter-on-Top housing, setting the stage for a captivating auditory journey. The enhanced design, featuring an elongated form with an extended tube-loading system, produces a remarkably open and free sound, particularly emphasizing high frequencies. Crafted from a single block of resilient aluminum, the meticulously decoupled housing resists resonance, ensuring an immersive audio experience.

Experience Sharper Detail

At the heart of the 705 S3 lies the Carbon Dome tweeters, meticulously engineered for the 700 Series. Surpassing the capabilities of the aluminum double dome tweeter, these tweeters elevate the breakup threshold to an impressive 47kHz. The result is unparalleled pinpoint imaging accuracy and detail, delivering sharper, more defined musical nuances.

Truly Amazing Sound

The Continuum™ cone, featuring composite construction, transforms the 705 S3 into an auditory marvel. By avoiding abrupt transitions in behavior that can hinder conventional drive units, this speaker offers a more open, neutral performance. Revel in the precision and transparency as voices and instruments come to life with truly amazing sound.

Elevate your music experience with the 705 S3 – where sonic brilliance meets uncompromising design.

Specifications

Size & Weight

• Net Weight: 9.58 kg (21.1 lb)

Dimensions

• Height:
  • Cabinet only: 345 mm (13.6 in)
  • Including tweeter: 413 mm (16.3 in)
• Width:
  • Cabinet only: 192 mm (7.6 in)
• Depth:
  • Cabinet only: 297 mm (11.7 in)
  • Including grille and terminals: 337 mm (13.3 in)

Technical Details

• Drive Units:
  • 1x Ø25mm (1 in) Decoupled Carbon Dome high-frequency
  • 1x Ø165mm (6.5 in) Continuum cone bass/midrange
• Frequency Range: 45Hz and 33kHz
• Frequency Response: 50Hz - 28kHz ±3dB
• Harmonic Distortion:
  • 2nd and 3rd harmonics (90dB, 1m on axis):
    • <1% 100Hz - 22kHz
    • <0.5% 150Hz - 20kHz
• Nominal Impedance: 8Ω (minimum 3.7Ω)
• Recommended Amplifier Power: 30W - 120W into 8Ω on unclipped program
• Sensitivity: 88dB SPL (2.83Vrms, 1m)

Technical Features

• Decoupled Carbon Dome Tweeter
• Solid Body Tweeter-on-Top
• Continuum™ Cone Bass/Midrange
• Flowport™

Description

• 2-way vented-box system

Max Recommended Cable Impedance

• 0.1Ω
