Description
OREI WHD-330-K-B: Wireless HDMI extender Upto 300ft with Low Latency
Key Features:
- Extend Full 1080p Signal upto 330 Feet Wirelessly
- Transmit one HDMI HD source signal to one HDMI HD display via wireless technology
- One-way IR control
- Video resolution upto 1080p@60Hz
- HDMI wireless transmission distance up to 330ft/100m (In an open environment without Wi-Fi interference)
- Support point to point wireless connection: HDMI 480i@60Hz, 480p@60Hz, 576i@60Hz, 576@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
- Supported audio formats: LPCM 2.0CH 32KHz/44.1KHz/48KHz
- Adopt H.265 high performance codec technology
- Wireless Frequency Band 5G near no Interference, perfect for extra TV around the House
- Will not work if there is Wifi Router Nearby
- Plug and Play Setup without any Software Installation
- Compact design for easy and flexible installation
- This Device is not mean for real-time shooting or PC operation. Good for personal Home use
OREI WHD-330-K-B Wireless HDMI Extender extend HDMI signal up to 330ft/100 meters. This product is based on H.265 standard solution for transmitting one HD source signal to one HD display. This HDMI wireless extender includes transmitter unit and receiver unit and enables you to transmit and extend HDMI signal up to 100 meters wirelessly, it has strong anti-interference ability by running at 5G operation frequency, Low Latency: 120 Ms and supports point to point connection. It is really a very good solution for meeting, conference, home entertainment and multi-media education etc.
Supports up to 1080p signal extension. Supports point to point wireless connection including: HDMI 480i@60HZ, 480p@60HZ, 576i@60HZ, 576@50HZ, 720p@50/60HZ, 1080i@50/60HZ, 1080p50/60HZ.
It offers high quality configurable, low-bandwidth H.265 compression video and supports resolution up to 1080p@60Hz. This wireless extender is designed special to transmit high definition video & audio within one environment.
We remastered it with strong anti-interference ability by running at 5G operation frequency. Enjoy your entertainment! Plug and play. We made things super-easy for you by crafting a plug & play setup without any software installation.
Perfect for streaming. This HDMI wireless extender is ideal to stream content from Laptop, PC, Cable, Netflix, YouTube, PS4 to HDTV/Projector and it features IR Support - one-way IR control. It is really a very good solution for meeting, conference, home entertainment and multi-media education.
Note :
1 ) Transmission will not go through Wall. Direct Signal Only.
2) This Device is not meant for real-time gaming or PC operation.
[shortdes]
- Supports 1080p@60Hz up to 330 feet wirelessly
- Less than 120ms latency
- Supports one-way IR Remote Control
AUDIO AND VIDEO

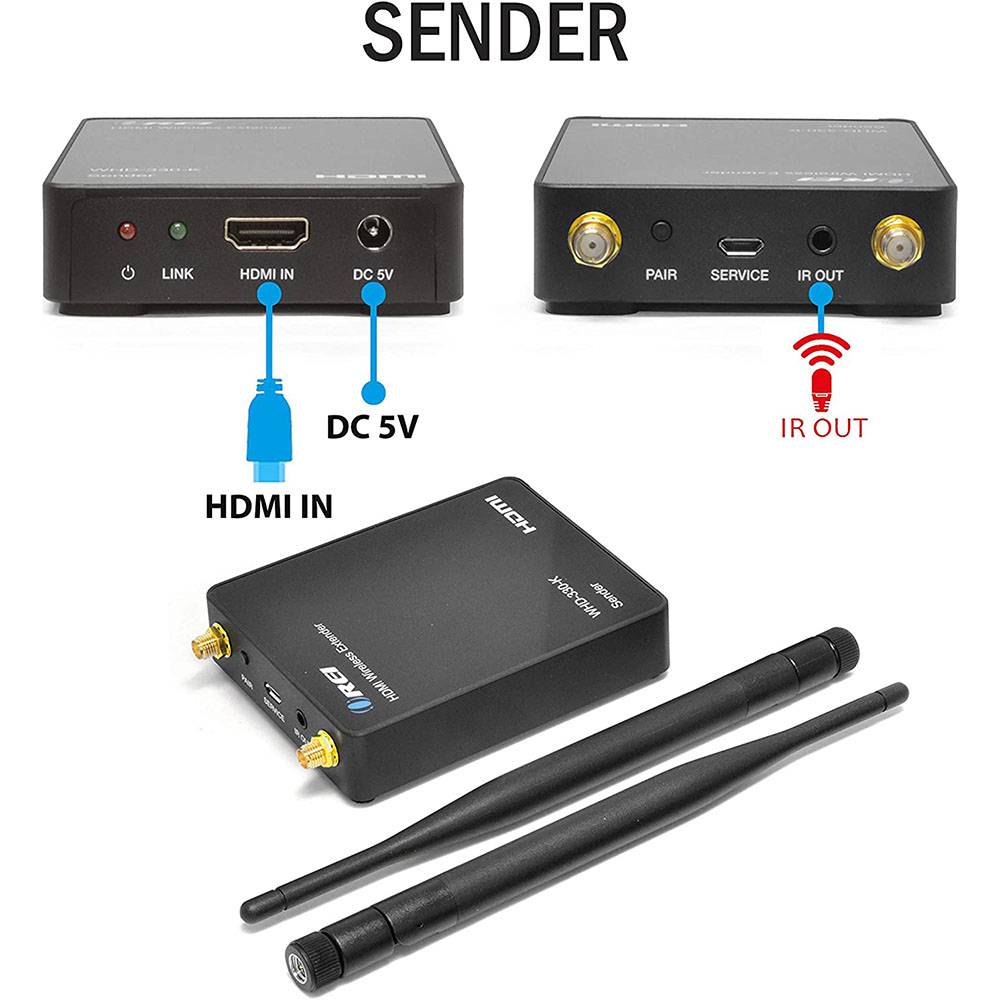

| Transmitter: | INPUT PORTS: | 1x HDMI Type A [19-pin female] |
| OUTPUT PORTS: | 1x IR OUT [3.5mm Stereo Minijack] | |
| 2x WiFi OUT [WiFi antenna] | ||
| Control Ports: | 1x SERVICE [Micro USB, Update port] | |
| Receiver: | INPUT PORTS: | 1x IR IN [3.5mm Stereo Minijack] |
| 2x WiFi IN [WiFi antenna] | ||
| OUTPUT PORTS: | 1x HDMI Type A [19-pin female] | |
| Control Ports: | 1x SERVICE [Micro USB, Update port] |
COMPLIANCES
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| DVI Compliance: | DVI 1.0 |
EXTENDING DISTANCE
| 1080p@60Hz: | 330 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 6.75 Gbps |
| Video Resolutions: | 1080p, 1080i, 720p, 720i, 480p, 480i, 1920×1080@60Hz，1920×1200@60Hz |
| Color Space: | RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color Depth: | 8/10/12-bit (1080P60Hz) |
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
| PoC/PoE Function: | No |
| IR Controller: | With one-way IR control |
AUDIO OUTPUT
| HDMI Audio Formats: | LPCM 2.0CH 32KHz/44.1KHz/48KHz |
SIGNALS
| TMDS Signals: | 3V |
| DDC Signals: | 5V |
WIRELESS PERFORMANCE & INTERFACE
| Transmission Type: | Wireless |
| Transfer Method: | Wifi 5.8G |
| Latency: | 120ms-150ms |
| Transmission Distance: | 200m(328 feet) for 1080p |
| Maximun Pixel Clock: | 165MHz |
DIMENSIONS & WEIGHT
| Height: | 21mm |
| Width: | 76mm |
| Depth: | 98mm |
| Weight: | 100g |
PROTECTION
| Operation Temperature: | 32 - 104°F / 0 - 40°C |
| Storage temperature: | -4 - 140°F / -20 - 60°C |
| Relative Humidity: | 20 - 90% RH (no condensation) |
| ESD Protection: | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Electrostatic Protection of the whole Machine: | ±8KV(Air),±4KV(Contact) |
POWER
| Power Consumption (Max): | Transmitter: | 2.25W | |||
| Receiver: | 1.8W | ||||
| Power Supply | Input: | AC100 - 240V 50/60Hz | |||
| Output: | DC 5V/1A |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | Plastic Enclosure |
| Processing Technology: | Shell bending and punching |
| Finishing: | Shell powder spraying process |
PACKAGE CONTENTS
| 1x Wireless HDMI Transmitter |
| 1x Wireless HDMI Receiver |
| 1x IR Blaster cable (1.5 meters) |
| 1x 20~60KHz IR Receiver cable (1.5 meters) |
| 4x 5G WiFi Antenna |
| 2x 5V/1A Power Adapter |
| 1x User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
- Please try replacing your current HDMI cables with High-Quality HDMI cables.
- Please make sure that you dont have any other wireless devices such as wifi router nearby this extender. If you have a wifi router, then please try moving the router away as the wireless signals interfears with each other & causing this issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
Here's a quick overview of the IR connection on our extenders:
