MoFi StudioDAC Digital-to-Analog Converter

• Designed in collaboration with Mytek Audio engineer Michal Jurewicz, made in the USA, and expertly voiced by MoFi Electronics.
• Supports DSD, DXD, and full MQA decoding and rendering for high-resolution, authentic audio playback.
• Features a low-noise precision clock generator to minimize jitter and ensure a pure, uncolored sound experience.
• Equipped with an Apodizing Filter to eliminate harsh high-frequency artifacts and pre-ringing, delivering a natural analog-like sound.

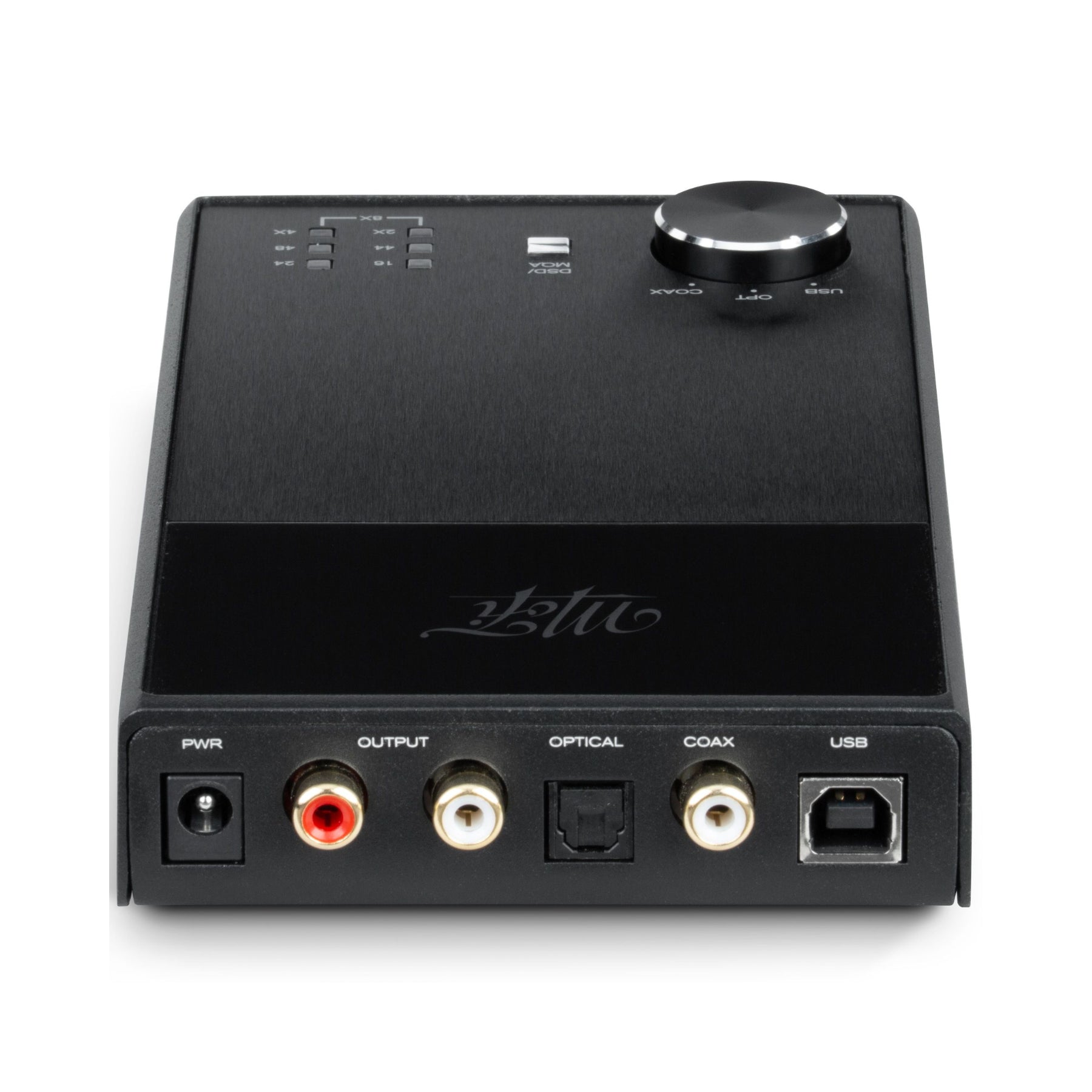

• Multiple digital inputs including USB 2.0, S/PDIF, and Toslink for seamless integration with streamers, computers, and other audio sources.

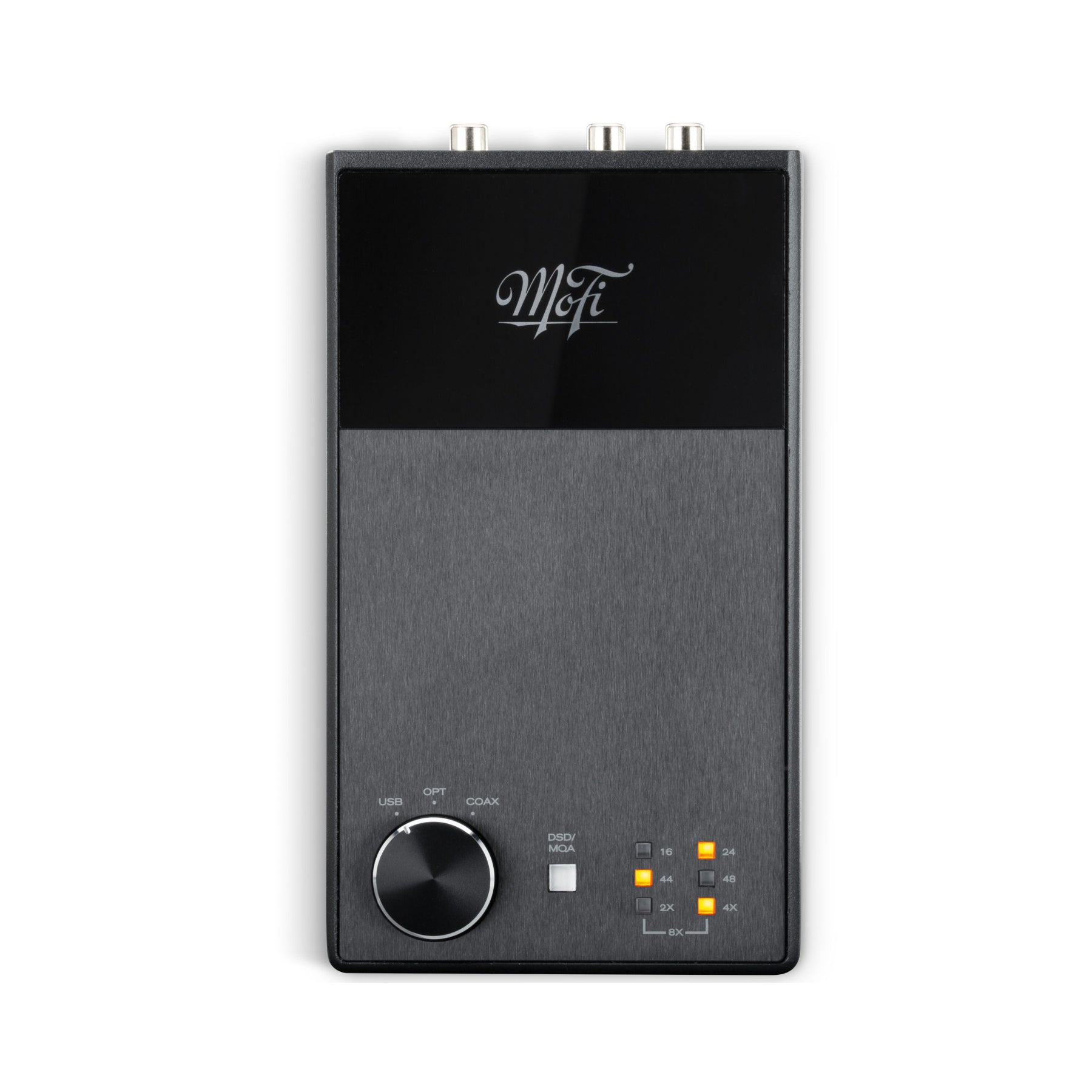

• LED indicators display incoming format and resolution, confirming bit-perfect playback for optimized performance.
• Includes an outboard power supply for reduced noise, improved sound quality, and future upgrade potential.
• Crafted with meticulous attention to detail, the StudioDAC embodies uncompromised audio engineering and superior build quality.

MoFi StudioDAC Specifications:

Digital Inputs: 1x Coax (S/PDIF), 1x Optical (TOSlink), USB B

D/A Converter: ESS9038Q2M

Sampling Rates: 32/44.1/48/88.2/96/176.2/192/352.8/384 kHz

DSD Support (USB): DSD64, DSD128

MQA Support: Full MQA decode + render by hardware

Bit Depth (USB): 16-32 bits

Bit Depth (COAX, Toslink): 16-24 bits

Frequency Response: 20Hz - 20kHz +/- 0.2db

Analog Out: 1x Fixed Level Out (RCA)

Output Voltage: 2.5 VRMS @ 0dbfs

THD+N: <0.002% 20-20Khz

Dynamic Range:115dB (A-weighted)

SNR: >114dB (A-weighted)

Crosstalk @ 10KHZ: -110dB

Output Impedance: 75 Ohms (unbalanced)

Linearity: <+/-0.25db @ -110db

Power Supply (external 100-240VAC): +12 Vdc 3.3 Amp center positive

Output Connector (external 100-240VAC): 5.5/2.5mm barrel connecto
