Bowers & Wilkins CCM 663SR In-Ceiling Speaker: Discreet, High-Performance Audio

Experience exceptional sound quality without compromising on aesthetics with the Bowers & Wilkins CCM 663SR In-Ceiling Speaker. This high-fidelity speaker features a 2-way dual channel system with a 1" soft dome tweeter and a 6" Blue Kevlar cone bass/midrange driver for clear, accurate sound reproduction.

Kevlar Construction for Exceptional Sound

The CCM 663SR utilizes a woven Kevlar cone, a material known for its strength and minimal flex, resulting in reduced distortion and a clear midrange. This Kevlar construction is a signature feature found in many of Bowers & Wilkins' high-performance speakers, ensuring the CCM 663SR delivers the same level of quality in an in-ceiling design.

Stereo or Surround Sound at the Flip of a Switch

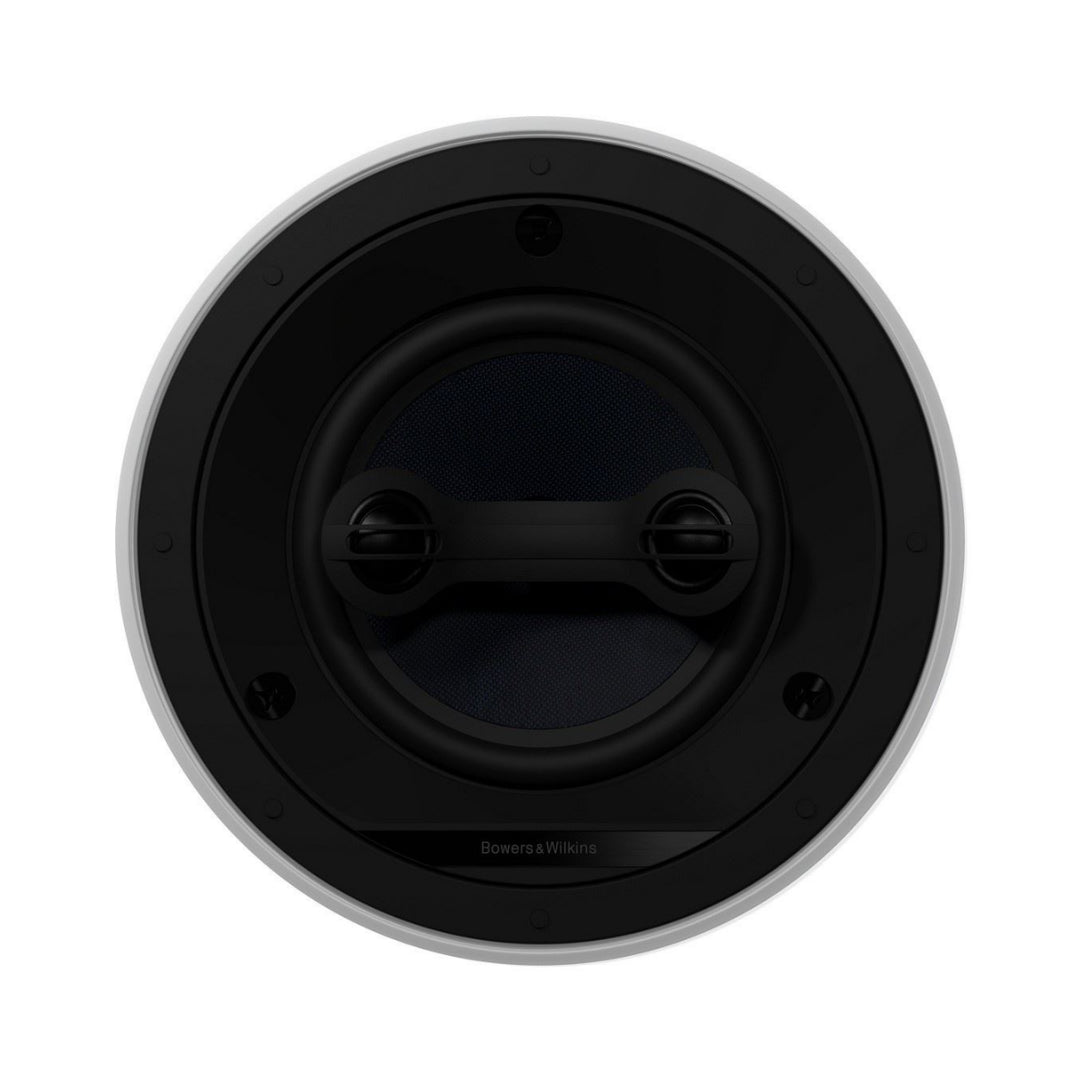

The CCM 663SR boasts innovative design with two built-in tweeters and a twin voice coil bass/midrange driver. This configuration cleverly combines the stereo signal to deliver exceptional two-channel sound from a single speaker. Additionally, a convenient two-position stereo/surround switch allows you to effortlessly switch the speaker to function perfectly as part of a surround sound system.

Ideal for a Variety of Applications

The Bowers & Wilkins CCM 663SR In-Ceiling Speaker is perfect for a variety of applications, including:

• Home Theater Systems: As a surround sound speaker for an immersive home theater experience.
• Stereo Sound in Limited Space: Delivering rich, detailed stereo sound in rooms where installing traditional speakers might be challenging.

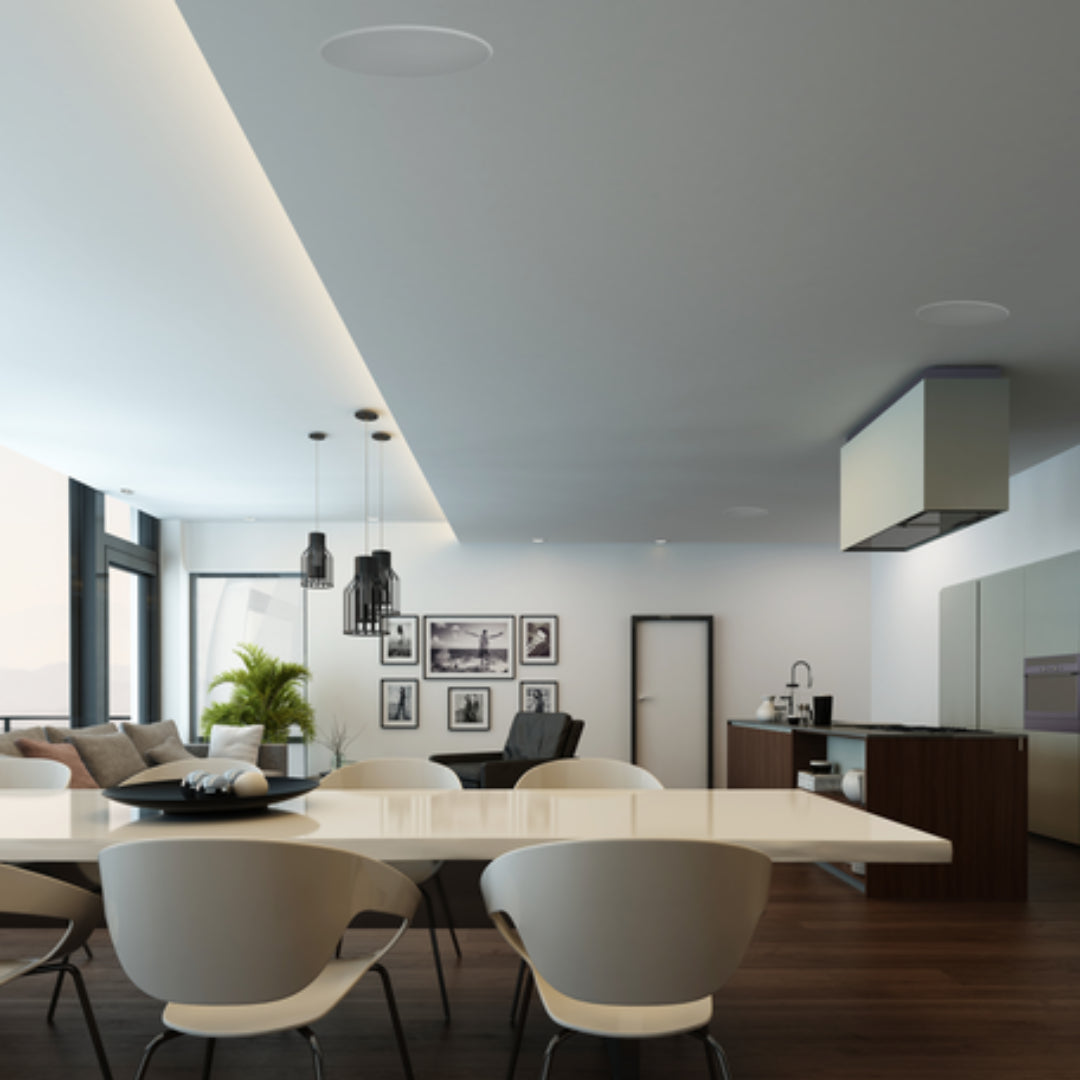

• Discreet Audio Solutions: Providing high-quality audio that seamlessly blends into the background for a more aesthetically-pleasing design.

Bowers & Wilkins CCM 663SR Specifications

Speaker System

• Type: 2-channel in-ceiling speaker system
• Suitable for: Stereo sound or surround sound channel

Audio Performance

• Bass response: Down to 48Hz
• Treble response: Up to 30kHz
• Recommended amplifier power: 25-80 watts per channel

Speaker Drivers

• Tweeters: Two 1-inch (20mm) soft dome tweeters
• Woofer: One 6-inch (150mm) blue Aramid fiber cone woofer

Sensitivity

• 83 dB (per channel)
• 89 dB (both channels driven)

Impedance

• 8 ohms nominal (4 ohms minimum) per channel

Dimensions

• Cut-out diameter: 8 inches (202mm)
• Mounting depth: 5.2 inches (133mm)
• Protrusion from ceiling: 0.2 inches (4mm)

Installation

• Pre-mount kit: C6
• Back box: 6C (may be sold separately)
