Description
OREI UHDS-1016: 4K 1x16 HDMI Splitter with Advanced EDID management
- HDMI 2.0b & HDCP 2.2 Compliant.
- 18Gbps video Bandwidth.
- Video resolution up to 4K@60Hz and 2K@60Hz
- Support for audio formats like DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/ Dolby-AC3/DSD
- HDR/10/10+, Dolby Vision and HLG pass-through.
- Advanced EDID management.
- Compact and robust design, perfect for displaying mirrored content on multiple screens.

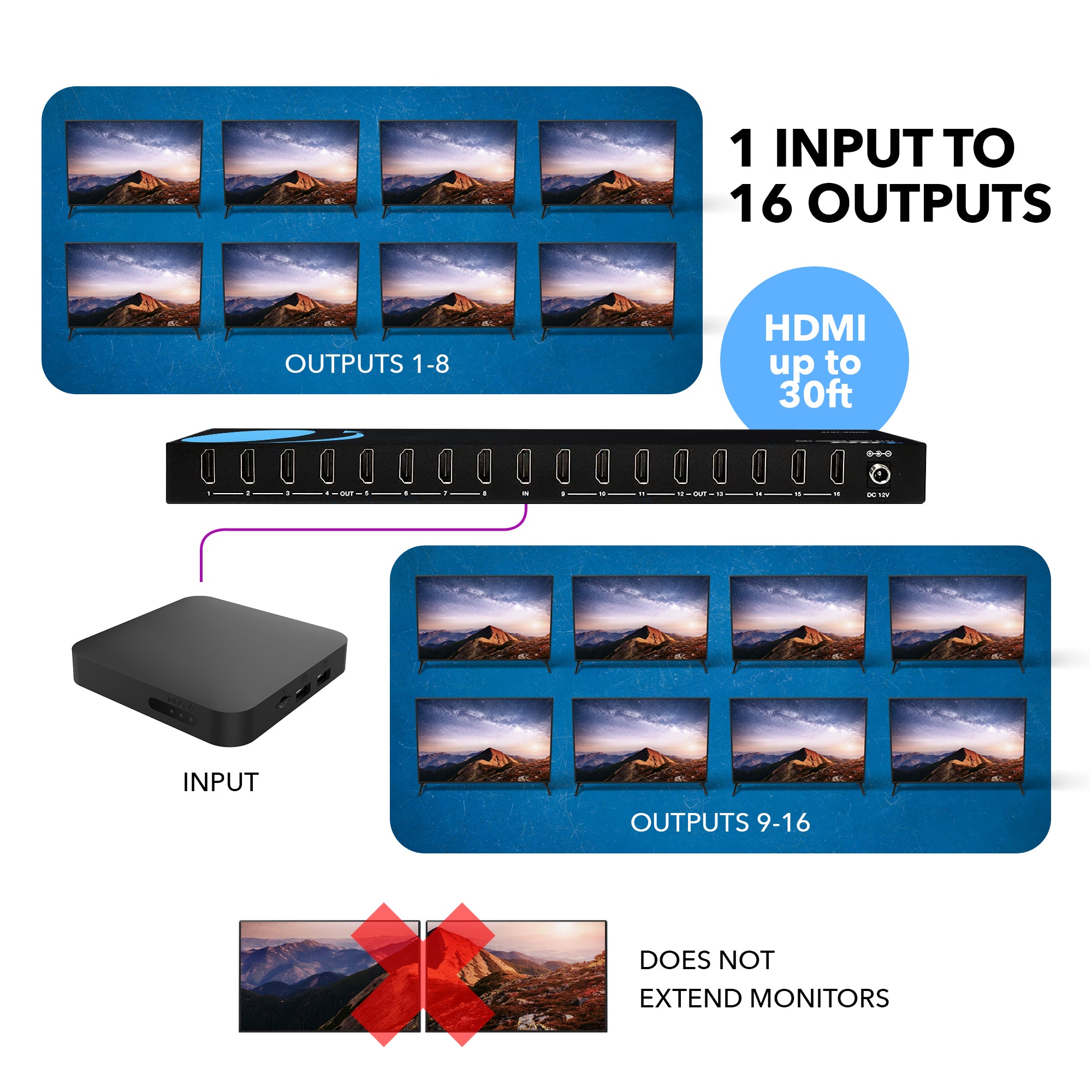

The UHDS-1016 is a 4K HDMI Splitter that enables you to connect one media source to 16 displays simultaneously, with mirrored content on all screens. It supports resolutions up to 4K at 60Hz and 2K@60Hz and is compliant with HDMI 2.0 and HDCP 2.2 standards. This device is compatible with various HDR formats, including HDR, HDR10, and HDR10+, and offers pass-through for HLG and Dolby Vision, delivering enhanced clarity and superior visuals. Additionally, its Advanced EDID management feature provides greater control over audio and video quality. The UHDS-1016 is perfect for both commercial and personal applications.
[summary]
- 1 in 16 out HDMI splitter
- Resolutions up to 4K@60Hz and 2K@60Hz
- Advanced EDID management
[/summary]
[tab]
CONNECTIVITY
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 16 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × SERVICE [Micro-USB, Update port] |
PACKAGE CONTENTS
| 1x UHDS-1016 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1: | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 30 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz and 2K@60Hz |
ADDITIONAL FEATURES
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | No |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |
AUDIO SUPPORT
| HDMI Audio Formats: | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, DolbyTrueHD, DTS-HD |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
POWER
| Power Consumption: | 12W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| DC 12V/2.5A |
DIMENSIONS & WEIGHT
| Length: | 300mm/11.81in | |
| Width: | 100mm/3.94in | |
| Height: | 28mm/1.1in | |
| Weight: | 900g/1.98lb |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
[/tab1]
[shortdes]
- 1 in 16 out HDMI splitter
- Resolutions up to 4K@60Hz 4:4:4
- Advanced EDID management
[/shortdes]
