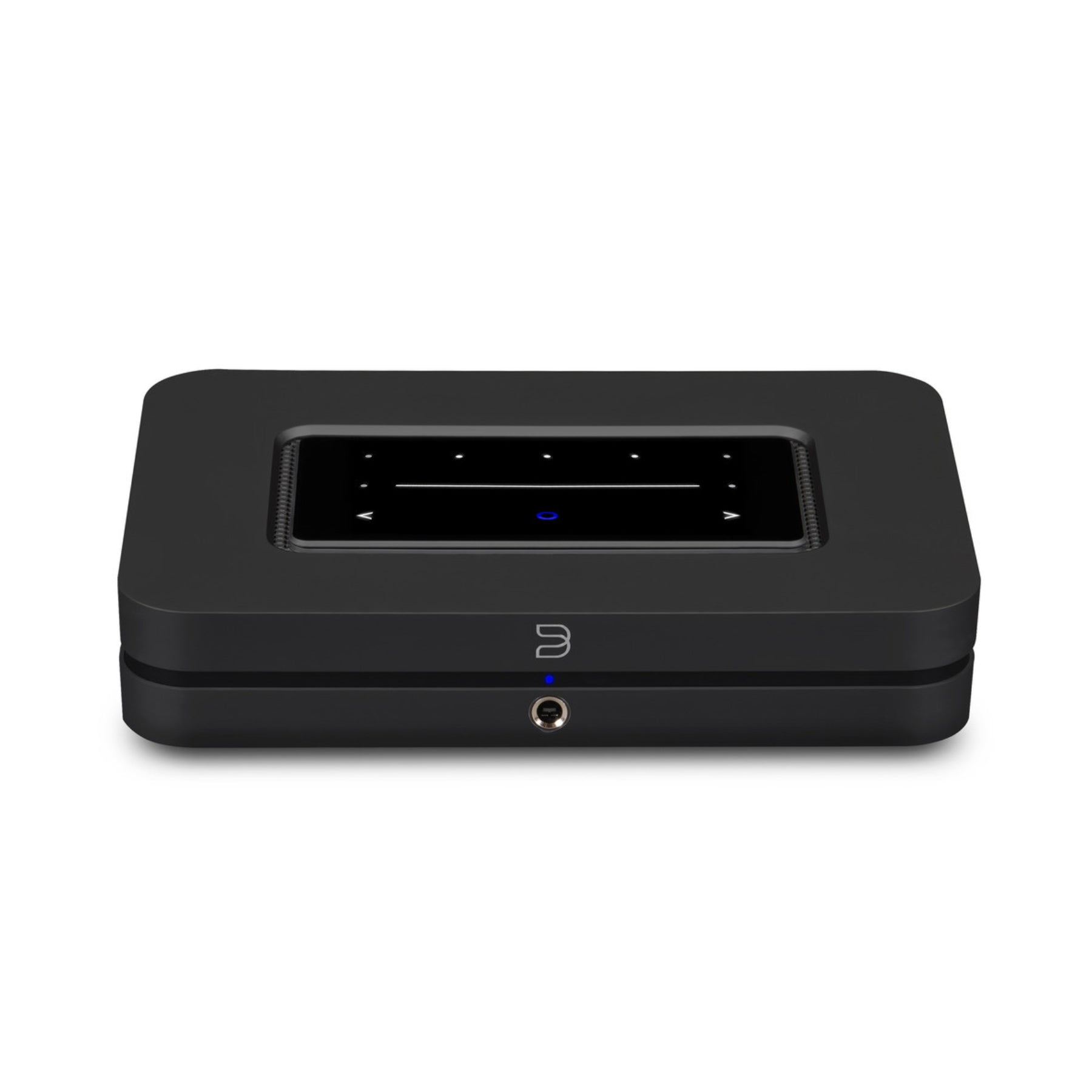

Bluesound NODE 132 Music Streamer. 2024 brings the next generational evolution in Bluesound music streaming.

Remember the Bluesound Node X? Checkout the Node132!

• BluOS app for total control from your phone, tablet, or desktop
• Over 20 Streaming Services (Pandora, Qobuz, etc…)
• Spotify Connect & Tidal Connect
• Easily access your digital music libraries stored on your computer or local network or better yet !
• Dirac Live Ready with the
• aptX™ Adaptive Bluetooth
• Apple AirPlay 2
• Multiroom functionality by combining any of the Bluesound NODE family of players with any of the marvelous Bluesound wireless speakers to create a multiroom music system. Play your new favorite track everywhere or simultaneously listen to different music in different rooms.
• Compatible with:  FLAC, MQA, WAV, AIFF, MPEG-4 SLS , MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS, (DSD Playback - via future software update)
• Dolby Digital decoding
• Inputs: HDMI eARC, 3.5mm Analog/Digital Optical
• Analog Outputs: Stereo RCA, Subwoofer, 1.4” Headphone with THX AAA™ amplifier
• Digital Outputs: Optical, Coaxial, USB
• 12V TRIGGER
• Quad-Core 1.8GHZ ARM® CORTEX™ A53 Processor
• ESS SABRE® DAC ES9039Q2M
• Dual Band
• Gigabit Ethernet
• Proximity Sensing Touch Panel
• Five use Programmable Presets
• IR Remote Learning Capabilities
• Avaialble in Black or White

NODE132 Specifications:

Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

Supported High-Quality Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS

DSD Support: DSD256, available via future BluOS update

Supported Multi-Channel Audio Formats: Dolby Digital®

Native Sampling Rates: up to 192 kHz

Bit Depth: 16-24

Audio Controls & EQ: BluOS Controller App

DAC: ESS ES9039Q2M

Signal-to-Noise Ratio: -118 dB

Distortion: THD+N, 0.0007%

Headphone Continuous Output Power (THD<0.1%): 160mW, 16Ω / 230mW, 32Ω / 53mW, 250Ω / 22mW, 600Ω

SOFTWARE & INTEGRATIONS

Operating System: BluOS

App Controller Operating System: iOS, Android, Windows, macOS

Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files

Album Art Supported: JPG, PNG

Music Services & Internet Radio: 23+

3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready, Dirac Live Ready

Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron

Voice Control Integrations: Amazon Alexa Skills

CONNECTIONS

Power Supply: Universal bi-pin AC cord input (100-240AC)

Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps

Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band

Bluetooth Quality: Bluetooth 5.2 aptX Adaptive

Bluetooth Connectivity: Two-Way (transmit & receive)

IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning

Optical/Analog Input: Combo - Mini TOSLINK/Stereo 3.5mm

IR Input: 3.5mm Jack

HDMI Input: HDMI eARC

USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode

Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)

Coaxial Output: RCA

Optical Output: TOSLINK digital optical

Trigger Out: 12 Volt

Headphone Output: 6.3mm Stereo; Bluetooth

Subwoofer Output: RCA x 1; Wireless to PULSE SUB+

USER INTERFACE & CONTROL

Status Indicator: LED x2

Play/Pause Button: Touch LED

Volume Control Buttons: Touch Slider LED

Preset Buttons: Touch LED x 5

Proximity Sensor: Yes

GENERAL

Finish: Black or White: Matte Satin Paint

Storage Environment: -10°C to 50°C, 20% to 80% relative humidity

Operating Environment: 0°C to 40°C

Version: N132

Product Dimensions: 8.7”W x 1.8”H x 5.7”D

Weight: 2.4lbs

Included Accessories

• 120V AC Power Cord
• 230V AC Power Cord
• Stereo RCA to RCA Cable
• Ethernet Cable
• Mini Jack to Toslink Adapter
• Safety/Warranty Guide
• Quick Setup Guide
• Dirac Live Ready Info Card
