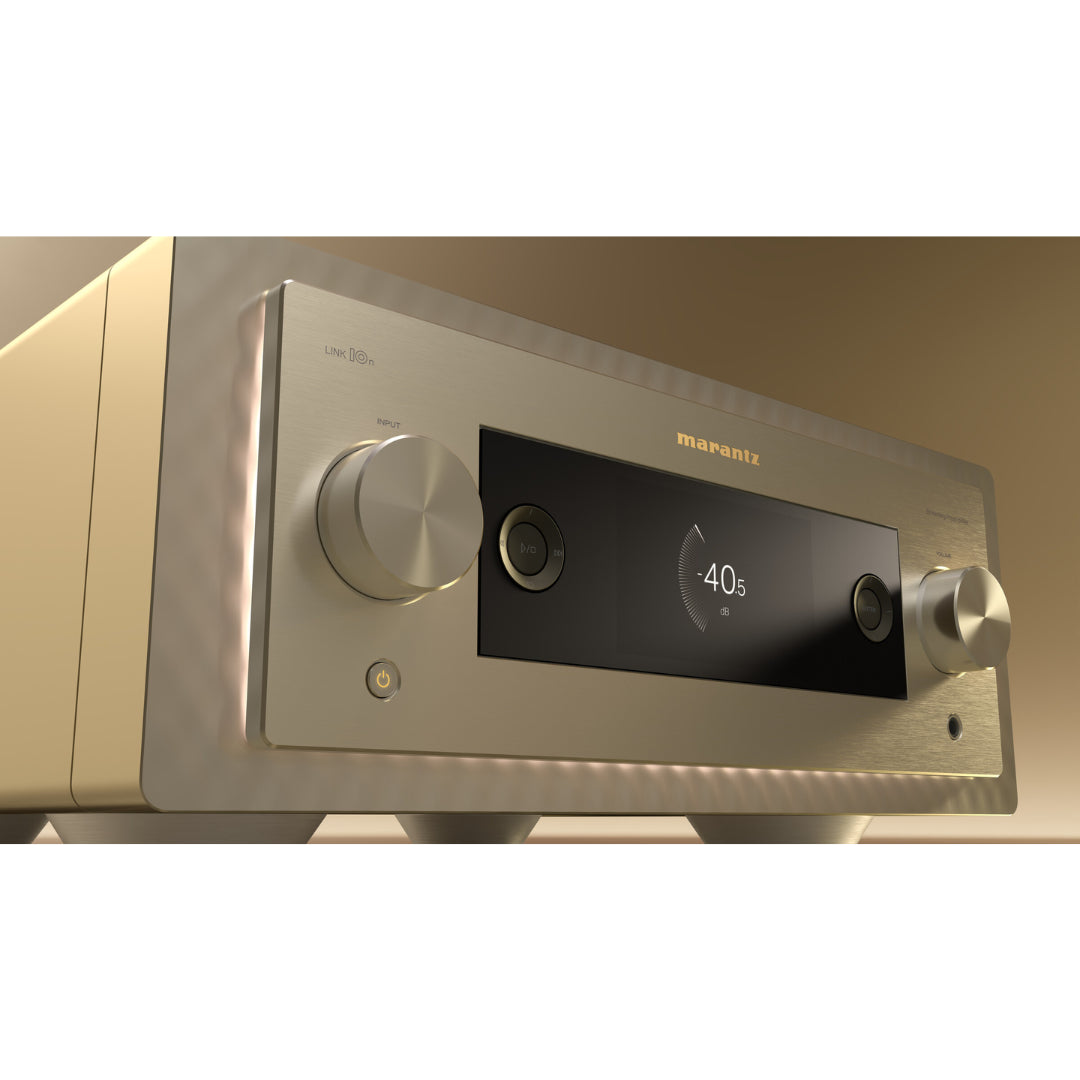

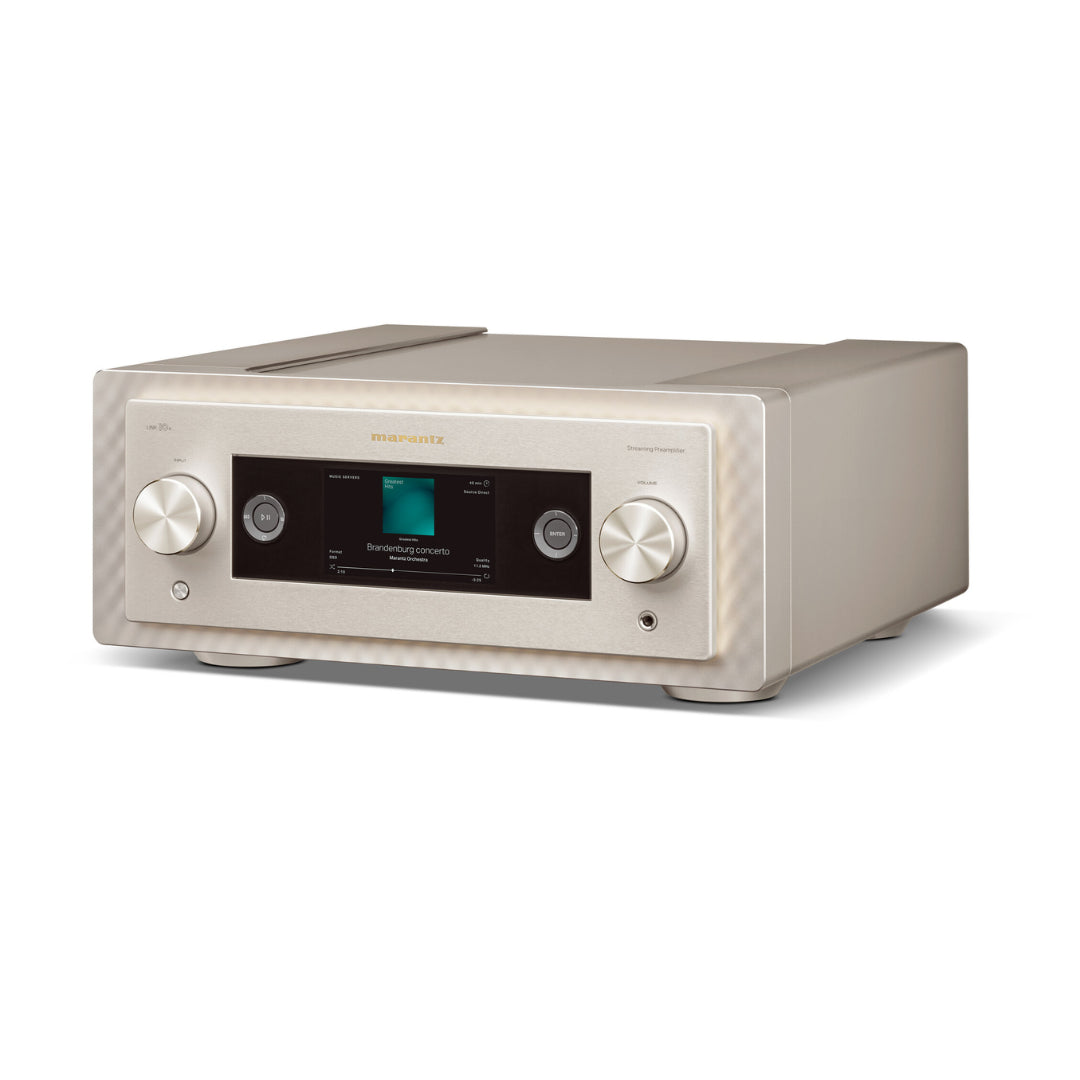

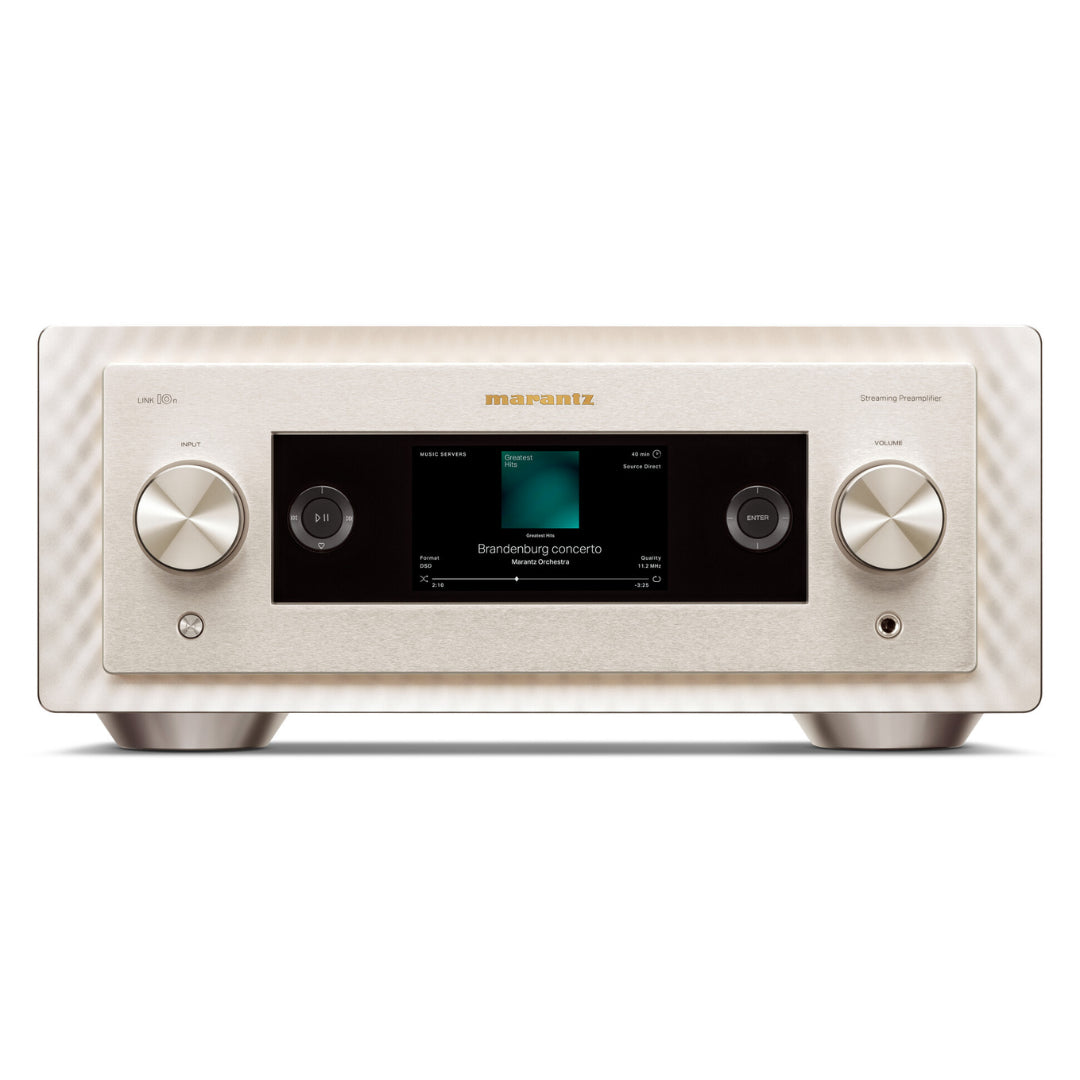

Marantz Link 10n: Elevate Your Audio Experience

For discerning audiophiles, the Marantz Link 10n is more than a network audio player—it's an invitation to experience sound with astonishing clarity and detail. This state-of-the-art network audio player and preamplifier brings a new level of sophistication to any audio system, combining cutting-edge digital and analog technology with Marantz's signature sound.

High-Resolution Audio Playback

The Marantz Link 10n offers true-to-life sound with support for high-resolution formats like FLAC, WAV, and DSD, enabling every note, beat, and nuance of your favorite tracks to come through with breathtaking fidelity.

Advanced Digital-to-Analog Conversion

Equipped with Marantz's renowned DAC technology, the Link 10n transforms digital audio into warm, rich analog sound, ensuring pristine audio quality that audiophiles crave.

Versatile Connectivity Options

Whether you're connecting a turntable, CD player, or other digital sources, the Marantz Link 10n has you covered. Its wide range of connectivity options means you can integrate it seamlessly into any setup, giving you the flexibility to connect to all your audio sources with ease.

HEOS Built-in for Wireless Streaming

With , you can enjoy wireless, multi-room audio, streaming high-quality sound to any room in your home. Effortlessly control music playback through the HEOS app, compatible with your favorite streaming services.

Elegant, Precision-Engineered Design

Crafted at the Marantz Shirakawa Audio Works in Japan, the Link 10n combines minimalist aesthetics with robust build quality. Every element, from its premium components to its smooth lines, is designed to complement the finest home audio systems.

Key Features:

• High-Resolution Audio Playback (FLAC, WAV, DSD)
• Marantz Advanced DAC Technology
• Versatile Source Connectivity: Turntables, CD Players & Digital Devices
• HEOS Built-in for Multi-Room Audio Streaming
• Elegant, Sleek Design with Premium Build Quality
• Dual Functionality: Network Audio Player & Preamplifier

Upgrade Your Audio System Today

Bring home the Marantz Link 10n and take your listening experience to new heights.

Marantz Link 10n Specifications:

General:

• Unit Dimensions (W × H × D): 440 × 192 × 472 mm (with antenna)
• Cabinet Size: 440 × 192 × 422 mm
• Net Weight: 33.3 kg
• Packaging Dimensions (W × H × D): 600 × 379 × 540 mm
• Packaging Gross Weight: 38.7 g
• Carton Color: Brown with black printing
• Panel Color: Black / Marantz Champagne
• Front Panel: Aluminum
• Back-Shell: Aluminum
• Front Panel Illumination: Yes (All sides, with dimmer)
• Side Cover: Aluminum (Max Thickness: 15.8 mm)
• Rear Panel: Triple-layer, copper-plated
• Chassis Material: Copper-plated
• Volume Knob: Solid aluminum (bearing construction)
• Input Selector: Solid aluminum (bearing construction)
• Foot: Solid aluminum with copper

Audio:

• Frequency Response (PCM): 2 Hz–50 kHz (-3 dB)
• Harmonic Distortion (PCM): 0.0004%
• Signal-to-Noise Ratio (PCM): 0.0004%
• Dynamic Range (PCM): 0.0004%
• Line Output Level: Unbalanced: 2.0 Vrms; Balanced: 4.0 Vrms
• Headphone Output Level: 130 mW / 32 ohms
• Frequency Response (Analog Input): 5 Hz–100 kHz (+0 dB/-3 dB)
• Harmonic Distortion (Analog Input): 0.001% (20 Hz–20 kHz)
• S/N Ratio:
  • Phono (MC): 76 dB
  • Phono (MM): 88 dB
  • Balanced: 122 dB
  • Line: 122 dB
• Phono Input Sensitivity:
  • MM: 8 mV
  • MC: 80 mV
• Phono Input Impedance:
  • MC Low: 32 ohms
  • MC Mid: 100 ohms
  • MC High: 390 ohms
  • MM: 39 kohms

Power Consumption:

• Standard Power: 7 W
• Standby Mode: < 0.3 W
• Network Control On: < 2 W (Bluetooth, Ethernet, Wi-Fi, USB)

Audio Features:

• Output Circuit: New HDAM
• Power Transformer: Toroidal
• Pre-Amplifier Circuit: New HDAM High Grade, Full Balance
• Volume Control: Electric (MUSES 72323) with variable gain
• Tone Control: Electric (Bass, Treble, Balance)
• Headphone Circuit: Discrete, with gain settings (Low / Mid / High)
• DAC Circuit: New MMM-Conversion with dither and noise shaper
• Digital Filter: MMM-Stream, filter 1 & 2 selectable
• Jitter Reducer: Yes
• DAC Master Clock Design (No network playback support): Yes
• Asynchronous Mode for USB-B Input: Yes
• USB-B Input Isolator: Complete Isolation System Duo

Outputs and Inputs:

• Fixed Analog Output (RCA): Cinch × 1, thick nickel-plated independent terminals
• Pre / Variable Audio Output (RCA): Cinch × 1, thick nickel-plated independent terminals
• Fixed Balanced XLR Output: Yes (1 Pair)
• Pre / Variable Balanced XLR Output: Yes (1 Pair)
• RCA Input: Cinch × 1, thick nickel-plated independent terminals
• Balanced XLR Input: Yes (1 Pair)
• Phono Input: Yes (MM / MC with selectable impedance)
• Optical Input / Output: 2 / 1 (on/off switchable, supports 44.1 kHz - 192 kHz)
• Coaxial Input / Output: 1 / 1 (on/off switchable, supports 44.1 kHz - 192 kHz)
• HDMI Output (ARC): Yes
• Headphone Output: Yes (Φ6.3 mm × 1)
• Subwoofer Output: Yes, with LP filter adjustable

User Experience and Control:

• App: HEOS App
• Remote Control: 10-series universal remote control
• Front Panel Display: New HD TFT color display
• Display Language Options: Multiple, including English, French, Spanish, Japanese, and more
• Display Dimmer: 20 steps
• Volume Display: 0–100 in 0.5 steps, -99.5 dB to 0 dB adjustable
• Voice Assistants: Apple Siri, Google Assistant
• Remote Control Bus Support: Yes, for synchronizing input with external amp control
• HDMI CEC Support: Yes

Included Accessories:

• Remote Control (RC004PMND) with AAA batteries
• Power Cord (Audio Grade, OFC)
• Stereo RCA Cable × 1
• Remote Connector Cable × 1
• Certificate of Authenticity (CoA)
