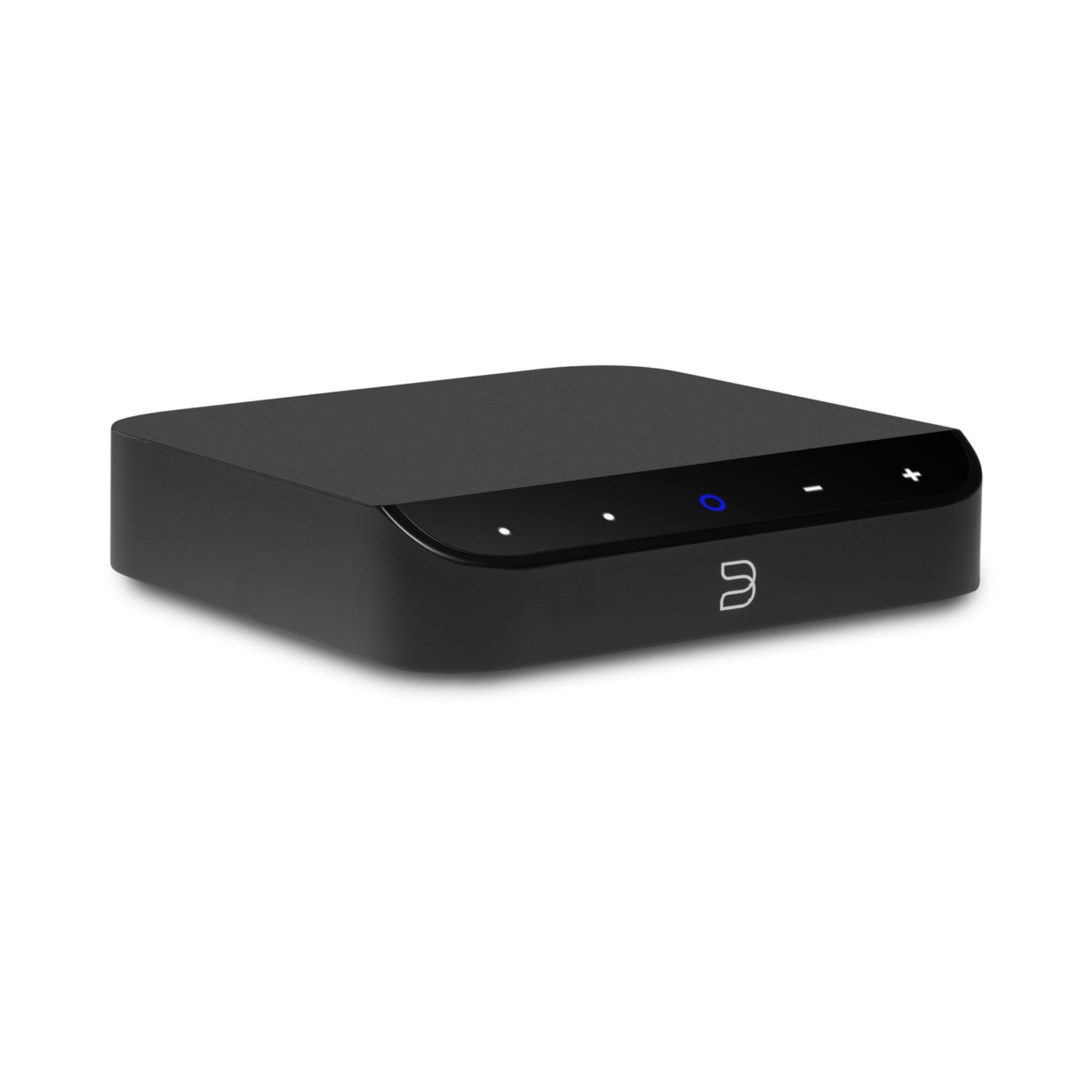

Bluesound NODE NANO music streamer.

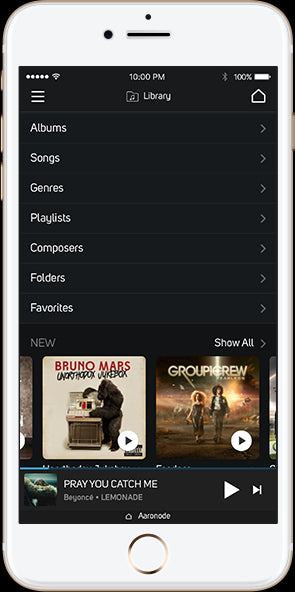

• BluOS control app on your phone, tablet, or desktop for easy navigation of your music, radio stations and podcasts
• Multiroom functionality by combining any of the Bluesound NODE family of players with any of the marvelous Bluesound wireless speakers to create a multiroom music system. Play your new favorite track everywhere or simultaneously listen to different music in different rooms.
• Supports Hi Res FLAC, WAV, AAC, and MQA music (up to 24-bit/192kHz)
• Bluetooth two-way aptX™
• Apple AirPlay 2
• Over 20 Streaming Services (Pandora, Qobuz, etc…)
• Spotify Connect & Tidal Connect
• Easily access your digital music libraries stored on your computer or local network, or better yet the

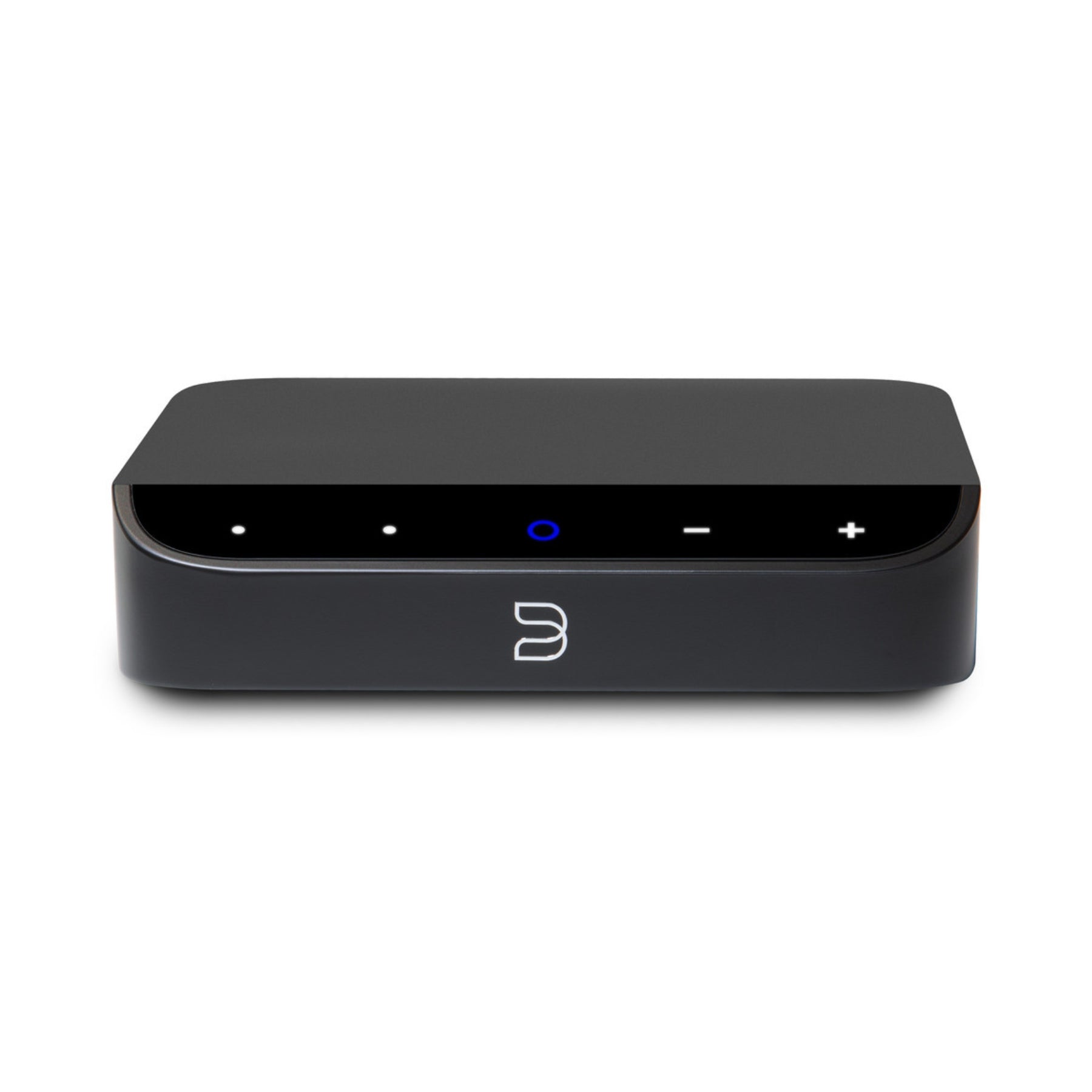

• Backlit Front Touch Panel
• Two Programmable Quick-Touch Front Panel Presets for your most common functions.
• Outputs: RCA Stereo Analog, Coax Digital, Optical Digital, USB Digital
• Dual-Band Wi-Fi and Gigabit Ethernet
• Supports Control4 & Crestron.
• Quad-Core 1.8GHZ ARM® CORTEX™ A53 Processor
• ESS ES9039Q2M SABRE® DAC with Hyperstream® IV technology
• DSD - Future Software Update

Bluesound NODE NANO Specifications:

Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

Supported High-Quality Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS

DSD Support: DSD256, available via future BluOS update

Native Sampling Rates: up to 192 kHz

Bit Depth: 16-24

Audio Controls & EQ: BluOS Controller App

DAC: ESS ES9039Q2M

Signal-to-Noise Ratio: -118 dB

Distortion: THD+N, 0.0007%

SOFTWARE & INTEGRATIONS

Operating System: BluOS

App Controller Operating System: iOS, Android, Windows, macOS

Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files

Album Art Supported: JPG, PNG

Music Services & Internet Radio: 23+

3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready

Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron

Voice Control Integrations: Amazon Alexa Skills

CONNECTIONS

Power Supply: USB-C (5V-2A)

Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps

Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band

Bluetooth Quality: Bluetooth 5.2 aptX Adaptive

Bluetooth Connectivity: Two-Way (transmit & receive)

IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning

IR Input: 3.5mm Jack

USB IN: Type A (Fat32 Formatted) - External Storage only

Local Server Mode

Audio Output: Analog RCA Stereo with Fixed option

USB Audio 2.0 (Type A)

Coaxial Output: RCA

Optical Output: TOSLINK digital optical

Trigger Out: 12 Volt

Headphone Output: Bluetooth

Subwoofer Output: Wireless to PULSE SUB+

USER INTERFACE & CONTROL

Status Indicator: LED

Play/Pause Button: Touch LED

Volume Control Buttons: Touch LED

Preset Buttons: Touch LED x 2

GENERAL

Finish: Black: Matte Satin Paint

Mounting: Bottom-panel keyhole slots

Storage Environment: -10°C to 50°C, 20% to 80% relative humidity

Operating Environment: 0°C to 40°C

Version: N030

* all specifications subject to change without noticeCK FINISH

Product Dimensions: 5.6”W x 1.4”H x 5.6”D

Weight: 1.26 lbs

Included Accessories

• USB Power Supply
• 4x International Plug Adapter
• USB-C Power Cable
• Stereo RCA to RCA Cable
• Ethernet Cable
• Safety/Warranty Guide
• Quick Setup Guide
