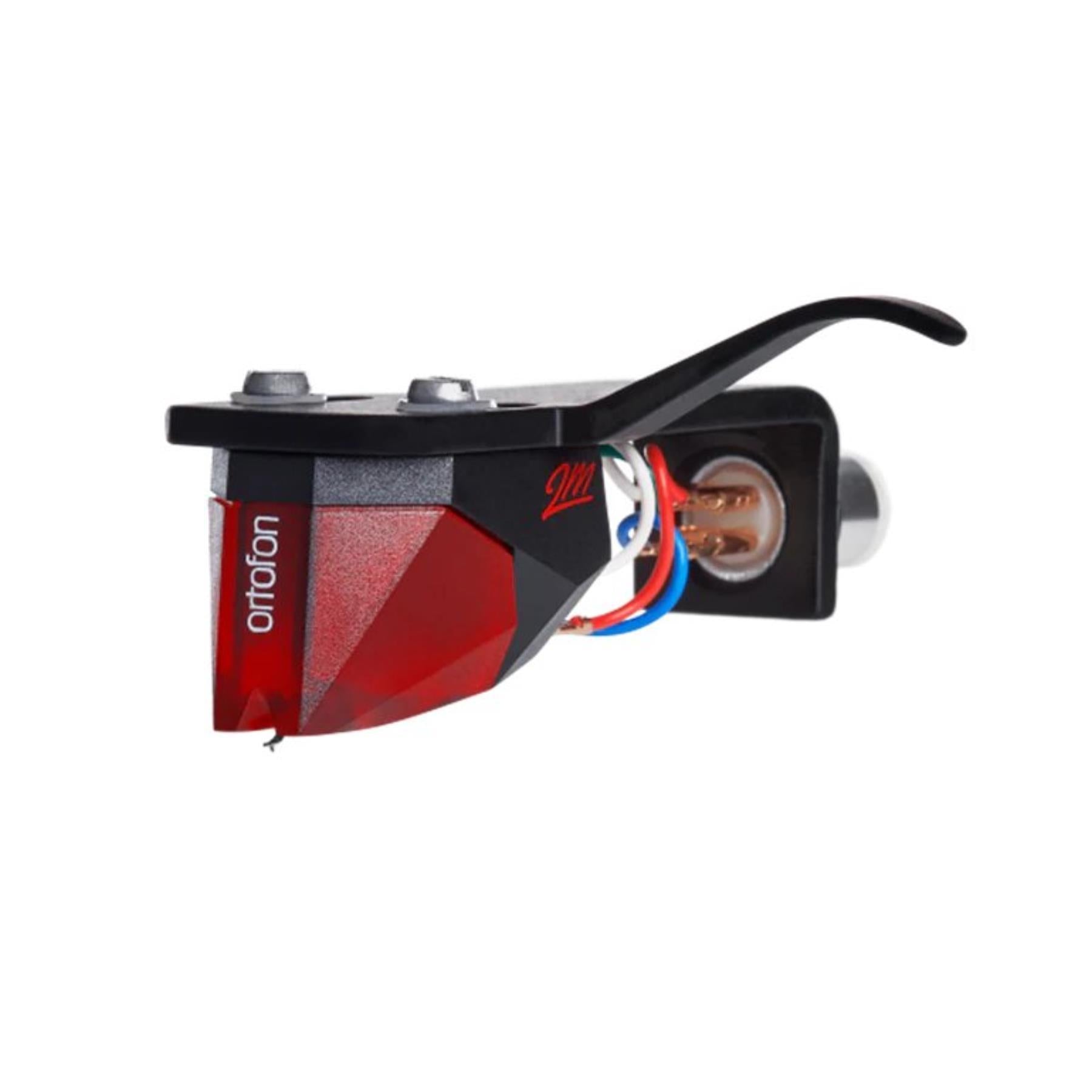

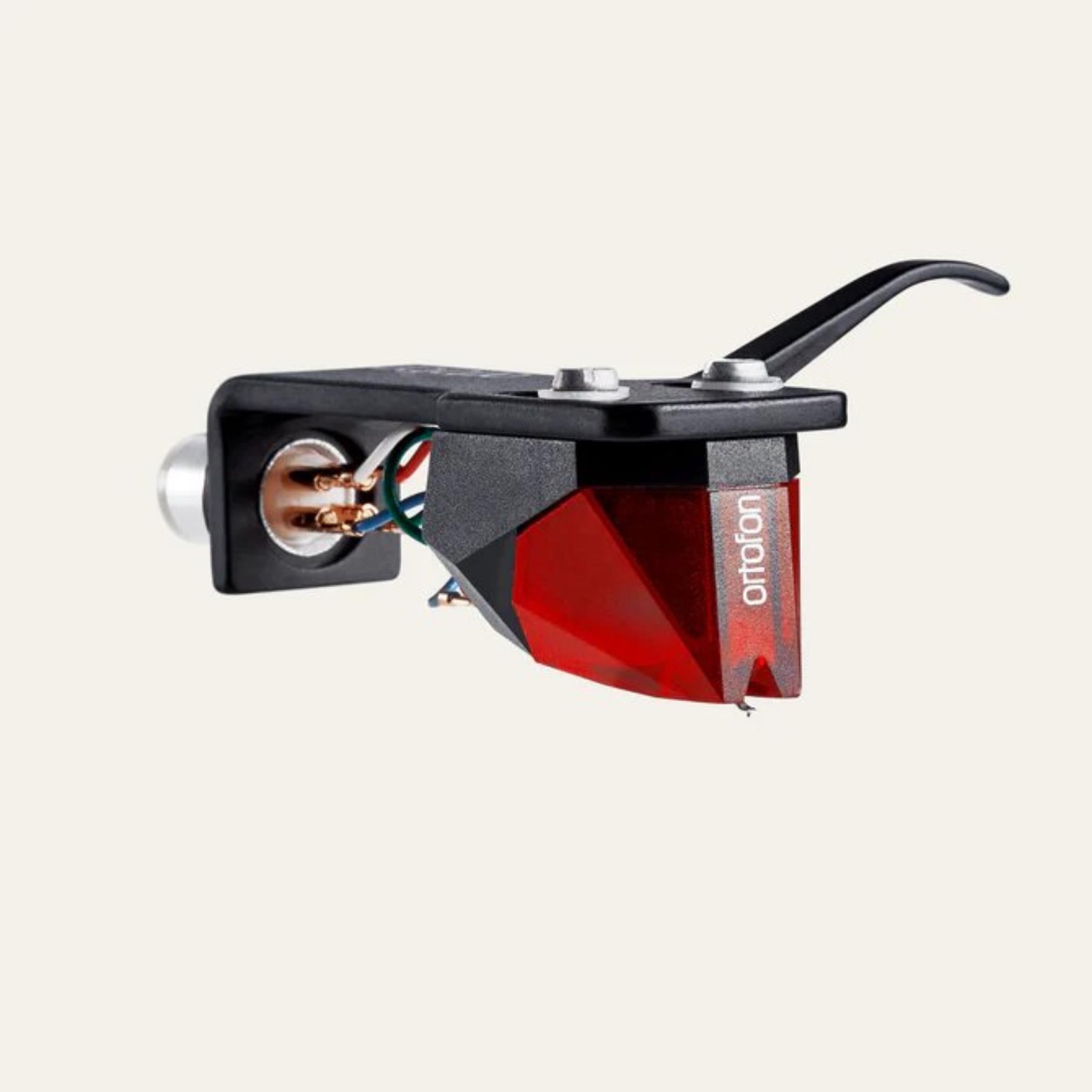

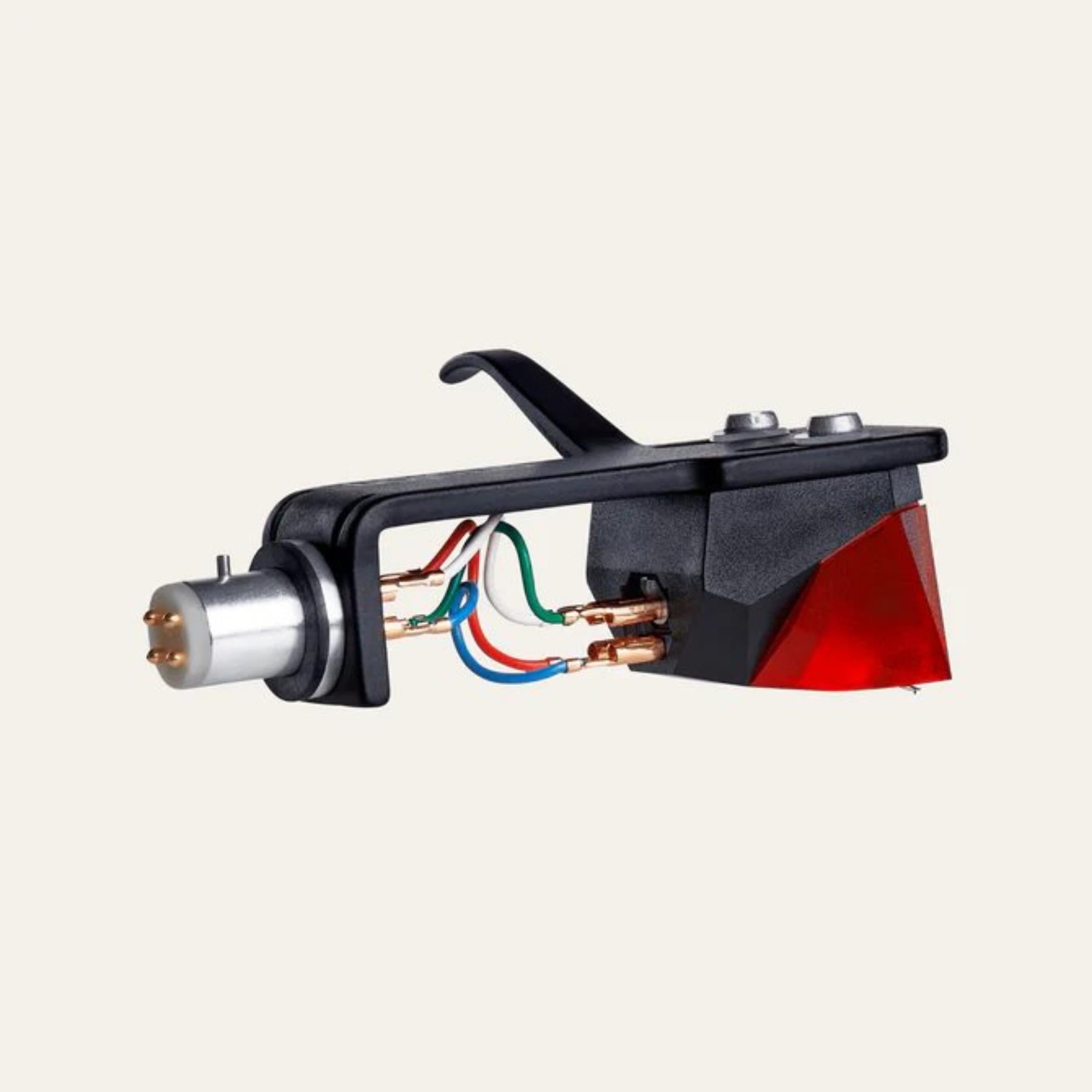

Ortofon 2M Red Premounted on SH-4 Headshell - High-Fidelity Audio Delivered with Precision

Immerse yourself in the captivating world of vinyl audio with the Ortofon 2M Red Premounted cartridge on the SH-4 Headshell. This entry-level gem in the 2M series brings music to life on its terms, offering an open, dynamic sound with a touch of warmth that audiophiles crave.

Ortofon 2M Red Premount Key Features:

• Precision Accuracy: The 2M Red delivers an unparalleled listening experience with a precise sound reproduction that captures every nuance. It's like taking a step directly into the heart of the music itself.

• Effortless Compatibility: Enjoy the convenience of straightforward installation and easy replacement on your S-shaped tonearm. The SH-4 headshell's sleek design enhances resilience and stability, while its ergonomic finger lift ensures effortless handling and pickup.

• Innovative Split Pole Pin Technology: Experience the unique split pole pins with a copper wire, a proprietary Ortofon invention. This technology contributes to a precise and accurate sound reproduction, making your heart skip a beat with its musicality.

Ortofon 2M Red Premounted Specifications:

• Channel Balance at 1 kHz: 1.5 dB
• Output Voltage at 1 kHz, 5cm/sec: 5.5 mV
• Channel Separation at 1 kHz: 22 dB
• Channel Separation at 15 kHz: 15 dB
• Frequency Response: 20 Hz - 20 kHz (3 / - 1 dB)
• Tracking Ability at 315Hz (Recommended Tracking Force): 70 µm
• Compliance, Dynamic, Lateral: 20 µm/mN
• Stylus Type: Elliptical
• Stylus Tip Radius: r/R 8/18 µm
• Tracking Force Range: 1.6-2.0 g (16-20 mN)
• Recommended Tracking Force: 1.8 g (18 mN)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 1.3 kOhm
• Cartridge Colour: Black/Red
• Cartridge Weight: 7.2 g
• Premounted Cartridge Weight: 16.7 g
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 700 mH
• Recommended Load Capacitance: 150-300 pF

Elevate your audio experience with the Ortofon 2M Red Premounted cartridge – where precision meets passion in the pursuit of sonic excellence.
