Audio Technica VM540ML/H

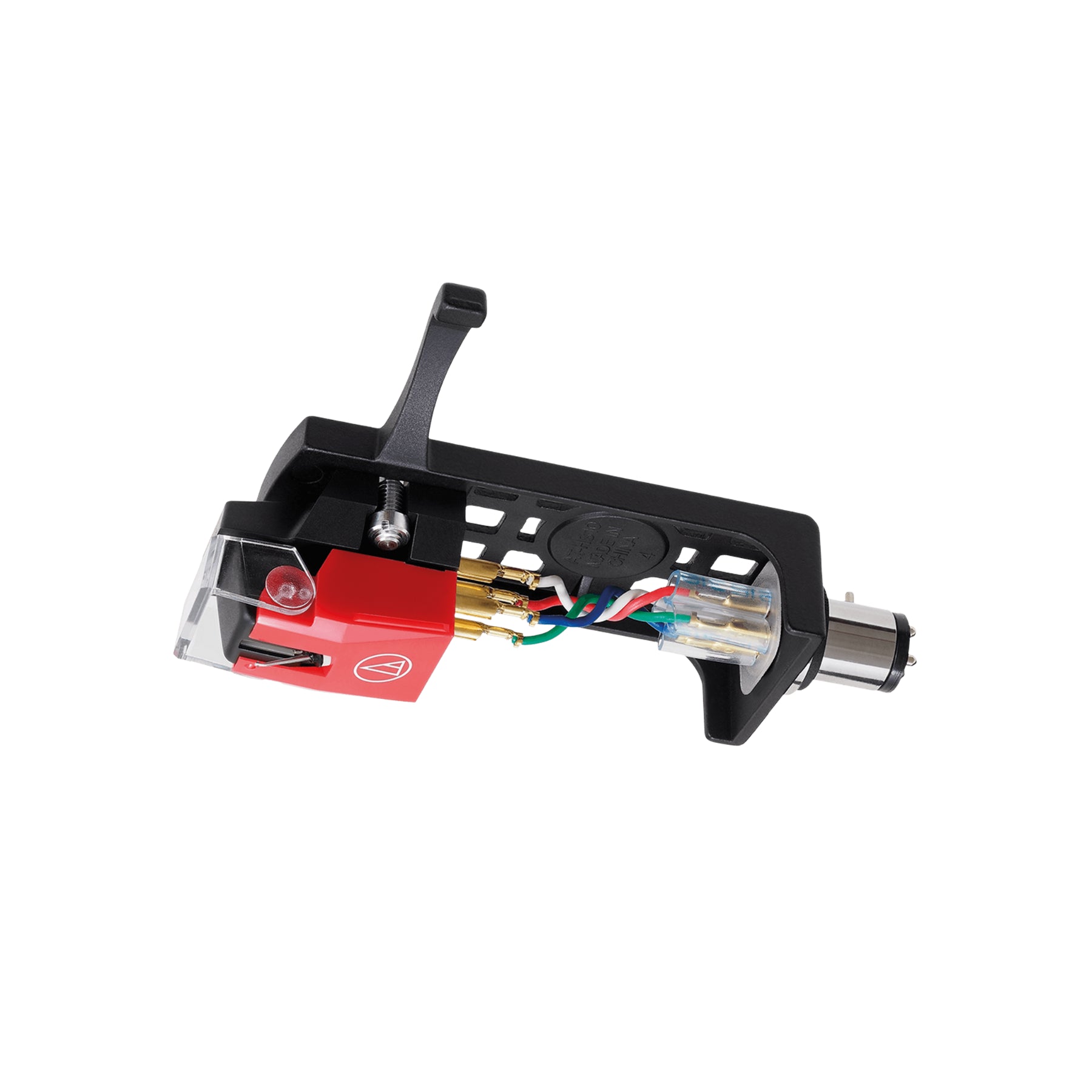

The Audio-Technica VM540ML/H combo kit features the VM540ML MicroLine® dual moving magnet cartridge expertly pre-mounted on the AT-HS10BK universal 1/2"-mount headshell. Representing the pinnacle of the 500 Series in Audio-Technica's innovative VM cartridge line, the VM540ML MicroLine® stylus cartridge pays homage to A-T's origins as a manufacturer specializing in high-end phono cartridges, seamlessly blending the craftsmanship of yesteryears with today's cutting-edge technology.

Audio Technica VM540ML/H Specifications

• Frequency Response: 20-27,000 Hz
• Channel Separation: 28 dB (1 kHz)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
• Stylus Construction: Nude square shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 2,700 ohms (1 kHz)
• DC Resistance: 800 ohms
• Coil Inductance: 460 mH (1 kHz)
• Output Voltage: 4.0 mV (at 1 kHz, 5 cm/sec)
• Output Channel Balance: 1.0 dB (1 kHz)

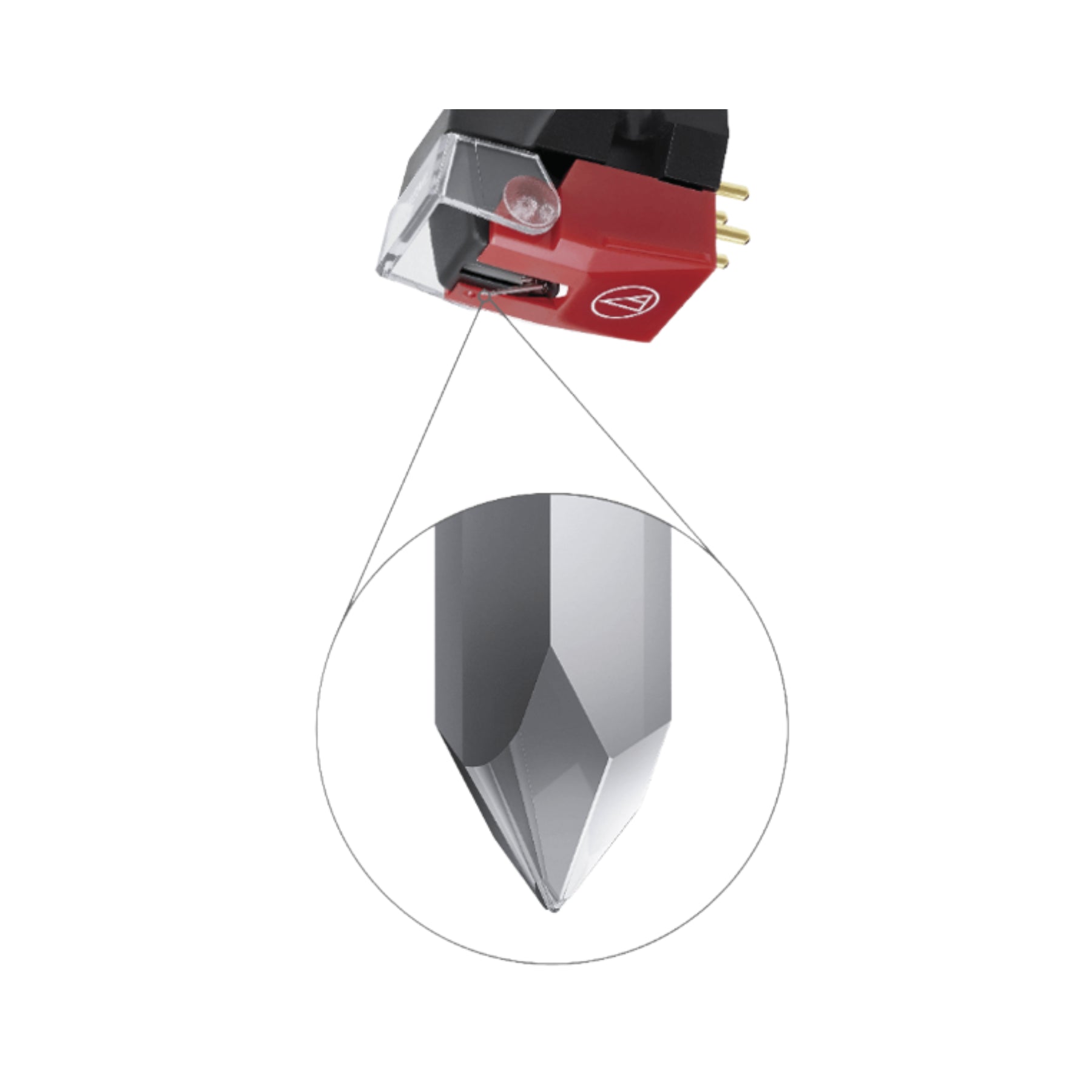

• Stylus Shape: 2.2 x 0.12 mil MicroLine®
• Cantilever: Aluminum tapered pipe
• Static Compliance: 40 x 10-6 cm/dyne
• Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
• Mounting: Half-inch
• Dimensions:
  • Cartridge: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D
  • Cartridge & Headshell: 21.3 mm (0.8") H x 21.0 mm (0.8") W x 60.4 mm (2.4") D
• Mounting Feature: Half-inch mount
• Recommended Load Capacitance: 100-200 pF
• Replacement Stylus: VMN40ML
• Stylus Size: 0.12 x 2.2 mil
• Type: VM Type
• Weight:
  • Cartridge: 6.4 g (0.2 oz)
  • Cartridge & Headshell: 16.8 g (0.6 oz)
