R-5650-W II: In-wall Speaker

The Klipsch R-5650-W II in-wall loudspeaker will forever change the way you view or listen to architectural audio. Whether used for home theater or stereo music applications, this high-quality and installer-friendly model challenges the performance of comparable standalone speakers.

UPDATED WITH THE LATEST TECHNOLOGY

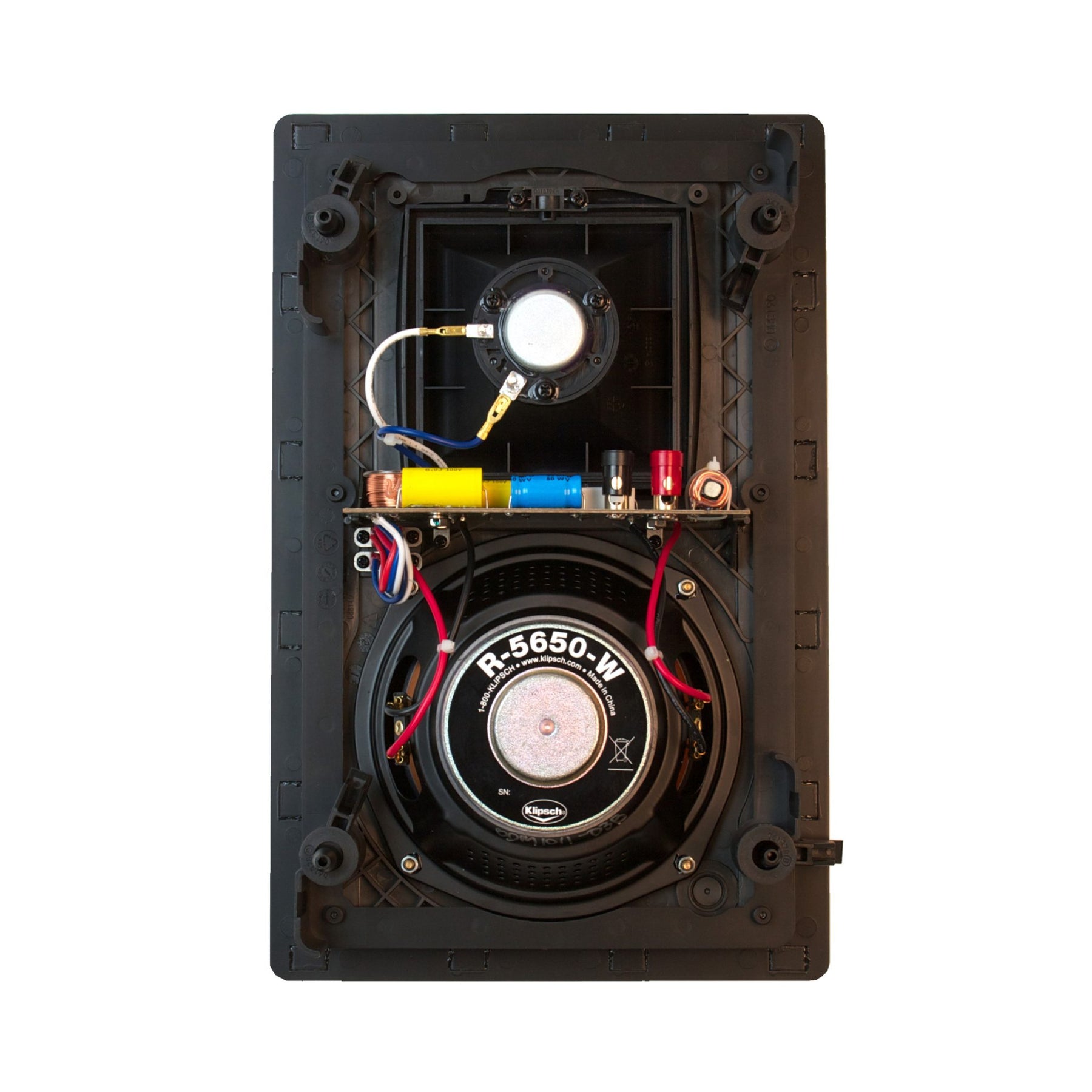

The Klipsch R-5650-W II maintains the core technology use of a premium 1" Titanium compression driver (tweeter) mated to an exclusive Tractrix Horn combined with a 6.5" Cerametallic woofer in a 2-way design. Now with a new low-profile, more elegant grill and refinements to both high frequency and low frequency reproduction, it continues as a high-performance choice for everything from 2-channel music playback to full, large room surround sound use.

THE UPDATE FOR YOUR EYES: THE NEW SLIMTRIM GRILLE

With an all new grille, the visible frame size is reduced by 90% and grille depth is reduced by 80% over the previous design, for a more edge-to edge consistent look that blends in with the wall more attractively. The new aluminum, paintable, magnetic grille attaches tightly and securely with ease to virtually eliminate resonant distortion.

PIVOTING TRACTRIX HORN

Klipsch horn-loaded technology increases acoustic output while significantly reducing distortion. The horn’s +/- 15° pivoting capability allows its 90° x 60° dispersion pattern to be aimed directly at the main listening area. This feature sends more direct sounds to the listener and less reflected sounds for more detailed sound, wider dynamics and better vocal clarity.

ALUMINUM DIAPHRAGM COMPRESSION DRIVER (TWEETER) WITH LINEAR TRAVEL SUSPENSION (LTS)

Combined with the Tractrix Horn, the one-inch, solid-formed, very lightweight metallic diaphragm works in conjunction with a precise phasing plug at the horn throat to create a highly efficient driver with excellent transient response and lack of distortion. The new Linear Travel Suspension assures the most precise diaphragm excursion, increasing high-frequency detail and smoothness.

MACHINE-SPUN IMG WOOFER

The solid Aluminum diaphragm, anodized to add stiffness and provide perfect damping, has a new hi-tech look that also delivers increased rigidity for even tighter, more defined bass. The new integrated dust cap further strengthens the cone and helps ventilate the voice coil for increased driver durability.

PREMIUM, HIGH DEFINITION NETWORK

The perfect blending between drivers for full bandwidth balanced response.

TREBLE AND MIDBASS ATTENTUATION SWITCHES

Allows reduction of high and/or low frequency output in challenging install applications such as overly reflective rooms or corner placement, allowing a better frequency balance.

FEATURES:

• 1" Titanium dome compression driver mated to 4" square 90° x 60° Tractrix Horn
• 6.5" Cerametallic woofer
• Horn-loaded technology increases acoustic output while significantly reducing distortion
• Pivoting Tractrix Horn tweeter for clear sound in any location
• Treble and midbass attenuation switches and IR receiver knock out
• Elegant new, low-profile SlimTrim magnetic grill
