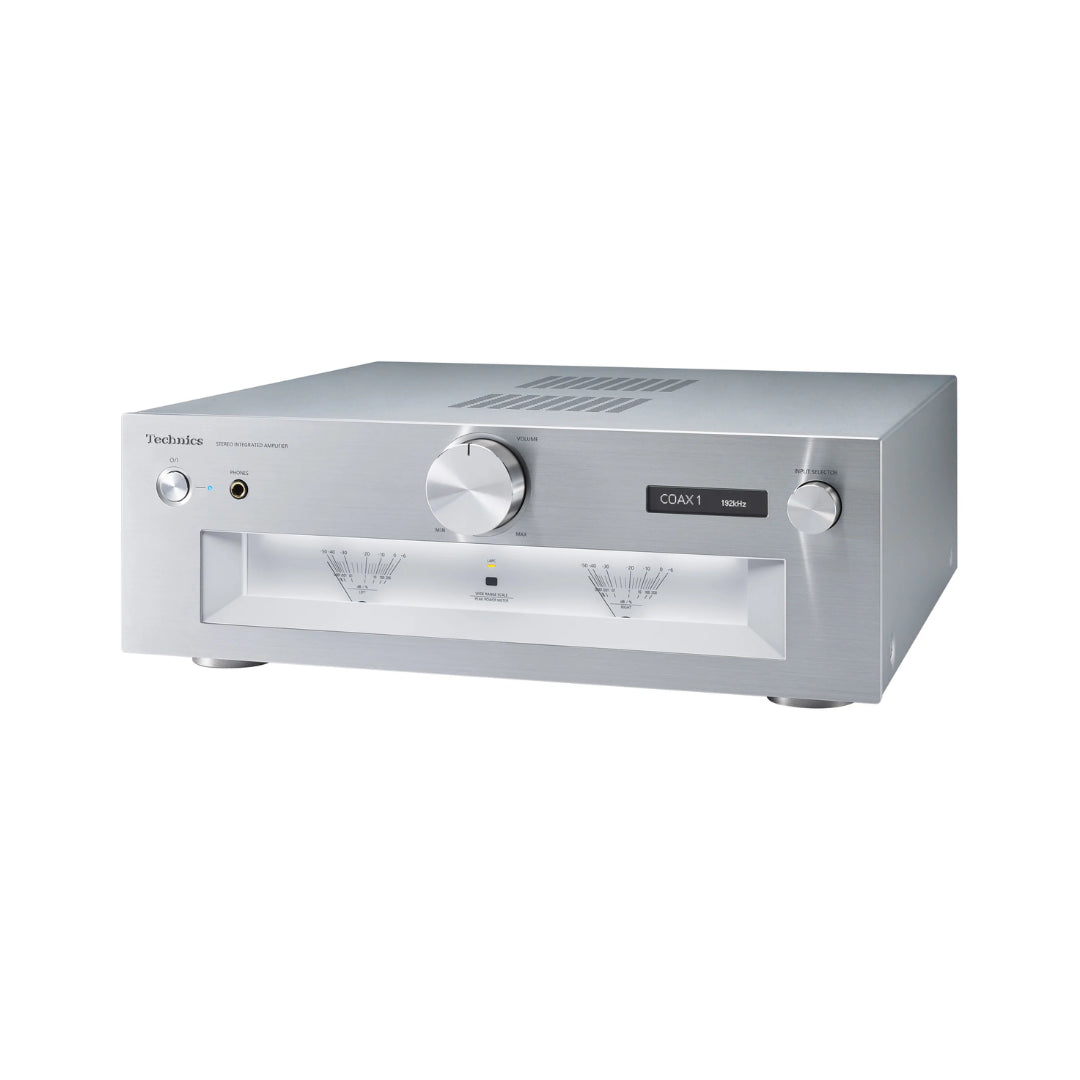

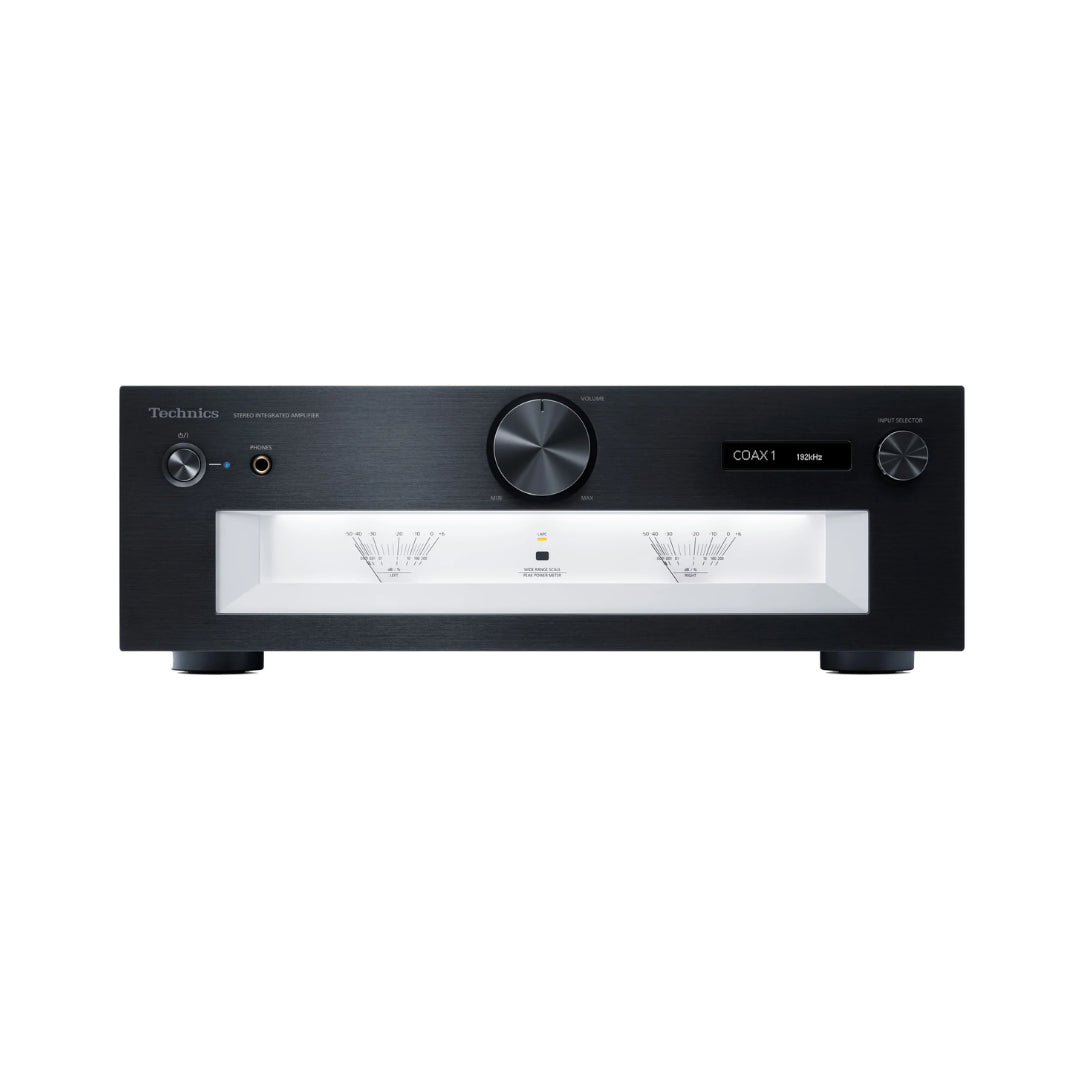

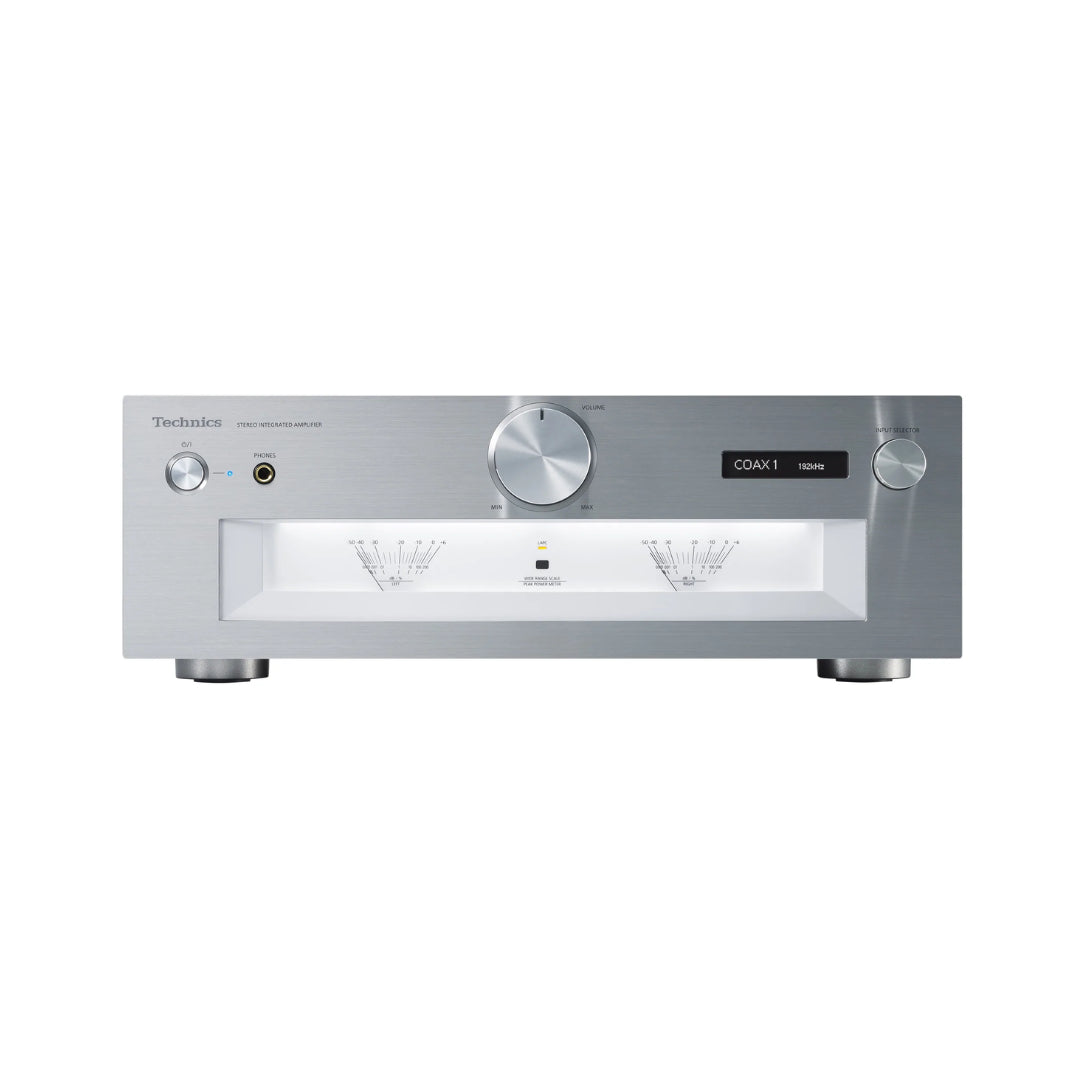

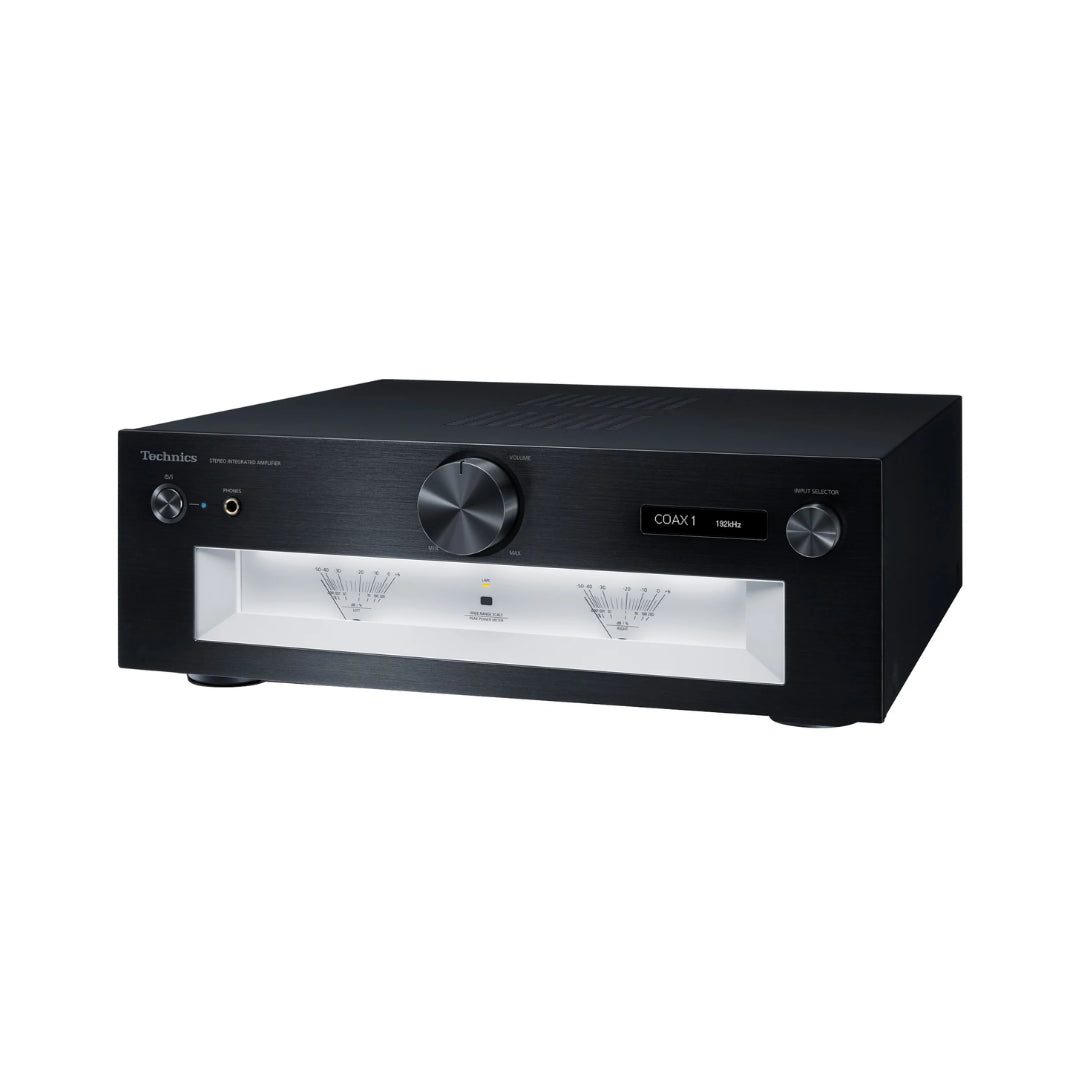

Technics SU-G700M2 Stereo Integrated Amplifier

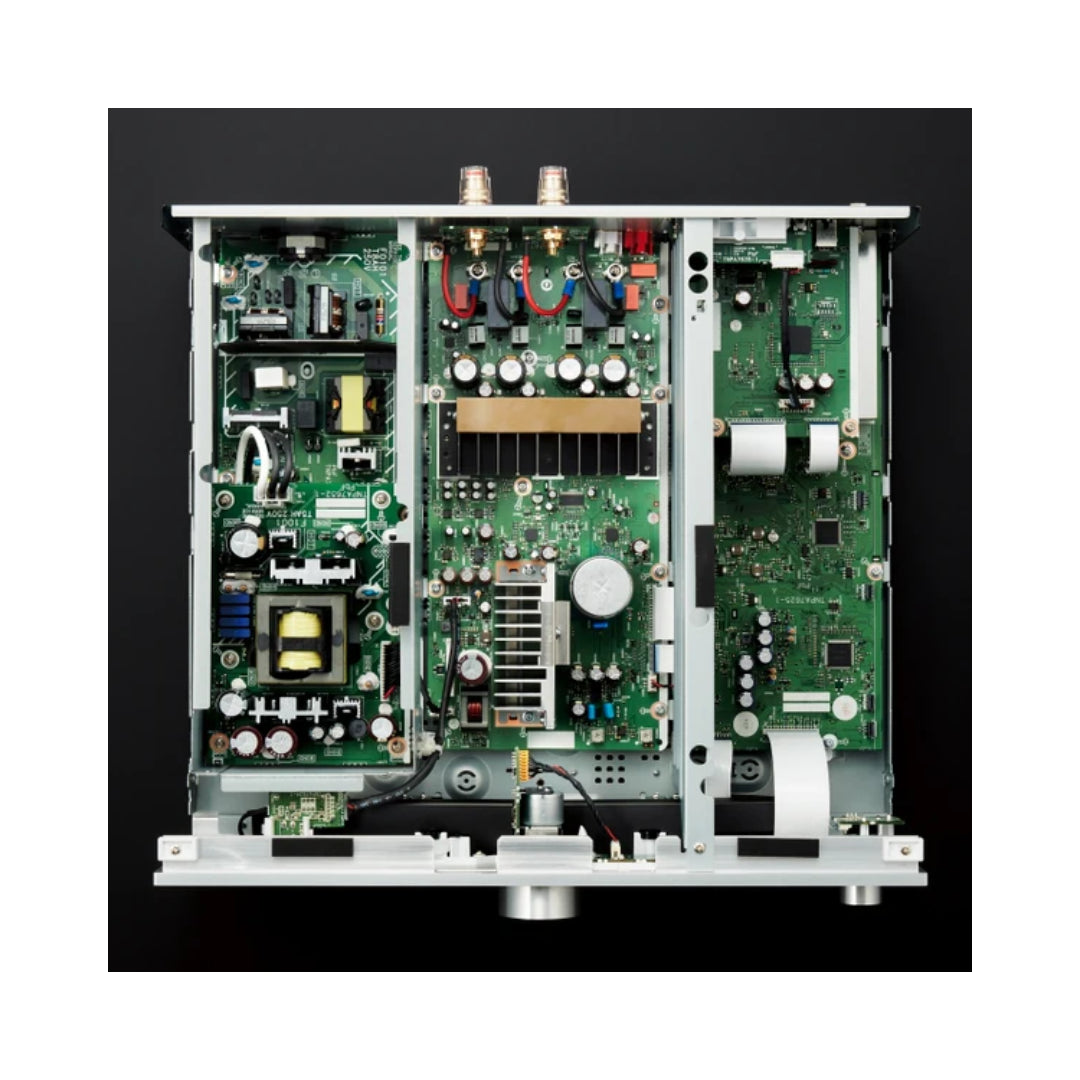

The SU-G700M2 Stereo Integrated Amplifier by Technics represents a pinnacle of audio engineering, boasting full-digital core amplifier technologies like the JENO Engine and LAPC for pristine, dynamic sound reproduction. It inherits the legacy of the Reference Class Amp SU-R1000, featuring a new power supply system for high-speed response and low noise. The amplifier utilizes full digital amplification with the JENO Engine, eliminating jitter and preserving natural sound nuances. LAPC optimizes speaker impedance, ensuring accurate impulse response and rich spatial expression. The Advanced Speed Silent Power Supply, inspired by the SU-R1000, delivers stable voltage and current with minimal modulation noise. A three-section construction and low-noise PHONO input enhance audio clarity, while a Class AA headphone amplifier ensures distortion-free playback across a wide frequency range. Brass speaker terminals and Technics’ exclusive block capacitor further elevate performance. With its sleek design and exceptional audio capabilities, the SU-G700M2 sets a new standard in integrated amplifiers.

SU-G700M2 Specs

• Output Power: 70W + 70W (1kHz, T.H.D. 0.5%, 8Ω, 20kHz LPF), 140W + 140W (1kHz, T.H.D. 0.5%, 4Ω, 20kHz LPF)
• FTC Output Power: 70W + 70W (1kHz, T.H.D. 0.5%, 8Ω, 20kHz LPF), 140W + 140W (1kHz, T.H.D. 0.5%, 4Ω, 20kHz LPF)
• Load Impedance: 4Ω-16Ω
• Frequency Response:
  • PHONO (MM): 2.5 mV / 47 kΩ
  • PHONO (MC): 300 uV / 100 Ω
  • LINE: 200 mV / 22 kΩ

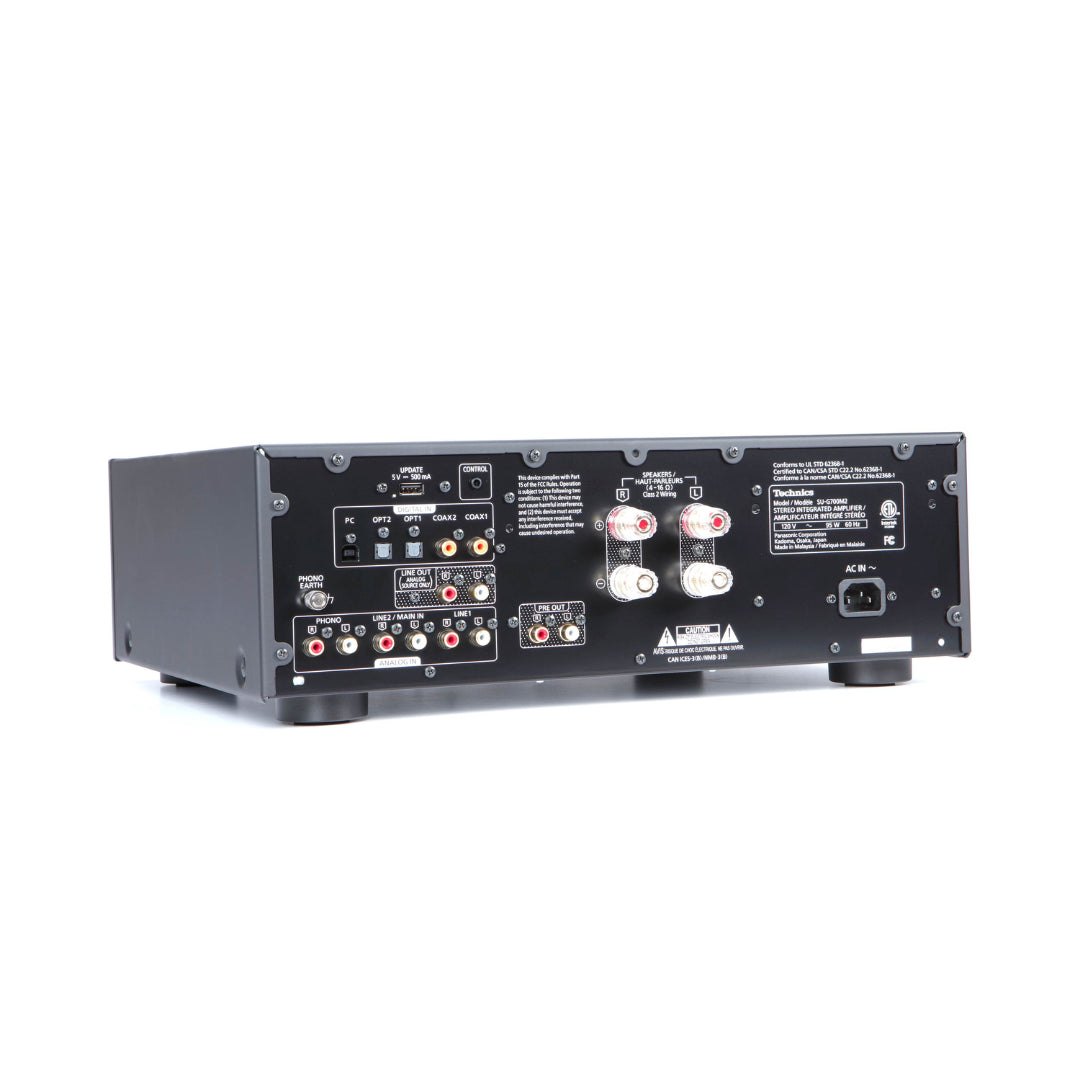

• Analogue Input Terminal: LINE x 2 (LINE1, LINE2 / MAIN IN), PHONO (MM/MC) x1
• Digital Input Terminal: Optical digital x2 (OPT 1, OPT 2), Coaxial digital x2 (COAX 1, COAX 2), USB-B x1 (PC)
• Analogue Output Terminal: LINE OUT x1, PRE OUT x1
• Headphone Output: Yes, Stereo Φ6.3 mm
• PC (USB-B): USB 2.0 high-speed, USB Audio Class 2.0, Asynchronous mode
• Support Codec: PCM Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit), DSD Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
• DSD control mode: ASIO Native mode, DoP mode
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 95W
• Dimensions (W x H x D): 16-15/16 x 5-13/16 x 16-27/32 inch
• Weight: Approx. 28 lbs

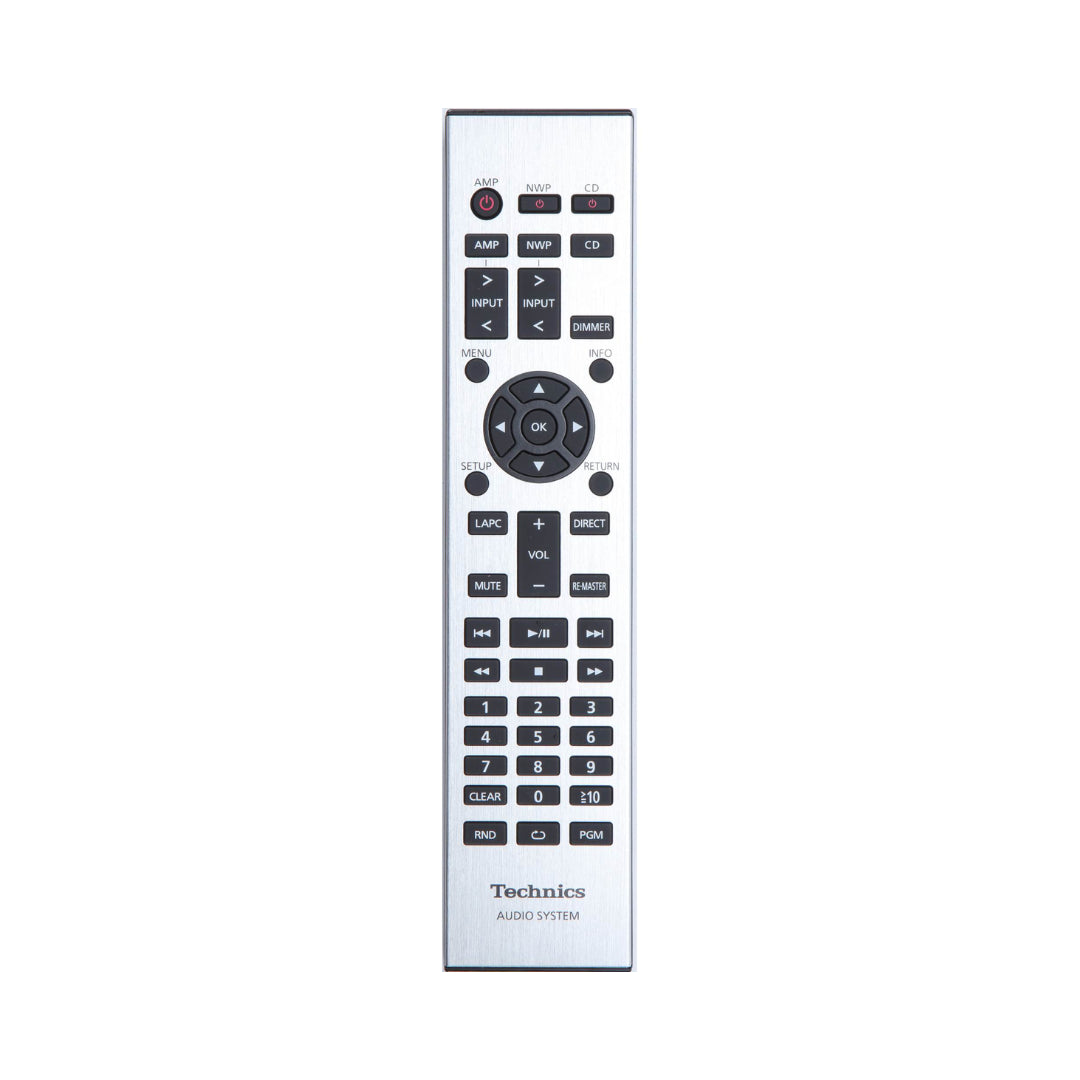

• Accessories: AC Cord, Remote Control, Batteries for Remote Control, Owner's Manual
