DS-180CSM

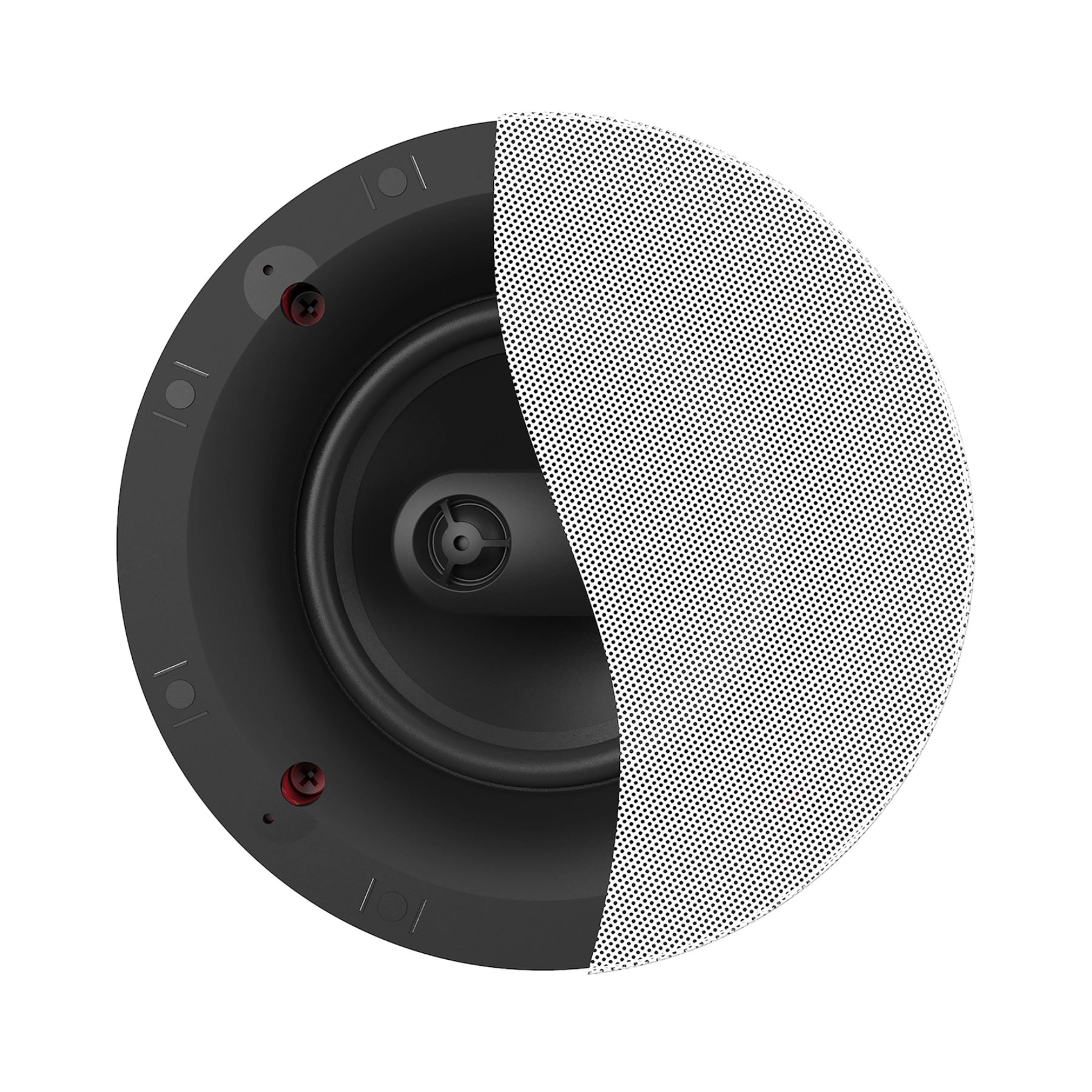

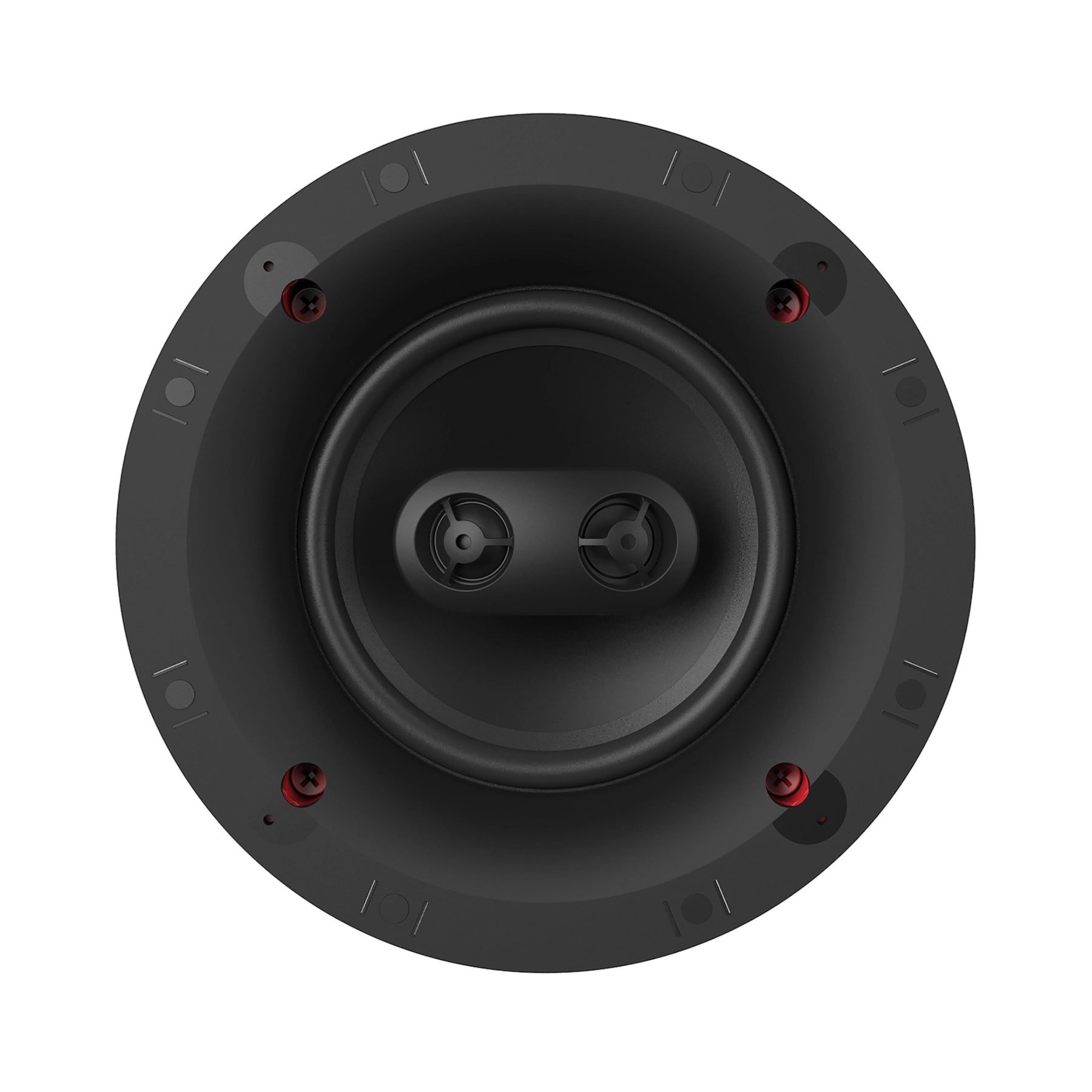

Using the same acoustic voicing and design principles of the more premium architectural and box speaker lines, the Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8" Polypropylene woofer and two .75" Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren’t possible.

EXCLUSIVE PATENTED SKY HOOK® CINCH INSTALLATION SYSTEM

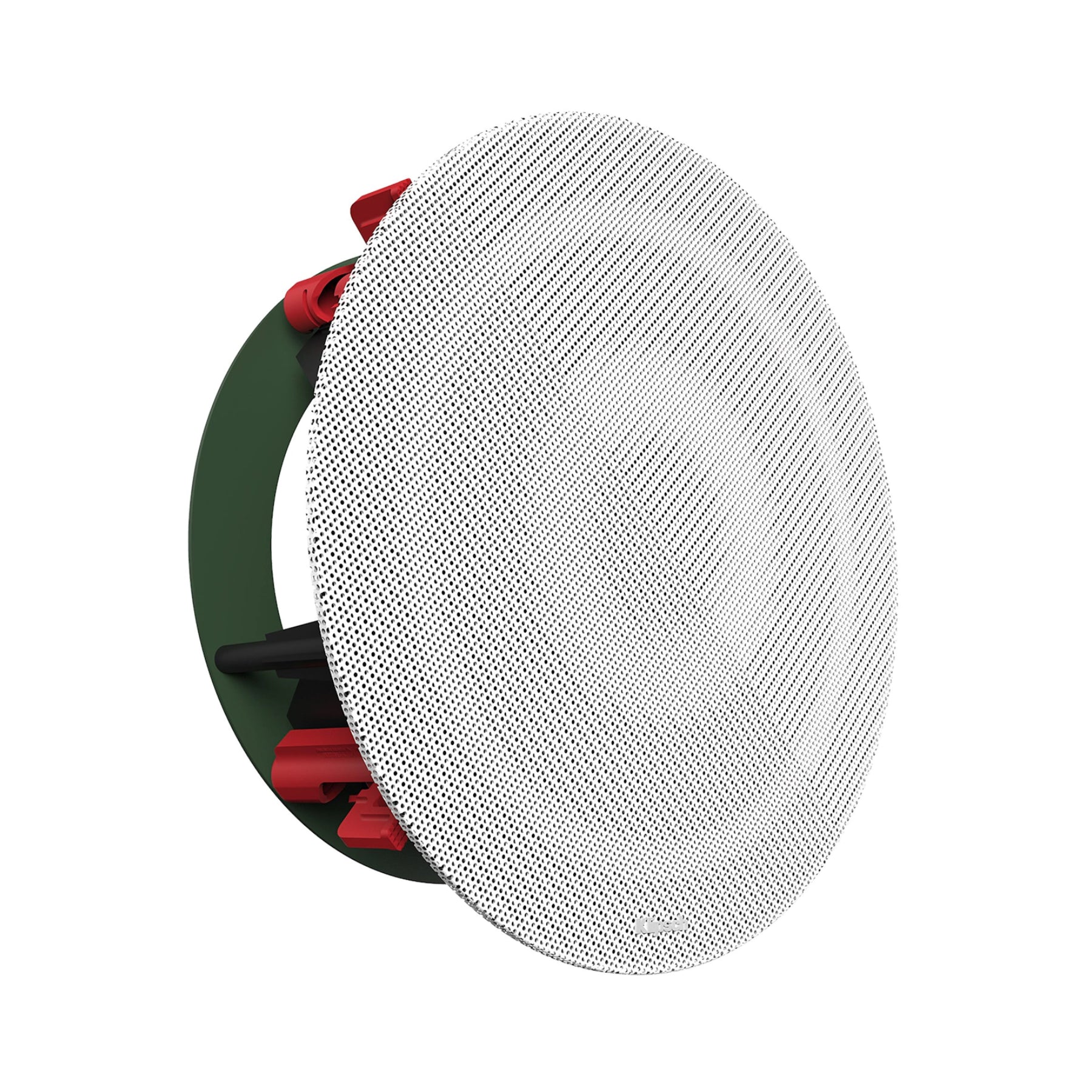

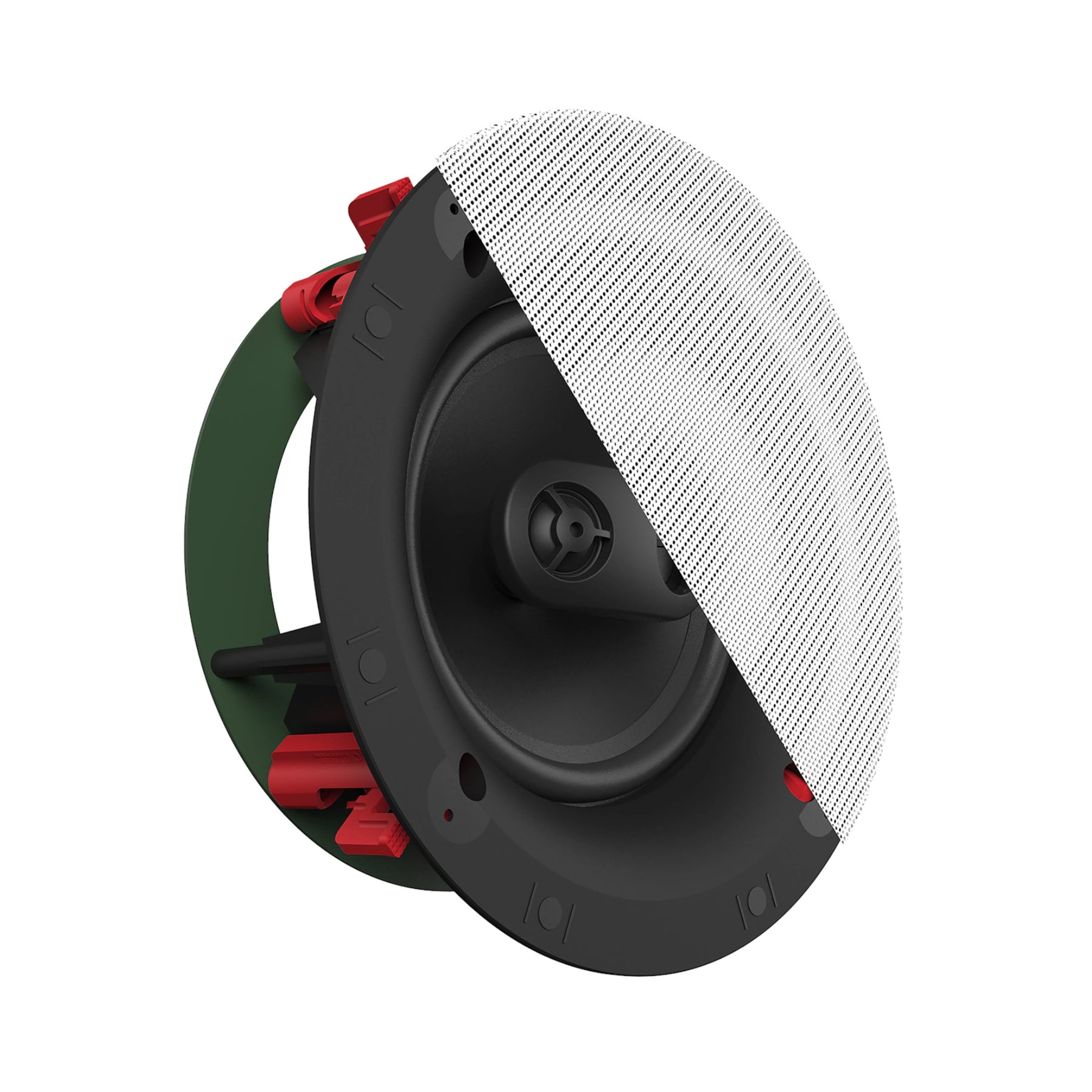

This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. If dealing with an uneven space, a 1/4 turn of each dog leg screw achieves an even more flush finish. This fast, easy installation system reduces install time by up to 75%

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

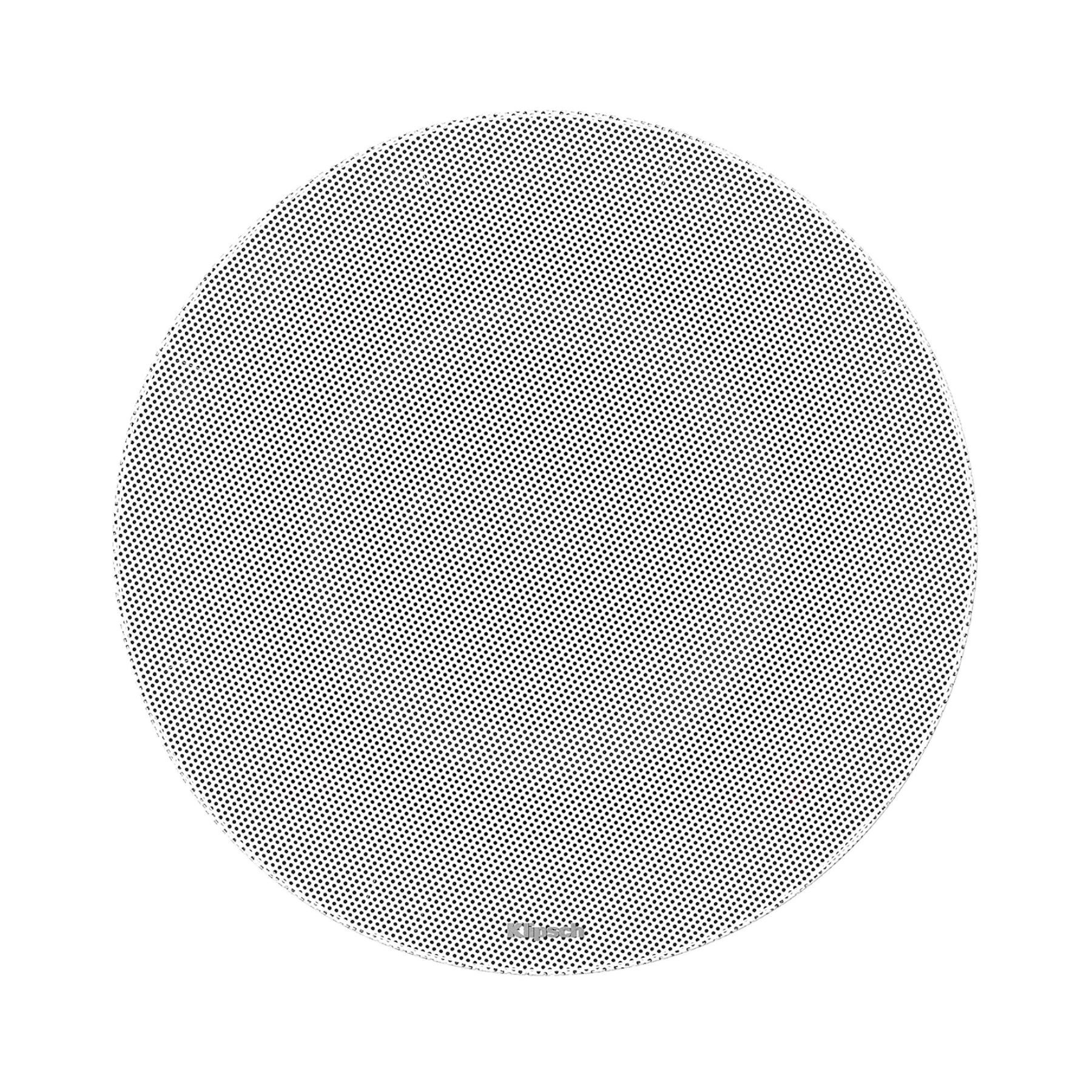

A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

SPECIFICATIONS:

• Frequency Response: 73Hz - 20kHz +/- 3dB
• High Frequency Driver: Dual .75" (1.9cm) Silk Dome Tweeters
• Low Frequency Driver: 8" (20.32cm) Polypropylene Woofer
• Sensitivity: 94 dB @ 2.83V / 1m
• Coverage Angle: 160°
• Power Handling: 50W RMS / 200W RMS
• Impedance: 4 Ohm
• Enclosure Type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product Dimensions: 10.75" W x 10.75" H x 4.5" D (27.3cm H x 27.3cm W x 11.5cm D)
• Mounting Depth: 4.45" (11.3cm)
• Cutout Dimensions: 9.8" (24.9cm)
• Product Weight: 7.4 lbs (3.36kg)
• Included: Flat Paintable Magnetic Grille
• Installation Kit: IK-800-C II (Sold Separately)
• Fire Rated Enclosure: ME-800-C (Sold Separately)
• Built From: 2017
