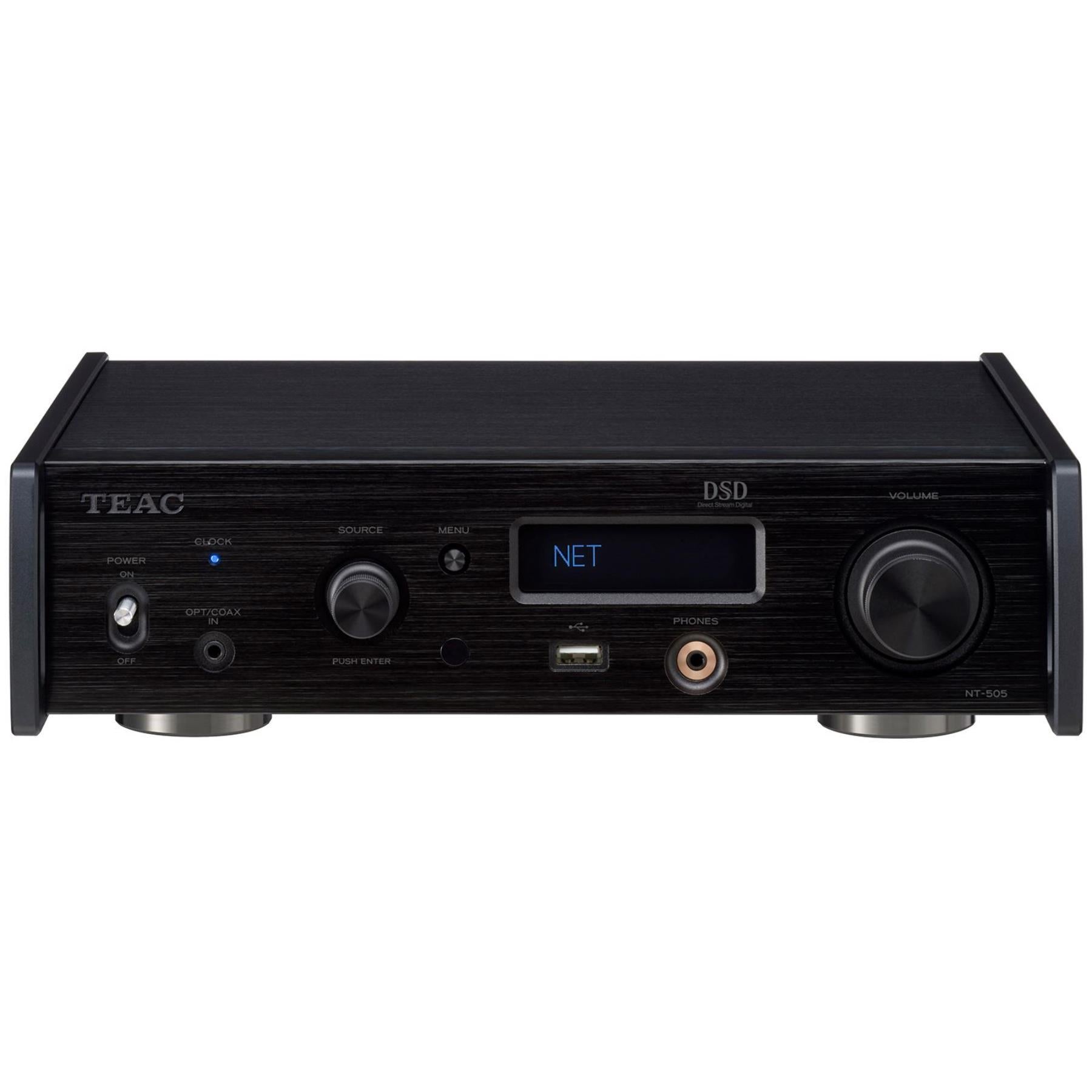

TEAC NT-505-X USB DAC / Network Player

Unlock a new dimension of music with the TEAC NT-505-X USB DAC Network Player. Perfect for desktops or laptops, this versatile unit blends seamlessly into any environment, offering a myriad of connectivity options.

Key Features:

• ESS Technology ES9038 Q2M DAC supports up to 22.5MHz DSD and 768kHz/32bit PCM
• Dual monaural circuit design with fully-balanced architecture for superior audio fidelity
• Supports OpenHome and future-ready for Roon integration
• Compatible with Spotify Connect, TIDAL, Qobuz, and TuneIn for streaming convenience
• MQA decoder ensures master quality audio reproduction
• High-resolution Bluetooth® streaming including LDAC™ and Qualcomm® aptX™ HD
• USB port supports playback of DSD128 and PCM 24bit/192kHz formats
• Dual onboard clocks and external clock input for precise timing
• Up-converts PCM to 384kHz/32bit and DSD to 24.5MHz for enhanced audio clarity
• "Bulk Pet" USB transfer technology for stable data transmission
• Seven PCM digital filters for customizable sound
• Dual high-capacity toroidal-core power transformers minimize interference
• TEAC-HCLD2 enhanced-current output buffer amp for powerful, clear sound
• Symmetrical layout with XLR and RCA outputs
• All-metal enclosure for reduced vibration and electromagnetic interference

Specifications:

• Supported Formats:
  • USB Input: PCM (up to 768kHz/32bit), DSD (up to 22.5MHz)
  • Coaxial Digital Input: PCM (up to 192kHz/24bit), DSD (2.8MHz in DoP format)
  • Optical Digital Input: PCM (up to 192kHz/24bit), DSD (2.8MHz in DoP format)
• DAC Section:
  • Dual ESS Technology ES9038 Q2M DACs
  • Up-conversion: PCM (up to 384kHz/32bit), DSD (up to 24.5MHz)
• Bluetooth®:
  • Version 4.0 with LDAC™, Qualcomm® aptX™ HD, aptX™, AAC, SBC support
• Audio Outputs:
  • XLR Balanced Output: 2.0Vrms (Fixed), 4.0Vrms (+6dB), 12.0Vrms (Variable)
  • RCA Unbalanced Output: 2.0Vrms (Fixed), 4.0Vrms (+6dB), 6.0Vrms (Variable)
  • Headphone Output: Supports 16-600Ω impedance, multiple jack types
• Clock Section:
  • Internal Crystal Oscillator (44.1kHz and 48kHz)
  • External Clock Input (BNC, 10MHz)

Dimensions & Power:

• Dimensions: 290(W)×84.5(H)×248.7(D) mm / 11.4”(W)×3.3”(H)×9.8”(D)
• Weight: 4.2kg / 9.3lbs
• Power Consumption: 18W (0.4W in standby)

Included Accessories:

• Power cord, RCA mini plug adapter cable, remote control (RC-1330), 2 AAA batteries, 3 feet cushions, Owner's Manual

Explore the world of high-resolution audio with the TEAC NT-505-X, where every detail of your music comes alive. Perfect for audiophiles and music enthusiasts alike.
