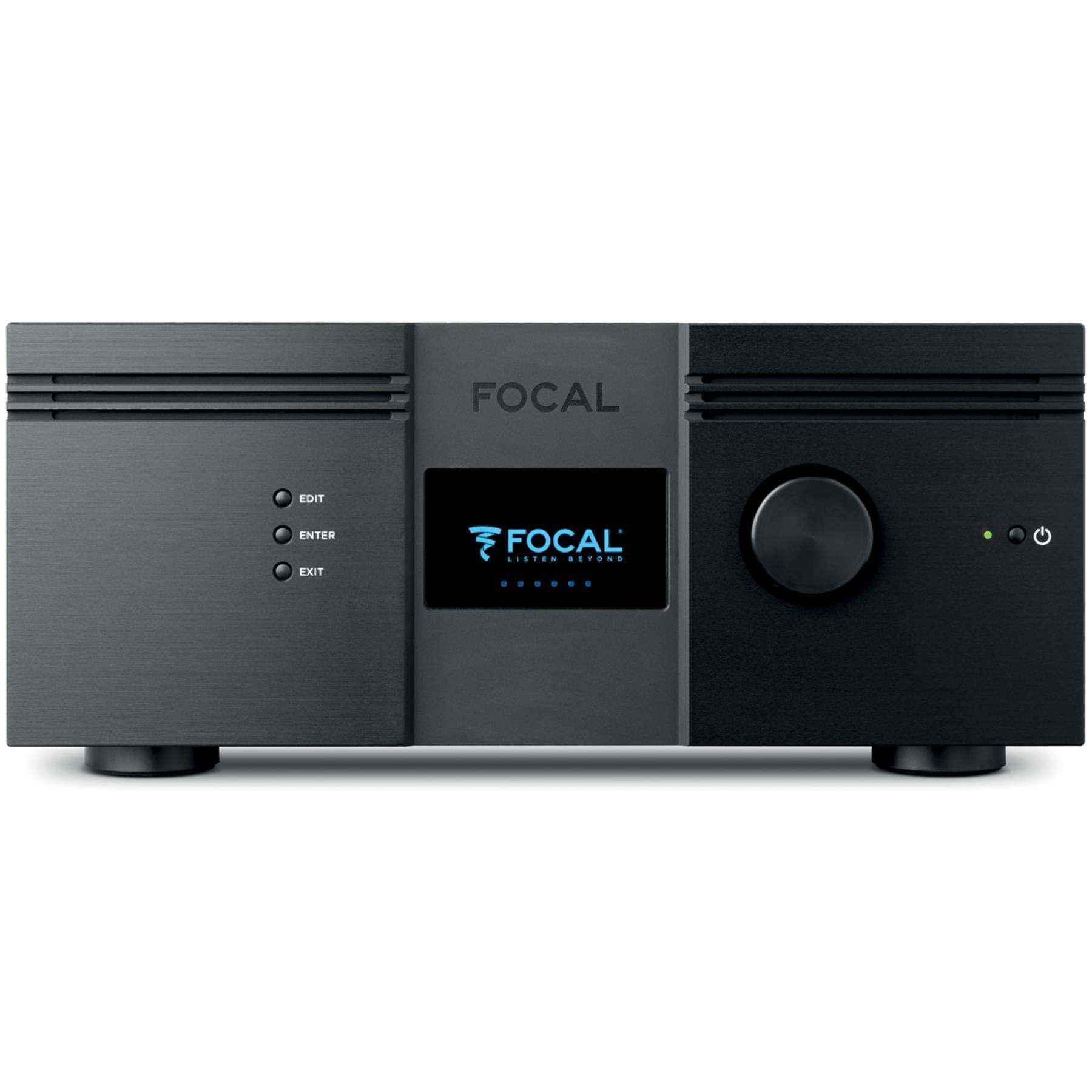

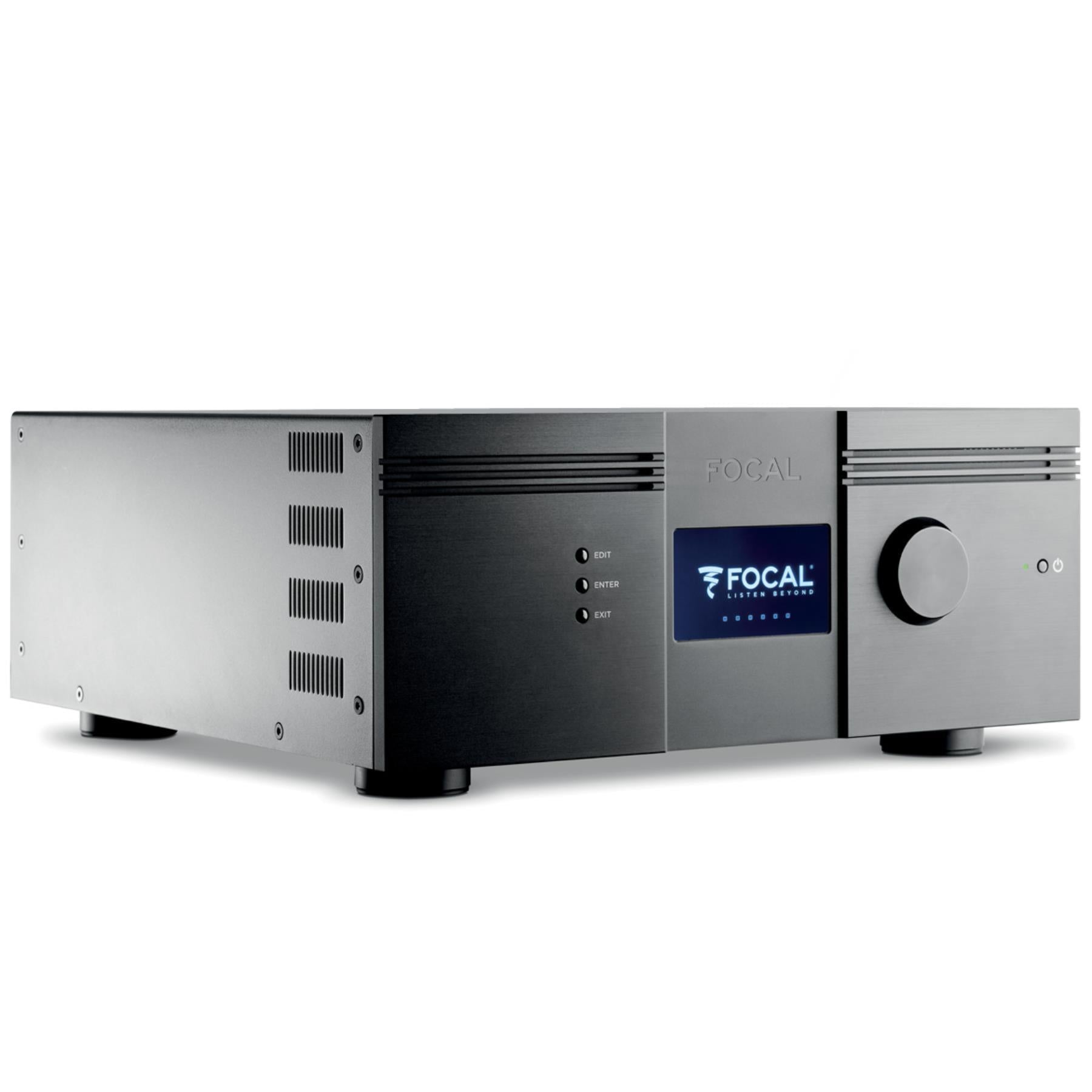

Focal Astral 16 Audio-Video Processor and Amplifier

Experience unparalleled home theater immersion with the Focal Astral 16, a high-end audio-video processor and amplifier meticulously engineered to elevate your entertainment space to new heights. Like a master conductor harmonizing every instrument in an orchestra, the Astral 16 orchestrates your audio and video components with precision, delivering a cinematic experience of unrivaled quality.

Focal Astral 16 Key Features:

• 16 channels, including 12 amplified and 4 pre-amplified (balanced XLR outputs)
• Class D Pascal Audio amplifier for superior performance
• Dedicated DSPs for audio optimization, including filtering, equalization, and bass management
• Supports 3D audio formats like Dolby Atmos® and DTS:X™ for immersive soundscapes
• 7 HDMI inputs, 2 HDMI 4K UHD outputs, HDCP 2.2 compliant, with eARC compatibility
• Dirac Live® room calibration for tailored acoustics and system optimization
• Fully configurable channels for mono-amplification, bi-amplification, and active loudspeaker management
• Remote monitoring functionality for convenience and peace of mind
• iOS application for intuitive control
• Rack mounting kit included for flexible installation options

Focal Astral 16 Specifications:

• Compatible formats: Dolby Atmos® / DTS:X™ / Auro-3D®
• Room Calibration: Powered by Dirac Live®
• Output channels: 16
• Input sampling rate supported: Up to 192kHz
• HDMI inputs/outputs: 7 inputs, 2 outputs (including eARC)
• Supported video formats: HDR10 / HLG
• Audio inputs: 3 x coaxial, 3 x optical, 4 x RCA
• Amplified channels: 12 channels driven simultaneous
• Continuous power output: 200W per channel (8Ω)
• Control Inputs/Outputs: USB, Ethernet, IR remote ports
• Power Supply: Universal voltage range (100V to 240V)

Set-Up Management:

• Configurable multi-theater and audio zones management
• Unlimited listening presets for personalized experiences
• Firmware update via USB/network for seamless upgrades

Installation and Accessories:

• Web-based product configurator and TCP/IP API-based control
• Focal Remote iPad control application
• Compatible with home automation systems (Crestron, Control4, Savant, RTI)
• Front panel display for easy navigation

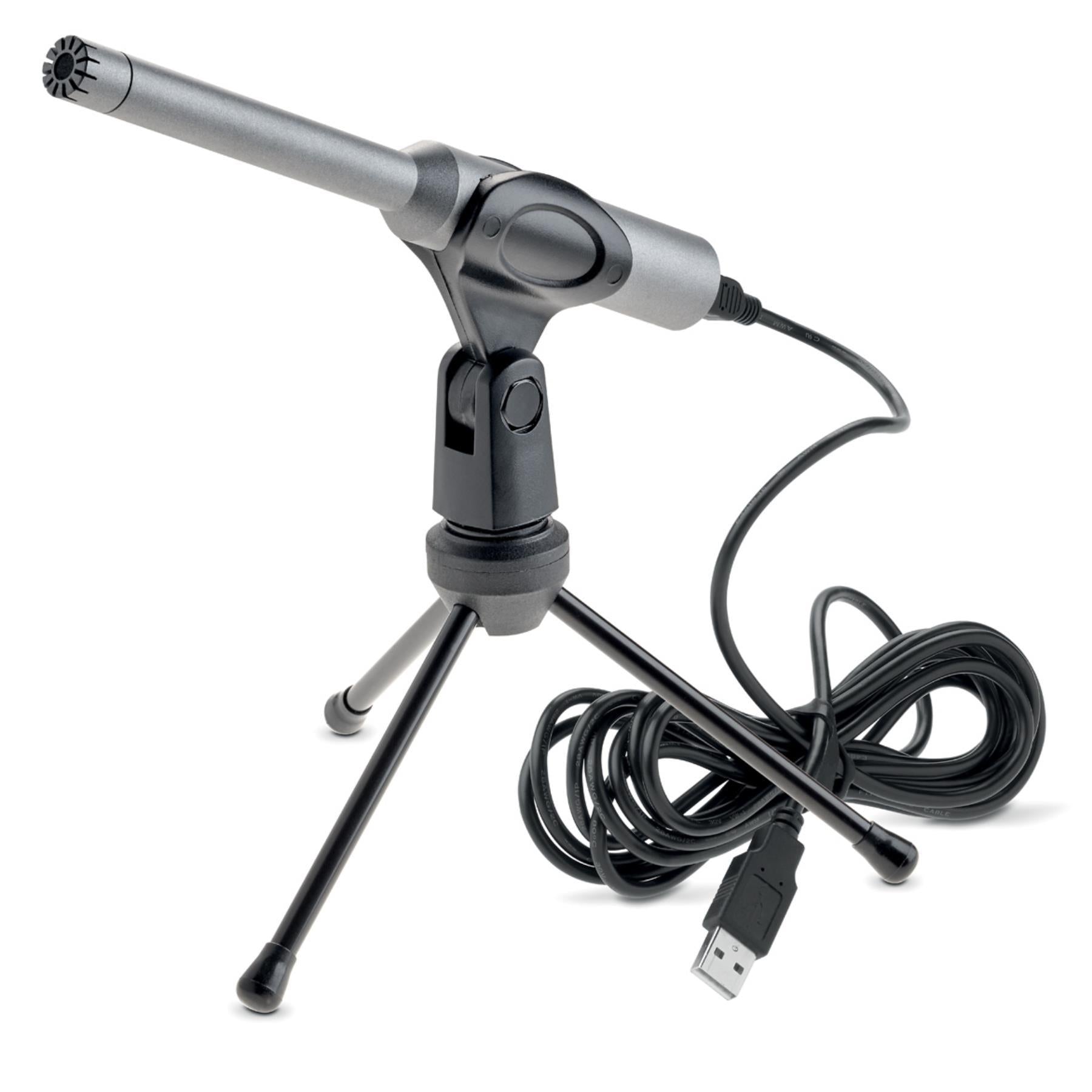

• Includes calibrated measurement microphone and tripod, Dirac Live license, and mounting kit

Dimensions & Weight:

• Net weight (with stands): 20.0 kg / 44.1 lbs
• Net weight (with accessories for Rack): 23.0 kg / 50.7 lbs
• Dimensions (with stands): 19.10 x 47.90 x 49 cm / 7.52 x 18.86 x 19.29 inches

Elevate your home entertainment experience with the Focal Astral 16 Audio-Video Processor and Amplifier, where every detail comes alive with unparalleled clarity and depth.

Focal Astral 16 Downloads
