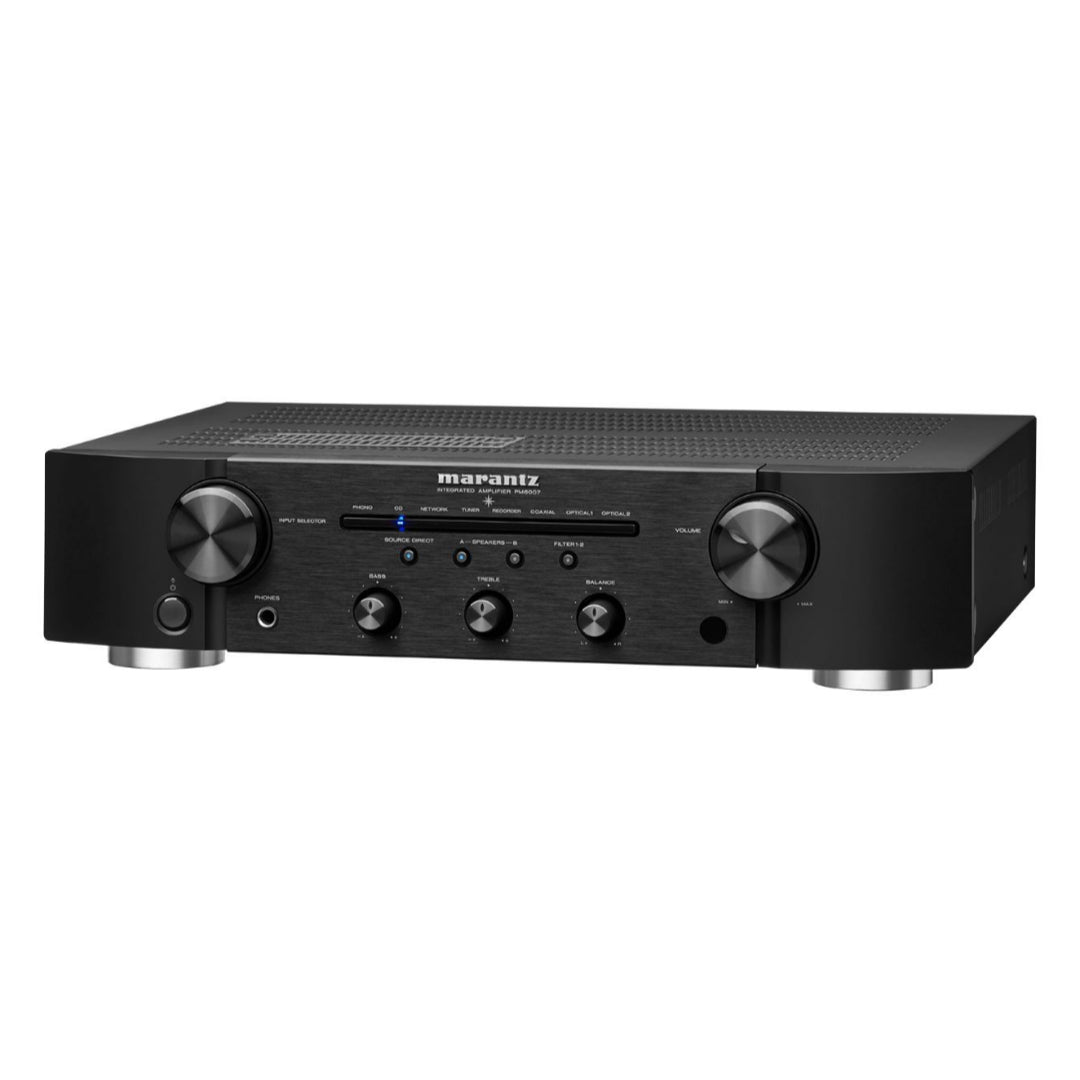

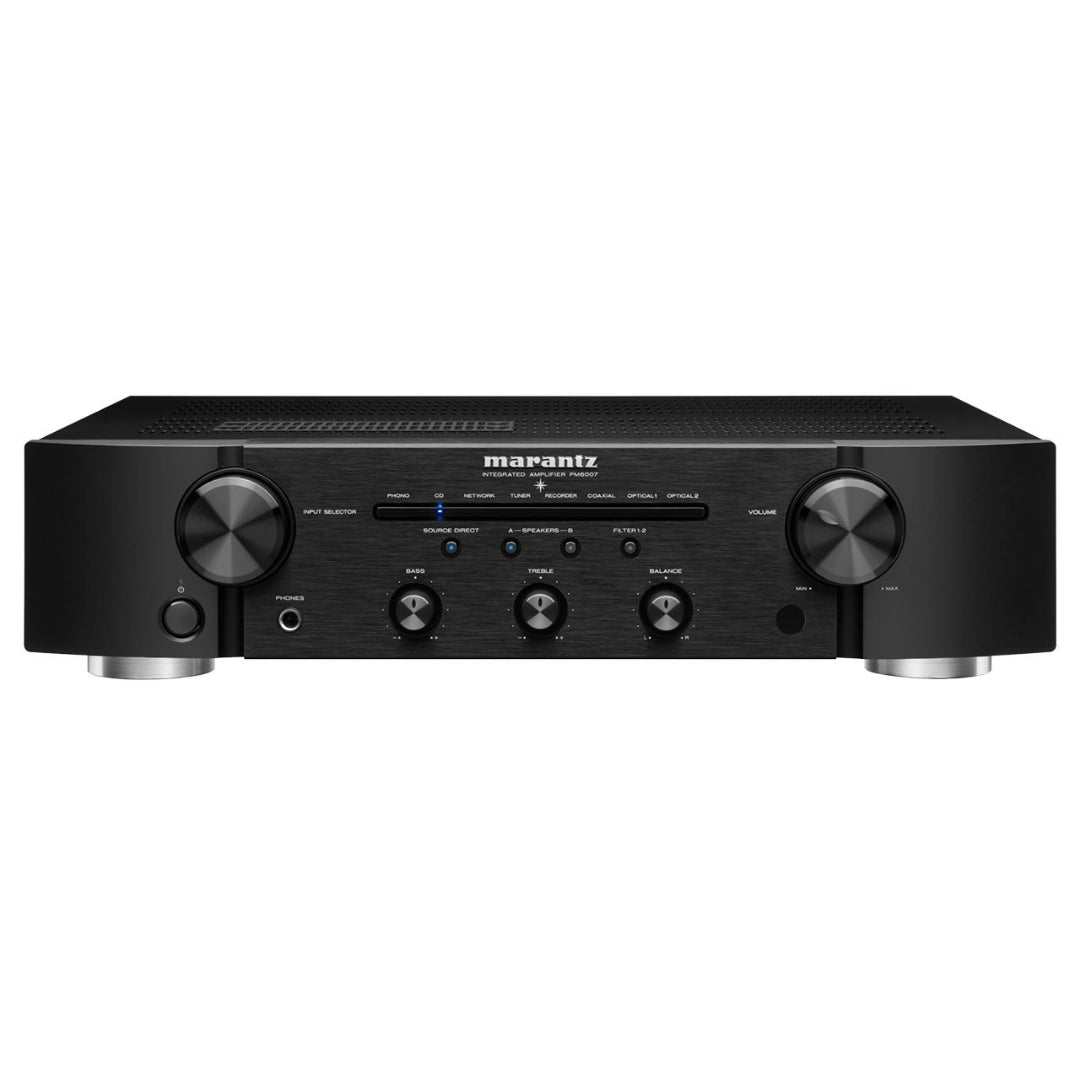

Indulge in Exceptional Sound with the PM6007 Integrated Amplifier

Discover unparalleled musicality with the PM6007, a high-performance integrated amplifier designed to elevate your 2-channel Hi-Fi system. Delivering a robust 45 watts per channel (8ohm, 20Hz-20kHz), this amplifier is powered by a Toroidal transformer and customized block capacitors for a truly immersive audio experience. Connect seamlessly to analog and digital sources, including a turntable with the built-in phono pre-amp featuring FET input. Enjoy enhanced bass with the subwoofer out option and immerse yourself in your favorite Hi-Res audio content through the 192-kHz/24-bit D/A converter.

Cutting-Edge Current Feedback Amplification Technology

Experience wide-bandwidth and high-speed sound reproduction with our innovative Current Feedback Amplifier technology. Paired with a high-current power supply, the PM6007 effortlessly drives even the most demanding speakers. Advanced thermal compensation ensures clean amplification in any scenario, making it an ideal choice for audiophiles.

Superior D/A Conversion for Digital Input

Embark on a new level of audio excellence with the PM6007's Hi-Res D/A conversion, featuring a reference-class AK4490 D/A converter supporting up to 192-kHz/24-bit resolution. Immerse yourself in the pristine fidelity of your Hi-Res audio files.

Dynamic High-Current Power Supply

Benefit from a powerful and dynamic high-current power supply equipped with Shottky Barrier Diodes and high-current storage capacitors, all fed by a Toroidal Transformer. This combination delivers a wide dynamic range and low impedance drive capability for an exceptional listening experience.

Innovative Toroidal Transformer Design

The PM6007's Toroidal Transformer design offers superior efficiency, delivering more power within the same size. Its unique shape minimizes electromagnetic radiation and mechanical vibration, contributing to unparalleled sound quality.

Enhanced Marantz HDAM-SA3 Technology

Introducing Marantz's proprietary HDAM-SA3 circuit, a discreet replacement for standard IC's. With discrete surface mount components and short mirror-image L/R signal paths, HDAM-SA3 outperforms regular IC Op-amps, resulting in a more dynamic, accurate, and detailed sound. In the PM6007, this circuit has been further optimized for stable sound performance, even at high-level output.

Expanded Digital Connectivity Options

The PM6007 offers expanded digital connectivity with 2 Optical and 1 Coaxial inputs, supporting Hi-Res audio playback (up to 192-kHz/24-bit PCM). The digital section is shielded to preserve the integrity of the analog signal.

Customizable Digital Filter

Experience optimized digital music reproduction with the PM6007's new digital filter for Optical and Coaxial inputs. Choose between two modes (Filter1/Filter2) to tailor the sound to your preference, enhancing stereo imaging or providing precise imaging reproduction.

Versatile Subwoofer Output

Supporting an external subwoofer with a fixed low-pass cut-off frequency at 150Hz, the PM6007 ensures accurate bass without audible peaks or dips, offering flexibility in subwoofer placement.

Upgraded Integrated Phono Input

Continuing Marantz's legacy of high-quality phono stages, the PM6007 features a redesigned circuit with FET in the input stage. This technology delivers high input impedance, eliminates AC coupling capacitors, simplifies the signal path, and reduces distortion and noise for unmatched signal purity.

Premium Audiophile-Grade Components

Experience the epitome of Hi-Fi performance with the PM6007, meticulously crafted with premium components. Our engineers have fine-tuned this amplifier, optimizing sound parts to deliver an extraordinary audio experience. Immerse yourself in the world of exceptional sound with the Marantz PM6007 Integrated Amplifier.

Marantz PM6007 Specifications

Technical Specifications Features

• Channels: 2
• Current Feedback Topology: Yes
• Full Balanced Circuitry Architecture: No
• Double Mono Power Amp Construction: No
• Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - Yes / No / No
• Digital In: USB-B / Optical / Coaxial / USB-A - No / 2 / 1 / No
• Sample Rate Digital In: 192 kHz / 24-bit
• USB-A: DSD / WAV / FLAC / AIFF / ALAC - No
• USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 - No
• USB-B PCM Sample Rate: No
• Asynchronous Mode Rear USB: No
• Bit-perfect Transmission: No
• Ground Isolator for DAC Mode Operation: No
• Tuner: FM / AM - No
• Bluetooth / aptX / NFC - No
• Streaming Audio from PC - No
• Wi-Fi / Wired LAN - No
• Internet Radio - No
• AirPlay 2 Audio Streaming - No
• Roon Tested - No
• Spotify Connect* / Tidal* / Deezer* / Others* - No
• Amazon Prime Music* / Pandora* - No
• HEOS Multiroom and Streaming - No
• Voice Control Using Alexa - No
• Voice Control - Google Assist / Apple Siri - No
• Voice Control - Microphone Built-in - No
• DSD-Audio Network Streaming - No
• Lossy Formats: MP3 / WMA / AAC - No
• Lossless Formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF - No
• Gapless Playback - No
• Remote App: iDevice / Android - No
• Analog Mode - No
• HDAM Version: SA3, SA2
• Power Transformer: Toroidal / El - Yes / No
• High-Grade Audio Components - Yes
• Customized Components - Yes
• Symmetric PCB Layout - No
• Aluminium Extrusion Heat Sink - Yes
• Copper Plated Chassis - No
• Tri Tone Control (Bass / Mid / Treble) - No
• Balance / Bass / Treble / Loudness - Yes / Yes / Yes / No

Others

• Marantz Musical Digital Filtering - Yes
• Linear Drive Power Supply - Yes
• Linear Volume Control - Yes
• BI-AMP and Multichannel Option - No
• Shottky Diodes - Yes
• Input Buffer Amp (All Inputs / CD Only) - No / No
• System Block Shielding: Copper / Metal / None - No / No / Yes
• Double Layer Bottom Plate - No
• Low Noise OLED Display - No
• Low Noise LCD Display - No
• Source Direct - Yes
• Power Amp Direct - No
• 5mm Aluminium Top Plate - No

Inputs/Outputs

• Audio Inputs: 5
• Digital In: USB-B / Optical / Coaxial / USB-A - No / 2 / 1 / No
• Phono Input: MM / MC - Yes / No
• Audio Outputs: 1
• Balanced In / Out - No / No
• Pre-out / Main-in Subwoofer / No
• Power Amp Direct IN - No
• HDMI: Inputs / Outputs - No
• Gold Plated Cinch - Yes
• Speaker A / B - Yes
• Speaker Terminals: Metal (Gold) Screw
• Number of Terminals: 4
• D-Bus - Yes
• Floating Control Bus (3.5 mm Mono Jack x 2) - No
• Headphone Out - Yes
• Headphone Gain Control (Low / Mid / High) - No

Specifications

• Power Output (8 / 4 Ohm RMS): 45 W / 60 W
• Frequency Response: 10 Hz - 70 kHz
• Total Harmonic Distortion: 0.08%
• Damping Factor: 100
• Input Sensitivity: MM - 2.2 mV / 47 kOhm
• Input Sensitivity: MC - No
• Signal to Noise Ratio: MM/MC - 83 dB / No
• Input Sensitivity: High Level - 200 mV / 20 kOhm
• Input Sensitivity: Balanced High Level - No
• Signal to Noise Ratio: High Level - 102dB(2V input)
• Input Sensitivity: Power Amp Direct IN - No
• Signal to Noise Ratio: Power Amp Direct IN - No

General

• Available Colors: Gold / Silver / Black / Silver-Gold - No / No / Yes / Yes
• Metal Front Panel - Yes
• Power Consumption in W - 155
• Standby Consumption in W - 0.3
• Auto Power Off - Yes
• Detachable Power Cable - Yes

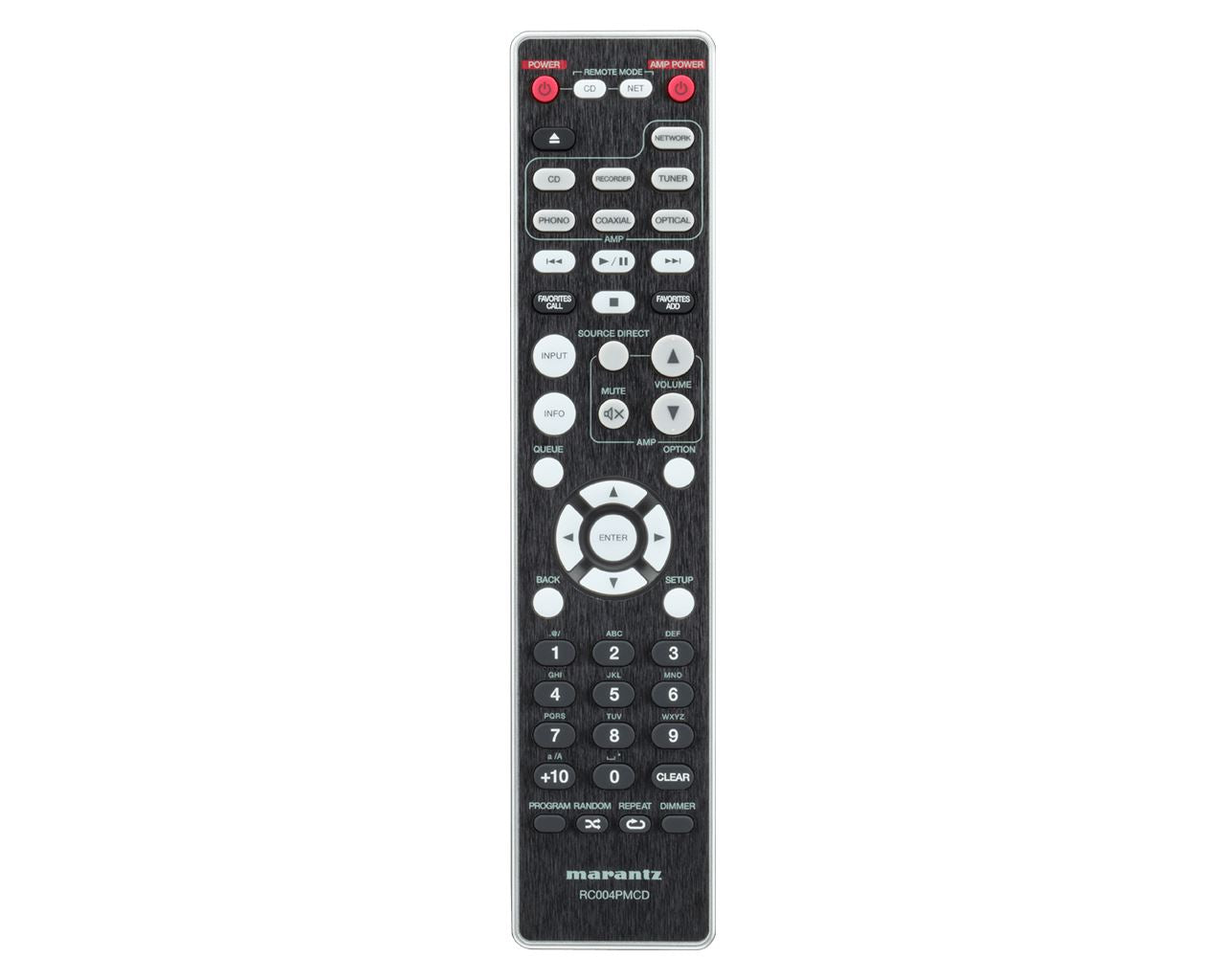

• Remote Control - RC004MCD
• System Remote Function - Yes
• Maximum Dimensions (W x D x H) in inches - 17.3 x 14.5 x 4.1
• Weight in lbs. - 16.7
• Carton Maximum Dimensions (W x D x H) in inches - 20.3 x 7.4 x 18.4
• Carton Weight (inc. product) in lbs - 21.3
