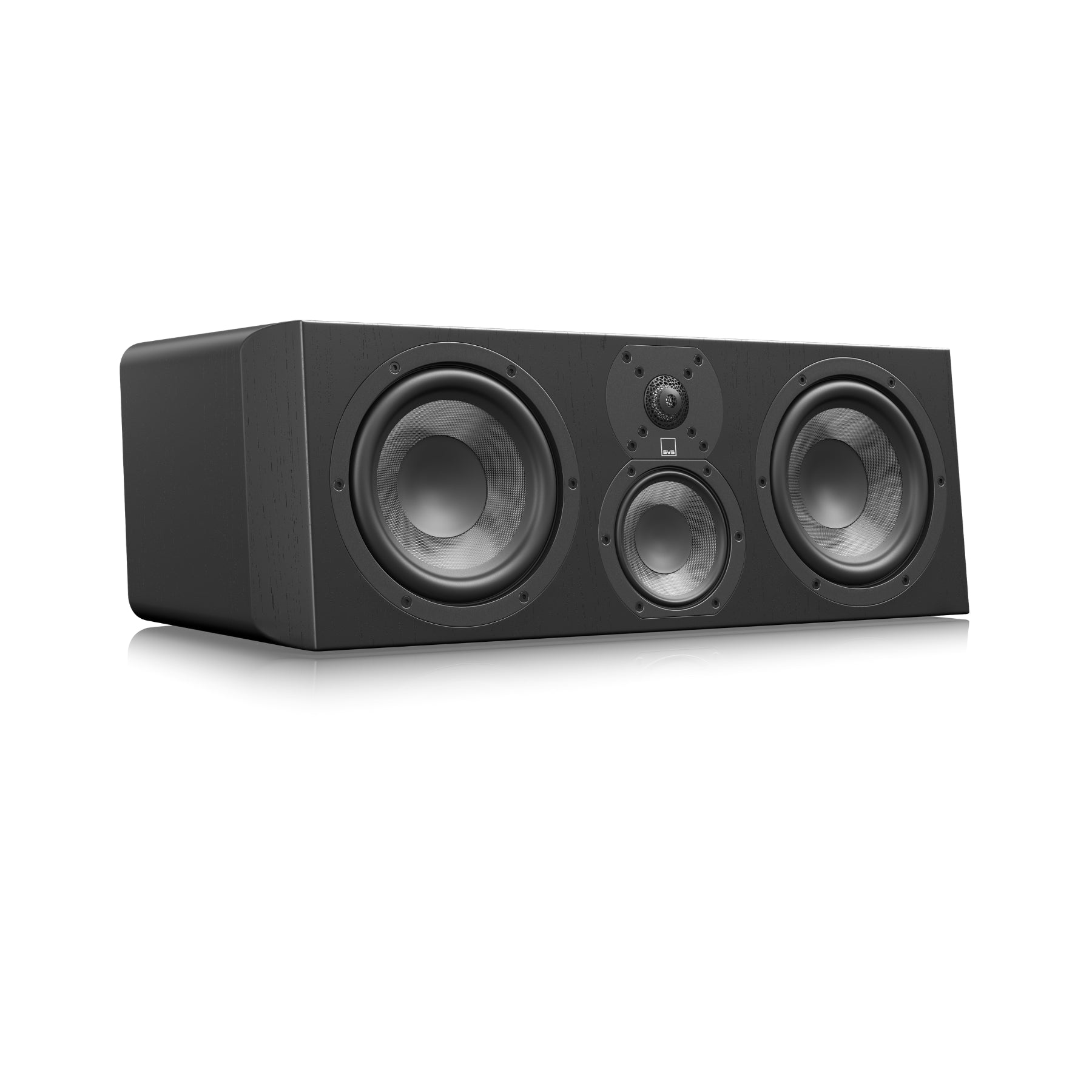

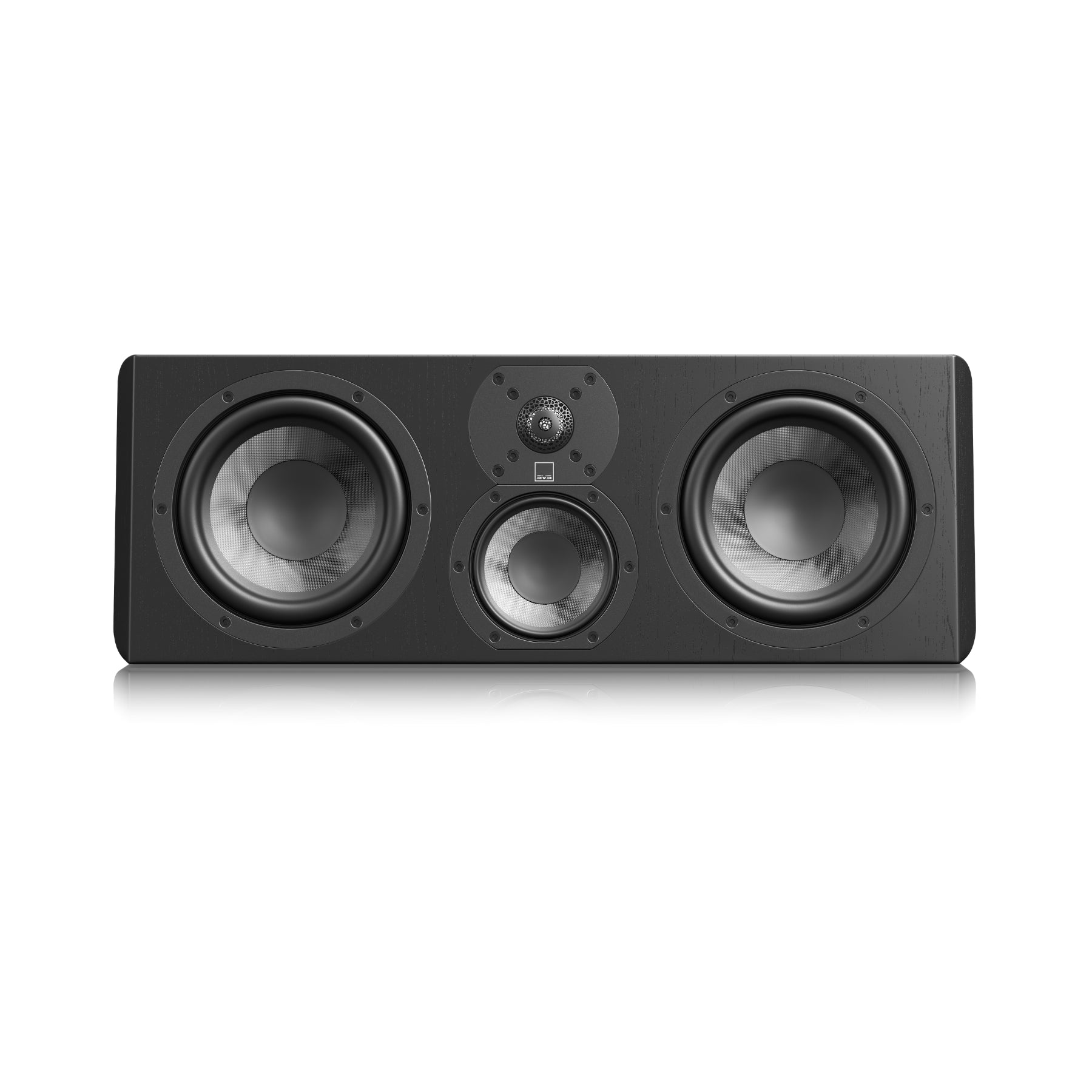

SVS Ultra Evolution 3-Way Center speaker

is SVS‘s best center channel speaker. With an astonishingly large sweet spot, the Ultra Evolution Center can deliver outstanding vocal clarity and powerful dynamics to just about every seat in the room.

1” Diamond Coated Tweeter:

• FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity
• Hyper-rigid diamond carbon coating on an aircraft-grade aluminum dome extends high-frequency response beyond human hearing
• Silver tinsel for optimal signal transfer and power handling

4.5” Glass Fiber Composite Midrange Driver:

• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity
• Precision-cast aluminum-alloy baskets ensure precise alignment and thermal dissipation
• Vented Kapton voice coil former for excellent dynamics and transient response

Dual 6.5” Glass Fiber Composite High-Excursion Woofers:

• Long stroke motor and suspension for high output
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity
• Precision-cast aluminum alloy baskets ensure precise alignment and thermal dissipation
• Vented aluminum voice coil former for thermal control and minimized air compression artifacts

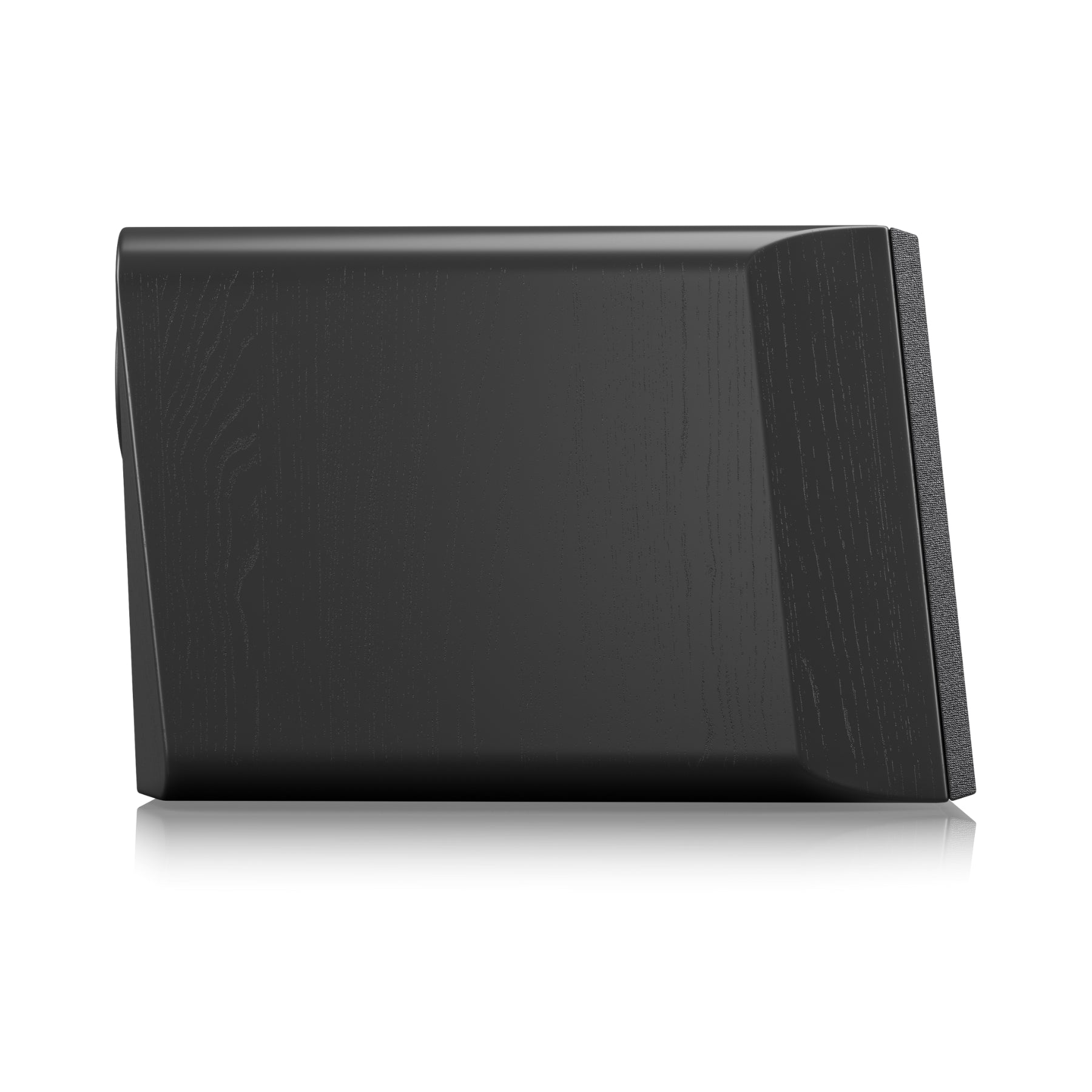

Cabinet:

• Time-aligned cabinet geometry for improved linearity and directionality

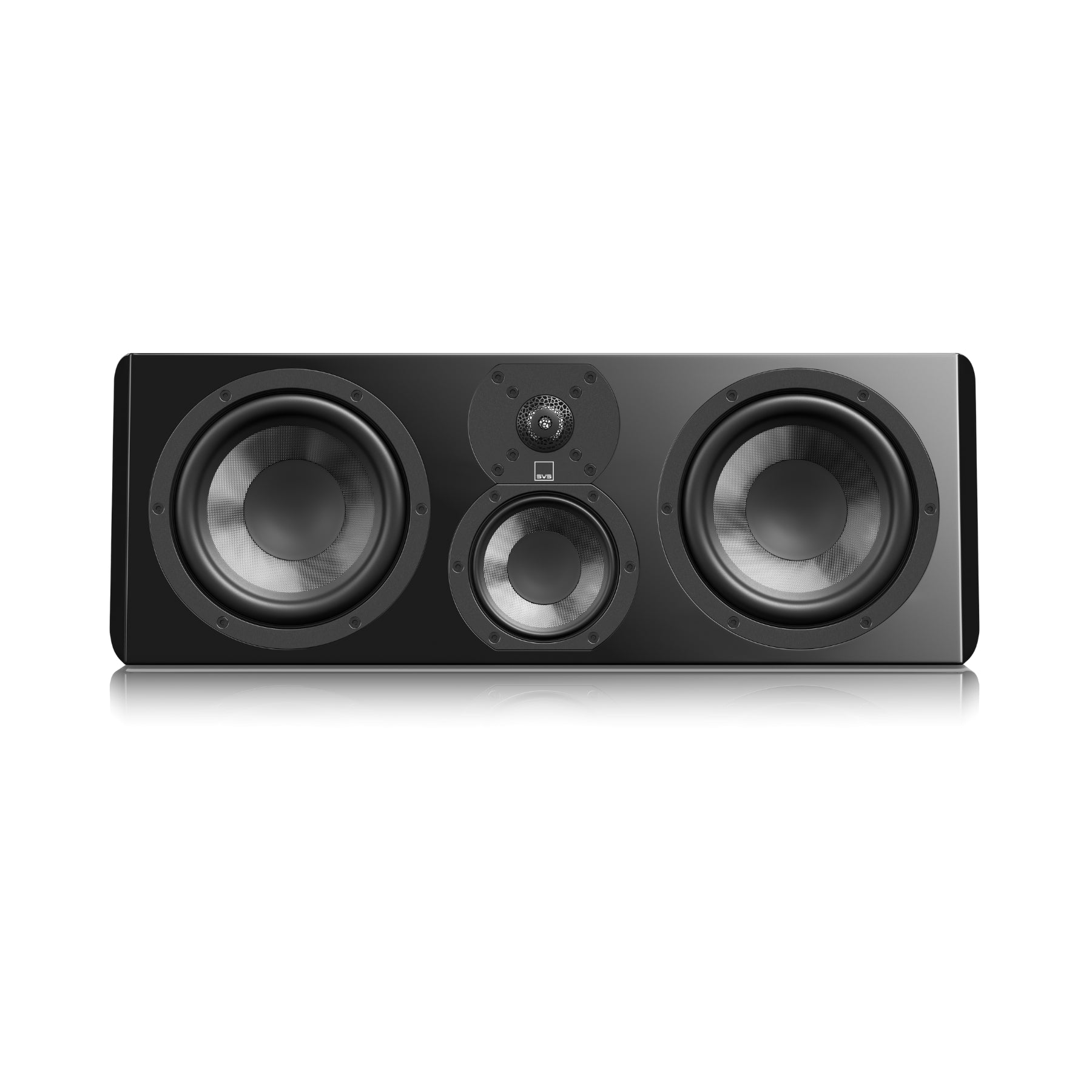

• Vertically Aligned Tweeter-Midrange array for perfect frequency response and blending
• Dual 6.5” woofers for deep, accurate bass
• 4.5” midrange driver in a dedicated acoustic-suspension sub-enclosure for pristine midrange output
• Chamfered front baffle and flush-mounted drivers for improved high-frequency response
• Extra-thick 1” (25mm) driver baffle for resonance-free mounting
• FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation for an inert enclosure and uncolored response

Additional Features:

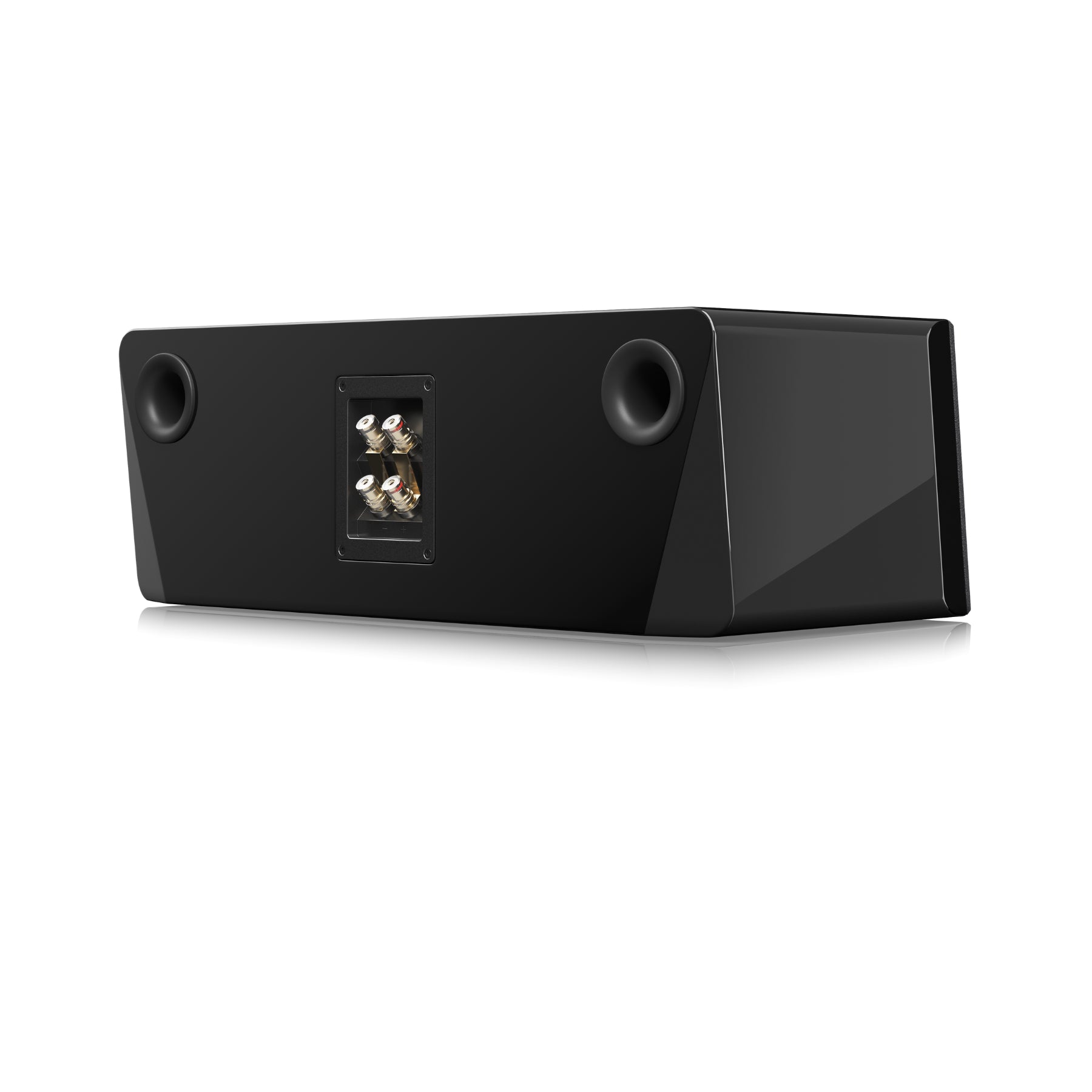

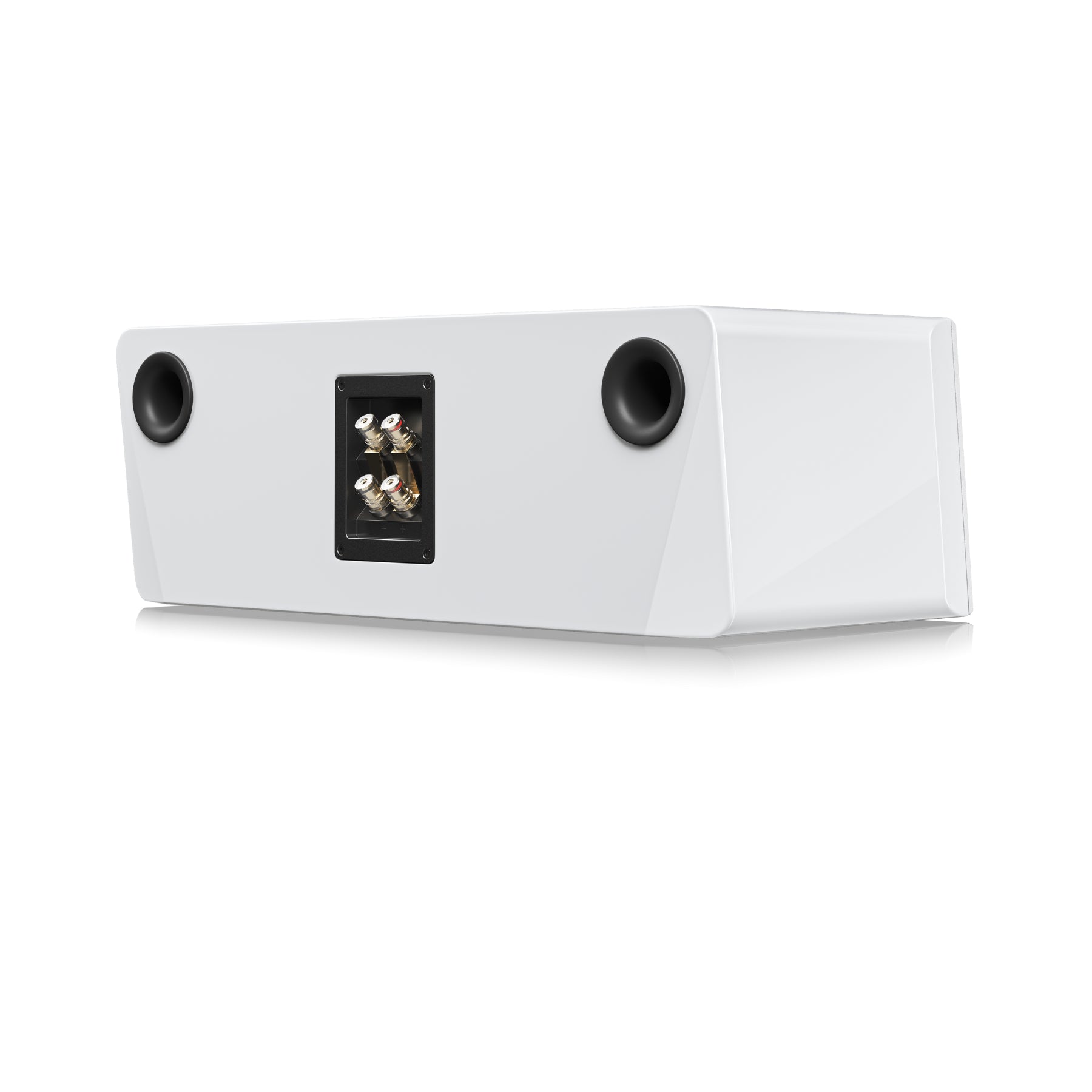

• Dual gold-plated 5-way binding posts

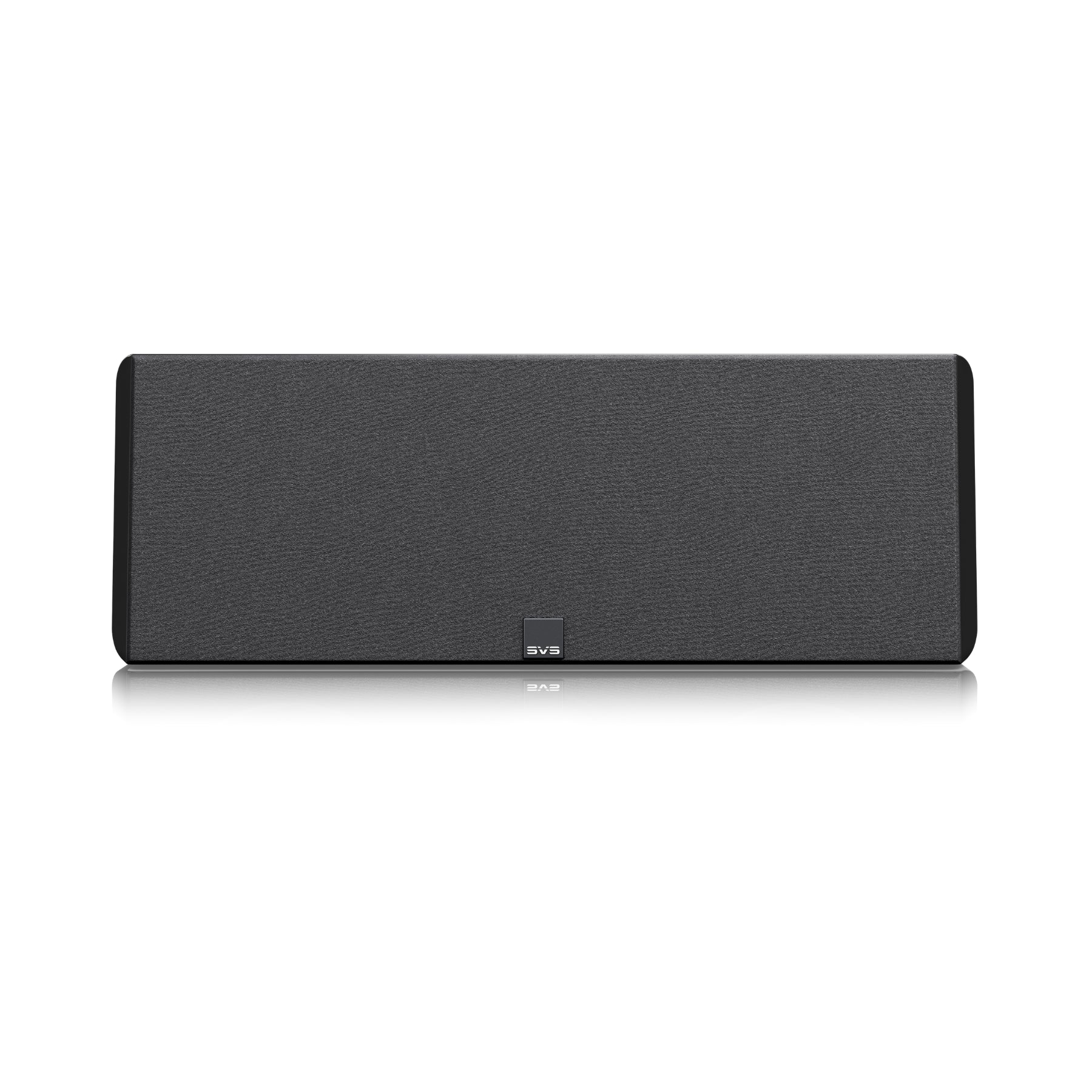

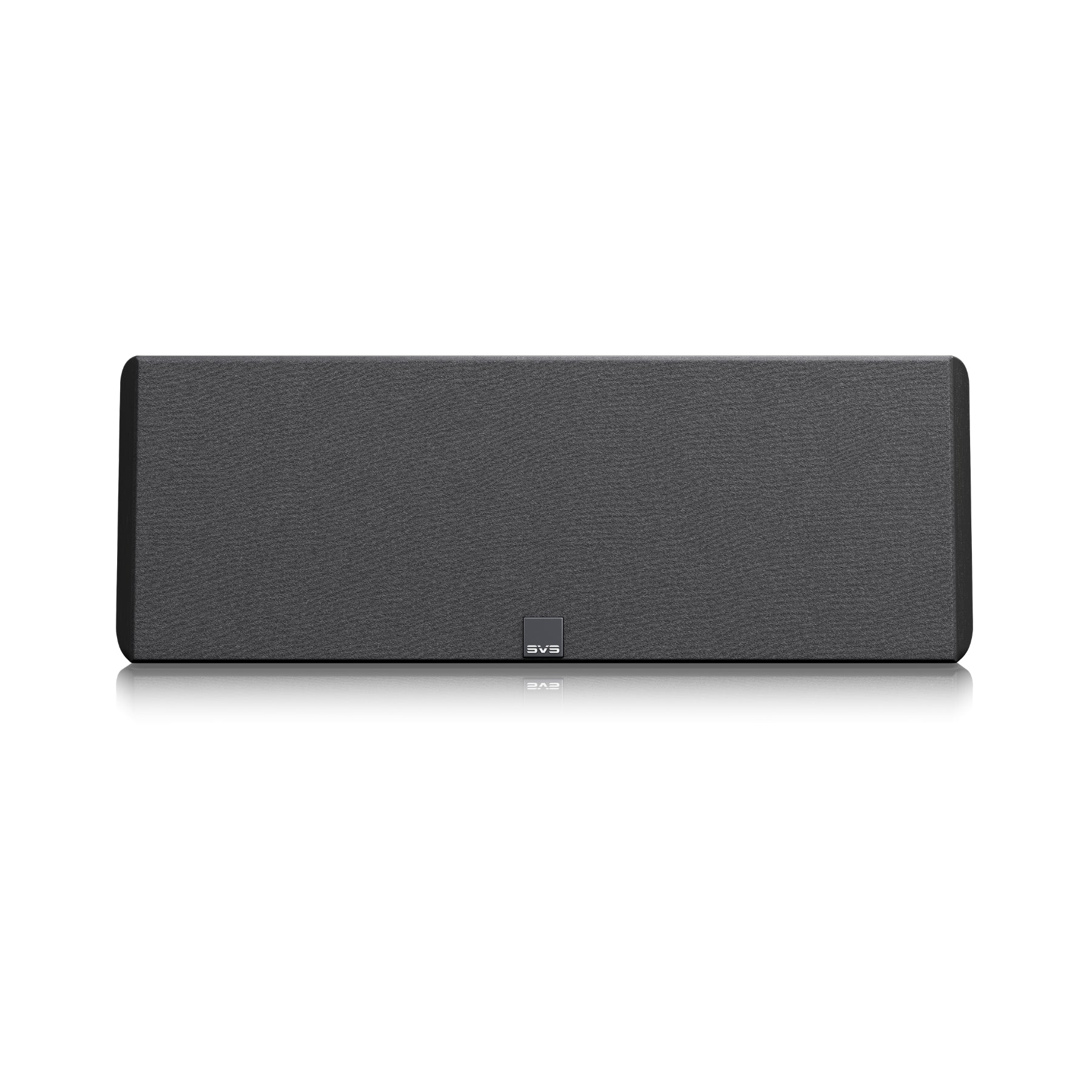

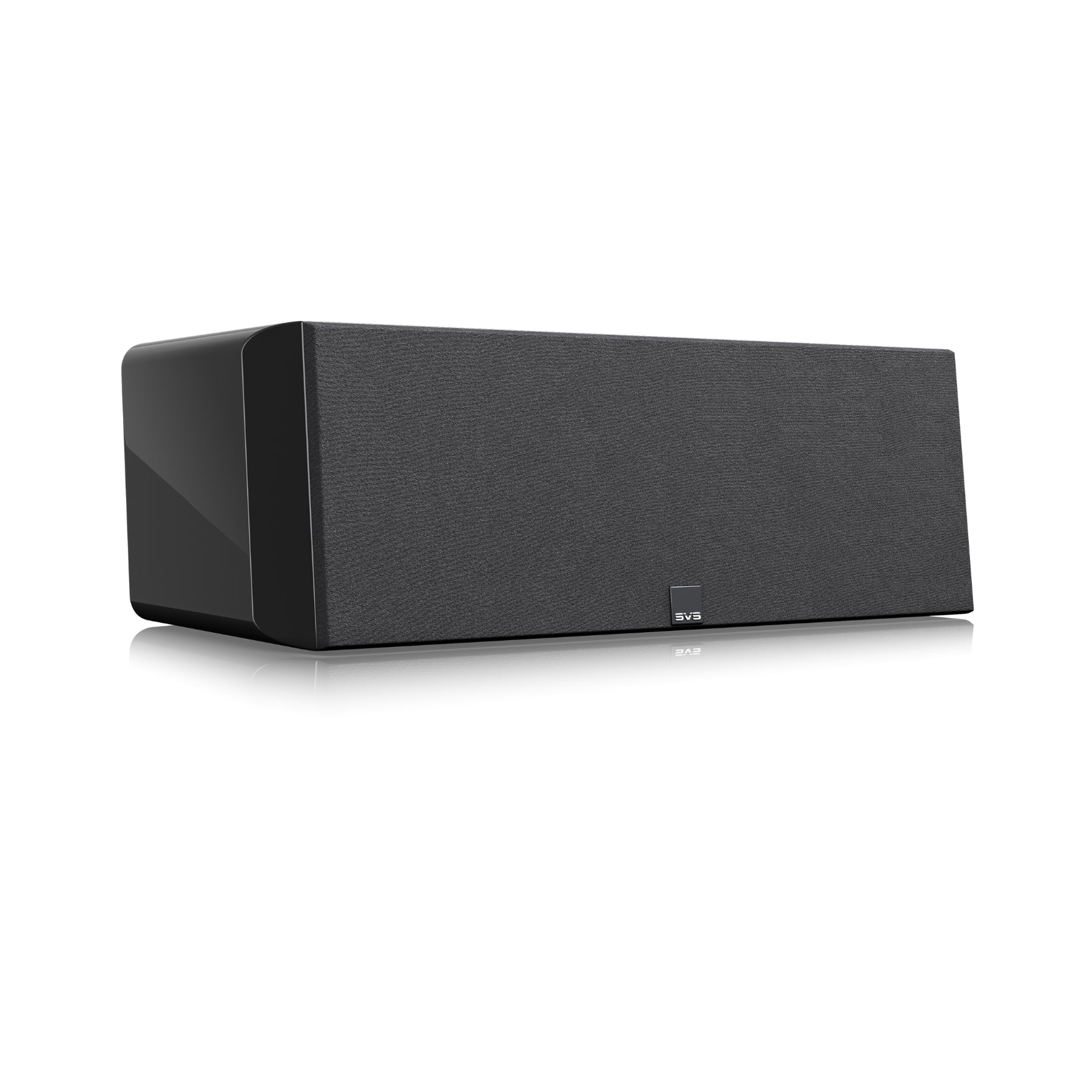

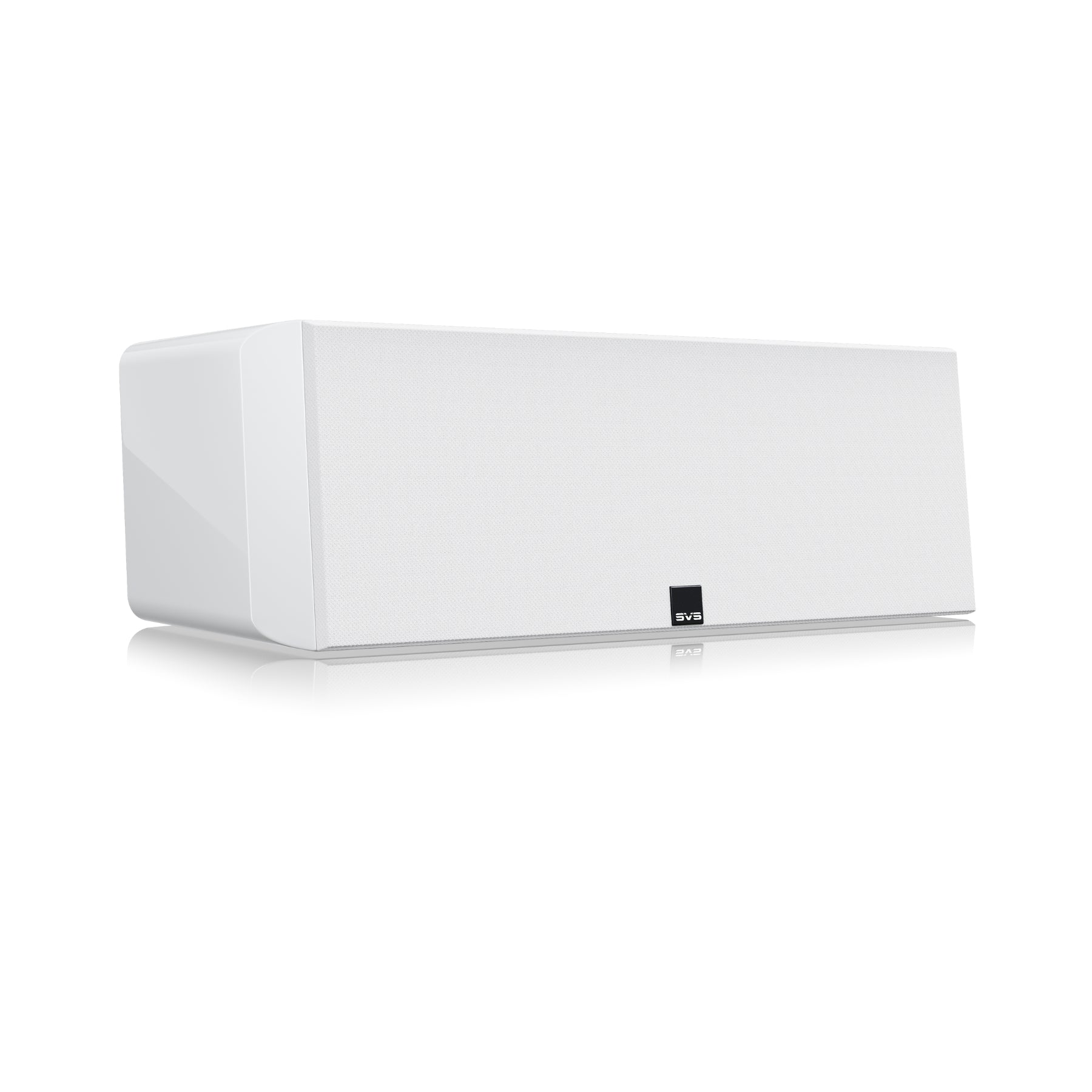

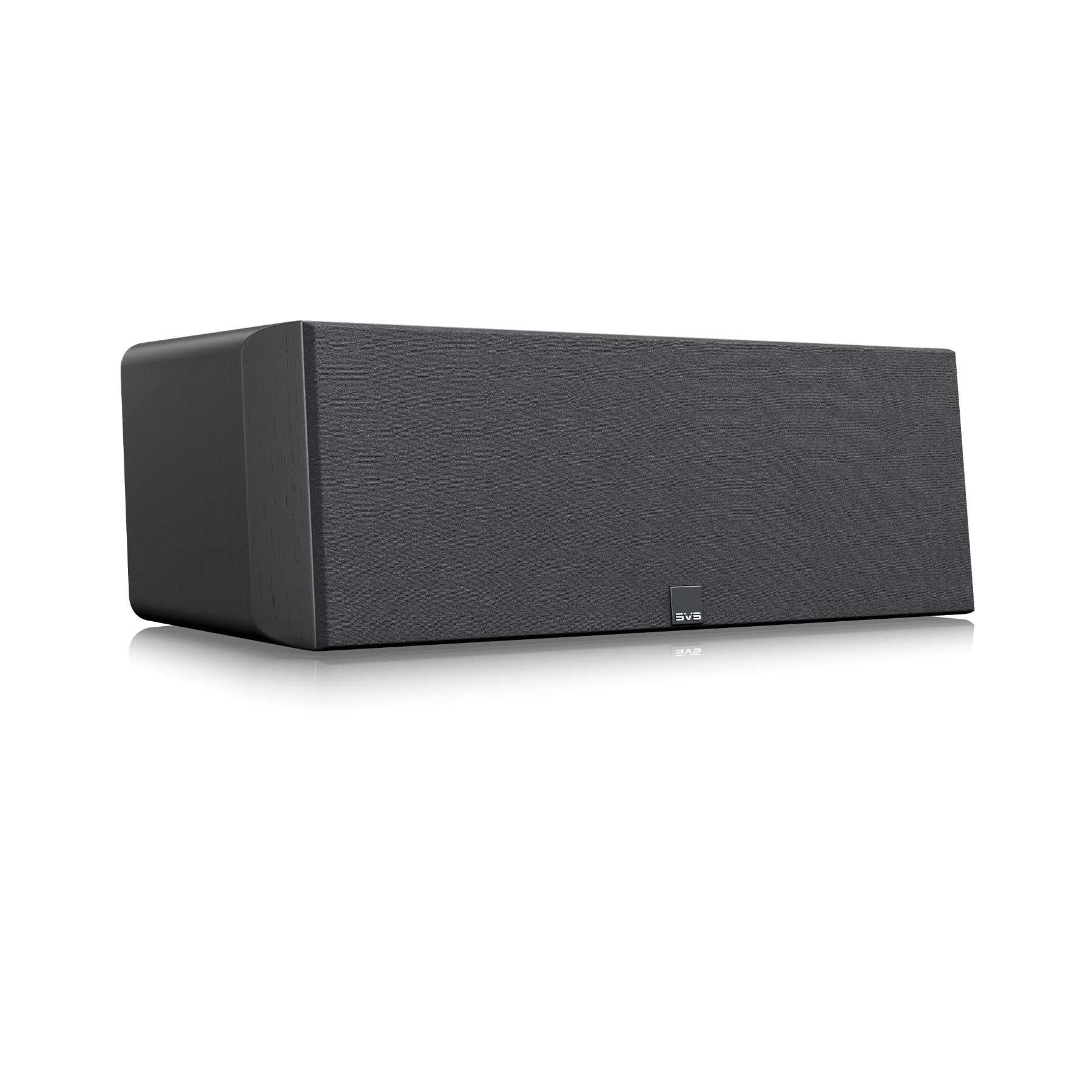

• Cloth grille with magnetic retention system
• Elastomer stick-on bumper feet included

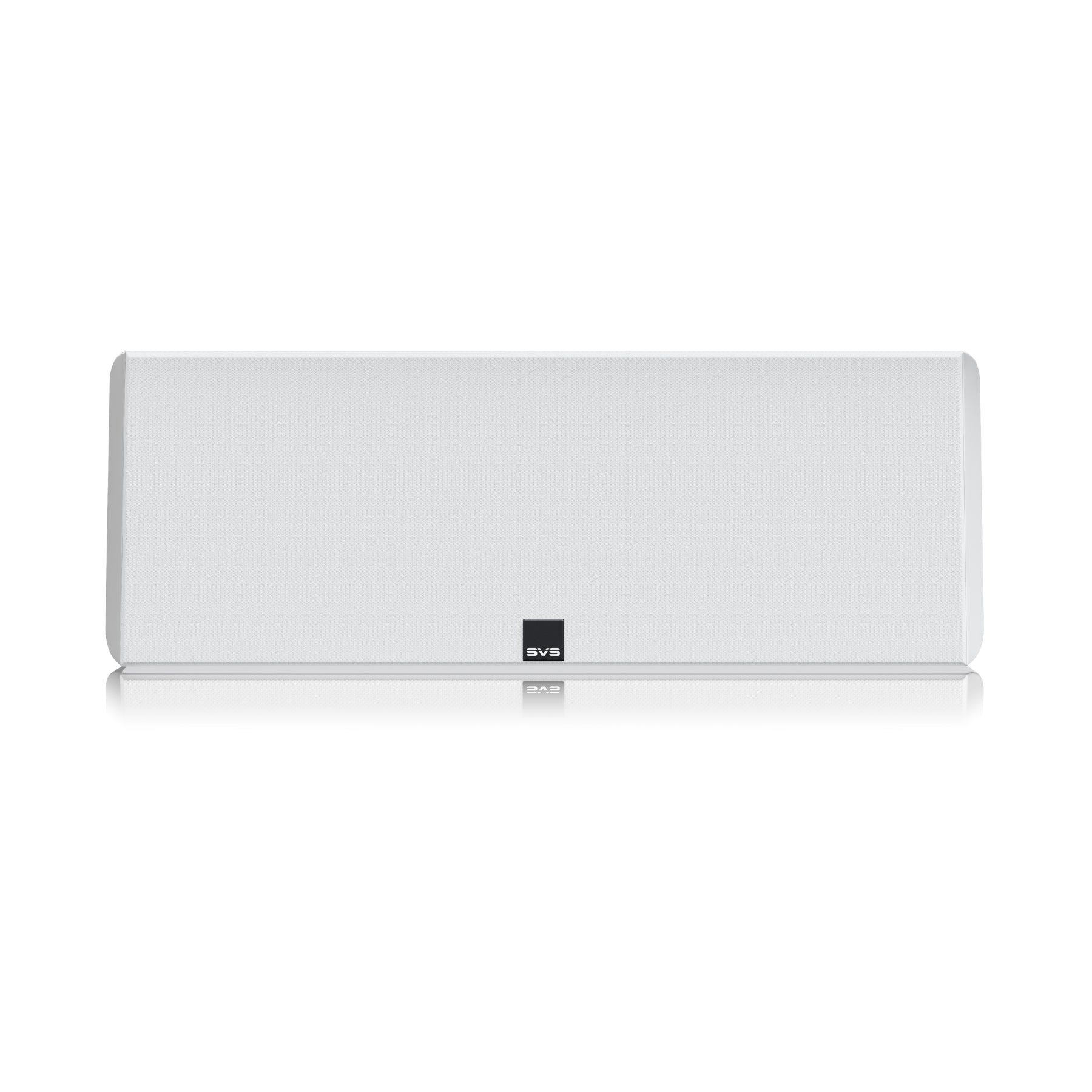

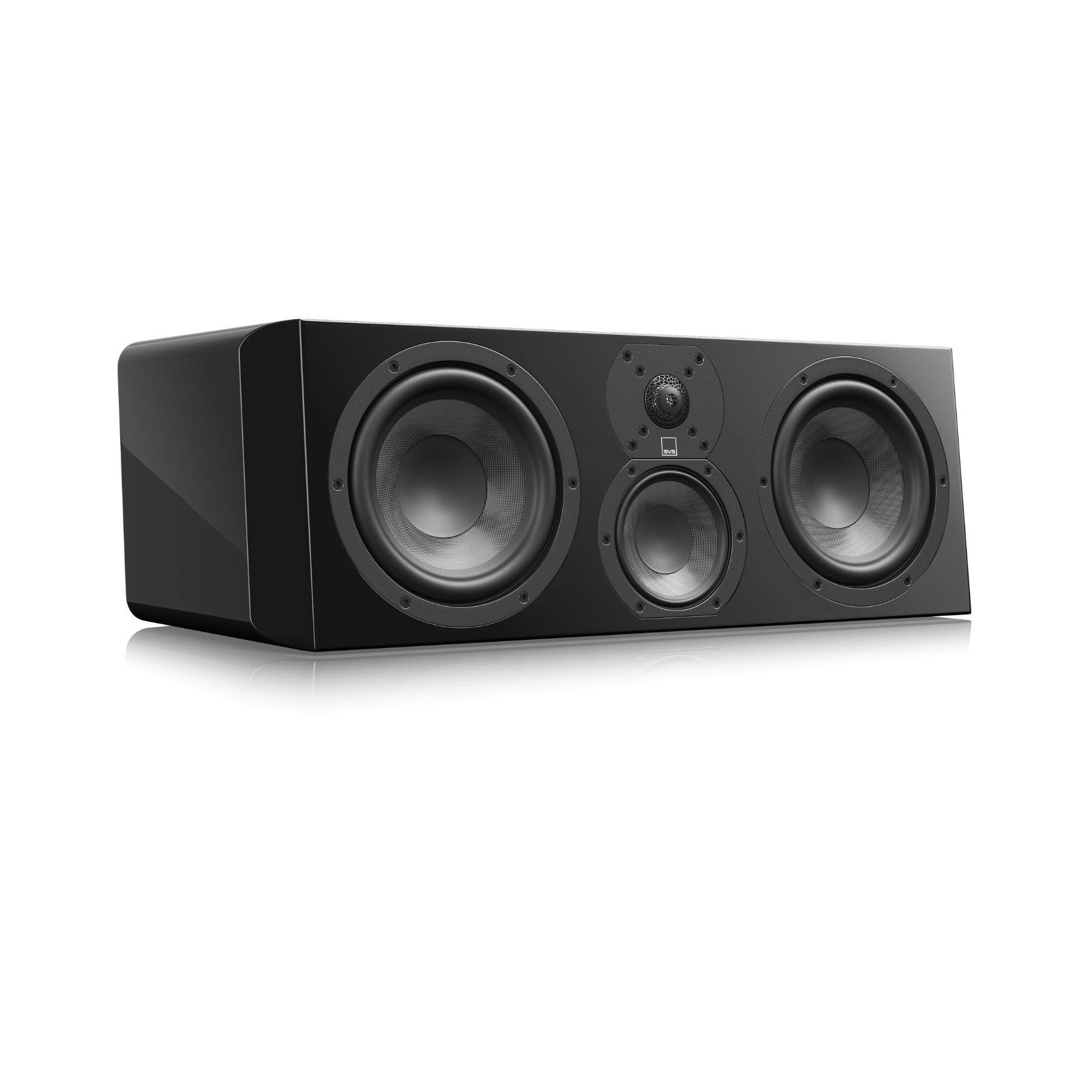

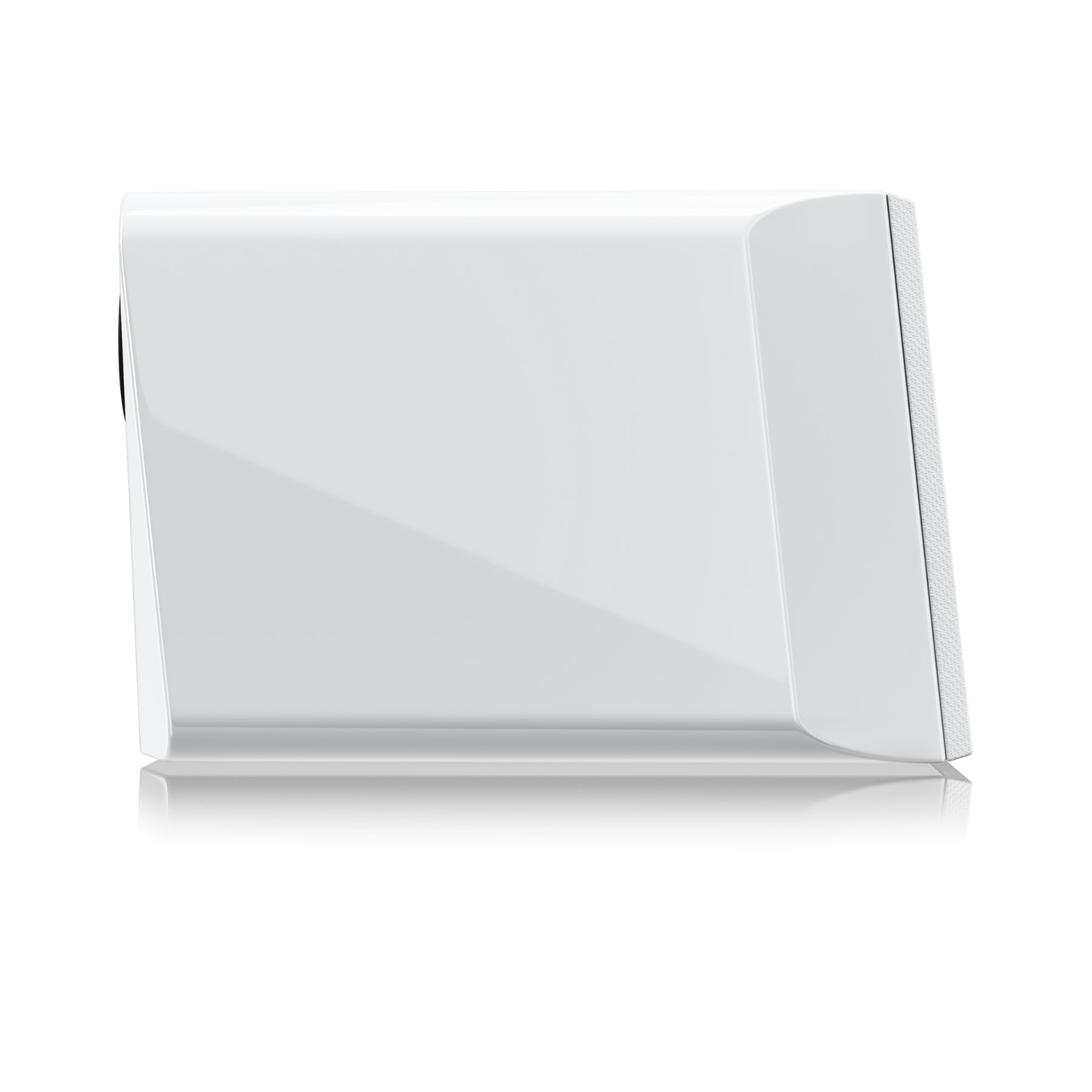

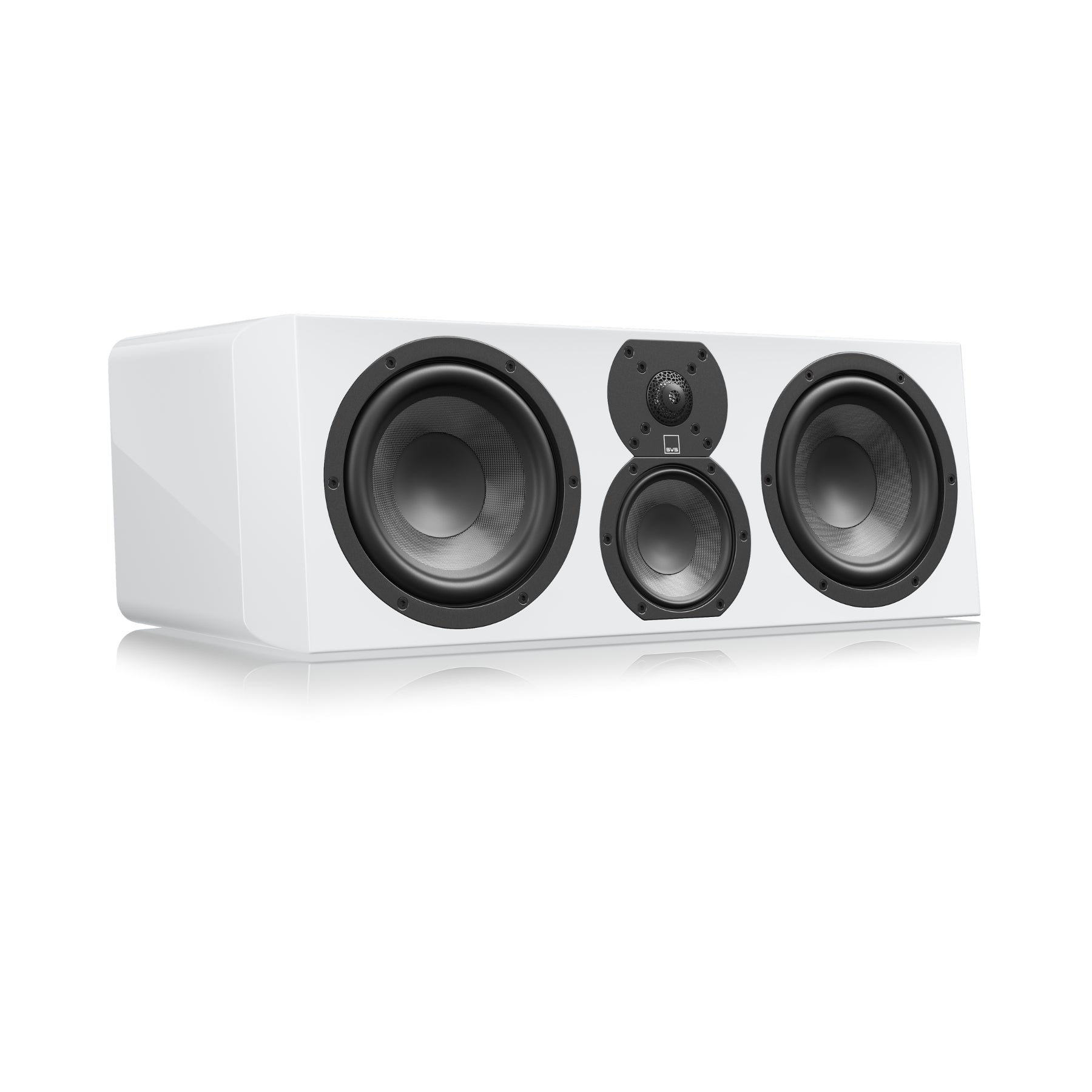

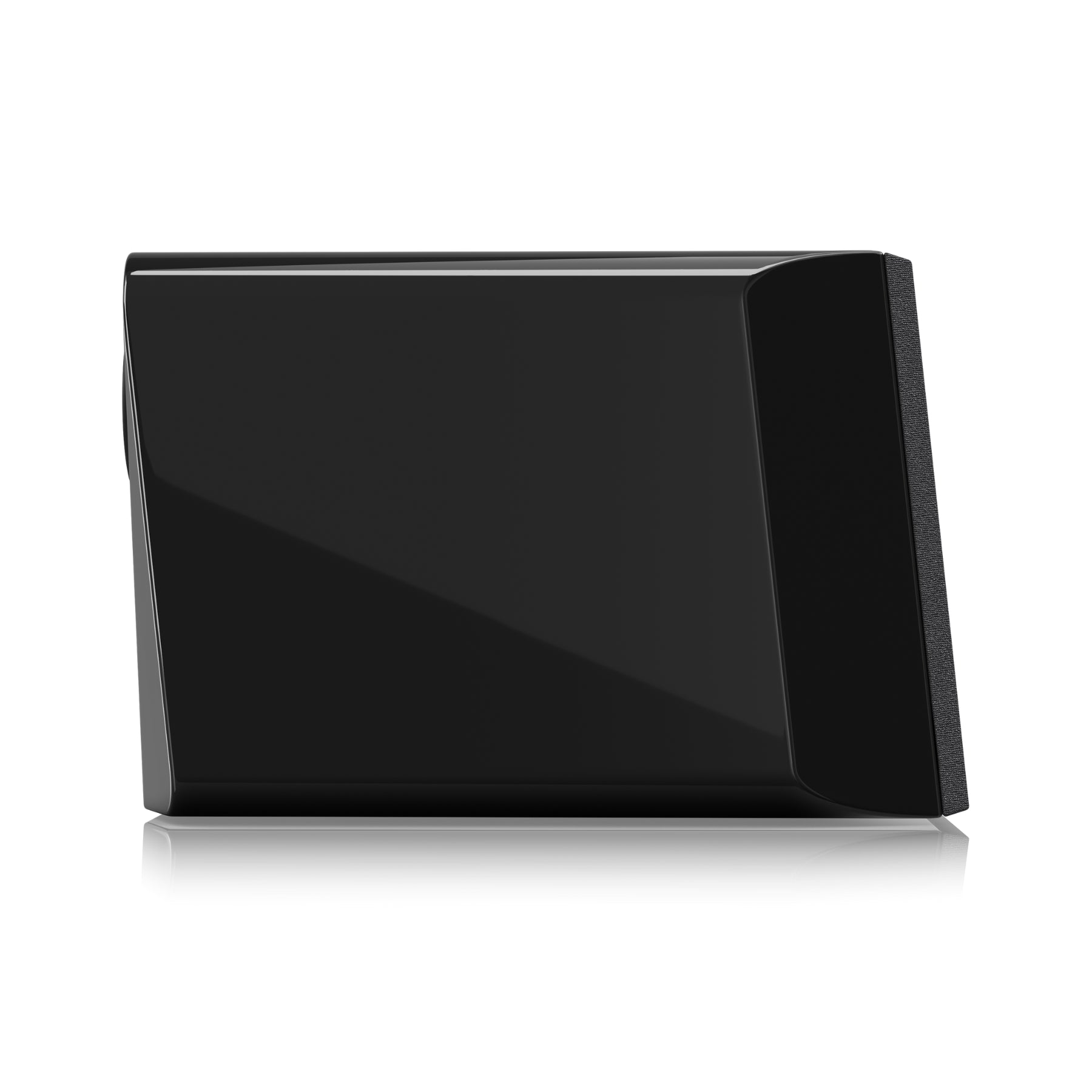

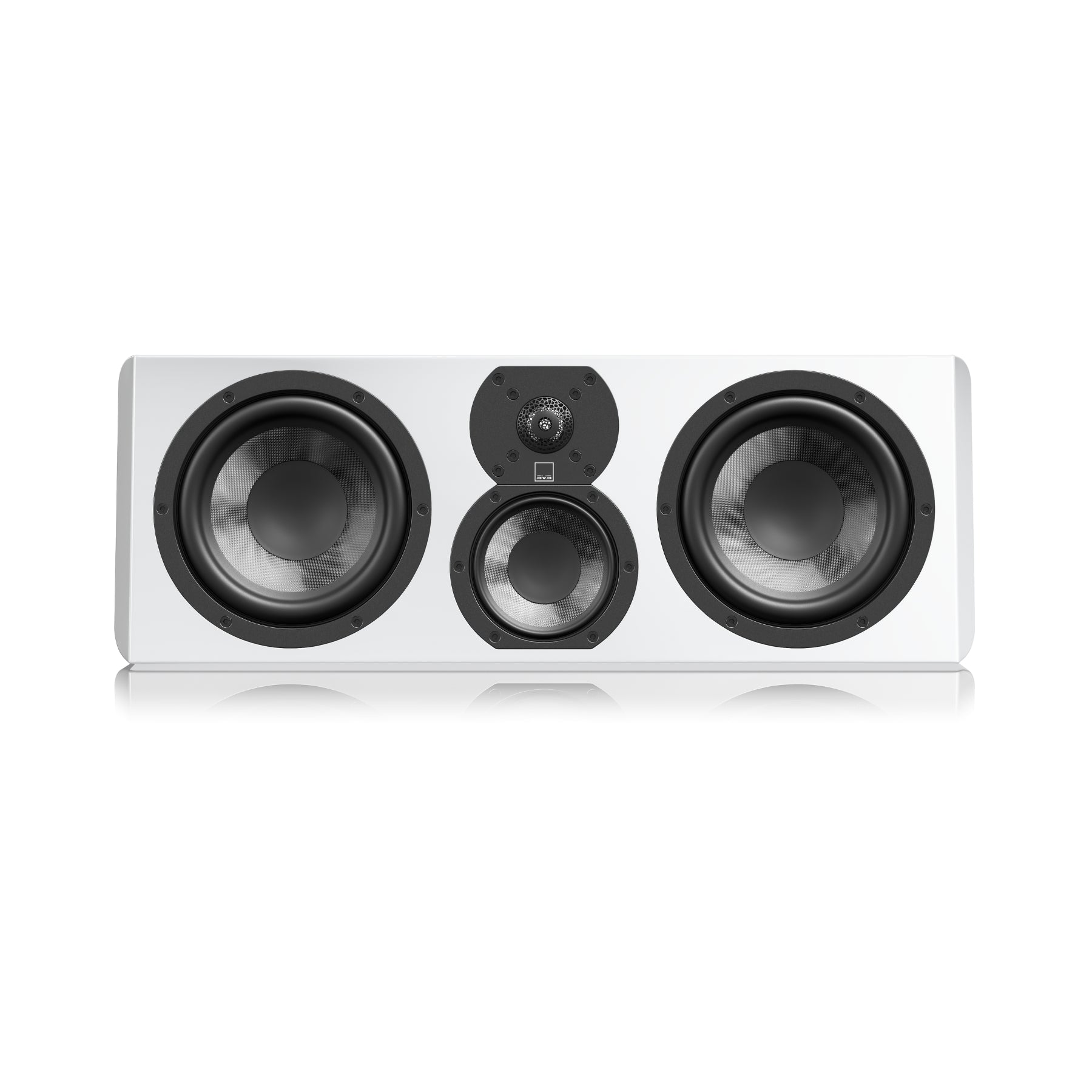

• Finish options: Piano gloss black, piano gloss white, real black oak veneer

SVS Ultra Evolution Center Specifications:

In-Room Frequency Response: 40Hz to 40kHz (+/-3 dB)

Nominal Impedance: 6 ohms

Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)

Tweeter-to-Midrange crossover: 2.2 kHz

Midrange-to-woofer crossover: 450 Hz

Recommended Amplifier Power: 20–225 watts

Dual 1.6” wide-flared rear-firing ports

Cabinet Dimensions: 7.68” (H) x 22.05” (W) x 11.39” (D) / 195mm (H) x 560mm (W) x 289.4mm (D)

Overall Dimensions with grille, feet, and binding posts: 7.83” (H) x 22.05” (W) x 11.78” (D) / 199mm (H) x 560mm (W) x 299.2mm (D)

Shipped Dimensions: 12.0” (H) x 25.8” (W) x 16.3” (D) / 306mm (H) x 655mm (W) x 414mm (D)

Packaged Weight: 30.9 pounds / 13.6 kgs

Unboxed Weight: 26.8 pounds / 12.2 kgs
