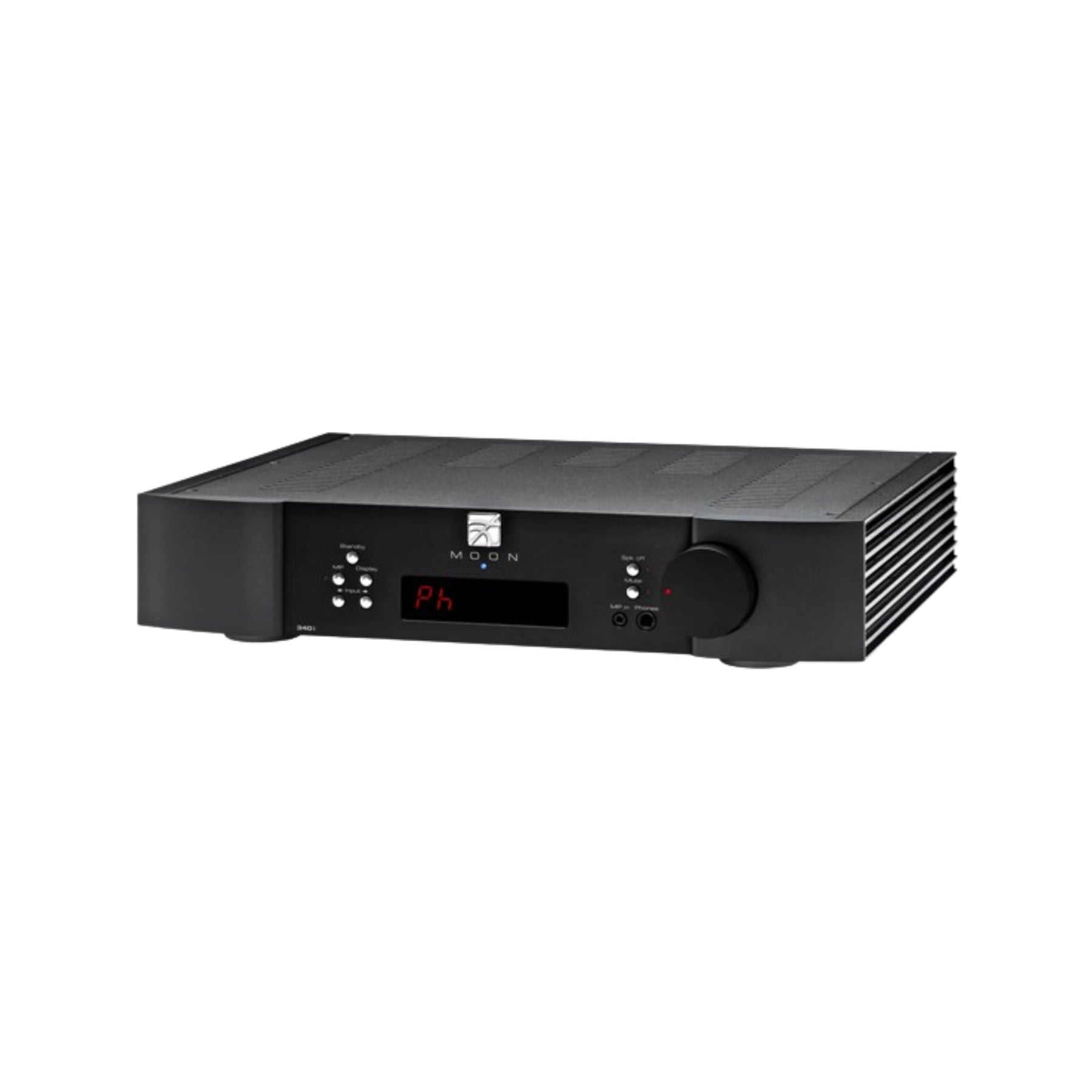

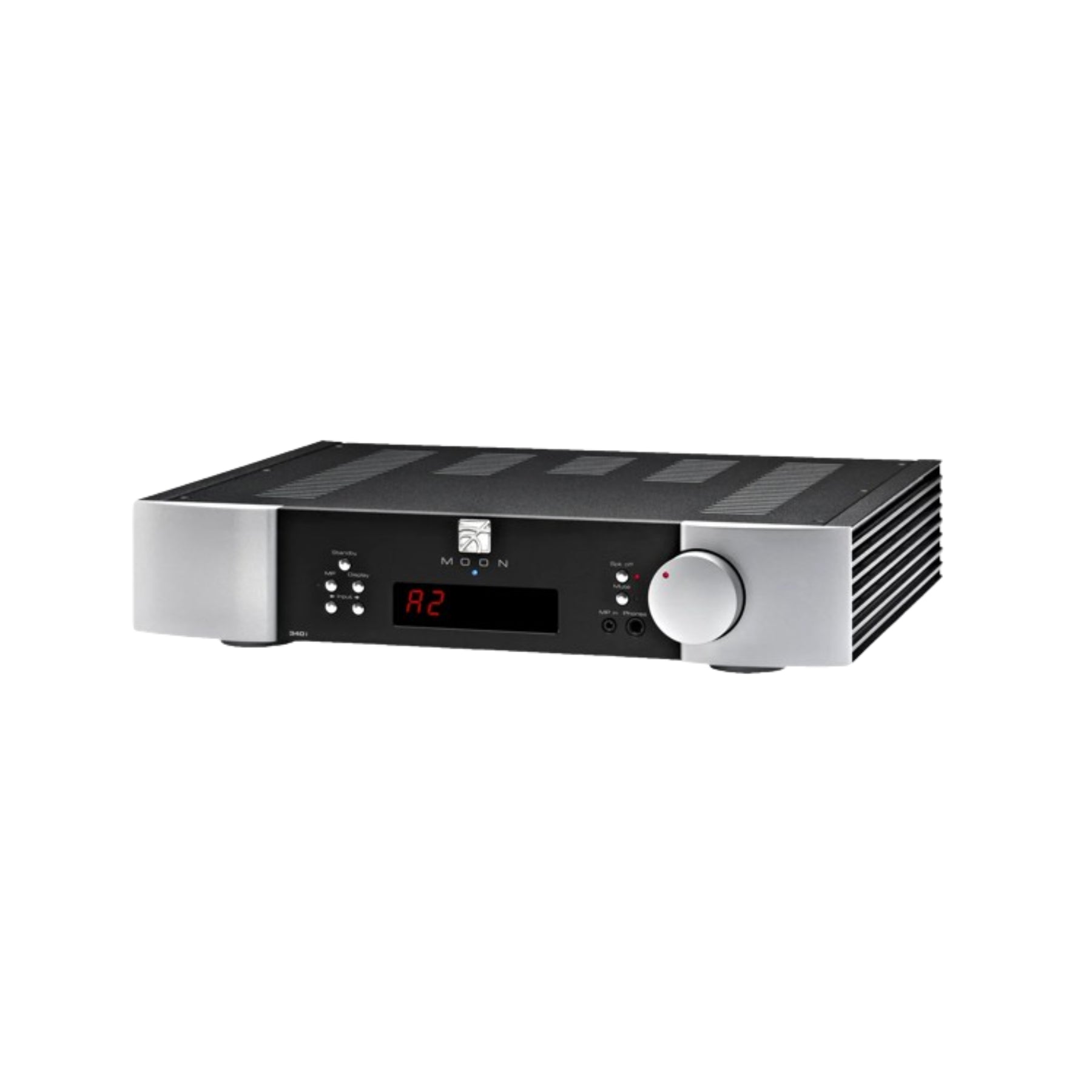

MOON 340i D3PX Stereo Integrated Amplifier

Introducing the MOON by Simaudio: Meet the 340i D3PX, a prime example of a class Integrated Amplifier. This remarkable amplifier seamlessly blends high power, sonic finesse, and exceptional flexibility to deliver a musical experience that not only impresses with its authority but also captivates with its rich, engaging, and lifelike sound quality.

What sets the 340i D3PX apart is its enhanced flexibility, offering a myriad of options to cater to your diverse audio needs. For seamless connectivity with your latest devices like a computer, DVD/Blu-Ray player, or an iPod docking station, the amplifier features a high-performance and highly versatile DAC. Vinyl enthusiasts can rejoice, as the 340i D3PX comes equipped with a fully-configurable MC/MM phono stage, ensuring an optimal experience with your cherished collection of records.

Position the 340i D3PX as the centerpiece of your music and entertainment system, and you'll witness the construction excellence that has made MOON products renowned worldwide. Crafted to the highest standards, this amplifier embodies the quality that defines the MOON series.

Furthermore, the 340i D3PX encompasses all the key features expected in a MOON Series product, including SimLink™, 12V trigger, RS-232, and IR ports tailored for custom-install environments. Elevate your audio experience with the 340i D3PX – where power, finesse, and flexibility converge to create a symphony for the senses.

MOON 340i D3PX Stereo Integrated Amplifier Specs

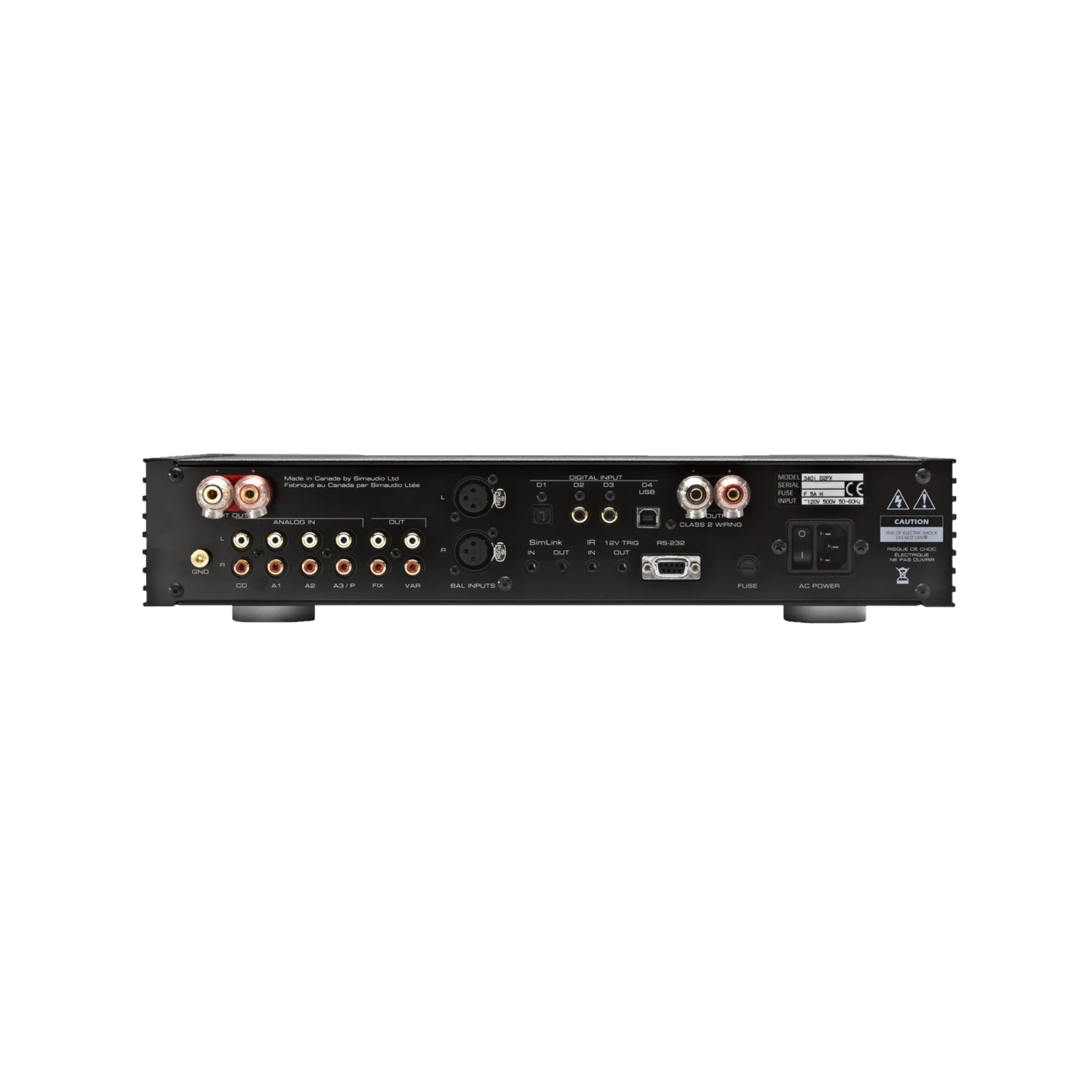

• 6 (six) line-level inputs, including a front-mounted 1/8” mini-jack for personal media players.
• 1 (one) pair of balanced input (XLR).
• Headphone output on 1/4” jack located on the front panel.
• A massive oversized power supply using a custom toroidal transformer design.
• “Class A” output to 5 watts for greater efficiency.
• One audio input serving as a “pass-through”, bypassing the gain stage for compatibility with components like a home-theater processor, utilizing its own volume control.
• Precision matched proprietary MOON Bipolar output transistors for improved bass response and accurate sonic reproduction.
• DSD64/128/256 and PCM up to 32-bit/384kHz.
• 100W per channel.
• One pair Balanced XLR input.
• MM/MC phono input.
• Front-panel mini-jack input.
• Headphone output.
• Zero-Global Feedback.
• DC-coupled.
• CRM-3 remote control.
• RS-232, SimlinkTM, IR.
• 17’’ (43cm) wide chassis
• Output Power: 100 watts per channel at 8-ohms | 200 watts per channel at 4-ohms.
• Input Sensitivity: 370mV - 3.0V RMS.
• Input Impedance: 11,000Ω.
• Gain: 37dB.
• Signal-to-noise Ratio: 110dB @ full power.
• Frequency response (full range): 2Hz - 90kHz +0/-3dB.
• Crosstalk: -88dB.
• THD (20Hz - 20kHz @ 1 W): 0.015%.
• THD (20Hz - 20kHz @ 100 W): 0.05%.
• Intermodulation distortion: 0.03%.
• Optional Digital Inputs: S/PDIF, USB, Optical.
• Maximum PCM Resolution: 32-bit / 384kHz.
• DSD sample rates: DSD64, DSD128 & DSD256.
• Shipping weight: 28 lb / 13 kg.
• Dimensions (width x height x depth): 16.9 x 3.5 x 14.8 in / 42.9 x 8.9 x 37.6 cm.

Included Accessories:

• AC power cable.
• 9‘‘ CRM-3 remote control with two ‘CR-2032’ batteries.
• ‘SimLink™’ cable with 1/8” mini plug terminations on each end.
• Owner’s manual.
• Warranty and product registration information (USA and Canada only).
