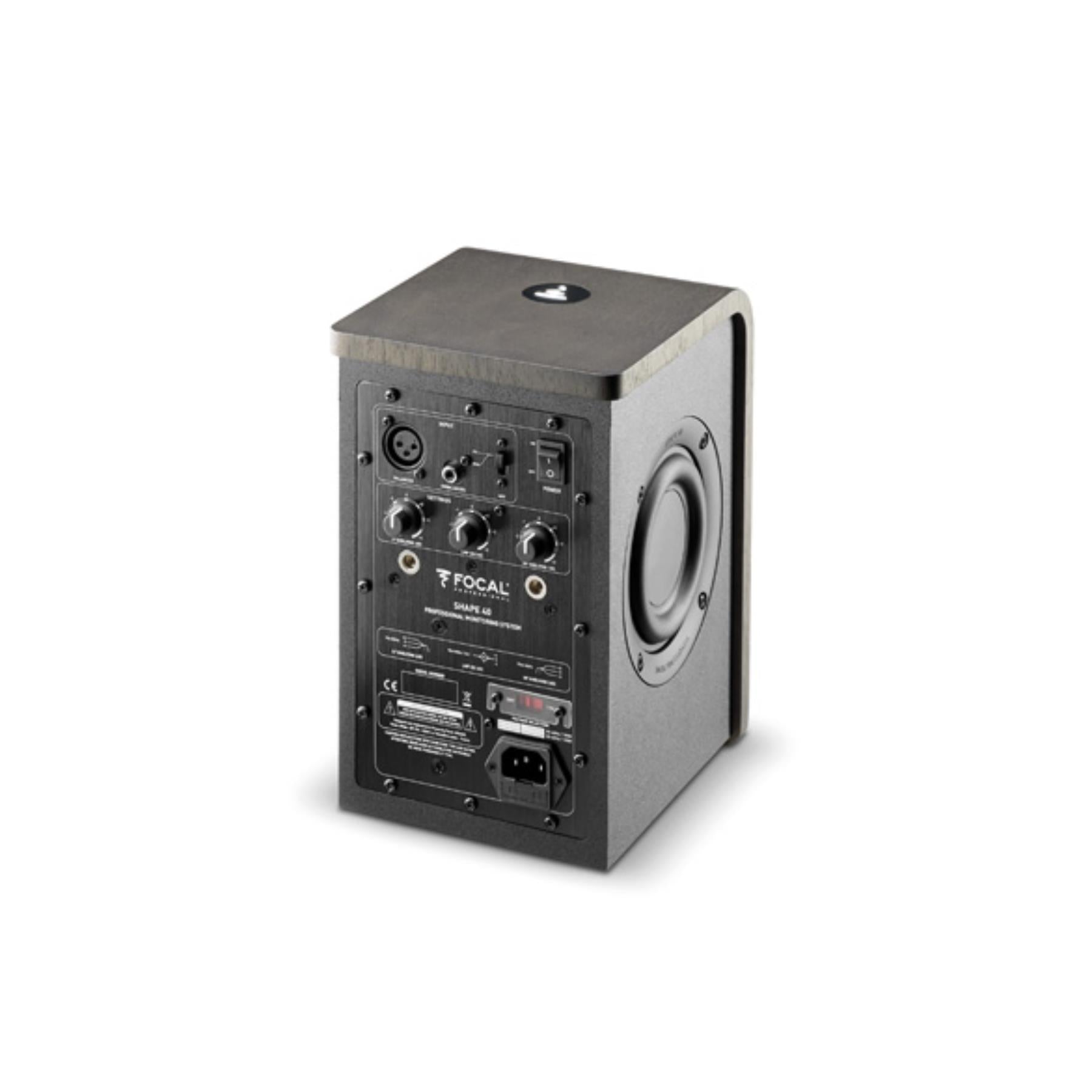

Focal Shape 40 Studio Monitor - Compact and Powerful Nearfield Monitoring

The Focal Shape 40 Studio Monitor is the epitome of compactness without compromising on performance. Crafted in France, these studio monitors offer an extended low-end frequency response, making them ideal for nearfield monitoring setups. Whether your space is limited or you prioritize compactness, the Shape 40 is the perfect solution.

Key Features:

• Low tweeter directivity for flexible listening positions
• Portless design allows placement near walls
• Numerous settings for optimal integration into various setups
• Accurate control, especially in the high end
• Flax sandwich cone delivers controlled and articulated bass, along with natural and detailed mid-range registers
• Threads for ceiling and wall mounts (fastening accessories not included)

Specifications:

System SHAPE 40

• Frequency response (+/-3dB): 60Hz - 35kHz
• Maximum SPL (musical signal): 102dB SPL (peak @ 1m)

Electronic Section:

• Inputs/Impedance: XLR (balanced 10kOhms), RCA (unbalanced 10kOhms with sensitivity compensation)
• Midrange and low frequency amplifier: 25W, class AB
• High frequency amplifier: 25W, class AB
• Automatic standby: Standby activates after approximately 30 minutes with no signal; resumes upon detection of signal > 3 mV
• Electrical supply: 220-240V (T500mAL / 250V fuse) or 100-120V (T1.6AL / 250V fuse); Connection: IEC plug and detachable power cord
• Settings: High pass filter adjustable (Full range / 80Hz), Bass (0 - 250Hz) adjustable (+/-6dB), Midrange/bass (160Hz, Q=1) adjustable (+/-3dB), High (4.5 - 35kHz) adjustable (+/-3dB), Power On/Power Off switch on rear panel
• Standby consumption: < 0.5W
• Displays and controls: LED for power on/off and standby

Transducers:

• Woofer: 4" (10cm) Flax Cone
• Tweeter: 1" (25mm) 'M' profile Aluminum-Magnesium

Cabinet:

• Construction: 0.5" (12mm) MDF
• Finish: Vinyl, real walnut, and black painting
• Dimensions (HxWxD) with four rubber feet: 10.1 x 6.3 x 7.9" (257 x 161 x 200mm)
• Weight: 16.1lb (5kg)

Enhance your studio setup with the Focal Shape 40 Studio Monitor, combining compact design with exceptional performance for unparalleled nearfield monitoring experiences.
