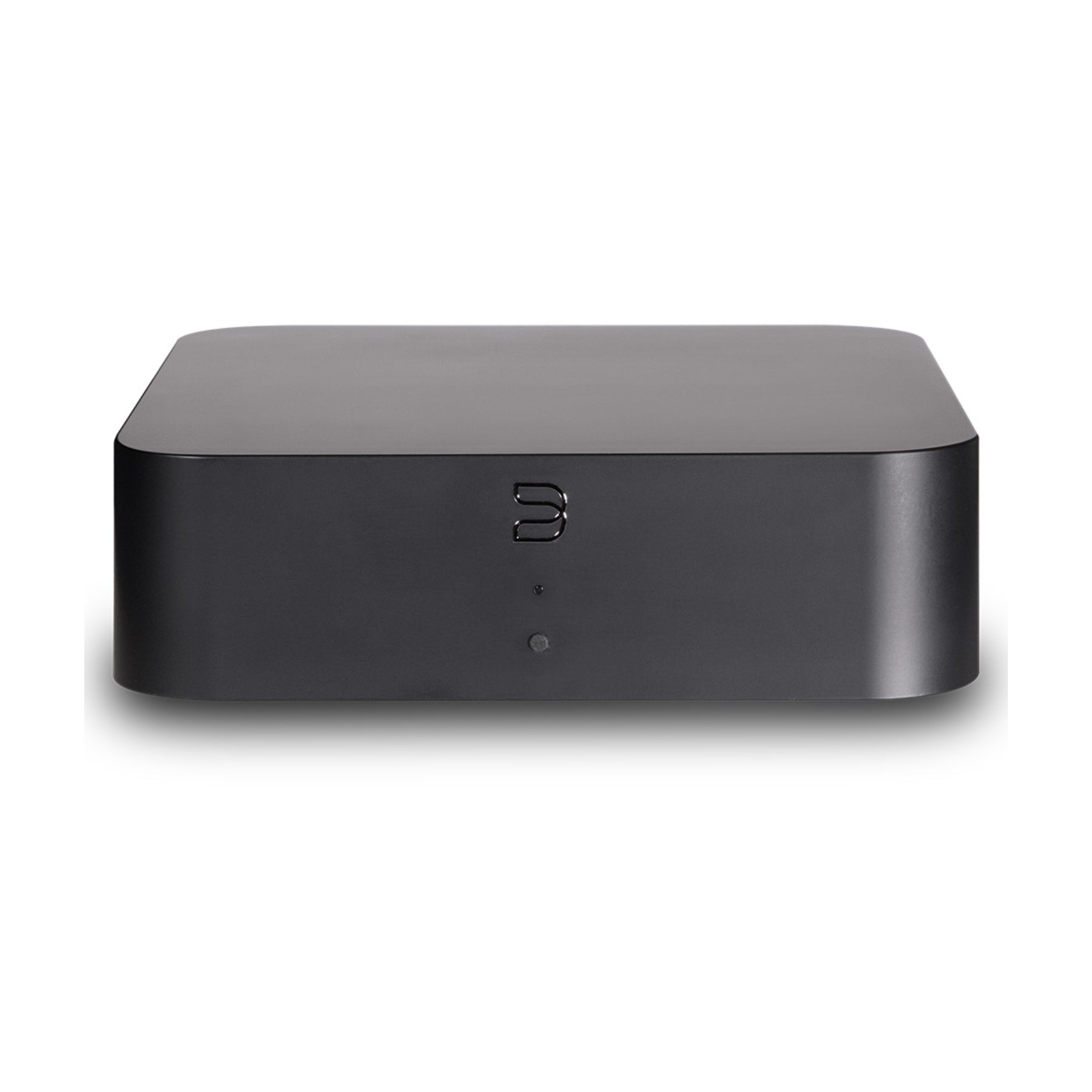

Bluesound HUB

Complete your Bluesound system with the HUB, a versatile network accessory that connects to a wide variety of audio sources, enabling playback on any Bluesound player. Streaming audio becomes more flexible than ever with the HUB, allowing you to turn any wired audio device into a multi-room player by adding it to transmit music wirelessly to one or many Bluesound players around the home.

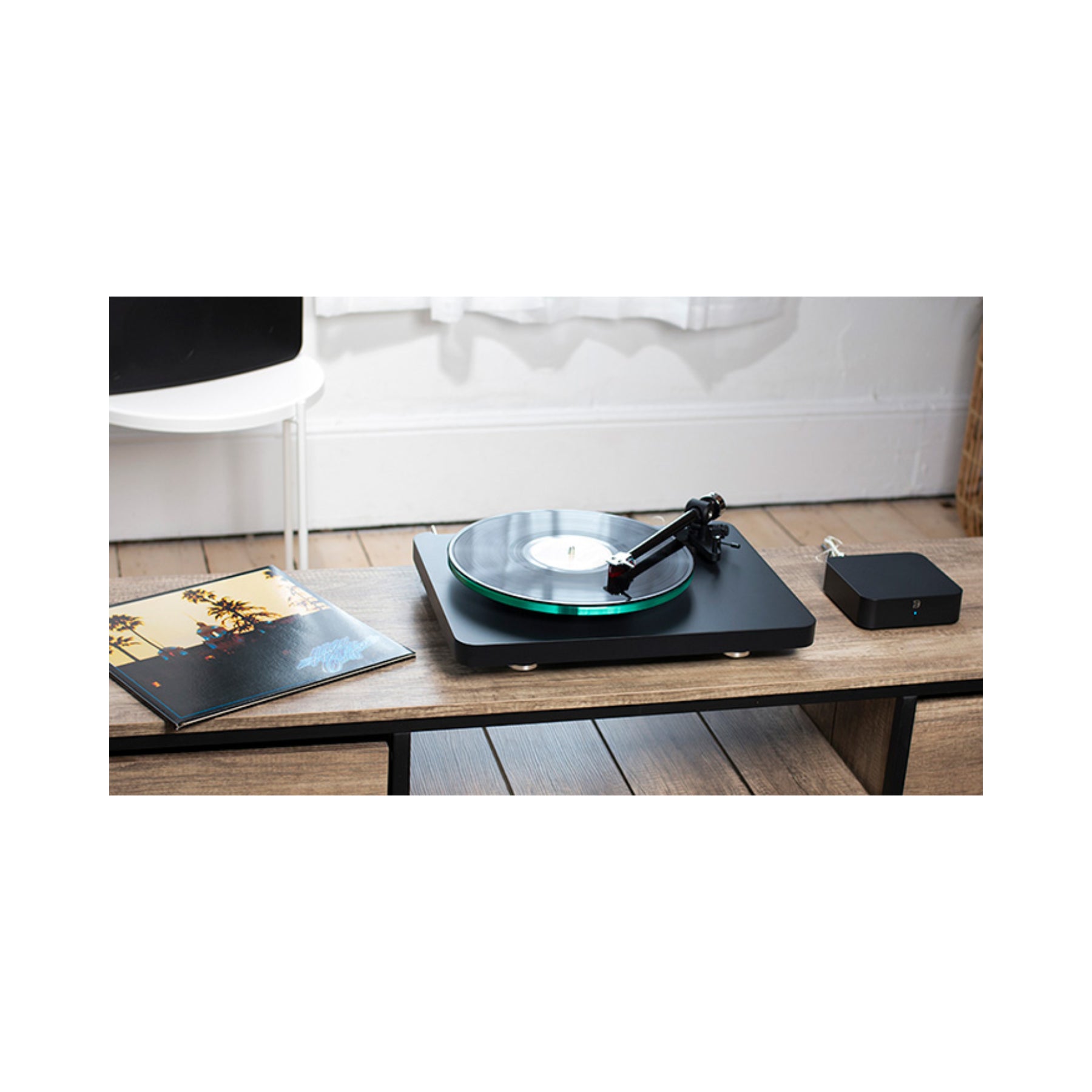

Connect any wired audio source to the HUB to seamlessly integrate it into your Bluesound ecosystem, enabling you to stream your CD and vinyl collections throughout the house without being limited by wires or proximity. The HUB features a low-noise, wide-band moving magnet phono stage that serves as a network turntable preamp for high-resolution playback of vinyl. Additionally, you can use the HUB with a pair of Bluesound Pulse speakers to enhance your TV sound, and it offers five input options: HDMI eARC, Coaxial, Digital Optical, Stereo Analog, and a moving magnet Phono stage to support your music devices. With the ability to play one analog and one digital stream simultaneously to different Bluesound or BluOS players, as well as easily select any HUB input as the audio source for your Bluesound player using the BluOS app, the HUB provides a seamless audio experience. Connect to the network effortlessly with dual-band Wi-Fi or Gigabit ethernet, and power the HUB with a universal USB-C plug and play power option.

Audio

• Operating System: BluOS
• BluOS Controller OS: iOS, Android, Windows, MacOS
• Control System Integrations: Control4, Crestron, URC, RTI, ELAN, Lutron
• Simultaneous Audio Streams: 2 per HUB (1 x analog, 1 x digital input)
• Maximum Units on Network: 4x HUB for 8 simultaneous streams
• Native Sampling Rates: Up to 192 kHz;
• Bit Depth: 16-24
• Signal-to-Noise Ratio: >100 dB (Line input), >80 dB (Phono MM input)
• Distortion: <0.03% 20-20 kHz -1dBFS output
• Frequency Response: 20-20 kHz +/-0.3dB; 50 kHz -3dB

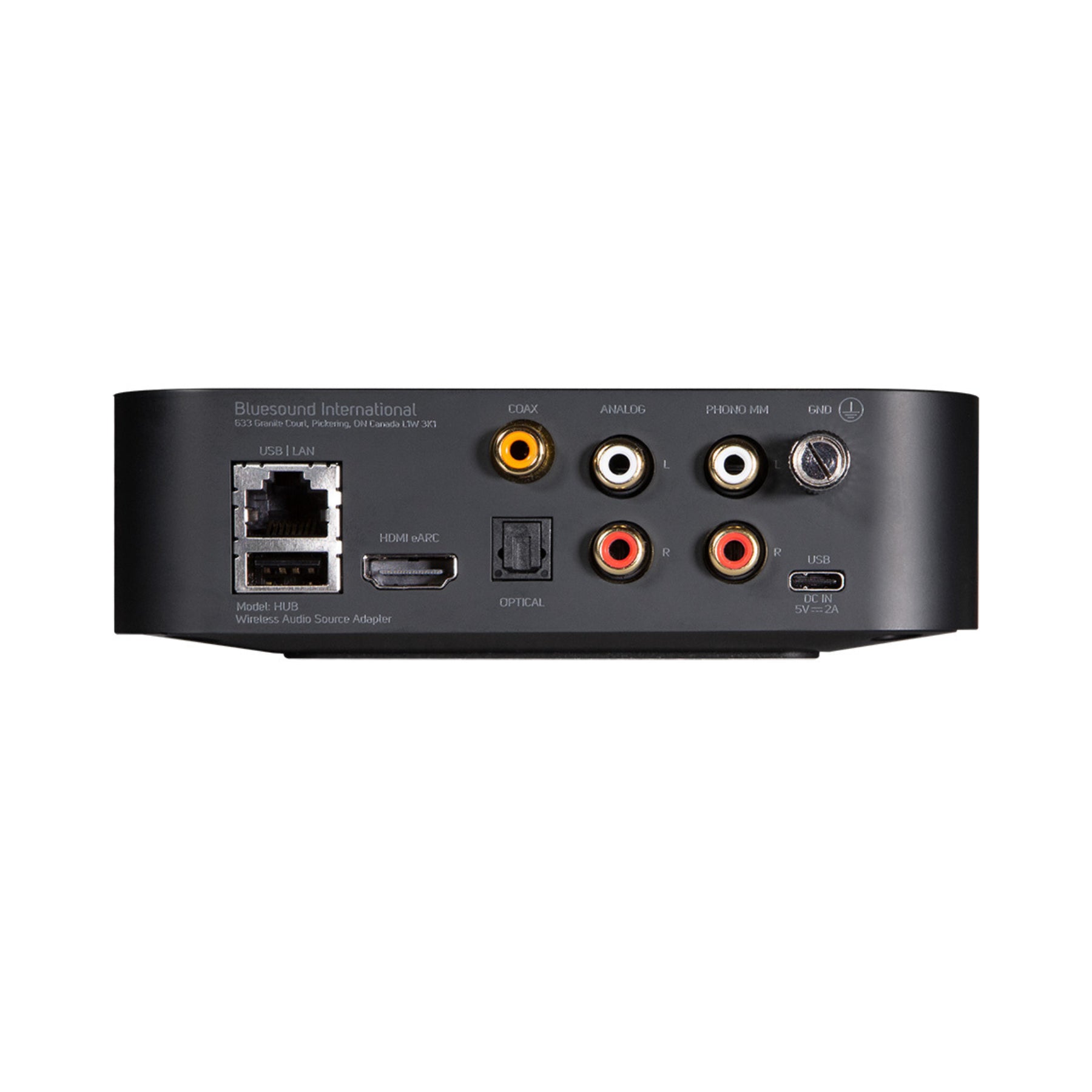

Connections

• Power Supply: Universal USB-C Power adapter (Input:100-240V AC/0.3A Output:5V/2A)
• Ethernet/LAN: Ethernet RJ45, GigE 1000 Mbps
• Wi-Fi Built In: Wi-Fi 5 (802.11ac), 2.4/5GHz
• Analog Line Input: 1 x Stereo RCA;
• Phono Input: 1 x Stereo RCA (Moving Magnet)
• Optical Input: 1 x TOSLINK digital optical;
• Coaxial Input: 1 x RCA (75 ohms)
• HDMI Input: HDMI eARC with CEC;
• USB Input: Type A (for BluOS firmware upgrade only)
• Audio Output: Network

General

• Product Dimensions: 143 x 153 x 45mm (W x D x H), 5.6 x 6 x 1.8 in (W x D x H)* (*Non-metric measurements are approximate);
• Weight: 0.63kg / 1.39 lbs
• Included Accessories: 5V Power Adapter, 3 x International Plug Adapters, USB-C Power Cable, Ethernet Cable, Mounting Template, Safety/Warranty Guide, Quick Setup Guide
