Deliver immersive sound in limited ceiling space with the Bowers & Wilkins CCM632 In-Ceiling Speaker.

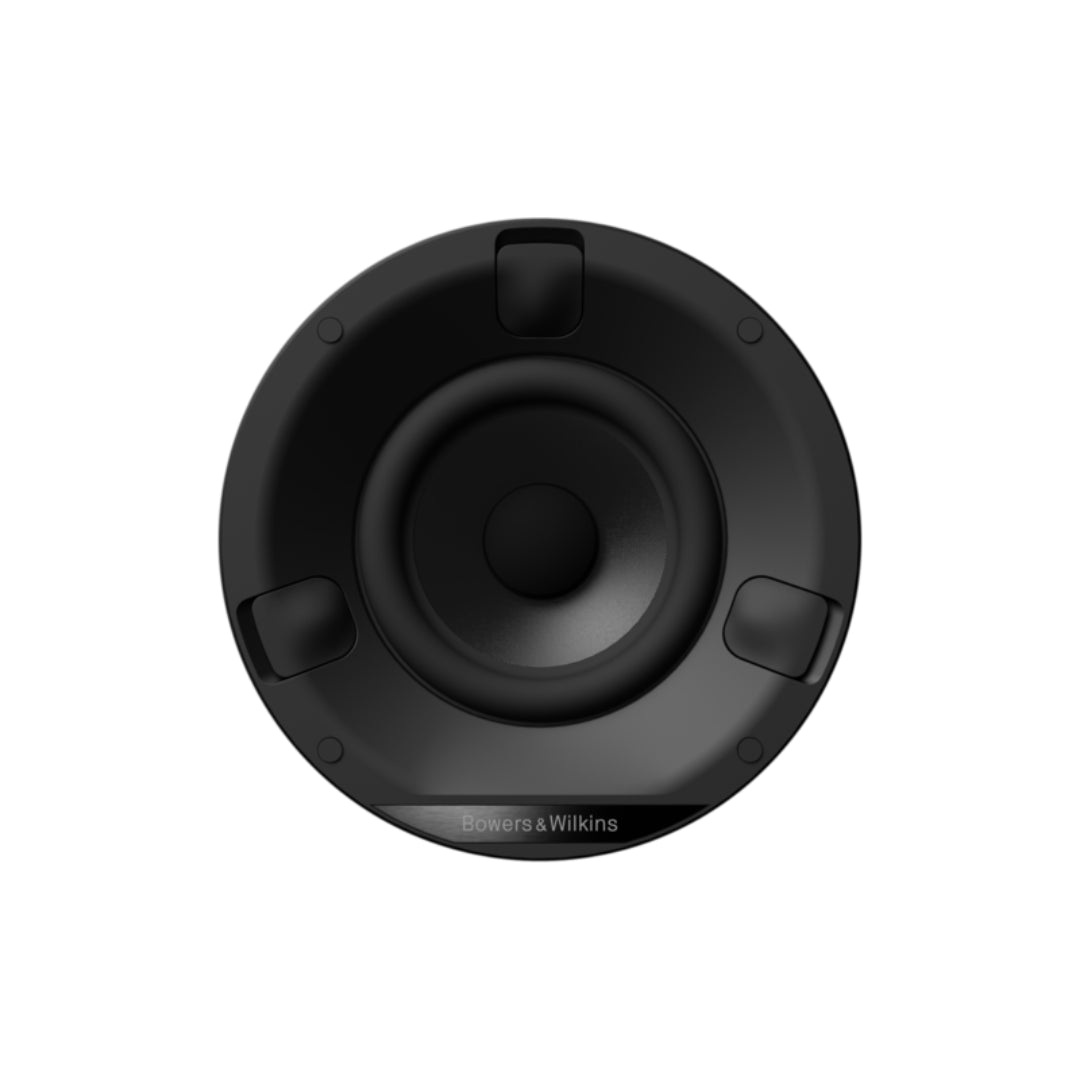

This single driver design incorporates a 75mm (3") full-range driver for exceptional sonic balance, eliminating the coloration issues common with traditional two-way speakers in compact enclosures.

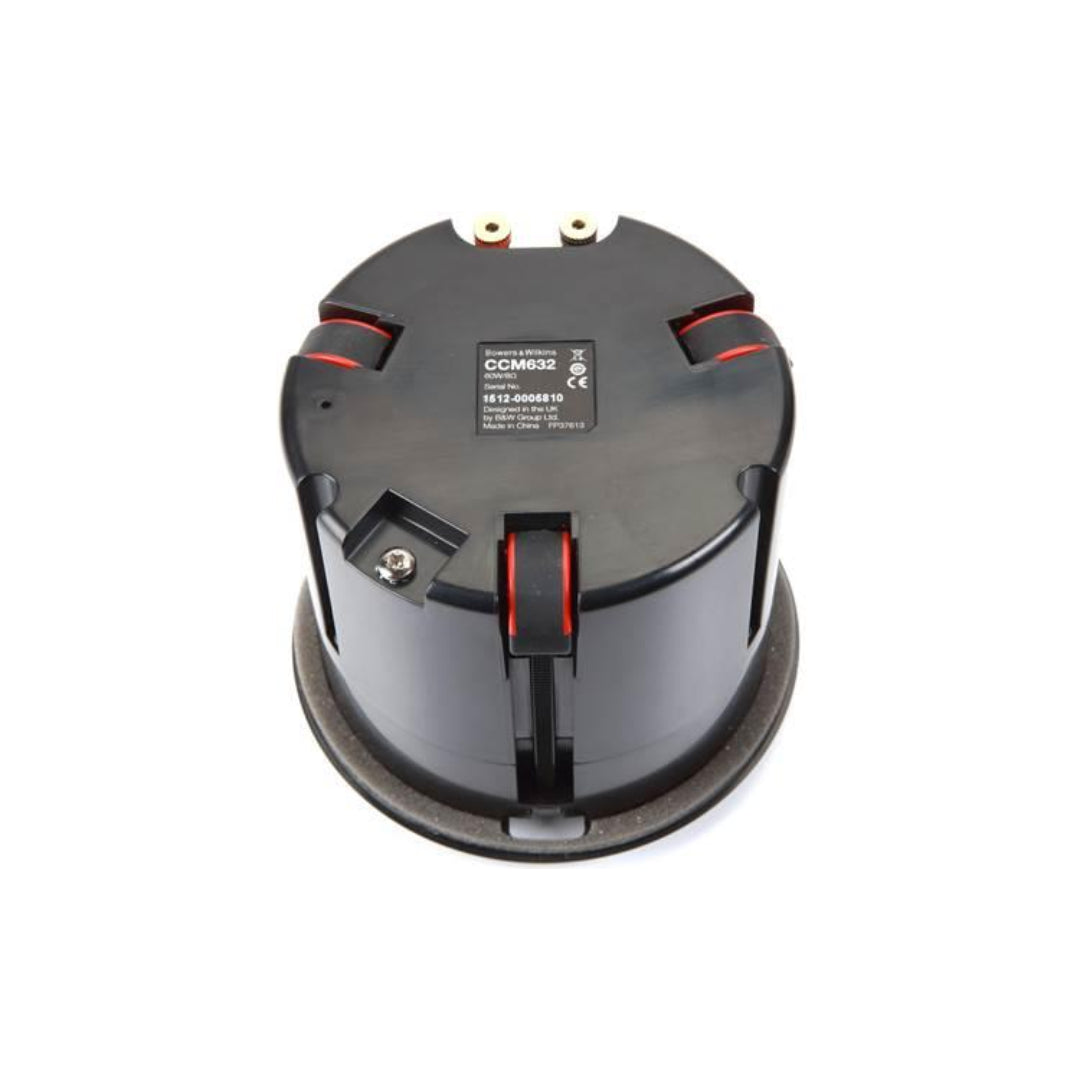

The innovative ZipDogs fixing method ensures streamlined installation and accommodates a variety of mounting panel thicknesses. Each CCM632 speaker comes equipped with a sealed enclosure to minimize sound bleed into adjoining rooms, while the magnetically attached grilles, available in round and square shapes, offer a customizable aesthetic to seamlessly blend into your ceiling design.

Key Features:

• Single 75mm (3") full-range driver for well-balanced sound
• ZipDogs fixing method for fast and easy installation
• Sealed enclosure minimizes acoustic bleed

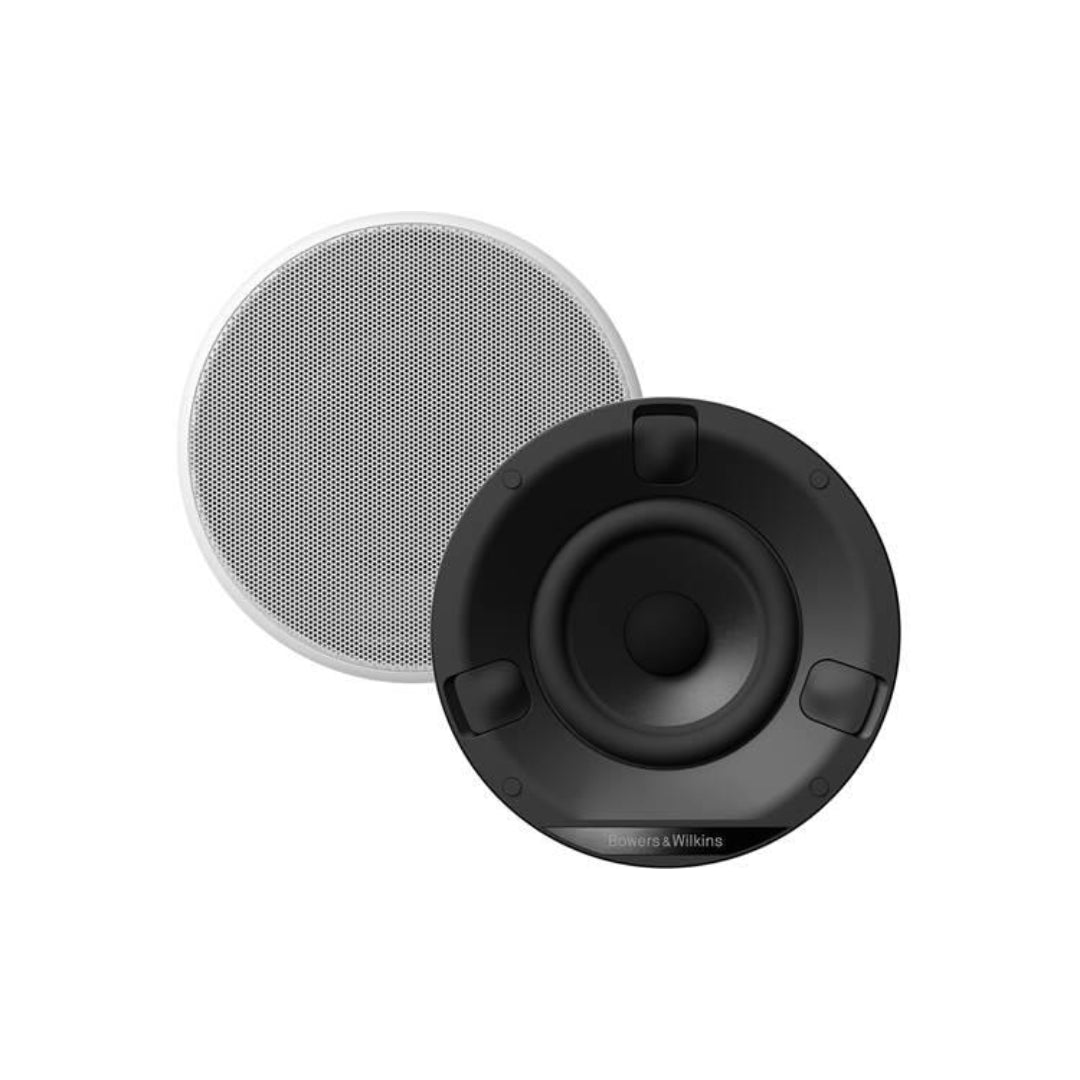

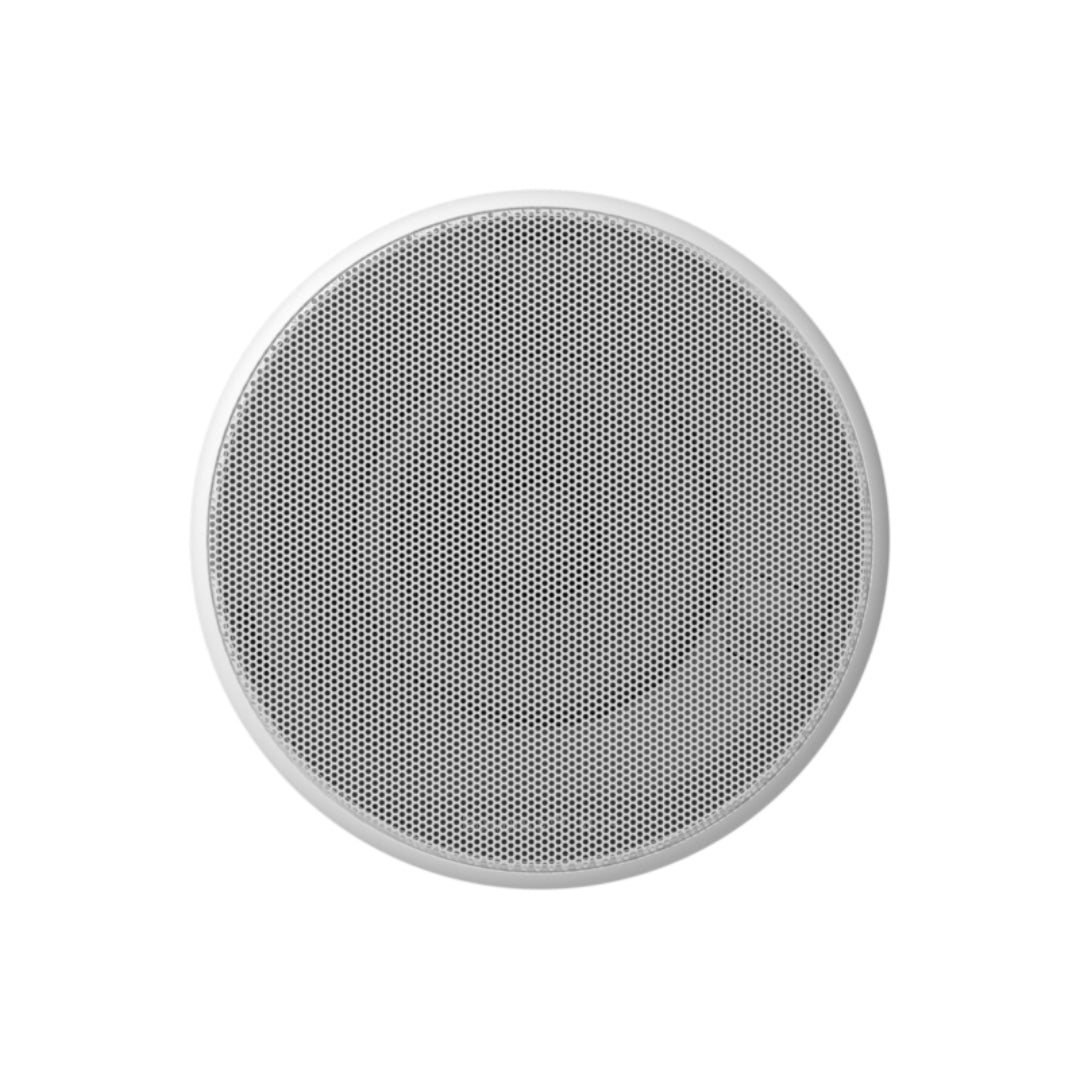

• Magnetically attached grilles in round and square shapes for design flexibility
• Sold as a pair

Ideal for applications where space is at a premium, the Bowers & Wilkins CCM632 In-Ceiling Speaker delivers high-fidelity audio without sacrificing valuable real estate.

Bowers & Wilkins CCM632 Specifications

Technical Specifications

• Description

  • Single driver in-ceiling system

• Drive Units

  • 1x Ø75mm (3 in) black glass fiber cone, full-range

• Frequency Range

  • (-6dB): 100Hz – 17kHz
  • Frequency Response (+/-3dB): 112Hz - 16kHz

• Recommended Amplifier Power

  • 10W – 60W

• Sensitivity

  • 84dB (2.83V, 1m)

• Nominal Impedance

  • 8Ω (5Ω minimum)

• Dimensions

  • Frame Diameter: Ø147mm (5.8 in)
  • Cut-out Diameter: Ø120mm (4¾ in)
  • Depth Behind Surface: 100mm (4 in)
  • Protrusion: 5.5mm (0.22 in)

• Pre-mount Kit

  • PMK C3

• Back Box

  • Integral

• Grille Options

  • Square and round grilles included
