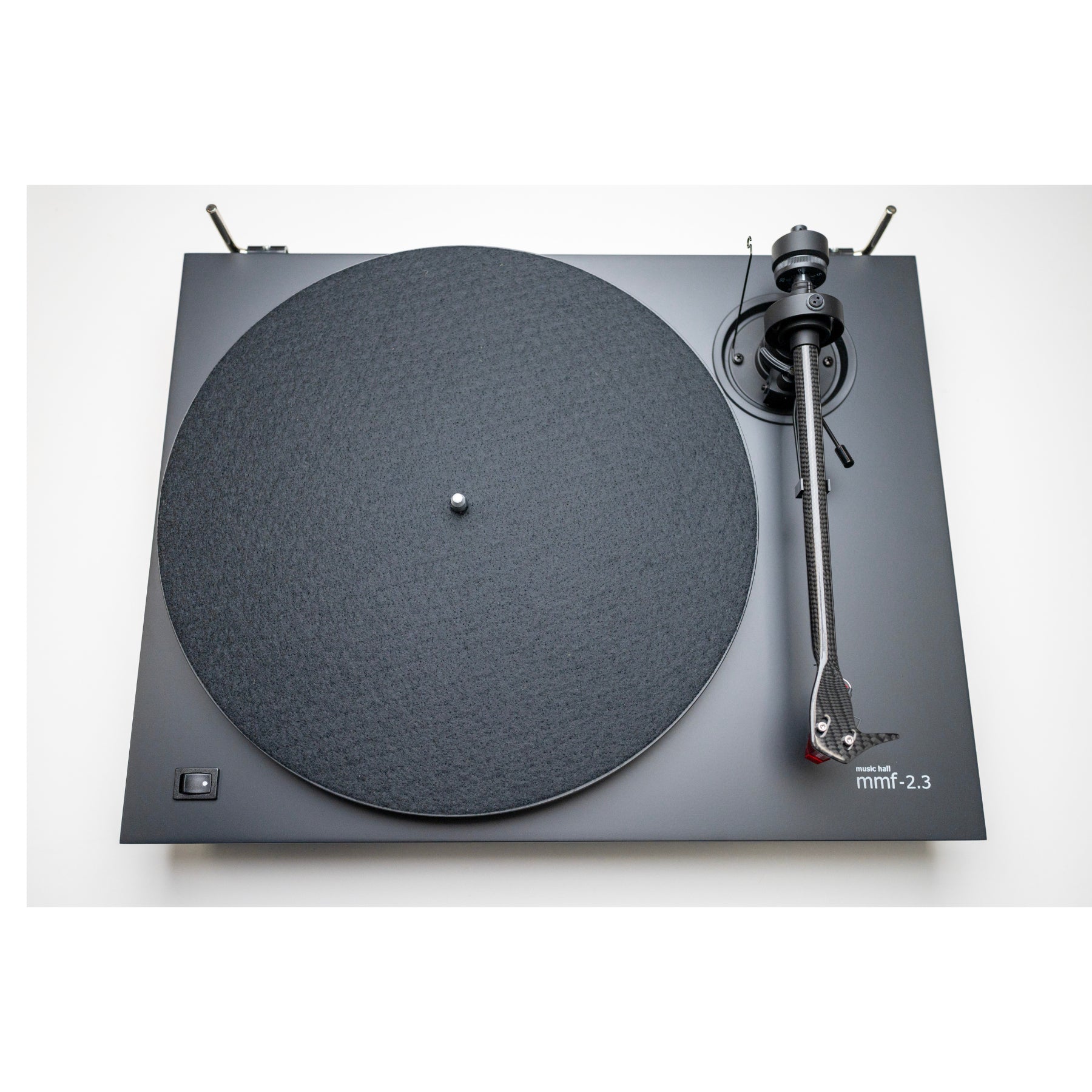

Music Hall MMF2.3 Turntable with ListenUpgrades!

• Music Hall's Acri-Plat Acrylic platter. $125 value included as part of the ListenUpgrade!

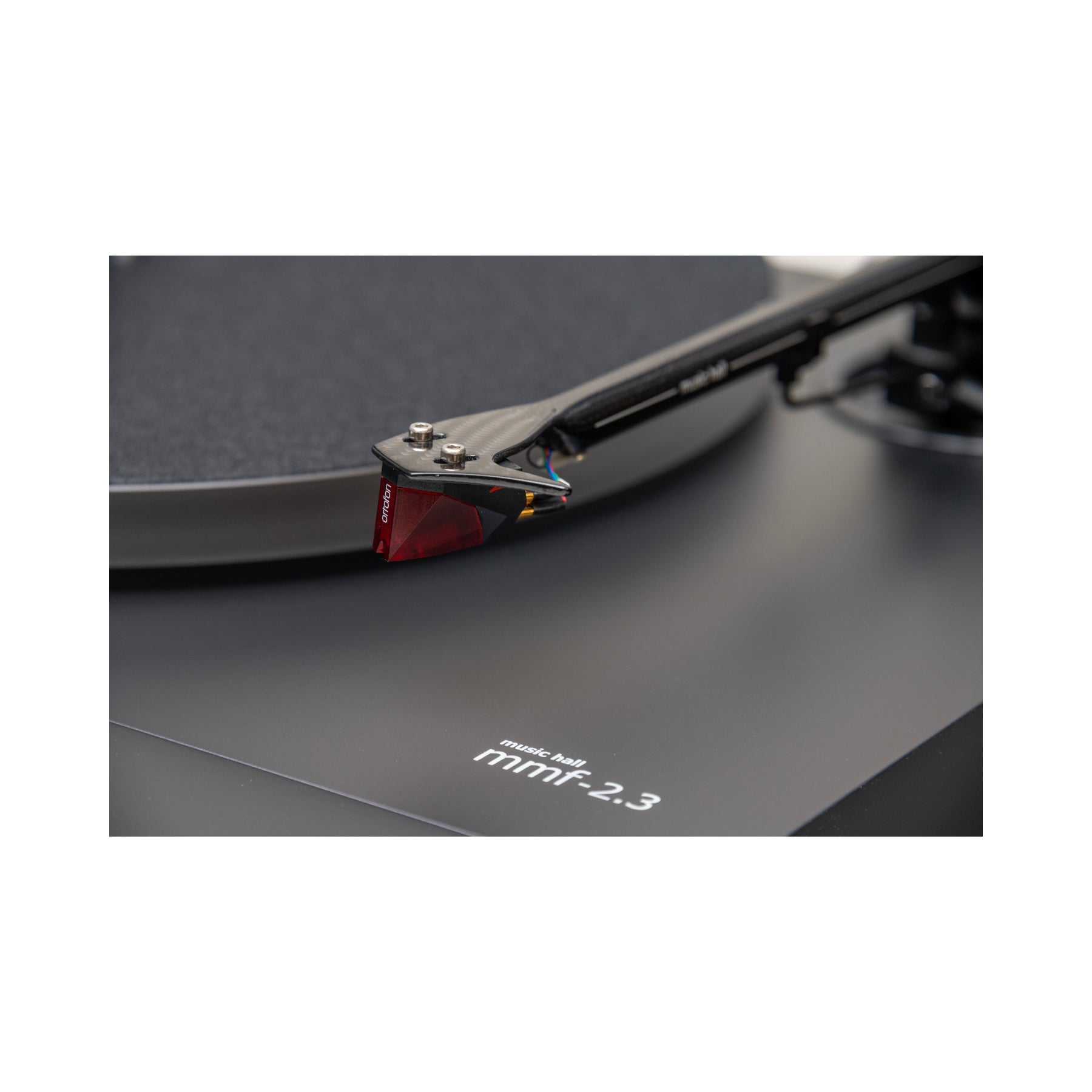

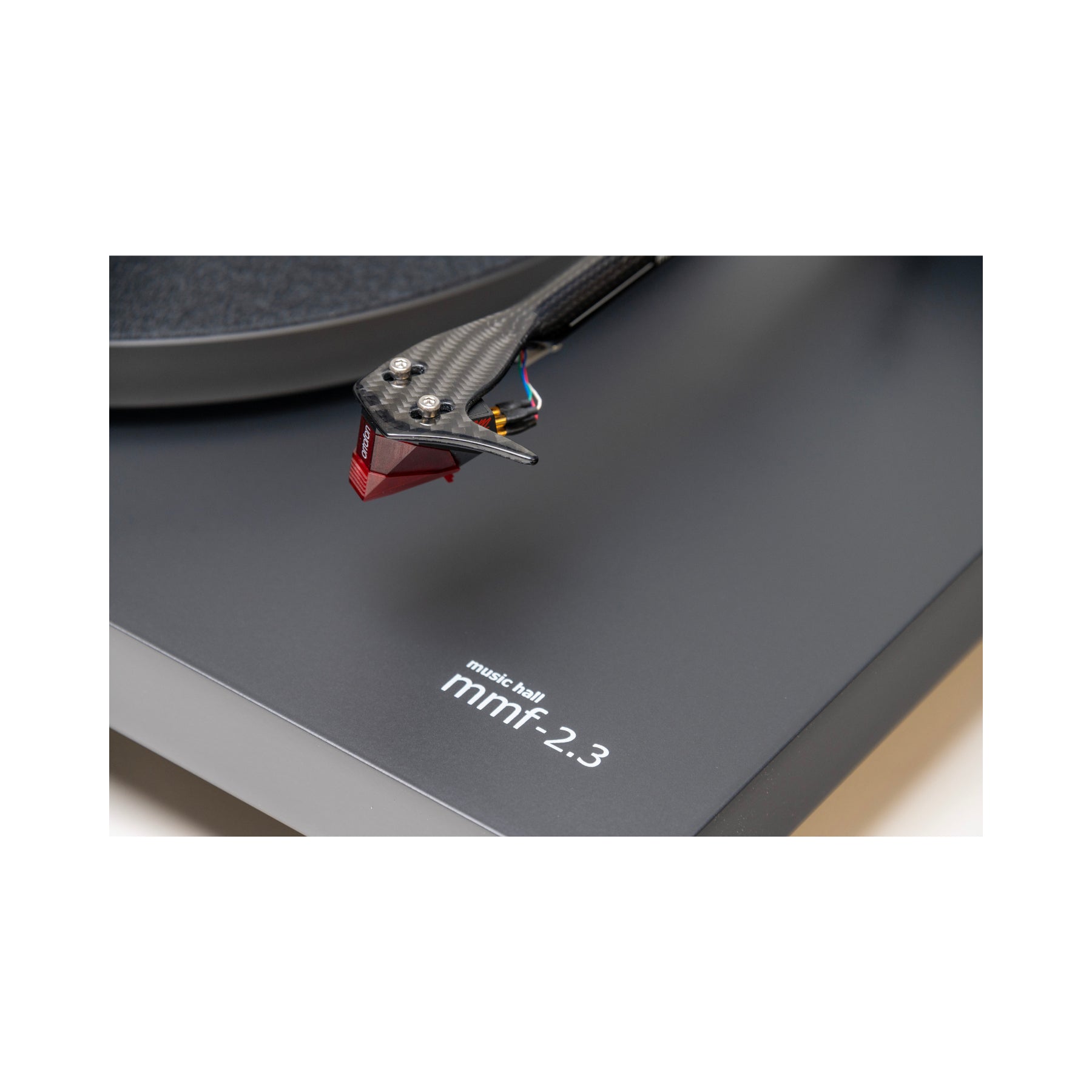

• Ortofon 2M Red Phono Cartridge. A $100 value included as part of the ListenUpgrade!
  • 5.5 mV Output
  • Elliptical Diamond
  • Split Pole Pins with Copper Wire
• 8.6” Carbon Fiber Tonearm
• Vibration Damping Adjustable Feet
• Low Noise Manual Belt-Drive
• Both 33 1⁄3 rpm and 45 rpm (via manual belt track change)
• DC Synchronous Motor
• Precision Stainless Steel/Bronze Bearing Assembly
• Adjustable Tonearm Counterweight (to accommodate future cartridge replacement)
• Detachable phono cables included
• Dust Cover included
• Finish: Black

Music Hall MMF-2.3LU Specifications:

Power Supply: 15V / 0-0.8mA DC, universal power supply

Power Consumption: 4W / OW in stand-by

Speeds: 33⅓ rpm (manual change to 45 rpm)

Speed Deviation: ±0.18%

Wow and Flutter: ±0.11%

Rumble Max: -68 db

Effective Tonearm Length: 8.6 in.(218.5mm)

Overhang: .73"(18.5mm)

Dimensions: 16.75"W x 12.6"D x 4.33"H

Weight: 15 lbs.

Ortofon 2M Red Specifications:

Channel Balance at 1 kHz: 1.5 dB

Output Voltage at 1 kHz, 5cm/sec: 5.5 mV

Channel Separation at 1 kHz: 22 dB

Channel Separation at 15 kHz: 15 dB

Frequency Response: 20 Hz - 20 kHz (+3 dB / -1 dB)

Tracking Ability at 315Hz (Recommended Tracking Force): 70 µm

Compliance, Dynamic, Lateral: 20 µm/mN

Stylus Type: Elliptical

Stylus Tip Radius: r/R 8/18 µm

Tracking Force Range: 1.6-2.0 g (16-20 mN)

Tracking Force, Recommended: 1.8 g (18 mN)

Tracking Angle: 20°

Internal Impedance, DC Resistance: 1.3 kOhm

Recommended Load Resistance: 47 kOhm

Internal Inductance: 700 mH

Recommended Load Capacitance: 150-300 pF
