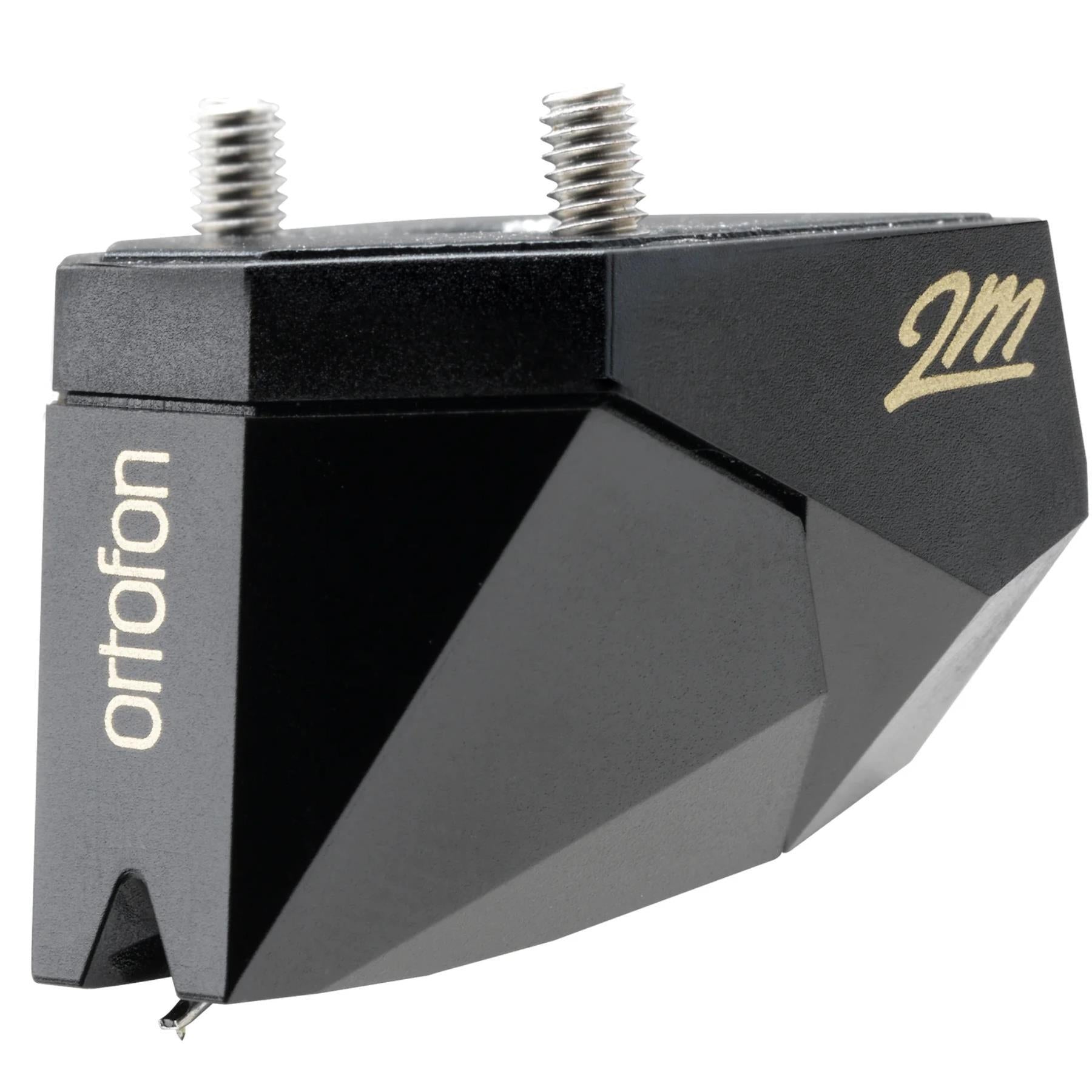

Ortofon 2M Black Verso Moving Magnet Cartridge - For Bottom Mount Headshells

Experience the pinnacle of audio precision with the Ortofon 2M Black Verso Moving Magnet Cartridge. Designed as the flagship of the renowned 2M series, this cartridge delivers unparalleled sound fidelity, capturing every nuance and detail with exceptional clarity. Rediscover your favorite records as if the artist were performing live in your room.

Ortofon 2M Black Verso Key Features:

• Bottom Mount - The 2M Black Verso model is an alternative product for bottom mount headshells.
• Shibata Diamond Stylus: Crafted with a Shibata diamond stylus, the 2M Black Verso ensures optimal contact with the record groove, enabling precise tracking and detailed reproduction across the entire frequency spectrum.
• Danish Craftsmanship: Each cartridge is meticulously designed and handcrafted in Denmark, reflecting Ortofon's commitment to quality and innovation.
• Split Pole Pins Technology: Featuring Ortofon's proprietary split pole pins upgraded with silver-plated copper wire, the 2M Black boasts enhanced performance and longevity.

Explore the Lineup:

• Versatile Compatibility: The 2M series is engineered for easy mounting and compatibility with a wide range of turntables, ensuring seamless integration into your audio setup.
• Variant Configurations: Choose from four different product variants, including the 2M Premounted for easy installation on S-shaped tonearms and the 2MR tailored for Rega turntables and tonearms.

Ortofon 2M Black Verso Specifications:

• Channel Balance at 1 kHz: 1 dB
• Output Voltage at 1 kHz, 5cm/sec: 5 mV
• Channel Separation at 1 kHz: 26 dB
• Channel Separation at 15 kHz: 15 dB
• Frequency Response: 20 Hz - 20 kHz (±2 dB)
• Tracking Ability at 315Hz: 80 µm (recommended tracking force)
• Compliance, Dynamic, Lateral: 22 µm/mN
• Stylus Type: Nude Shibata
• Tracking Force Range: 1.4-1.7 g (14-17 mN)
• Tracking Force, Recommended: 1.5 g (15 mN)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 1.2 kOhm
• Cartridge Color: Black/Black
• Cartridge Weight: 7.2 g
• Premounted Cartridge Weight: 16.7 g
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 630 mH
• Recommended Load Capacitance: 150-300 pF

Elevate your listening experience with the Ortofon 2M Black Verso Moving Magnet Cartridge – the ultimate choice for audiophiles seeking uncompromising performance and sonic excellence.

Replacement guide

1. Remove the stylus with the stylus protection guard from the cartridge body to avoid damaging the diamond.
2. Using the Torx 8 key, unscrew the black screw from the Verso top plate.
3. Gently detach the top plate by pulling the screws.
4. Remove the two countersunk screws from the top plate.
5. Insert the two M2.0 mm screws in the top plate.
6. Attach the top plate to the cartridge body by flipping it 180 degrees.
7. Mount the black screw in the top plate and tighten with appropriate force.
8. Mount the cartridge on the tonearm using the enclosed tool.
9. Mount the stylus with the stylus protection guard on the cartridge body.

Ortofon 2M Black Verso Downloads
