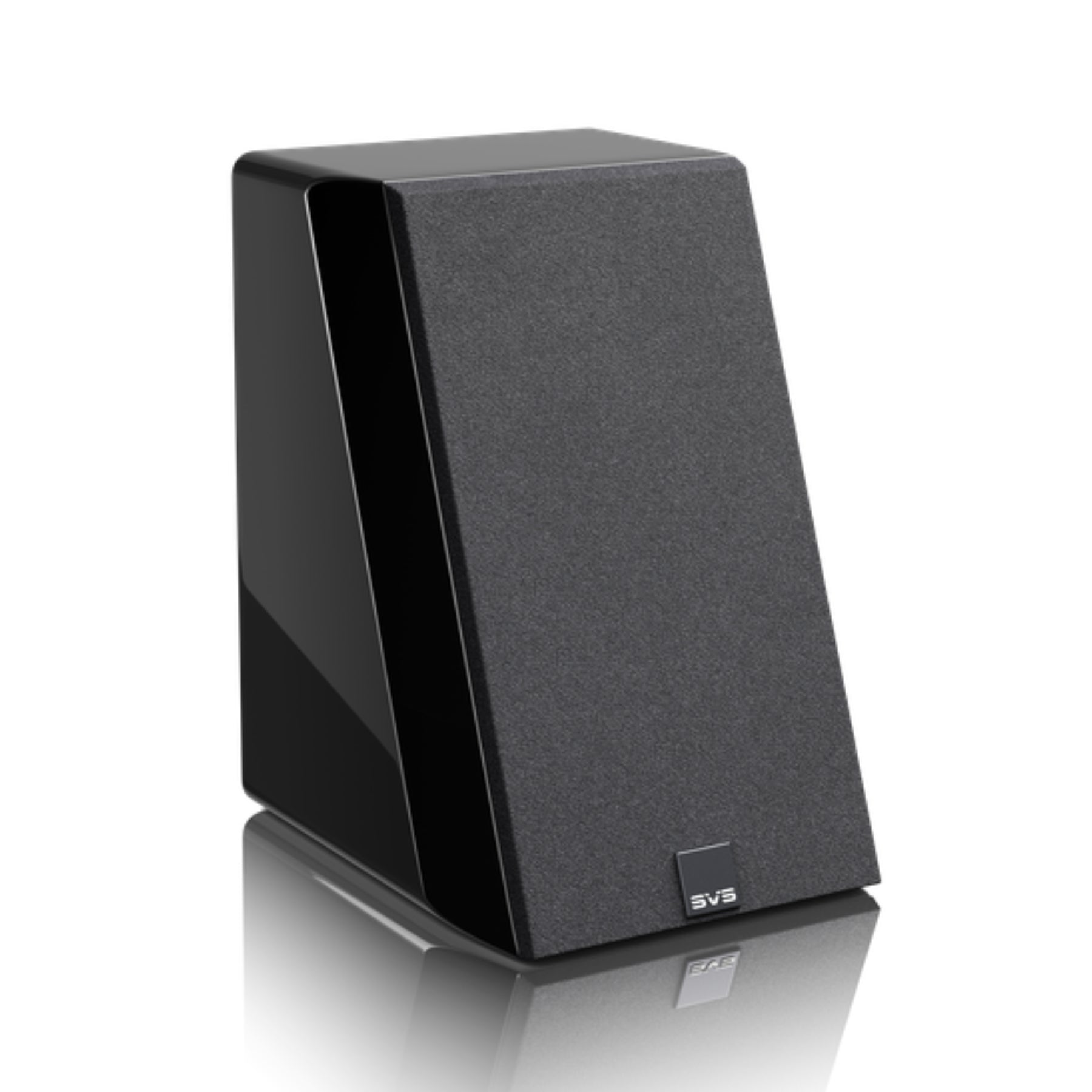

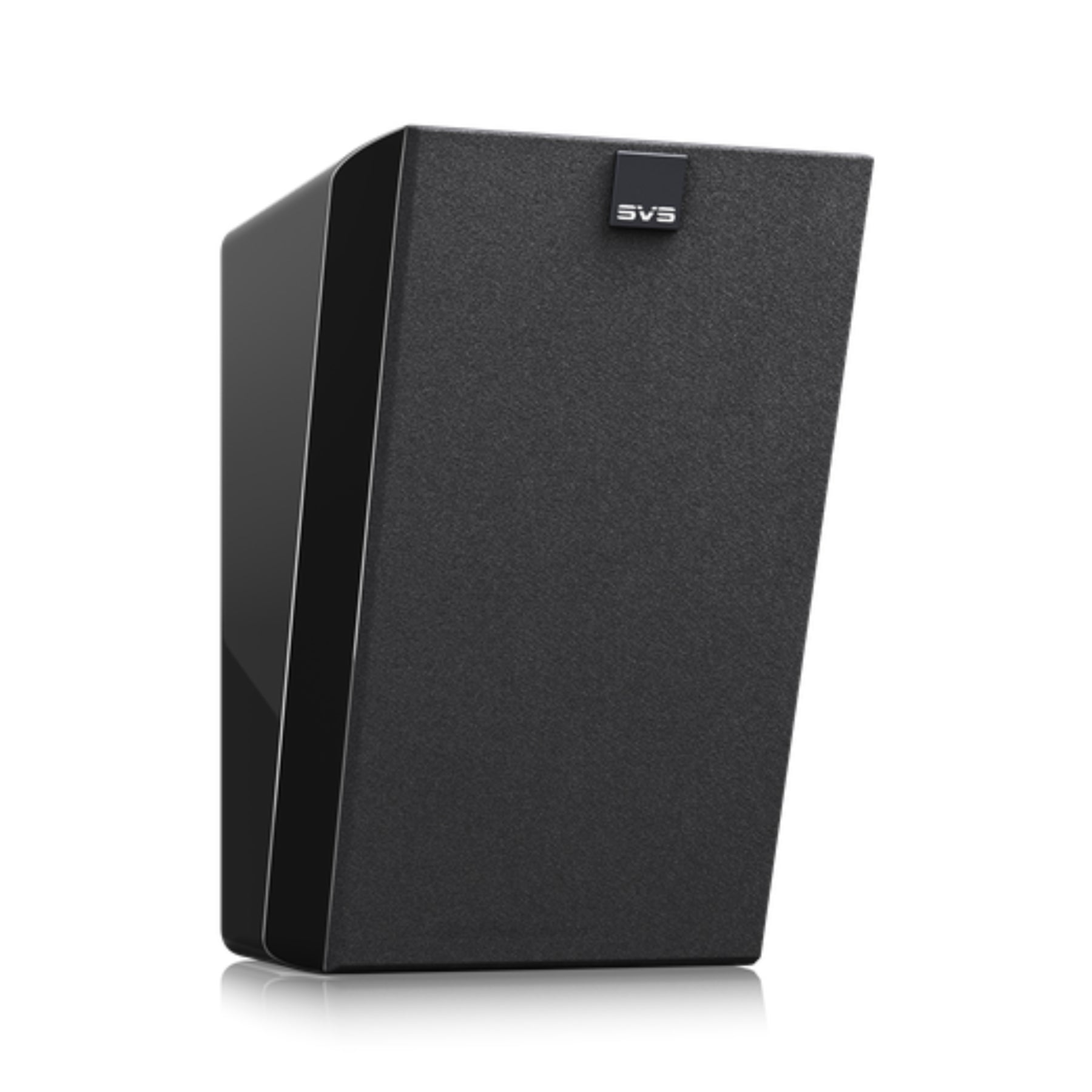

SVS Ultra Elevation On-Wall/On-Ceiling Speakers.

With an advanced acoustic angles cabinet design and upgraded Ultra Evolution drivers.

1” Diamond Coated Tweeter

• FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity
• Cutting-edge vapor-deposition grows a hyper-rigid diamond carbon coating on an aircraft-grade aluminum dome, extending high-frequency response beyond human hearing and delivering best-in-class fidelity, linearity, and transient response
• Silver tinsel for optimal signal transfer and power handling

5.25” Mid-Woofer

• Long stroke motor and suspension for high output
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass-band
• Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation
• Vented aluminum voice coil former maximizes thermal control while minimizing air compression artifacts at high drive levels

Cabinet

• Angled baffle and optimized crossover combine for perfect acoustic performance at any position
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
• Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers
• FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels

Additional Features:

• Gold-plated 5-way binding posts
• Cloth grille with magnetic retention system
• Adjustable magnetic SVS Logo on grille
• Elastomer stick-on bumper feet
• Multi-Angle Mounting Bracket system for wall or ceiling mounting

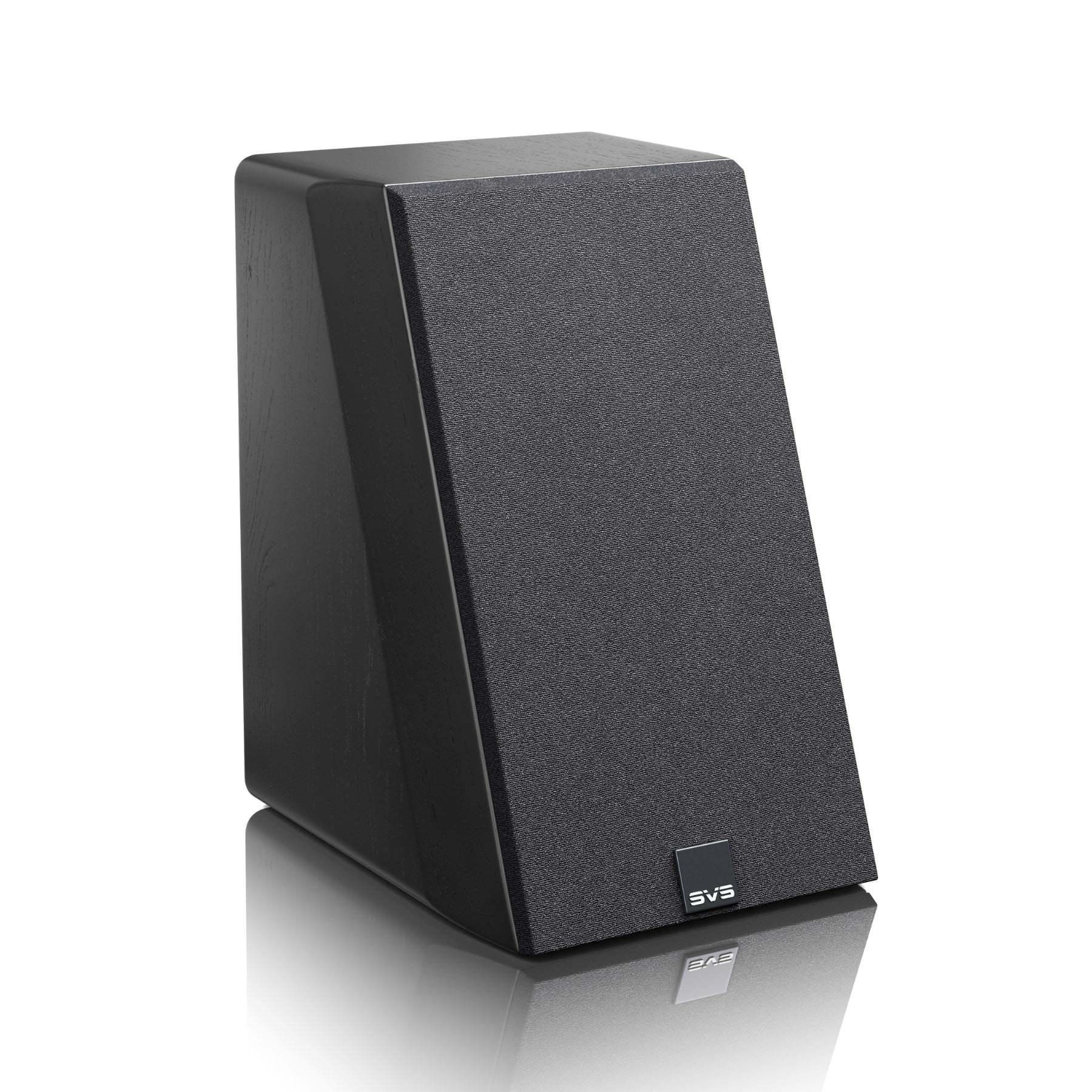

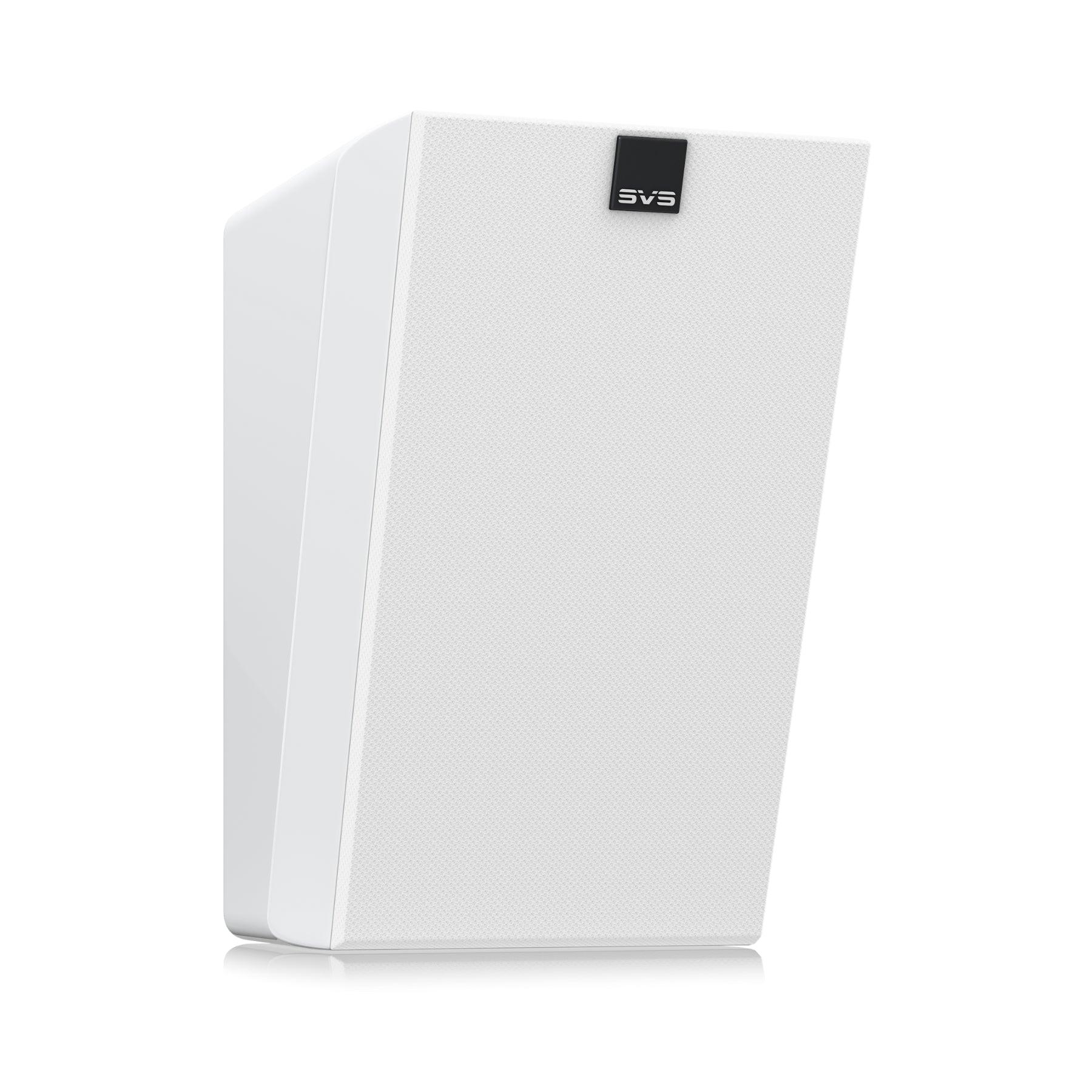

• Available in Piano Gloss Black, Piano Gloss White, and Real Black Oak Veneer

SVS Ultra Elevation Specifications:

In-Room Frequency Response: 48Hz to 40kHz (+/-3 dB)

Nominal Impedance: 6 ohms

Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)

Tweeter-to-Woofer crossover: 1.9 kHz

Recommended Amplifier Power: 20–150 watts

1.4” wide-flared rear-firing ports

1/4” brass insert for mounting systems

Cabinet Dimensions: 11.14” (H) x 7.28” (W) x 8.79” (D) / 283mm (H) x 185mm (W) x 223.2mm (D)

Overall Dimensions with grille, feet, and binding posts: 11.3” (H) x 7.28” (W) x 9.17” (D) / 287mm (H) x 185mm (W) x 233mm (D)

Overall Dimensions with grille and SVS Multi-Angle Mounting Bracket: 11.14” (H) x 7.28” (W) x 9.82” (D) / 283mm (H) x 185mm (W) x 249.4mm (D)

Shipped Dimensions for Pair: 11.6” (H) x 20.9” (W) x 15” (D) / 295mm (H) x 532mm (W) x 381mm (D)

Packaged Pair Weight: 27.8 pounds / 12.6 kgs

Each Unboxed Weight: 12.3 pounds / 5.6 kg
