Description

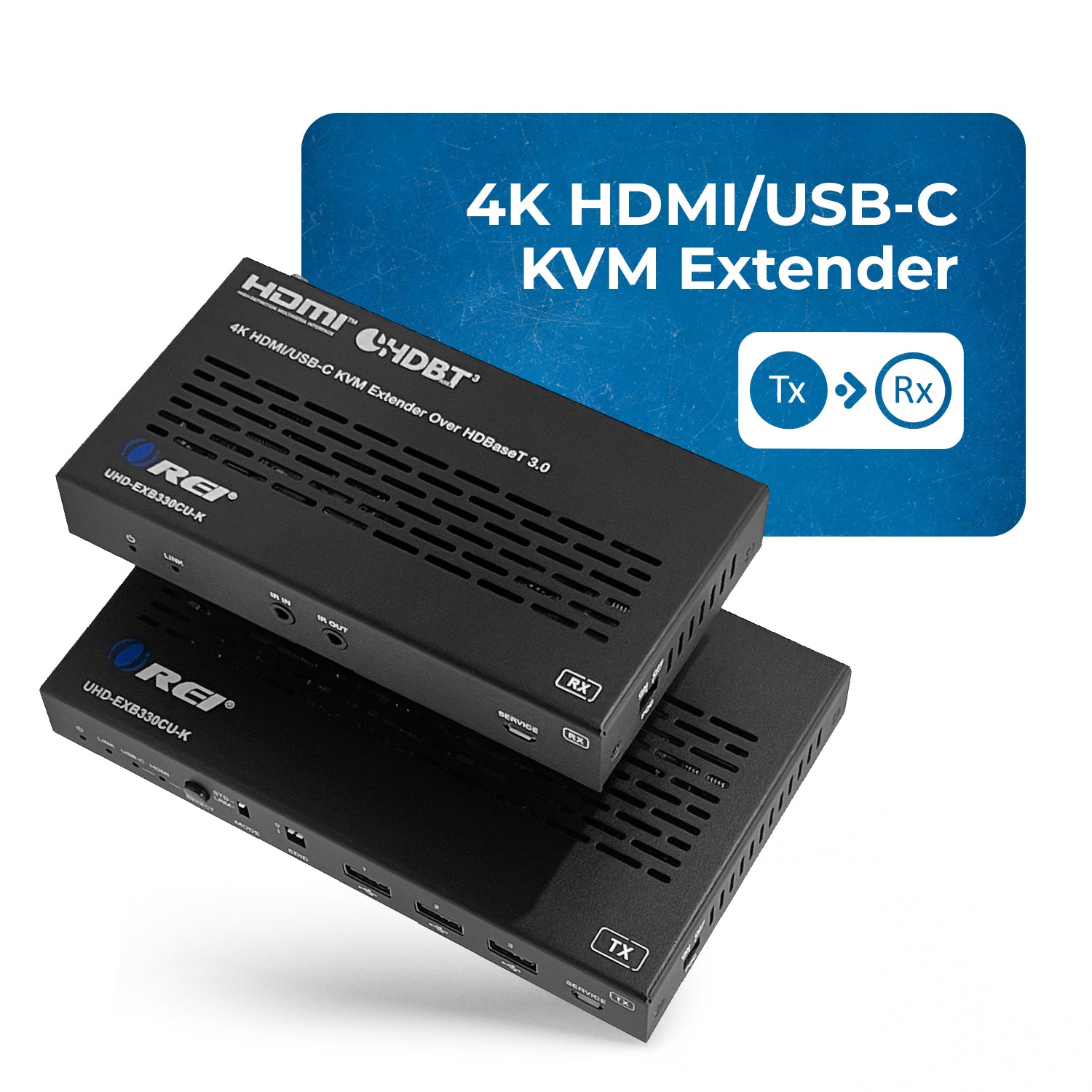

OREI UHD-EXB330CU-K: 4K HDMI/USB-C HDBaseT 3.0 Extender over CAT6/7 with KVM
Key Features:
- HDMI 2.0b & HDCP 2.3 compliant
- 18Gbps video bandwidth
- Video resolutions up to 4K@60Hz at 330 feet
- Reach up to 490 feet distance at 1080p resolution with the flick of aswitch
- HDBaseT 3.0 technology
- USB-C and HDMI Inputs
- DP-ALT mode support and charging up to 60 watts on the USB-C port
- HDR10+, Dolby Vision, and HLG pass-through
- 4K to 1080p Downscaling on HDMI Output
- Analog audio output on both ends for Audio Extraction
- Each USB-A port provides power up to 5V/500mA
- Power over Cable technology for easy and flexible installation
The UHD-EXB330CU-K HDMI extender is a versatile gadget that can send uncompressed audio-video signals up to 330 feet with just a single CAT 6/6A/7 cable. It features support for video resolutions up to 4K@60Hz. The device also features a USB-C input, which makes it compatible with the latest laptops and other devices. KVM function allows you to control a laptop or PC from the Receiver location. It also features Bi-directional IR and PoC with HDBaseT 3.0 technology. It also supports 4K to 1080p Downscaling on the HDMI output. This device is perfect for home office and home theatre setups.
[shortdes]
- USB KVM Control
- 4K@60Hz up to 330 feet
- HDBaseT 3.0 technology
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| 1 × USB [Type C, 24-pin female] | ||
| OUTPUT: | 1 × HDBaseT [RJ45, 8-pin female] | |
| 1 × L/R OUT [3.5mm Stereo Mini-jack] | ||
| Control: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3pin-3.81mm phoenix connector] | ||
| 1 × SERVICE [Micro USB, 5-pin female] | ||
| 1 × USB HOST [USB Type B, 4-pin female] | ||
| 3 × USB Devices [USB Type A, 4-pin female] | ||
| Receiver: | INPUT: | 1 × HDBaseT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × L/R OUT [3.5mm Stereo Mini-jack] | ||
| Control: | 1 x IR IN [3.5mm Stereo Mini-jack] | |
| 1 x IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 x RS-232 [3pin-3.81mm Phoenix jack] | ||
| 1 × SERVICE [Micro USB, 5-pin female] | ||
| 2 × USB Devices [USB Type A, 4-pin female] |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster cable |
| 1x IR Receiver cable |
| 2x 3pin Phoenix Connector |
| 4x Mounting Brackets |
| 8x Screw (KM3*4) |
| 1x Power Adapter |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | Up to 330 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz 4:4:4 |
ADDITIONAL FEATURES
| CEC: | No | |
| ARC: | No | |
| USB KVM: | Yes | |
| PoC/PoE: | Yes | |
| IR Control: | Yes | |
| Downmix: | No | |
| Downscale: | Yes | |
| Over IP: | No | |
| HDBaseT: | Yes | |
| RS-232: | Yes |
LOOP-OUT/LOCAL PORT
| Has loop out port: | No |
| Number of Loop out ports: | 0 |
AUDIO OUTPUT
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| SPDIF/Optical Audio Formats: | LPCM 2CH |
COMPLIANCES
| HDMI Compliance: | HDMI 2.0b |
| HDCP Compliance: | HDCP 2.3 |
POWER
| Power Consumption (Max): | 94.32W Max (with power supply on Tx, USB-C charging enabled) | |
| 10.8W Max (with power supply on Tx or Rx, USB-C charging disabled) | ||
| Power Supply: | Input: AC 100-240V 50/60Hz Output: DC 24V 3.75A |
DIMENSIONS & WEIGHT
| Transmitter: | Length: | 170mm / 6.69in |
| Width: | 102mm / 4.01in | |
| Height: | 22mm / 0.86in | |
| Weight: | 484g / 17oz | |
| Receiver: | Length: | 144mm / 5.66in |
| Width: | 78mm / 3.07in | |
| Height: | 318g / 11.2oz | |
| Weight: | 484g / 17oz |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1 - Year Manufacturer's Warranty |
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with an increase in the distance, and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 330 Feet when using a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has a low bandwidth as compared to CAT6. We recommend you use a shielded CAT6 cable.
If the power and link LED lights do not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
[/tab1]
