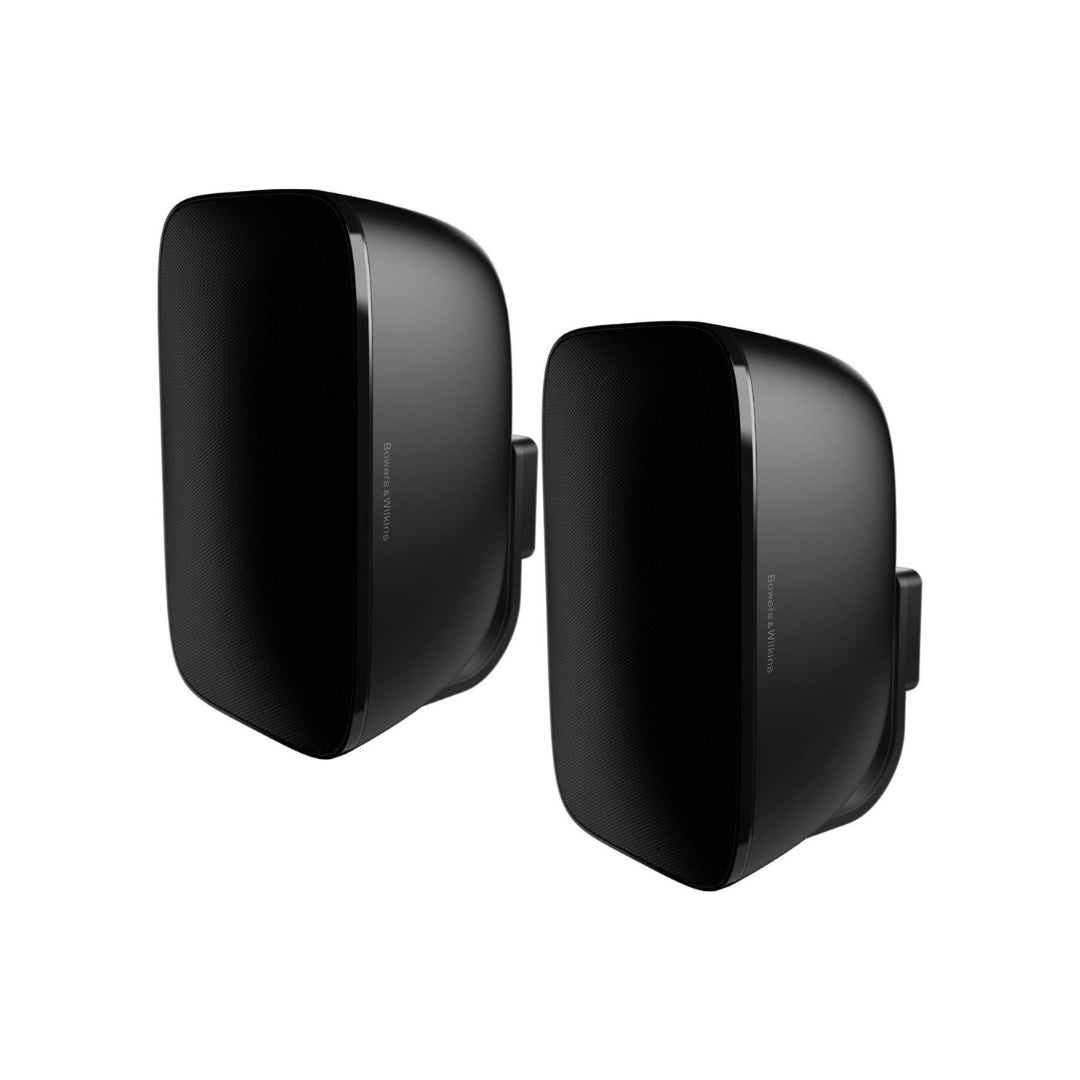

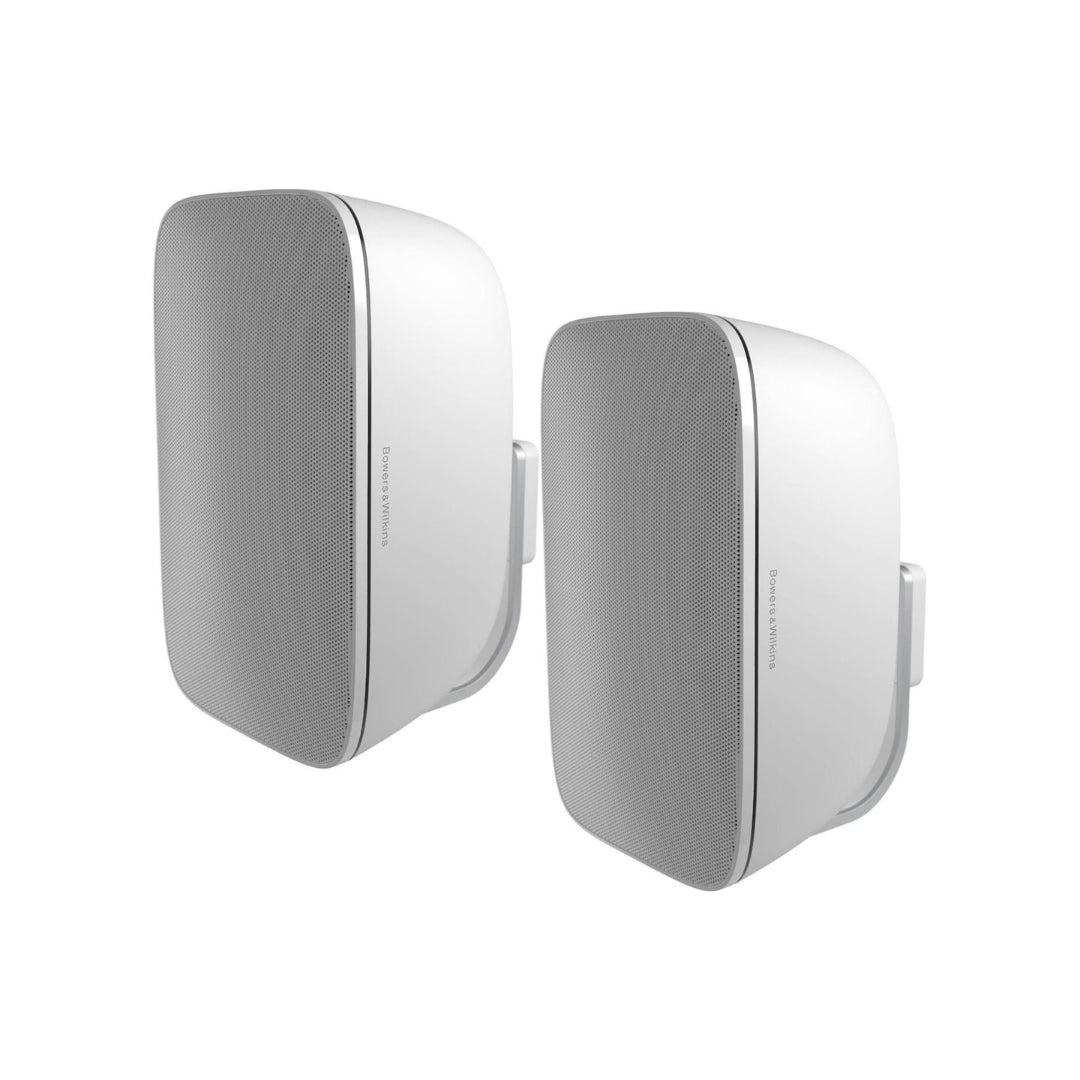

Bowers & Wilkins AM-1 Architectural Monitor: High-Fidelity Audio for Any Environment

The Bowers & Wilkins AM-1 Architectural Monitor delivers exceptional sound quality, weatherproof durability, and versatile mounting options, making it perfect for both indoor and outdoor use.

Uncompromised Sound, Everywhere

Experience rich, detailed audio with the AM-1. Whether you're relaxing by the pool or entertaining guests on the patio, these speakers deliver pristine Bowers & Wilkins sound that stays true to the original recording.

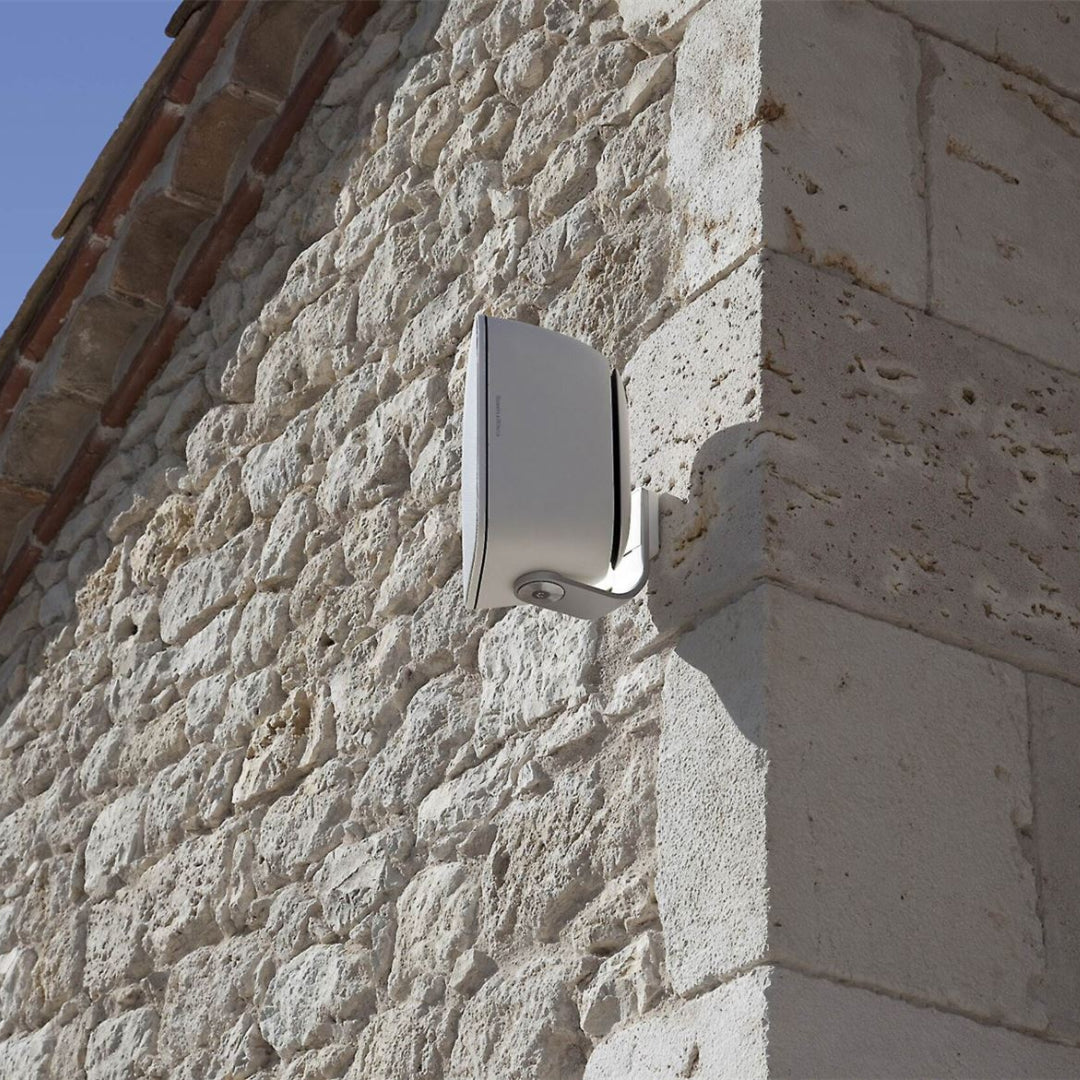

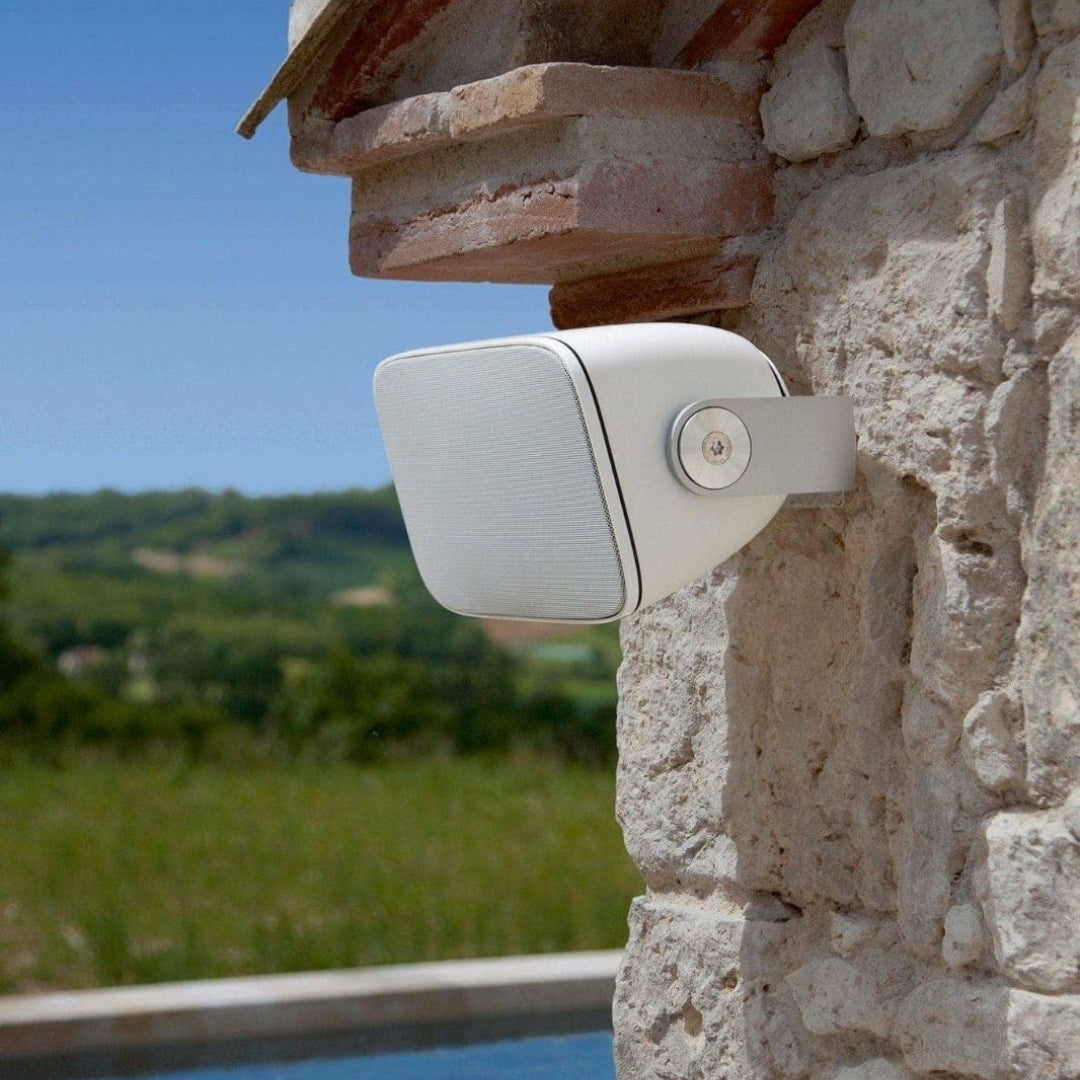

Built to Withstand the Elements

Featuring a rust-proof aluminum grille and a rigid glass-filled plastic cabinet, the AM-1 is designed to endure harsh weather conditions, including rain, snow, dust, and UV rays. You can enjoy high-fidelity audio year-round, without worrying about damaging your speakers.

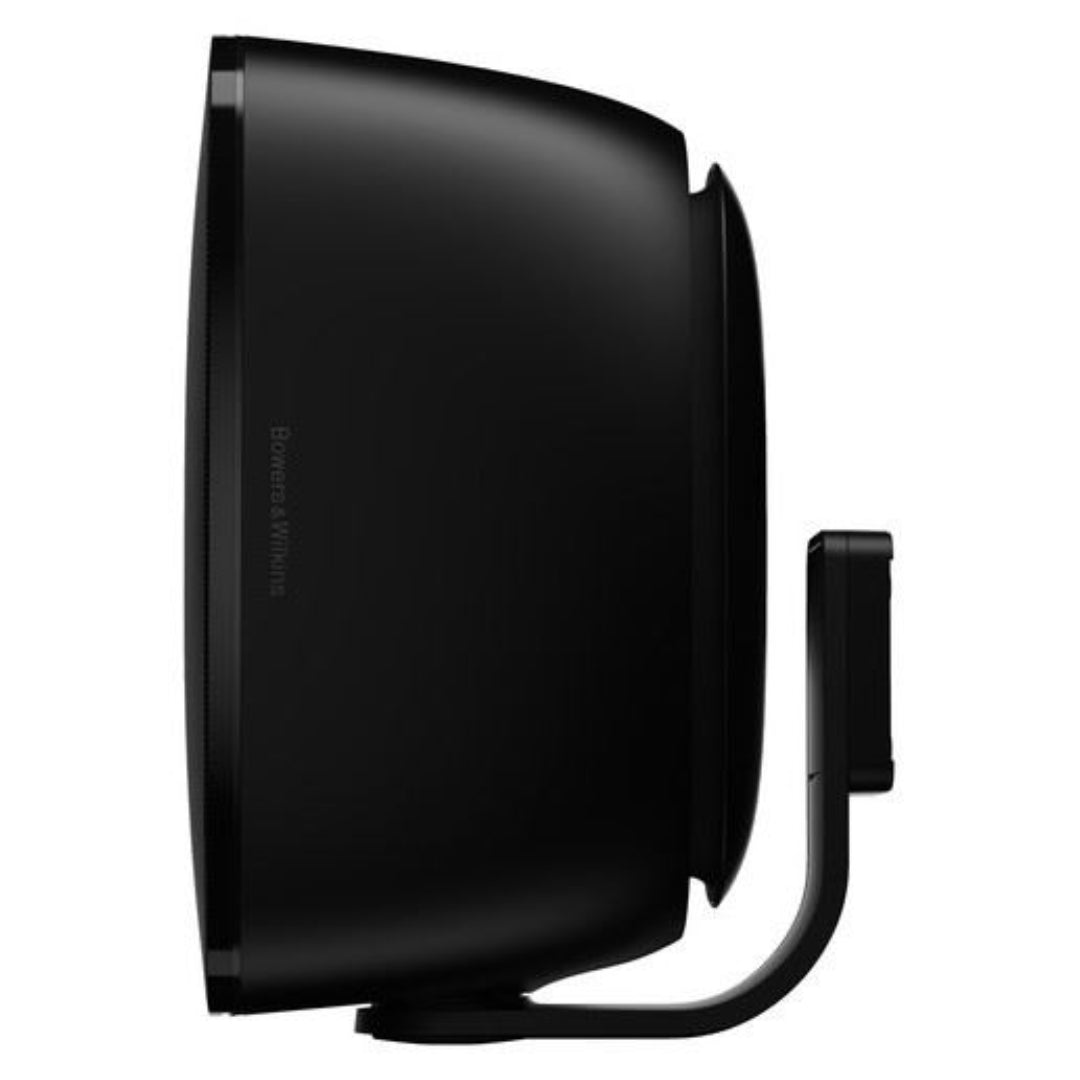

Flexible Installation for Your Space

The AM-1's easy-to-install bracket allows for horizontal or vertical mounting, providing exceptional placement flexibility. With a 220-degree rotation capability, you can direct the sound exactly where you want it.

Powerful Bass, Compact Design

Bowers & Wilkins engineers designed a clever auxiliary bass radiator specifically for the AM-1. This innovative solution allows the speaker to maintain a slim profile while producing deep, resonant bass, ensuring a well-balanced soundscape.

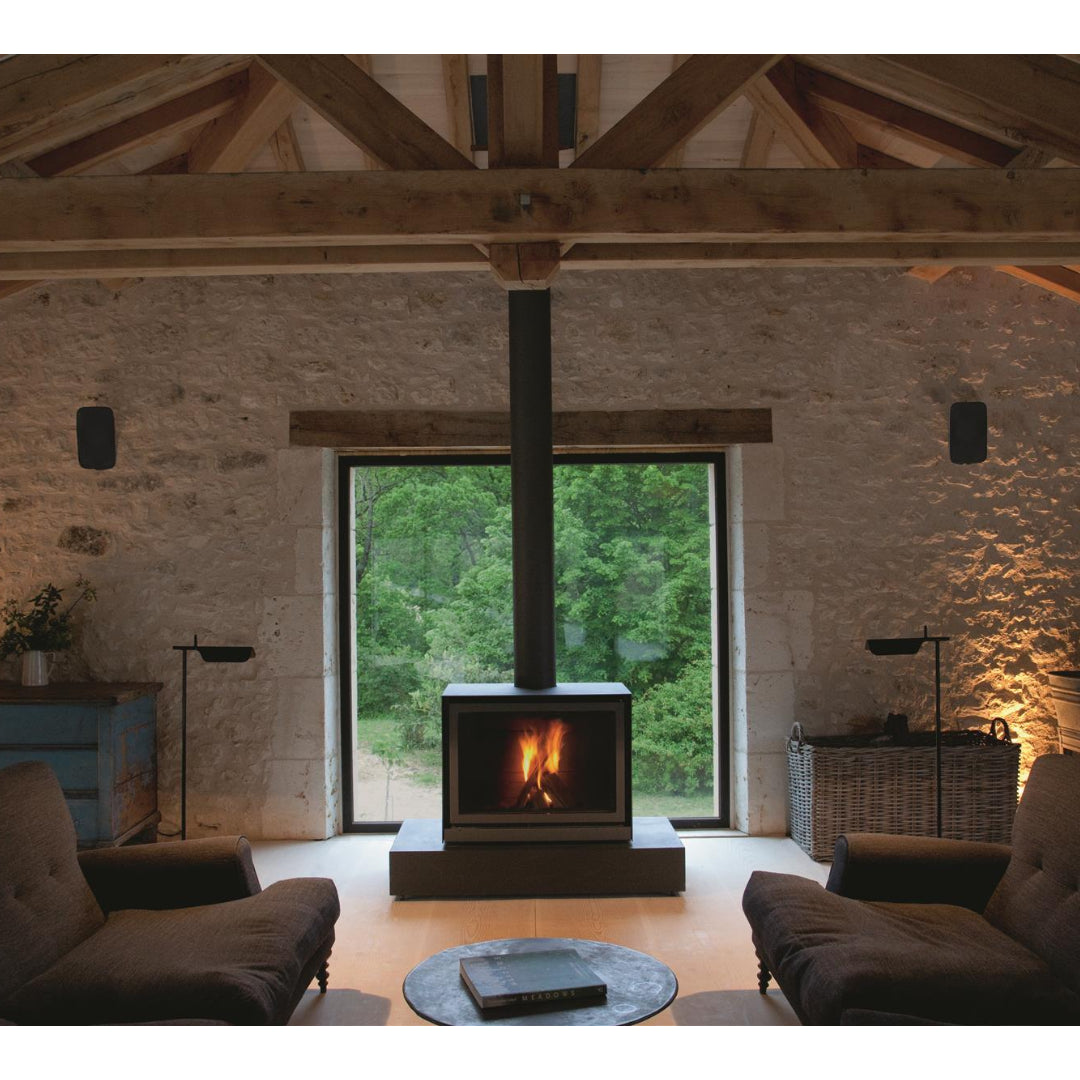

Discreet Style for any Decor

The AM-1's elegant design complements any environment. Whether you're installing them outdoors or indoors, their subtle style blends seamlessly into your surroundings.

Key Features:

• High-quality sound with Bowers & Wilkins signature performance
• All-weather construction for outdoor durability
• Flexible mounting options for horizontal or vertical placement
• 220-degree rotation for precise sound direction
• Auxiliary bass radiator for rich, deep bass
• Easy installation process

Bring exceptional Bowers & Wilkins sound to any space with the AM-1 Architectural Monitor.

Bowers & Wilkins AM-1 Specifications

Size & Weight:

• Dimensions: 310mm (12 1/4in) H x 180mm (7in) W x 210mm (8 1/4in) D
• Net Weight: 4kg (8.8lb)

Technical Details:

• • System: 2-way with Auxiliary Bass Radiator (ABR)
  • Tweeter: 1x ø25mm (1in) aluminum dome
  • Midrange/Bass: 1x ø130mm (5in) glassfiber cone
  • Frequency Range: -6dB at 46Hz and 50kHz (wall mounted)
  • Frequency Response: 51Hz - 22kHz on reference axis (wall mounted)
  • Sensitivity: 86dB (2.83V, 1m)
• Harmonic Distortion: <1% 200Hz - 20kHz (86dB, 1m)
• Impedance: 8Ω (5.2 Ω min)
• Recommended Amplifier Power: 20W - 100W into 8Ω
