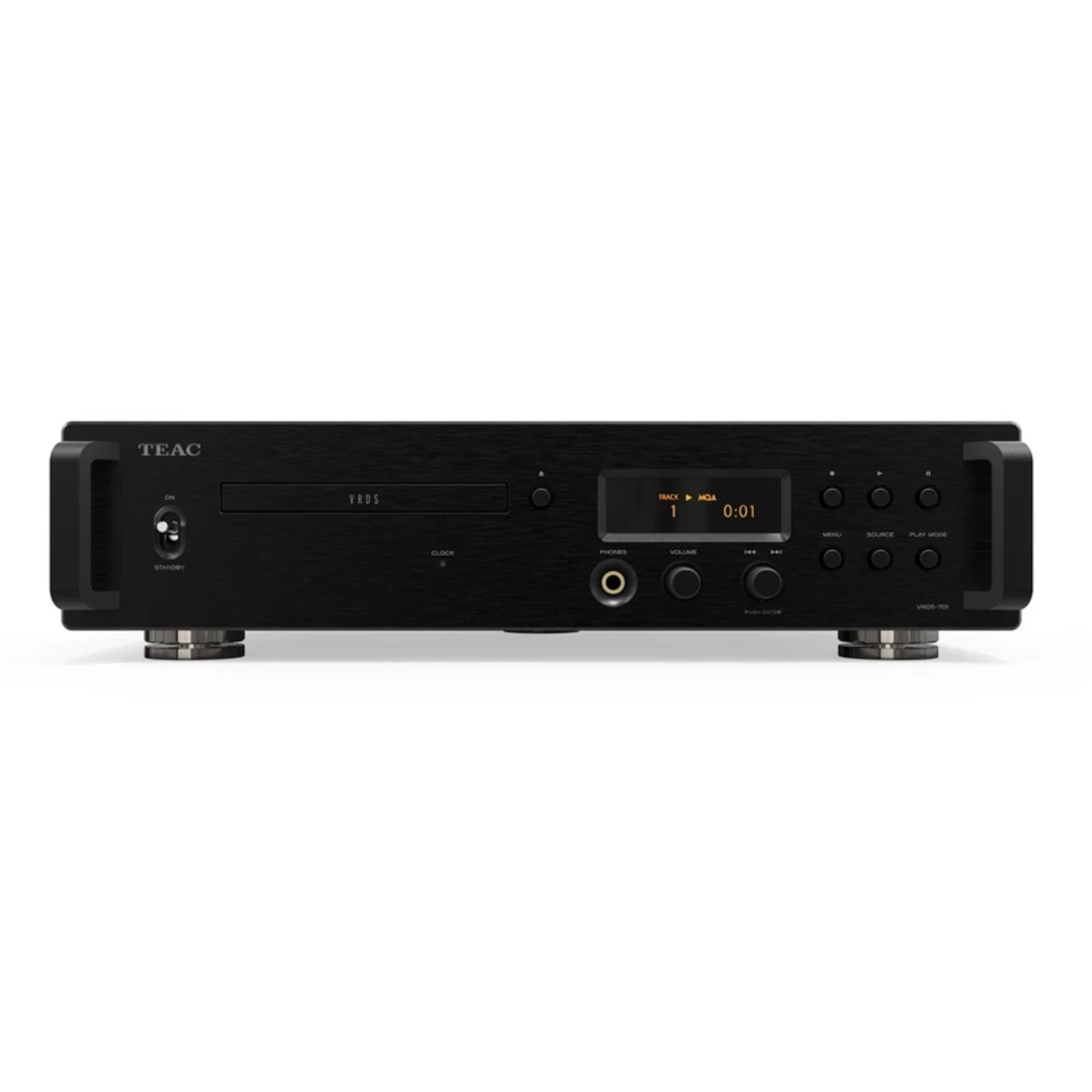

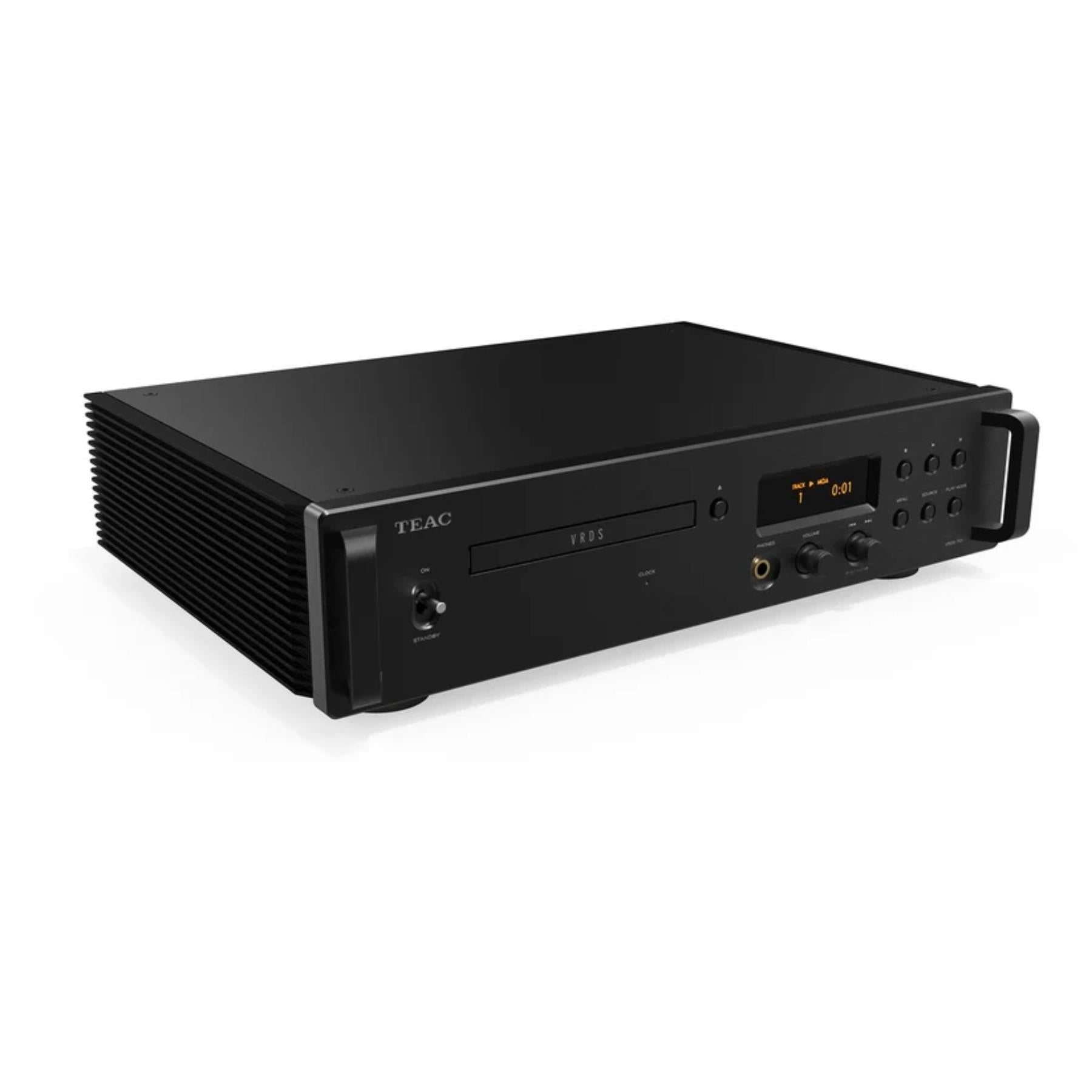

TEAC VRDS-701 Dual Monaural USB/DAC CD Player/Pre-Amp/Headphone Amplifier

Experience the pinnacle of audio fidelity with the TEAC VRDS-701, a versatile dual monaural USB DAC CD player that doubles as a pre-amplifier and headphone amplifier. Engineered for audiophiles and home theater enthusiasts, this unit seamlessly integrates advanced technologies to deliver pristine sound quality across various formats.

TEAC VRDS-701 Key Features:

• Dual Monaural USB DAC CD Player, Pre-Amplifier, and Headphone Amplifier
• TEAC Reference 700 Series
• State-of-the-art ΔΣ 32-bit discrete DAC with FPGA technology
• Supports DSD512 (22.5MHz) native and 384kHz/32-bit PCM playback
• Built-in MQA decoder for high-resolution audio formats like FLAC and WAV
• Proprietary VRDS technology for vibration-free CD playback
• Four TEAC HCLD buffer amp circuits with balanced and parallel drive modes
• Integrated headphone amplifier with high-output, low-distortion driver
• Dual master clocks for precise timing and synchronization
• Multiple upconversion settings (2x, 4x, 8x) for enhanced audio performance
• Bulk Pet USB transmission technology for stable data transfer

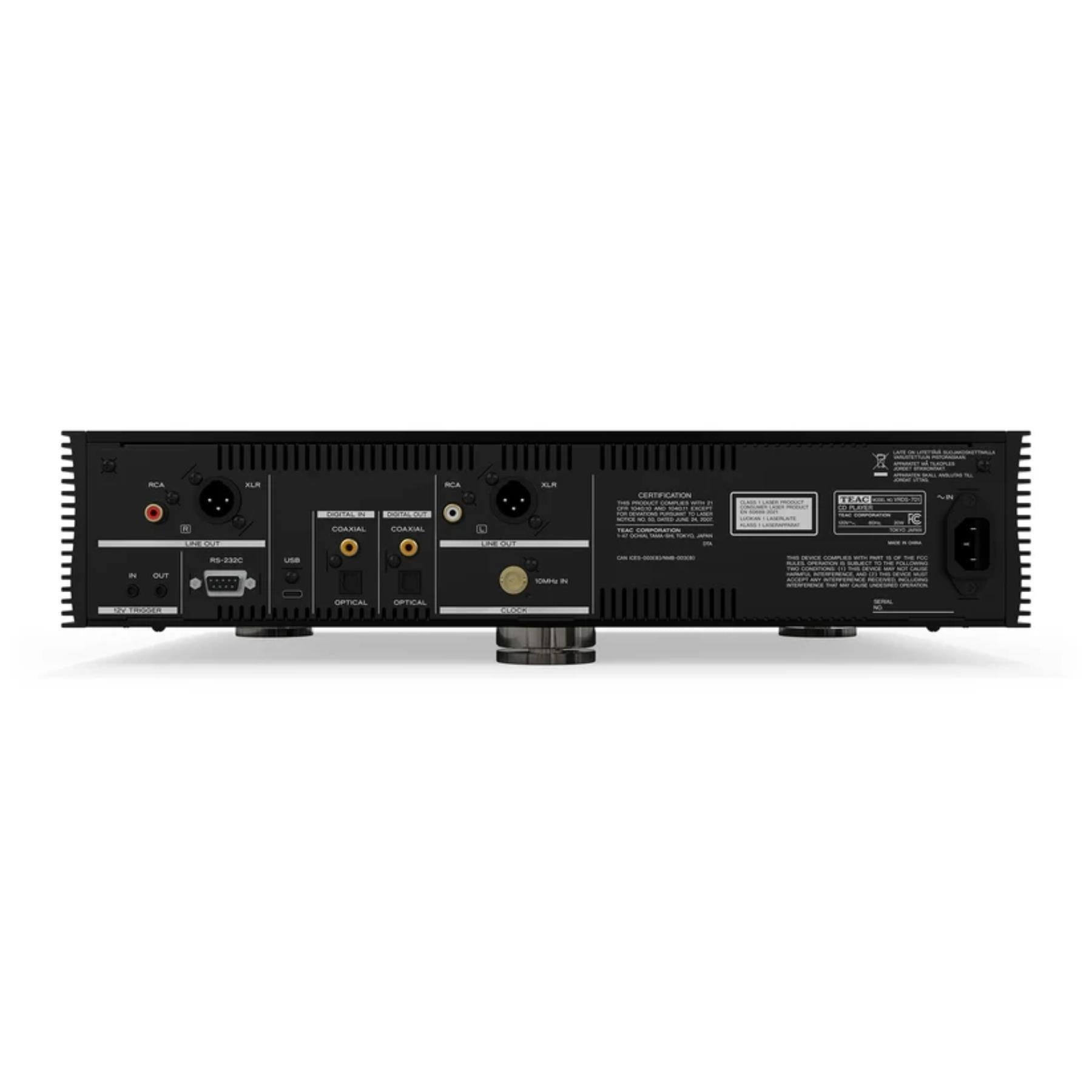

TEAC VRDS-701 Specifications:

• CD Section:

  • Supported Media: Audio CD, CD-R, CD-RW (CD-DA format)
  • Analog Outputs: XLR x1 (L/R), RCA x1 pair (L/R)
  • Frequency Response: 5Hz - 80kHz (+1dB/−6dB)
  • Signal-to-Noise Ratio: 105dB (A-weighted, 1kHz)
  • Total Harmonic Distortion: 0.002% (1kHz, LPF: 20 - 20kHz)

• Headphone Amp Section:

  • Connector: 1/4” (6.3mm) stereo jack x1
  • Maximum Output: 500mW + 500mW (into 32Ω)

• Digital Inputs:

  • USB: Type-C, USB 2.0 or higher
  • COAXIAL: RCA x1
  • OPTICAL: TOS (JEITA RC5720C) x1
  • Clock Sync Input: BNC x1

• Digital Outputs:

  • COAXIAL: RCA x1
  • OPTICAL: TOS (JEITA RC5720C) x1

• External Control:

  • Trigger Input: 3.5mm Mono mini jack x1
  • Trigger Output: 3.5mm Mono mini jack x1

• General:

  • Power: AC 120V, 60Hz / AC 220-240V, 50/60Hz
  • Power Consumption: 40W
  • Dimensions: 444 x 111.3 x 333.6mm
  • Weight: 11.8kg

Elevate your listening experience with the TEAC VRDS-701, where cutting-edge technology meets unmatched audio performance. Perfect for discerning audiophiles and enthusiasts seeking the ultimate in high-fidelity sound reproduction.
