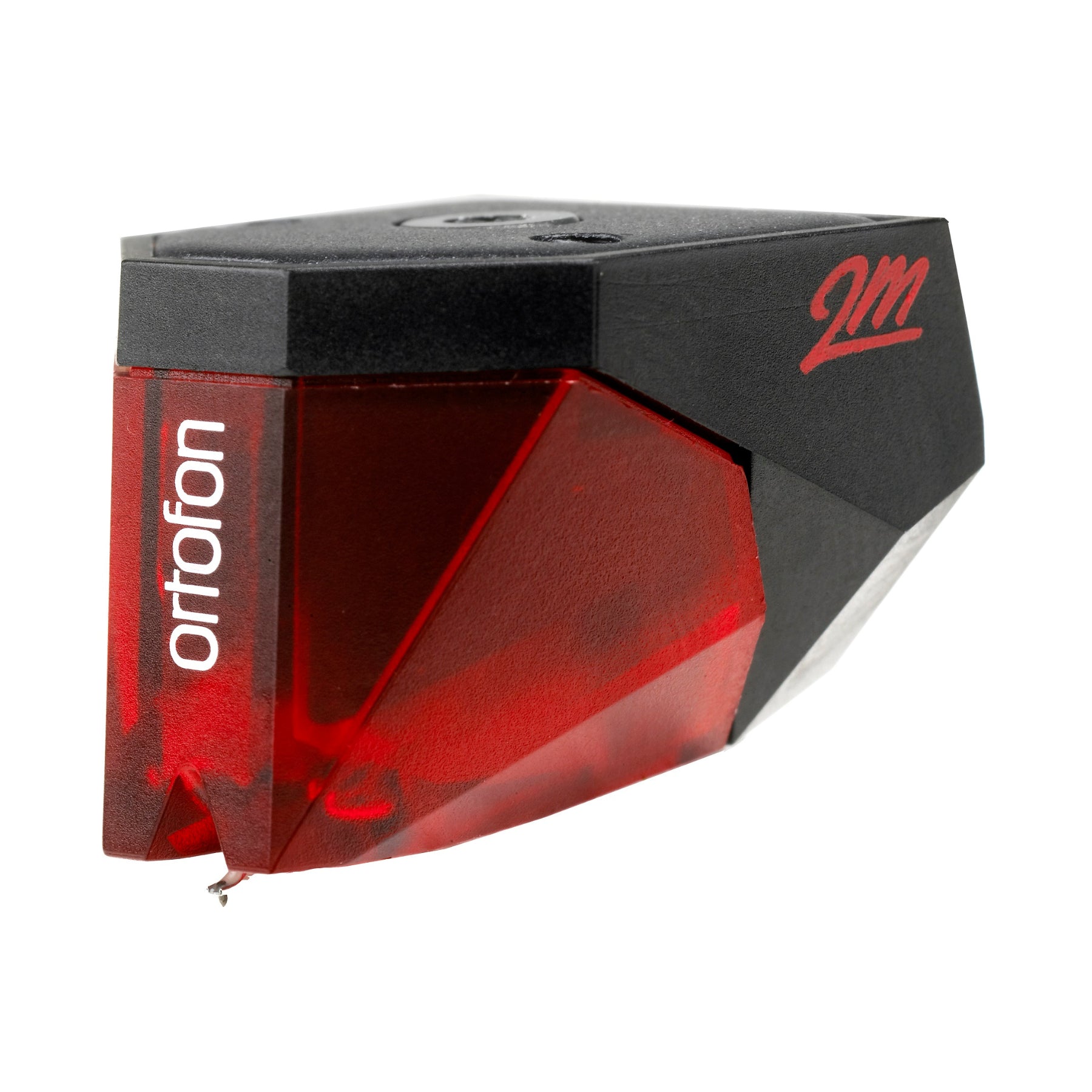

Ortofon 2M Red Moving Magnet Cartridge (Open Box)

• An improved engine providing an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy
• A tipped Elliptical diamond and split pole pins with a copper wire
• All-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth

"...a pleasing ambience...
...intimate, trembling quality...
...bass in proportion...
...good detail...
...realistic without going into hardness...
...sense of space even in the climaxes...”

— Reviewed by Steve Harris and Paul Miller,

Hi-Fi News October 2008

Ortofon has optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design - the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. Ortofon wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.

2M Red Maintenance Set included the package:

1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7

2M Red Technical data

Output voltage at 1000 Hz, 5cm/sec.  -  5.5 mV
Channel balance at 1 kHz   -  1.5 dB
Channel separation at 1 kHz  -  22 dB
Channel separation at 15 kHz  -  15 dB
Frequency response  -  20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force  -  70 µm
Compliance, dynamic, lateral  -  20 µm/mN
Stylus type  -  Elliptical
Stylus tip radius  -  r/R 8/18 µm
Tracking force range  -  1.6-2.0 g (16-20 mN)
Tracking force, recommended  - 1.8 g (18 mN)
Tracking angle  -  20°
Internal impedance, DC resistance  -  1.3 kOhm
Internal inductance  -  700 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  150-300 pF
Cartridge colour, body/stylus  -  Black/Red
2M standard and 2M Verso cartridges weight  -  7.2 g
