Description

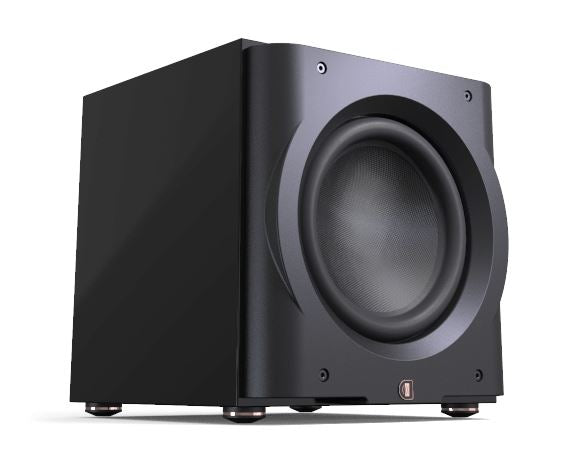

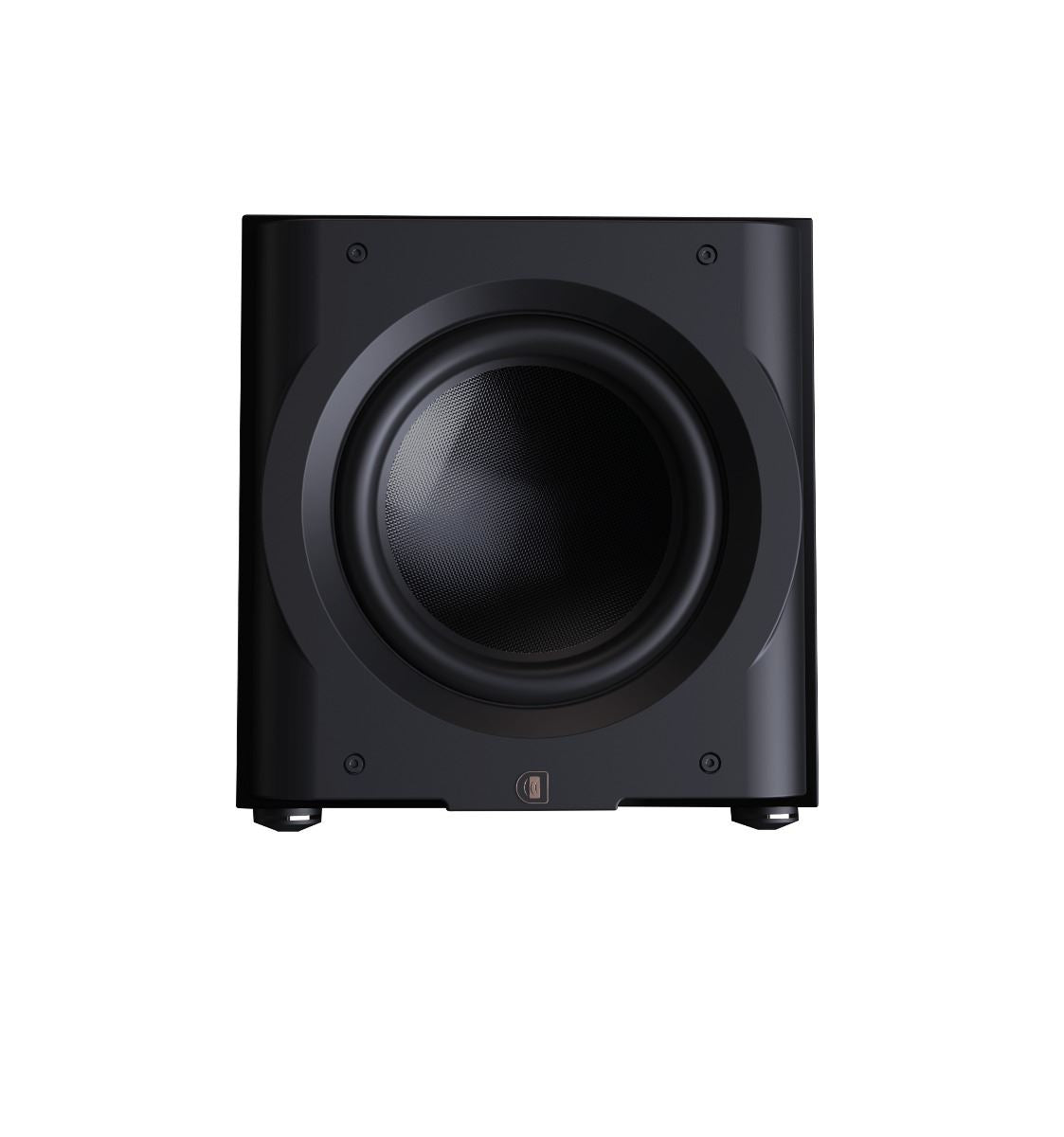

Perlisten D12s Subwoofer
- Massive bass, minute distortion levels
- 32-bit ARM M4 Cortex processor
- Carbon fiber composite diaphragms
- 2.4" LCD touchscreen display
- App Control
Small Footprint, Big Sound
MODEL D12s Subwoofer benefits from many of the technologies of Perlisten Audio's flagship subs, this sealed sub generates amazing performance in the smallest footprint.
Low Q, shallow rolloff response geared for sound quality and smoothly integrating into the listening room. Also, a great choice for using multiple subs to optimize in room response and smooth out seat-to-seat variation.
The D12s is the smallest subwoofer in the series, yet packs enough punch to be certified THX Dominus using a pair of D12s subs. Powered by Perlisten's 1.5kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds, powerful enough to slam. Ground up drivers developed by Perlisten Audio engineers. Carbon fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of Klippel laser measurements to dial things in. All D-Series subs share our 2.4" LCD touchscreen display and ability to control advance settings using our App.
1.5 - 3.0 KW OF INTELLIGENCE
At the core of our amps is a 32-bit ARM processor to control innovative technologies like real-time temperature status, current and voltage monitoring, fault detection, and performance diagnostics executed more than 1,000 times per second. All of this to make sure that our 3 kW amplifiers are always in control, even well below 20 Hz. In addition, we have dual balanced and single-ended inputs with passthrough, 12v trigger, and OTA firmware updates via our app to always deliver the latest improvements. The end result is low distortion bass for the finest details with the dynamic range to meet the highest transients without compression and control at the click of a button.
APP CONTROL
Bass management is critical to the control the notoriously difficult acoustic environment known as your listening room. Standing waves, subwoofers placed in a less than ideal position, and sound variation from seat to seat are only some of these issues. Control for up to eight subwoofers with three banks of 10 PEQ’s per woofer, Time Delay, Phase, up to six standard EQ’s, 24 dB lowpass crossovers and polarity switching, are all tools available to optimize in-room performance. Our app uses Bluetooth Low Energy to communicate with your iOS or Android based devices.
Perlisten D12s Specifications
| Alignment | Acoustic suspension |
| Amplifer | 1.5kW rms short term |
| Display Interface | 2.4" LCD color touchscreen |
| App | iOS and Android |
| Processor | 32-bit ARM Cortex M4, double precision floating point math |
| DSP Engine | Ti DSP 48-bit data paths |
| Driver compliment | 300mm, Carbon fiber diaphragm +/-30mm linear excursion |
| Reference sensitivity | 92dB / 150mV / 1.0m |
| Frequency Response THX EQ Boost (Large Room) EQ Cut (Small Room) EQ | 20-289Hz (-6dB) / 16-330Hz (-10dB) 16-289Hz (-6dB) / 14-330Hz (-10dB) 25-289Hz (-6dB) / 19-330Hz (-10dB) |

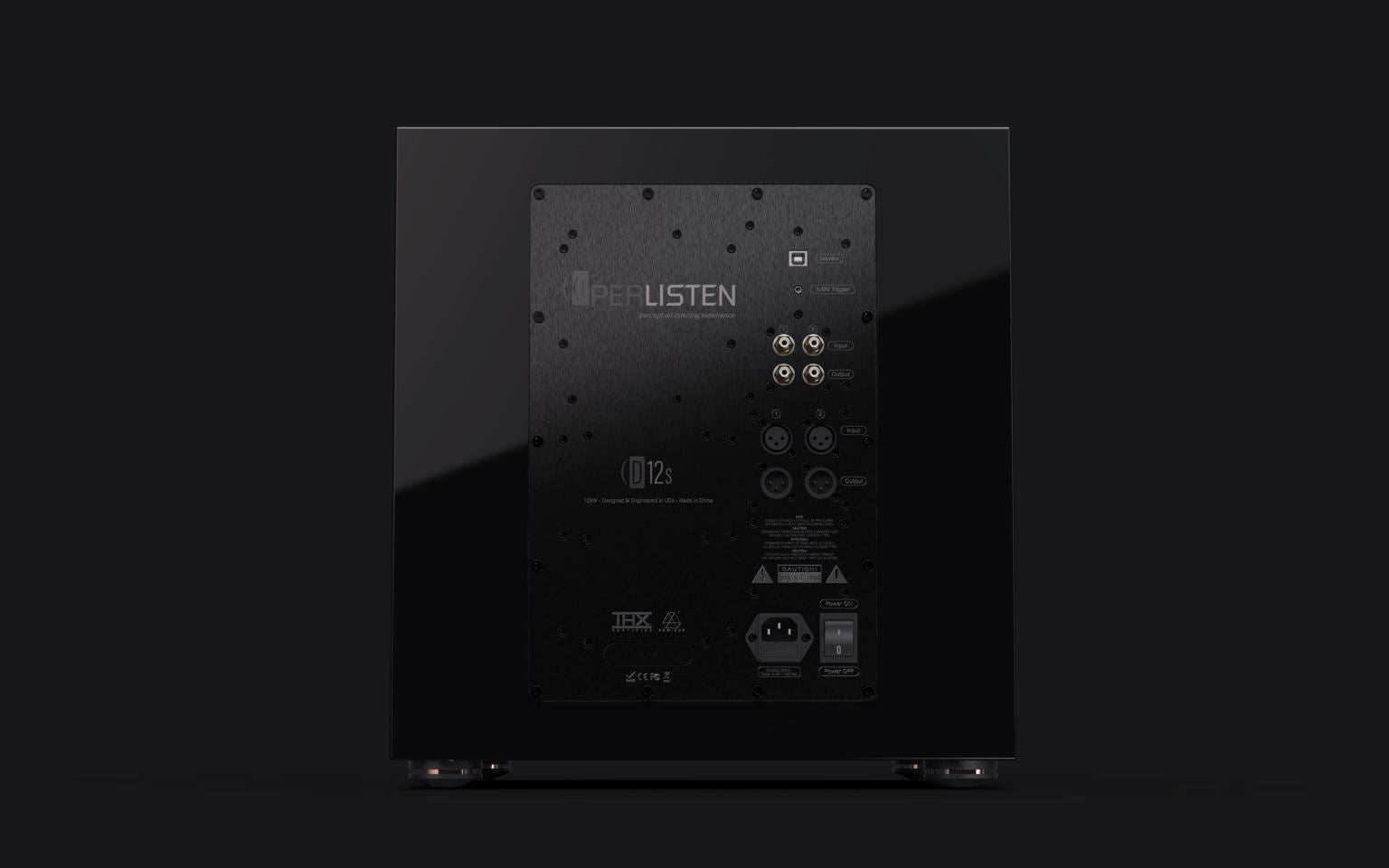

| Inputs | (2) Balanced XLR (2) Unbalanced RCA |
| Outputs | (2) Balanced XLR unbuffered (2) Unbalanced RCA unbuffered |
| Parametric EQ | 10-Band PEQ with 3 user presets |
| Low Pass filter | Bypass, 30-160Hz, slope 6,12,18,24dB/oct |
| Phase | Variable 0-270° |
| Polarity | Normal / inverted |
| Configurable Auto turn-on and 12v Trigger | XLR 1, XLR 1+2, RCA 1, RCA 1+2 |
| Dimensions (HxWxD) | 448 x 420 x 450mm 17.6 x 16.5 x 17.7" |
| Weight | 41.0 kg (90.2 lbs.) |
| Certification | THX Dominus |
| Available finishes | Piano black |
