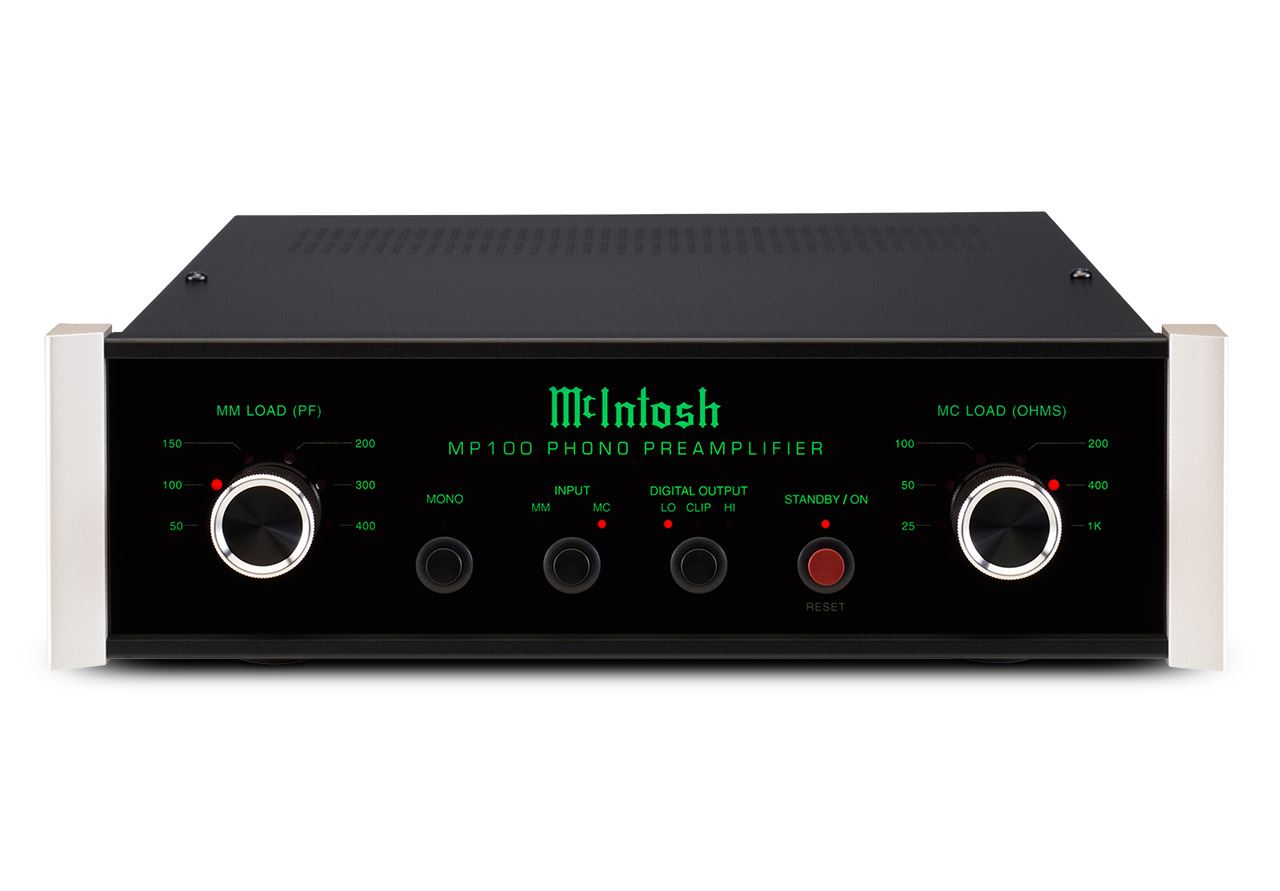

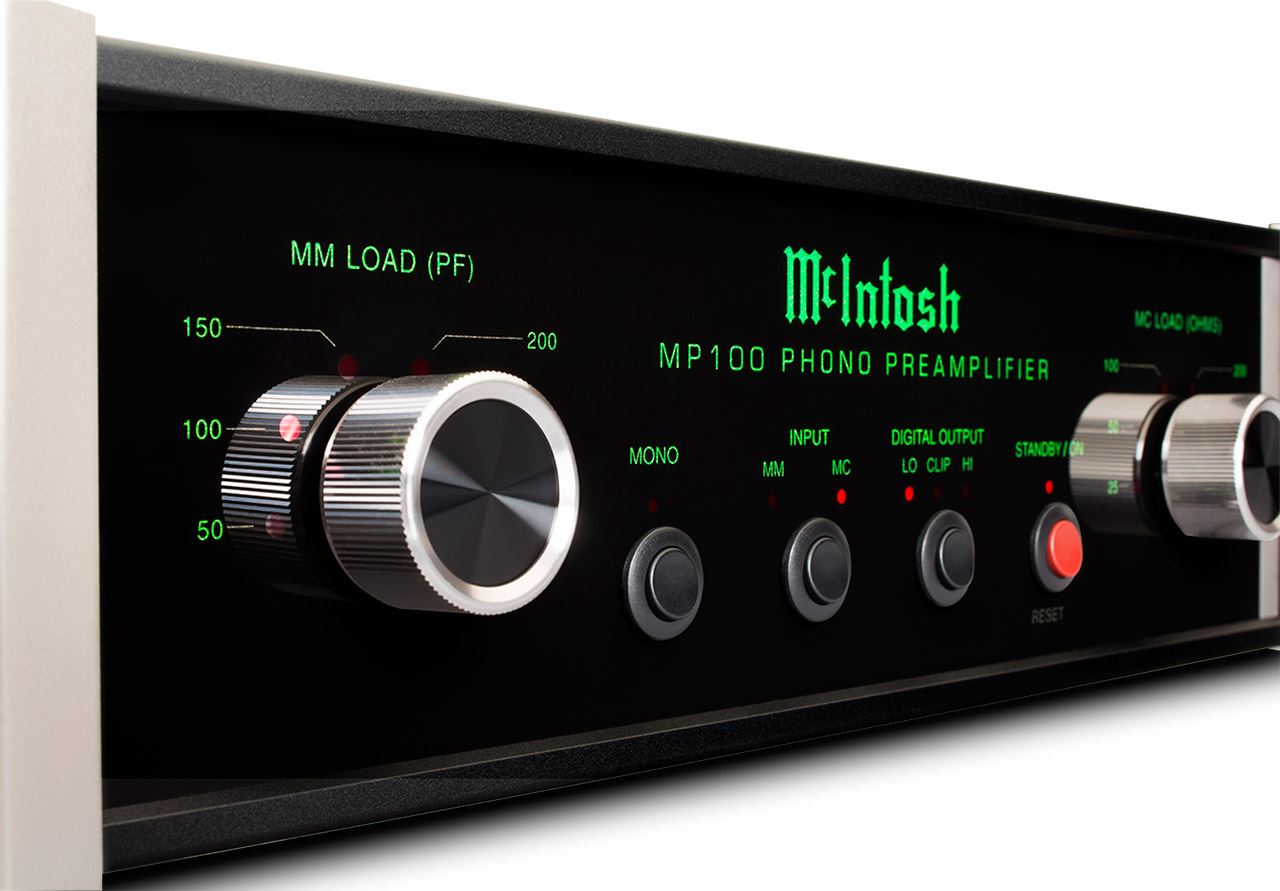

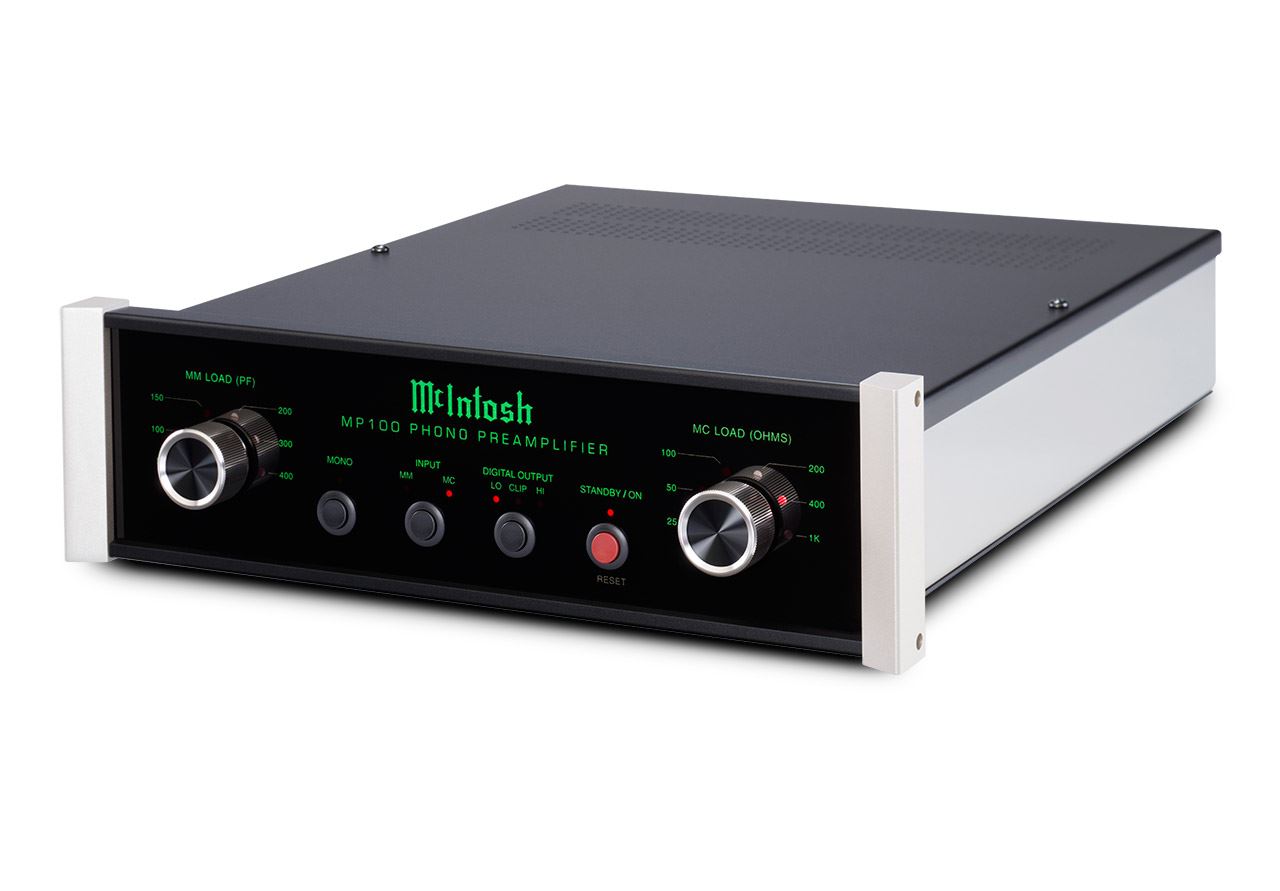

McIntosh MP100 Phono Preamplifier

Enhance your vinyl listening experience with the McIntosh MP100 Phono Preamplifier, meticulously crafted for audiophiles seeking unparalleled fidelity. This dedicated phono preamp caters to both novices and seasoned vinyl enthusiasts, delivering superior performance and pure enjoyment.

McIntosh MP100 Key Features:

• Moving Coil & Moving Magnet Inputs: Accommodates various cartridge types with adjustable loading settings (6 for each).
• Analog Outputs + USB Connectivity: Balanced and unbalanced analog outputs, plus USB for convenient record ripping to your computer.
• Mono Switch: Specifically designed for playing mono records, reducing noise and ensuring accurate signal reproduction.
• Digital Outputs: Includes optical, coaxial, and USB digital outputs for versatile connectivity.
• Compact Design: At just 3 inches tall, it shares a narrow chassis with other McIntosh components, allowing seamless integration into your audio system.

Versatile Integration:

• Build a Complete System: Same width as the MXA70 Integrated Audio System and MB50 Streaming Audio Player, making it easy to combine for a comprehensive audio setup.
• Add Modern Phono Features: Perfect for upgrading existing systems or incorporating into home theater setups without duplicating features.

Digital Convenience:

• Record Ripping Capability: Seamlessly rip your vinyl records to a computer in high-quality digital formats using the USB output.
• Clipping Indicator: Alerts you to adjust the digital output to prevent distortion during loud sections, ensuring a pristine recording.

McIntosh MP100 Technical Specifications:

• Total Harmonic Distortion: 0.005%
• Frequency Response: ±0.3dB from 20Hz to 20,000Hz
• Maximum Volts Out (Balanced/Unbalanced): 16/8 V RMS
• Phono Voltage Gain (Moving Coil/Moving Magnet): 60dB/40dB
• Signal to Noise Ratio (Moving Coil/Moving Magnet): 78dB/80dB
• Maximum Input Signal (Moving Coil/Moving Magnet): 8mV/80mV
• Sensitivity Phono (Moving Coil/Moving Magnet): 1mV/10mV
• Rated Output: 2V Balanced, 1V Unbalanced
• Output Impedance: 200 Ohms Balanced, 100 Ohms Unbalanced

Connectivity:

• Phono Inputs (Moving Coil/Moving Magnet): 1 each (adjustable)
• Digital Outputs: Coaxial, Optical, and USB (24-bit/96kHz)

Control:

• Power Control Input/Output: 1 each

Digital Audio Specifications:

• Digital Output Sample Rate: PCM - 24-bit/96kHz for Optical, Coaxial, and USB

General Specifications:

• Dimensions (W x H x D): 11.5" x 3.78125" x 16.75"
• Weight: 8.6 lbs
