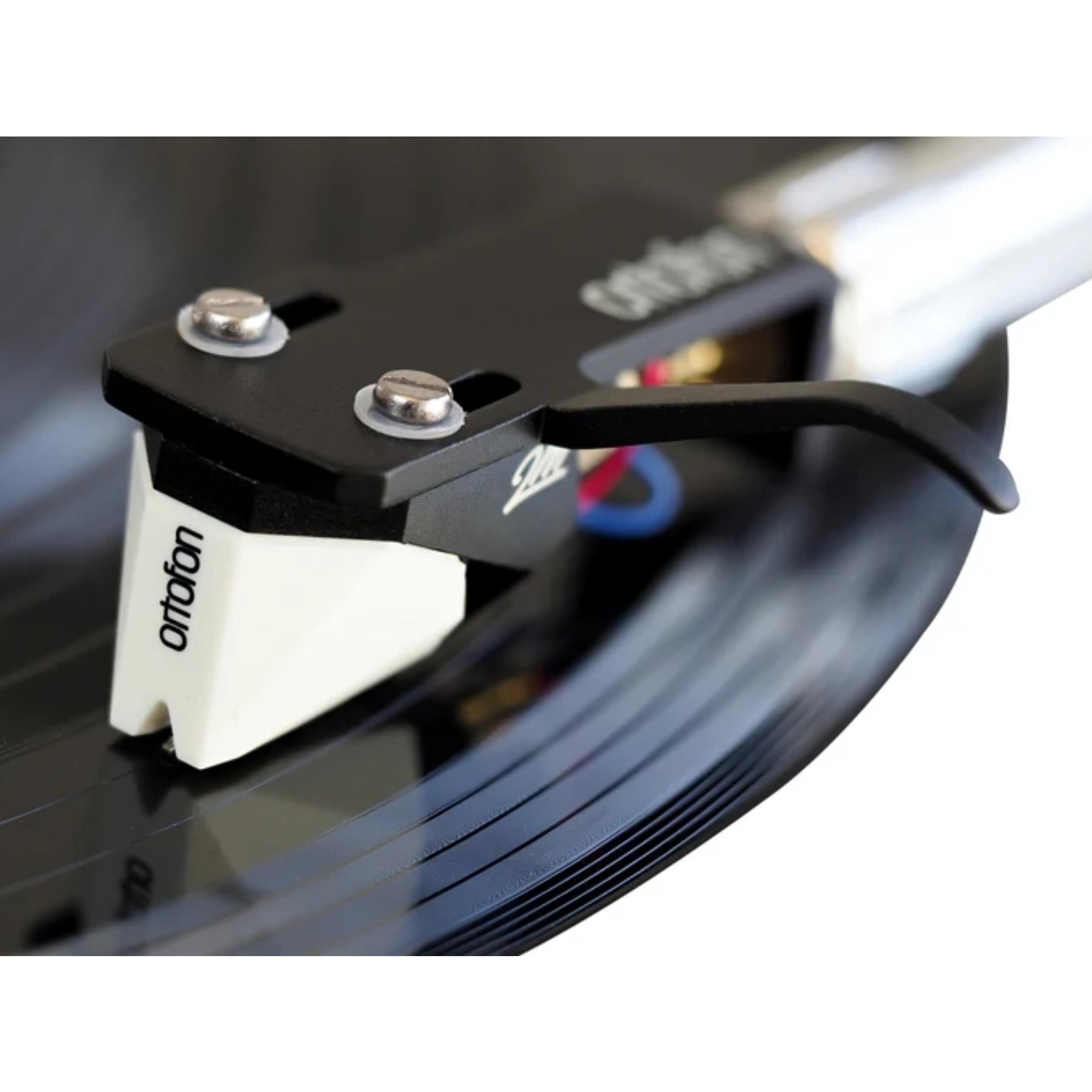

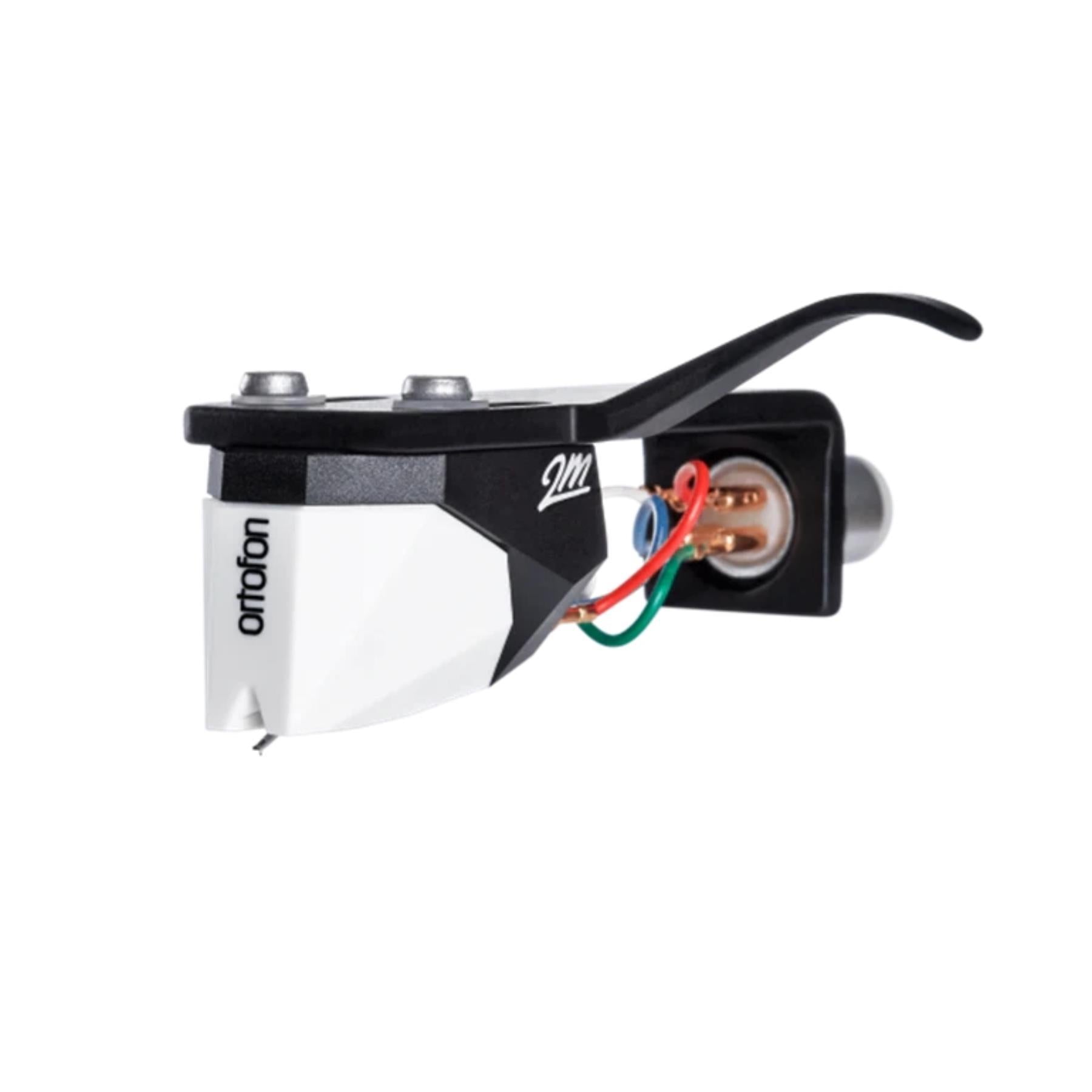

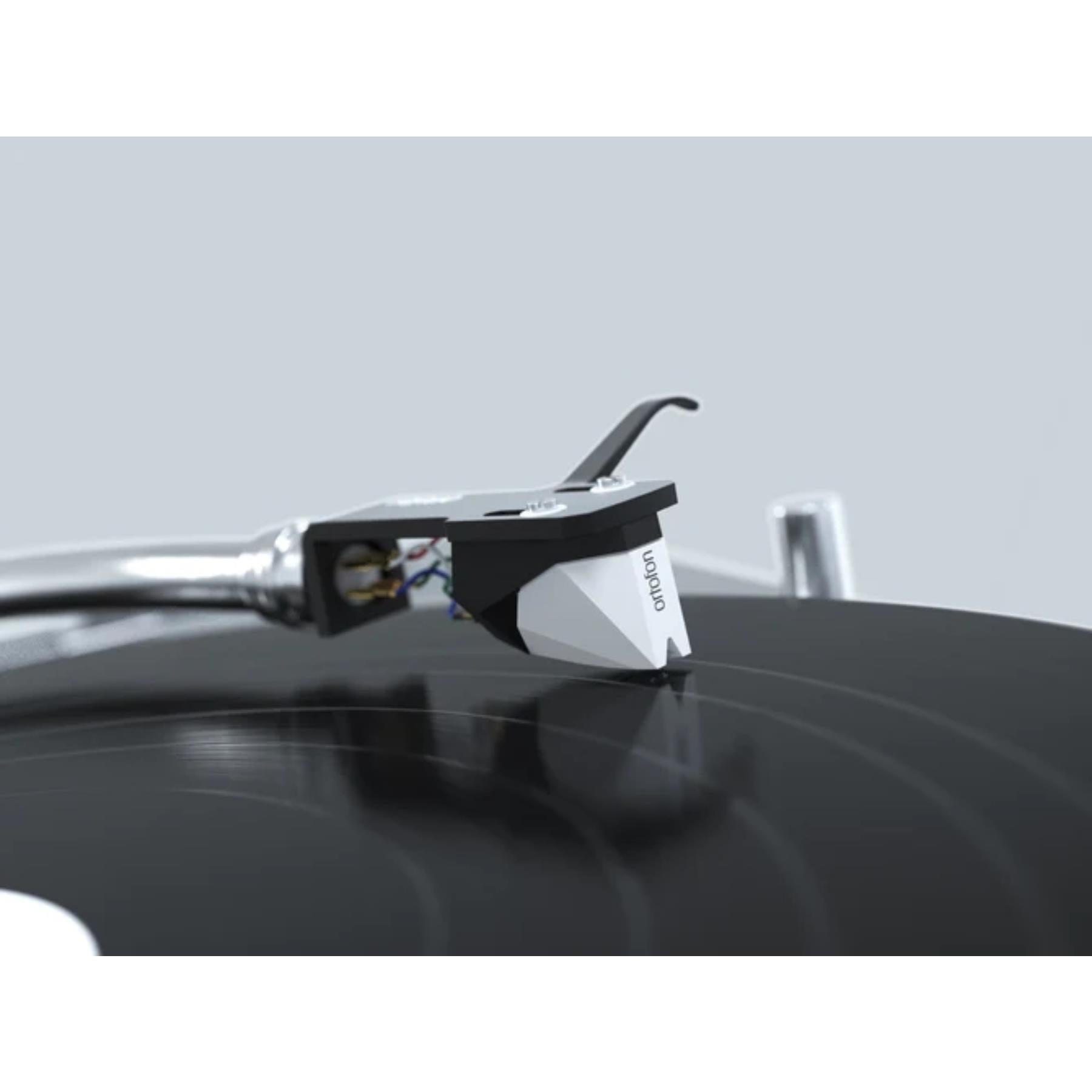

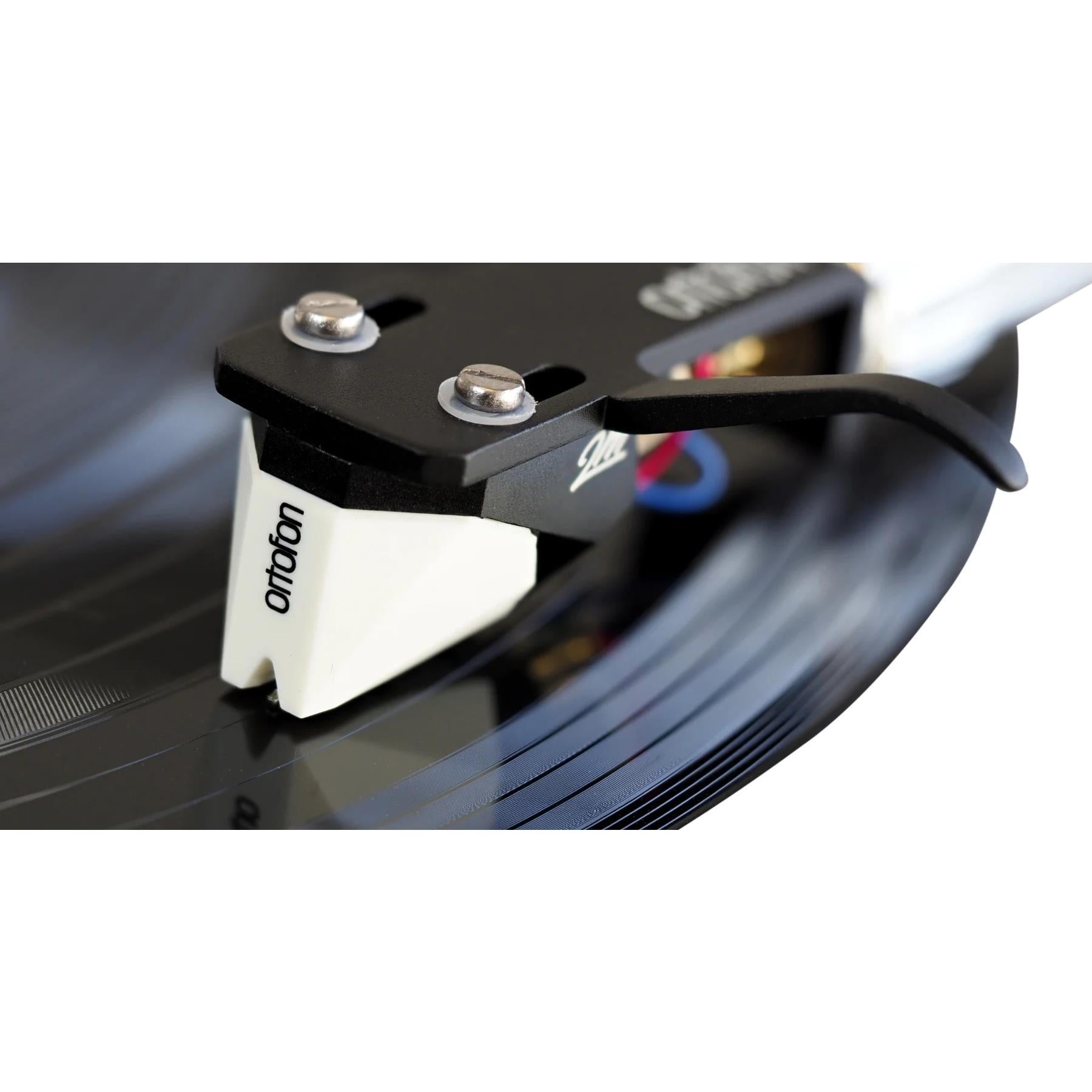

Ortofon 2M Mono Premounted on SH-4 Headshell

Immerse yourself in the authentic nostalgia of mono vinyl records with the Ortofon 2M Mono Premounted Cartridge on the classic SH-4 headshell. Crafted to perfection, this cartridge delivers an elevated mono experience, capturing the essence of vintage soundscapes effortlessly.

Compatibility: Designed for direct and easy mounting on S-shaped tonearms, the 2M Mono Premounted is a practical and elegant solution. The sturdy yet slim SH-4 headshell ensures seamless setup, featuring an ergonomic design for effortless handling.

Ortofon 2M Mono Premounted Features:

• Stylus tipped with an R 18µm Nude Spherical diamond for optimal playback of mono microgroove LP vinyl records.
• Enjoy true mono reproduction on any stereo playback system with strapped output technology.
• Designed as a tribute to the Beatles, ensuring high-quality, modern replay from the Mono Box Set.

Ortofon 2M Mono Premounted Specifications:

• Output Voltage: 4 mV at 1 kHz, 5cm/sec
• Frequency Response: 20 Hz - 20 kHz (+3 / -1 dB)
• Tracking Ability: 70 µm at 315Hz (recommended tracking force)
• Compliance: 18 µm/mN (dynamic, lateral)
• Stylus Type: Nude Spherical
• Tracking Force Range: 1.6-2.0 g (16-20 mN), Recommended: 1.8 g (18 mN)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 700 Ohm
• Cartridge Color: Black/White
• Cartridge Weight: 7.2 g, Premounted Cartridge Weight: 16.7 g
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 350 mH
• Recommended Load Capacitance: 150-300 pF

Experience the timeless allure of mono vinyl records with the Ortofon 2M Mono Premounted Cartridge. Elevate your listening experience to new heights of authenticity and nostalgia.
