Discover the Marantz AMP 10 - Unleashing Power and Performance for Your Home Theater

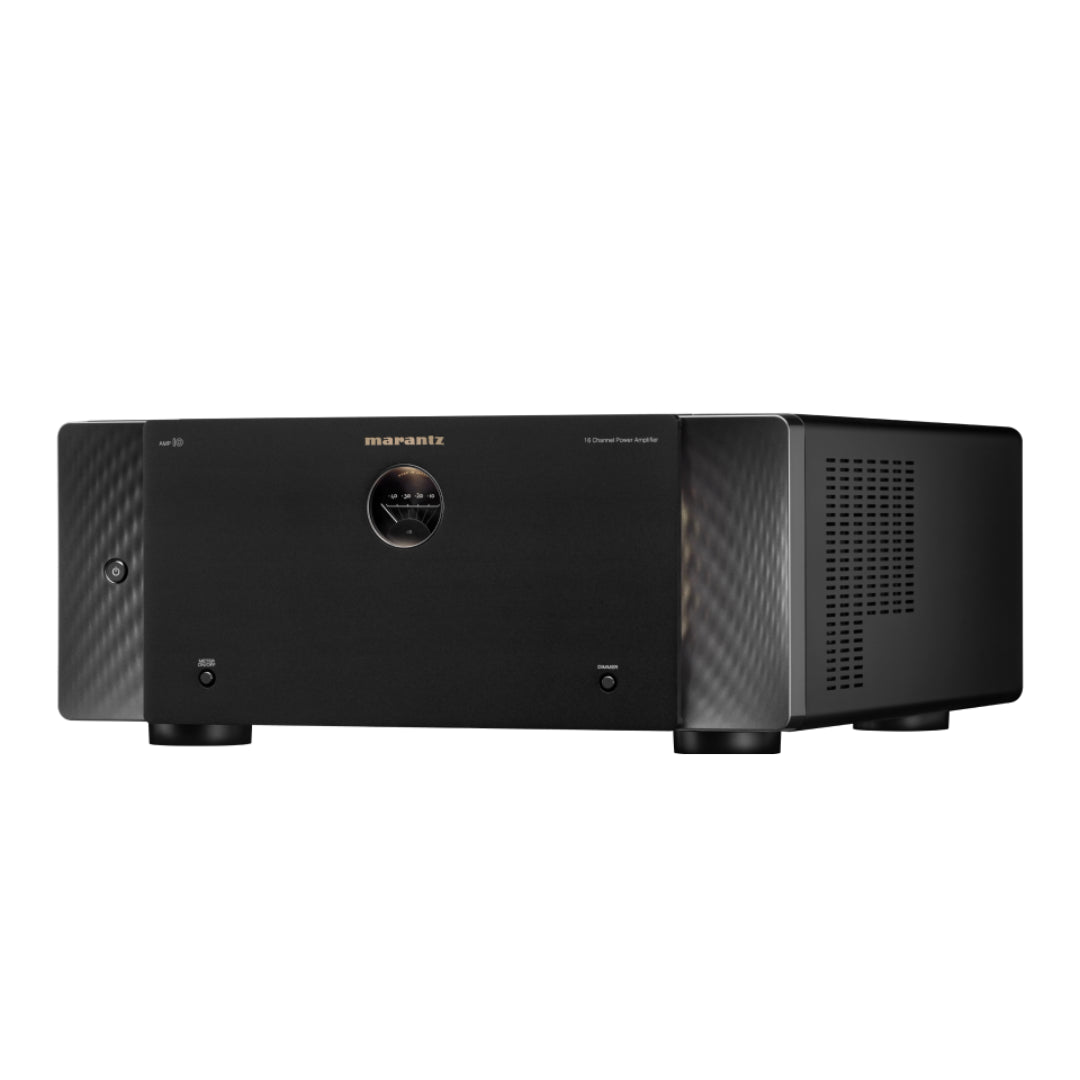

Elevate your home entertainment with the Marantz AMP 10, a cutting-edge 16-channel amplifier that defines audio excellence. Teamed up with the , it creates an elite, reference-level home theater experience. Delivering 200 watts per channel into 8 ohms and an impressive 400 watts per channel into 4 ohms, the AMP 10 is engineered with Marantz's exclusive HDAM and advanced Class D amplification, setting the benchmark for top-notch performance.

Unmatched Performance

Crafting sound the Marantz way is a perfect blend of science and artistry. Our Sound Masters, meticulous in their selection of components, bring you the AMP 10—a seamless fusion of high-power output and a high channel count for an unparalleled home theater experience. Separate power supplies for line level and high-power stages ensure pure signal transmission, and the custom Class D output guarantees uncompromising power.

Sleek Style

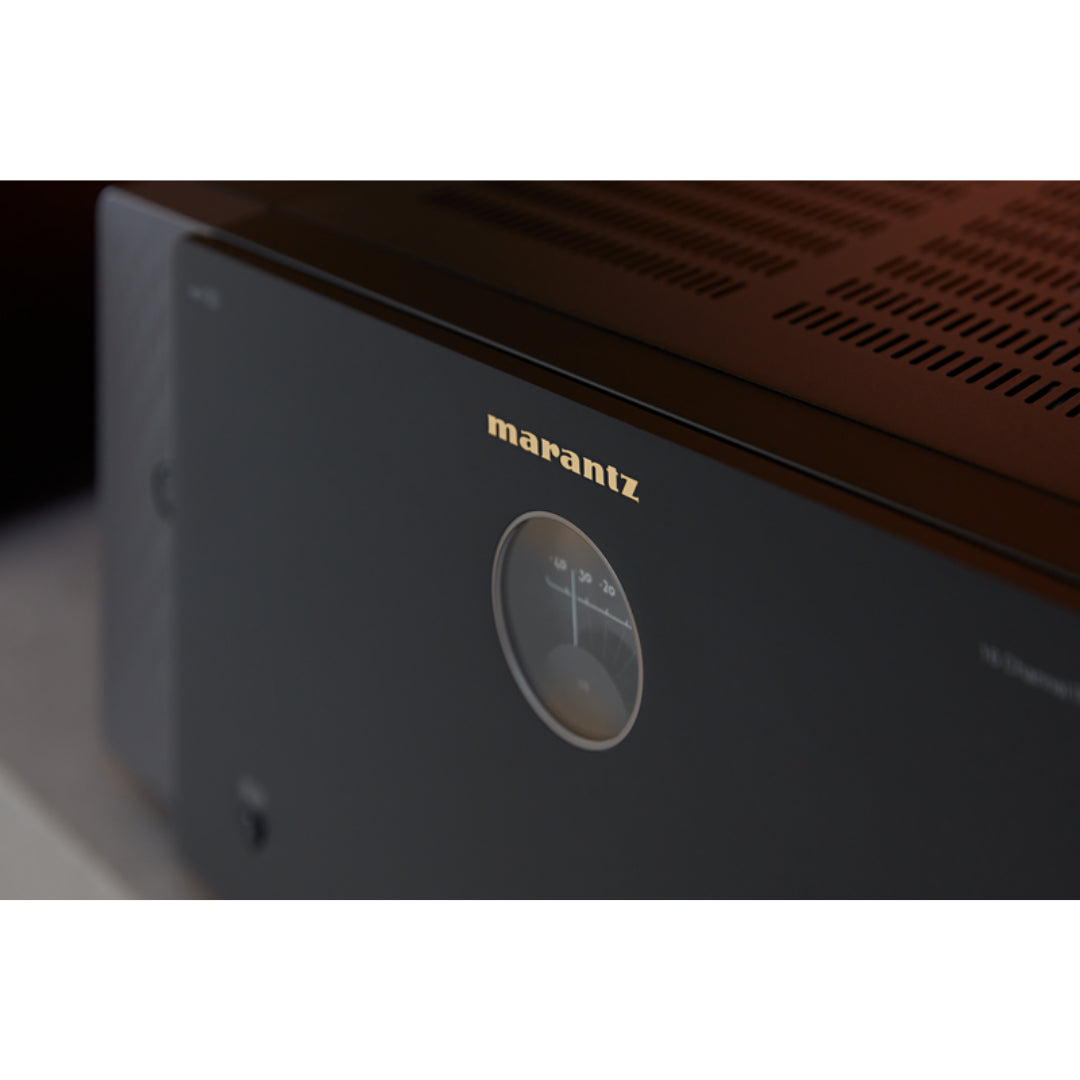

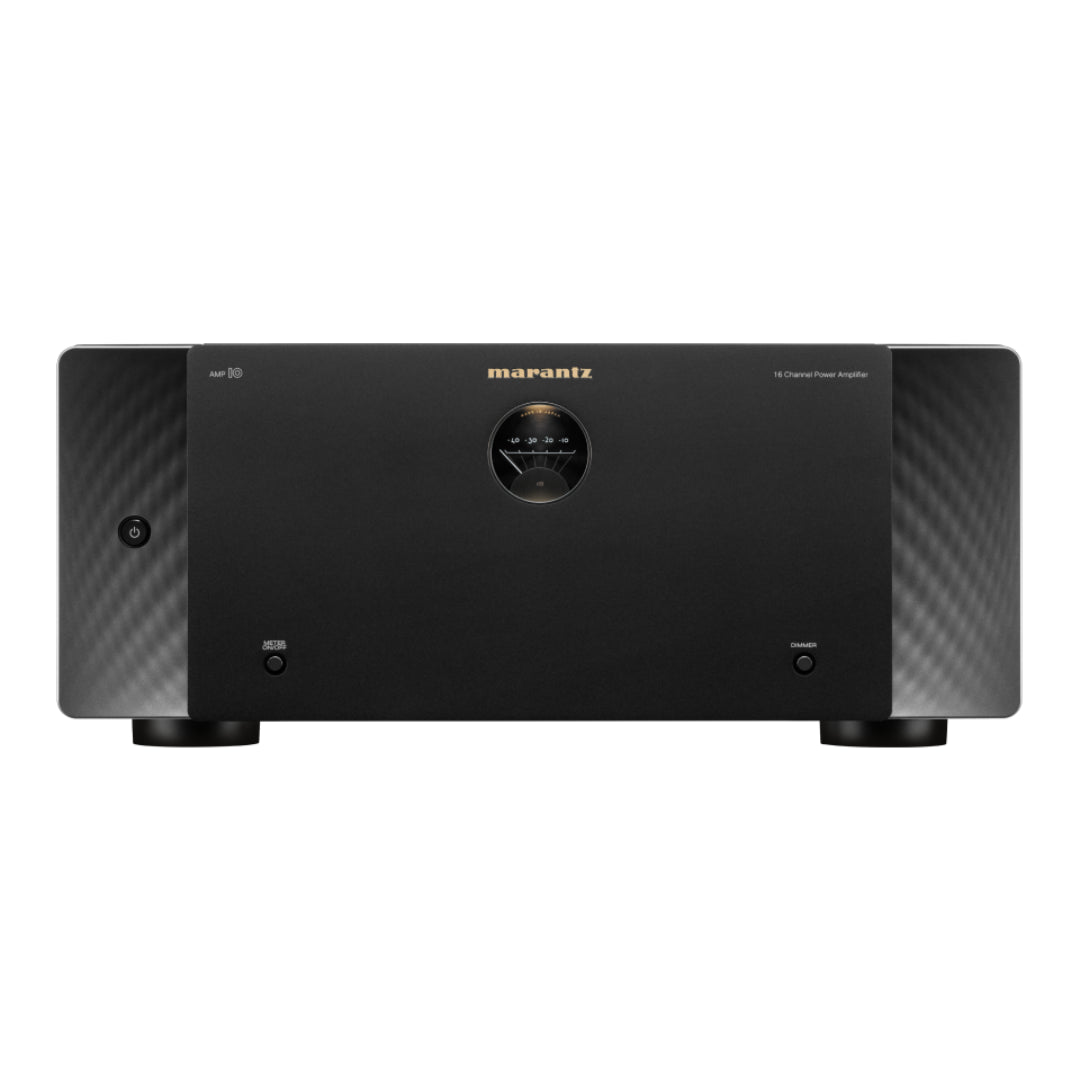

Timeless elegance defines Marantz design—an expression of the captivating musical soundscapes our products create. The centrally placed analog level meter, softly illuminated like a sophisticated timepiece, pays homage to Marantz's heritage. Despite its substantial build, the AMP 10 features an elegant blend of steel and aluminum casework and knobs. The front panel's subtle texture is accentuated by the dimmable soft glow of sidelights, creating a visually stunning amplifier.

Tailored Customization

Your home cinema deserves the best, and the AMP 10 offers a diverse range of connections and configurations. Each of the 16 channels can operate independently, or channel pairs can be switched into bi-amp or BTL mode, catering to your unique audio preferences and requirements.

Powerful Innovation

Breaking conventional norms, the AMP 10 seamlessly combines high power and a high channel count in a single enclosure. Years of innovation have resulted in a 16-channel, 200-watt per-channel amplifier that performs exceptionally without compromising fidelity. The efficient custom Class D amplification, coupled with whisper-quiet fans, ensures optimal performance even under dynamic conditions.

Versatile Compatibility

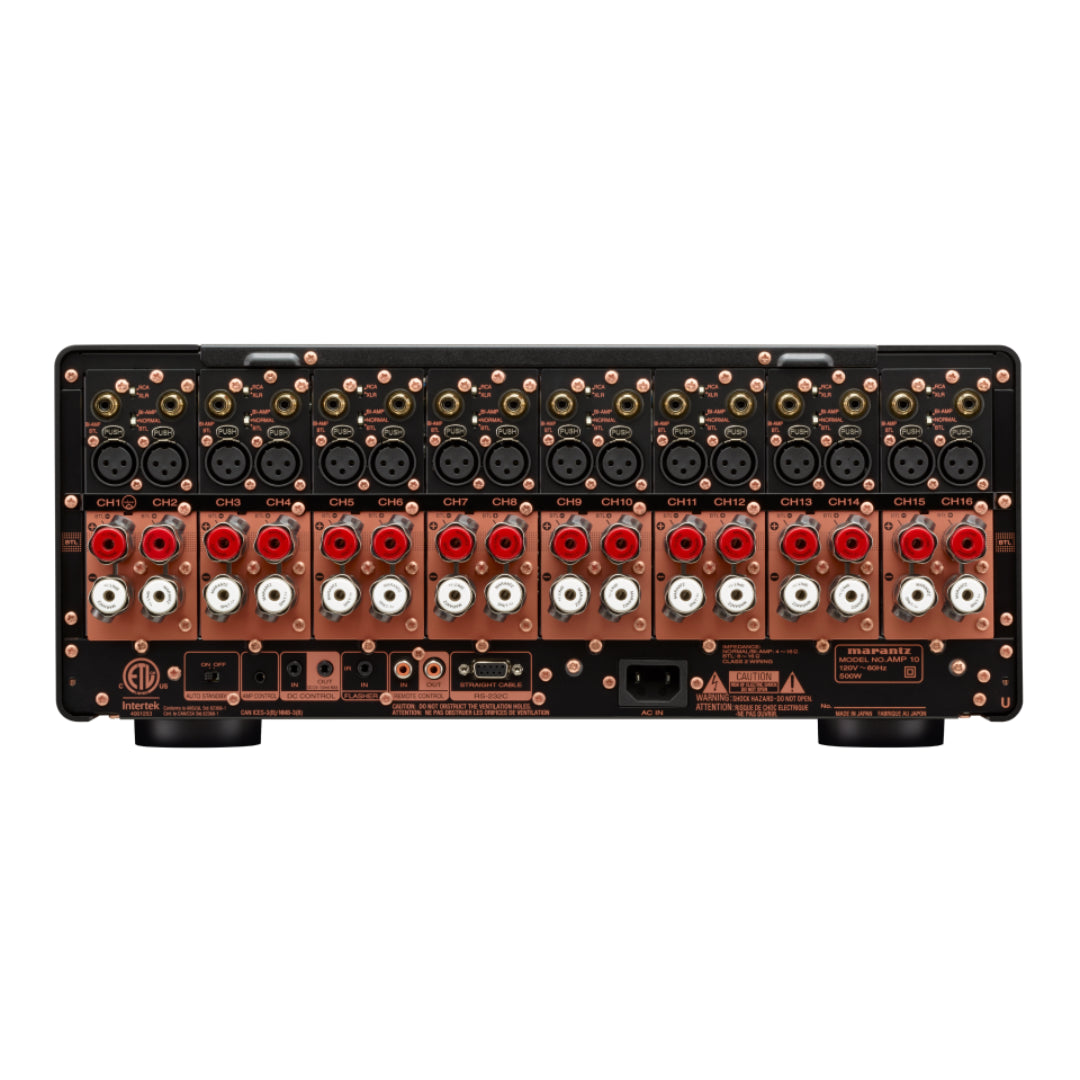

Gold-plated RCA and high-grade XLR connectors seamlessly accept audio input from most surround processors. The custom Marantz SPK 1+ binding posts, designed for ergonomic efficiency, provide optimal coupling to loudspeaker cables. With low distortion and high-power output, the AMP 10 effortlessly drives virtually any loudspeaker configuration, maximizing performance in any room.

Effortless Control

Included cables allow for easy transmission of control and status information from the AMP 10 to the , simplifying network control and automation. RS232 and DC trigger inputs further enhance integration with home control systems, offering a seamless and sophisticated home entertainment solution.

Marantz AMP 10 Specifications

Control Options:

• IP Control: No
• RS232 Control: Yes
• Web Control: No
• App Control: No

IR Features:

• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Input/Output: 1/1

Other Features:

• Front Display: Level Meter
• Firmware Update: Network/USB/RS232C (No/No/No)
• Auto Power Off: Yes

Inputs/Outputs:

• Main Amplifier In: Balanced & Unbalanced (16ch, exclusive use by a selector switch)
• Speaker Terminal: SPKT-1+
• Number of Speaker Terminals: 16
• Bi-Amp Drive/BTL Drive: Yes/Yes
• Level Meter: Yes
• Chassis: Copper Plated

Power Specifications:

• Number of Power Amps: 16
• Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal/BTL: 200W/400W
• Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal: 400W
• Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal: 200W
• 70% Guarantee (Normal/Bi-Amp/BTL): Yes
• 100% Guarantee (Normal/Bi-Amp): Yes

General Features:

• Metal Front Panel: Yes
• Pre-Programmed/Learnable/LCD Display: No/No/No
• Power Consumption in W: 500
• Power Consumption No-Sound in W: 140W
• Standby Consumption in W: 0.2
• Maximum Dimensions: 17.4 x 19.2 x 7.4 inches
• Weight in lbs.: 43.7

What's in the Box:

• Main unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench

UPC Code: 747192137519
