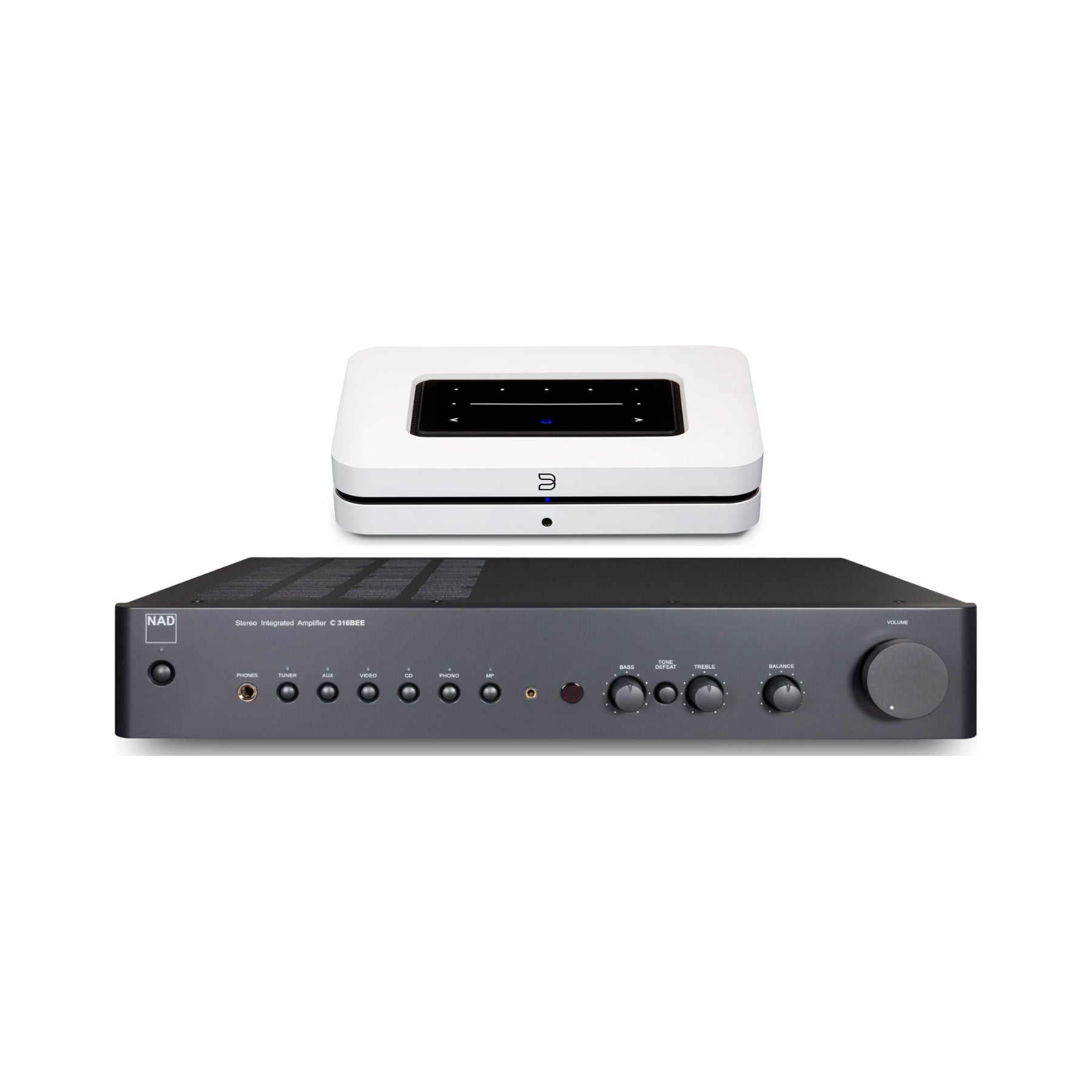

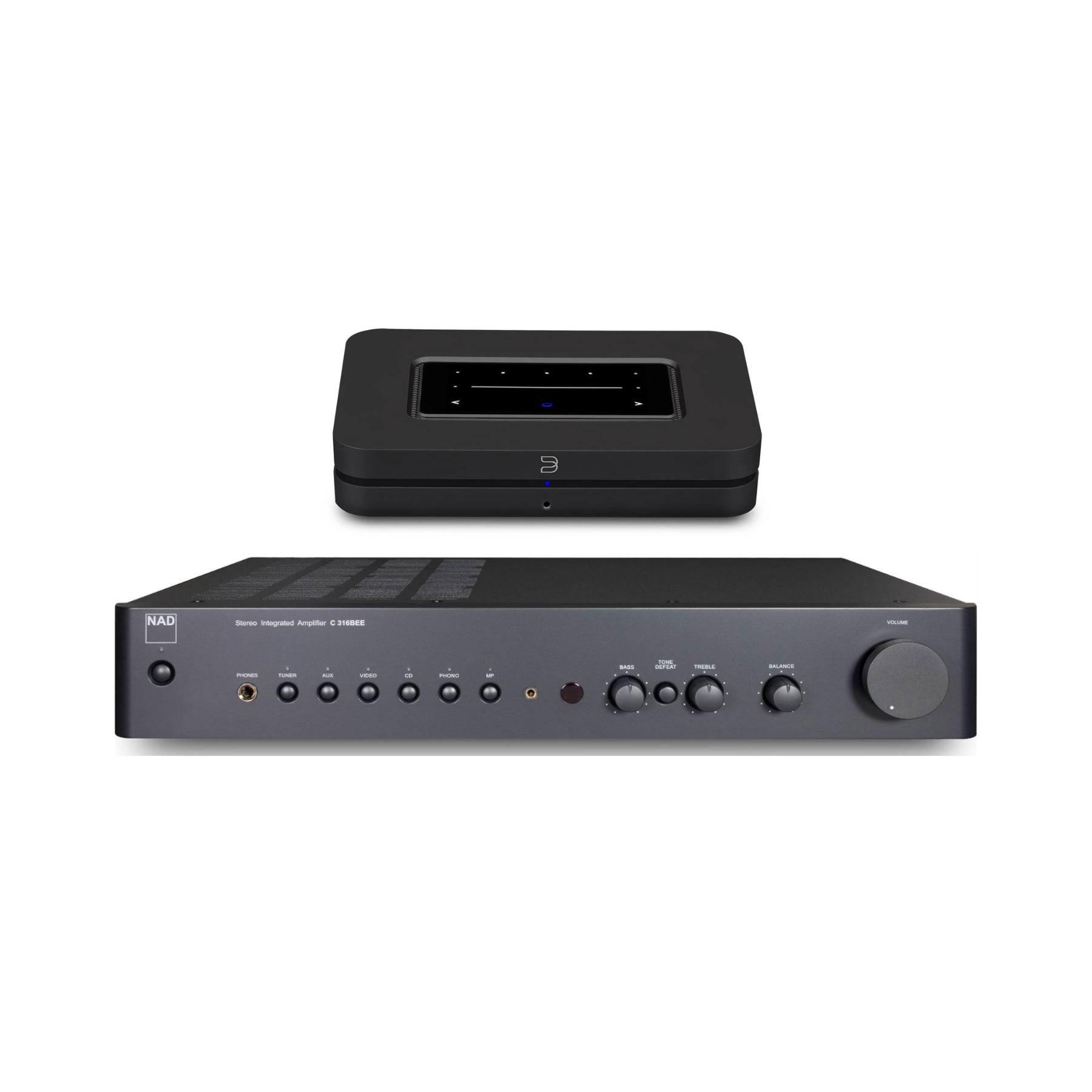

NAD C316BEE V2 Stereo Integrated Amplifier & Bluesound NODE Music Streamer

The NAD C 316BEE upholds the brand's legacy of crafting exceptional budget amplifiers, earning prestigious awards and rave reviews from industry experts worldwide. With a renewed focus on vinyl enthusiasts, NAD has integrated its acclaimed RIAA phono stage, offering precise equalization and advanced noise rejection to enhance the listening experience. Combining proven NAD technology with innovative enhancements like the PowerDrive Circuit, the C 316BEE V2 delivers remarkable performance and value, boasting impressive power reserves and class-leading specifications in a sleek and simplified design, making it the ideal choice for music lovers seeking high-quality sound without compromise.

• Continuous 40 watts per channel at 4 or 8 ohms.
• PowerDrive Circuit Technology
• 5 Line Level Inputs
• MM Phono Input for Vinyl
• Front Panel Input for Portable Media Players
• Bass and Treble Controls
• Tone Defeat (Bypass)
• Headphone Output
• IR Remote Control
• Multi-way Speaker Binding Posts
• Gold Plated RCA Jacks
• Toroidal Power Transformer
• <0.5W Standby consumption

NAD C 316BEE V2 Specifications:

Line In / Headphone Out

THD (20 Hz – 20 kHz): <0.03 % in 300 ohms at 2 V out

Signal-to-Noise Ratio: >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)

Frequency Response: ±0.3 dB (20 Hz – 20 kHz)

Output Impedance: 8 ohms

Line In / Speaker Out

Continuous Power Output (8 & 4 Ohms): 40W (ref. 20 Hz-20 kHz at rated THD, both channels driven)

THD (20 Hz – 20 kHz): <0.03 % (250 mW to 40 W, 8 ohms and 4 ohms)

Signal-to-Noise Ratio:

>95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)

>97 dB (A-weighted, 500 mV input, unity gain in 32 ohms)

Clipping Power (at 1 kHz 0.1 % THD): >45 W in 8 ohms | >60 W in 4 ohms

IHF Dynamic Power: 8 ohms 90 W | 4 ohms 120 W | 2 ohms 170 W

Damping Factor: >200 (ref. 8 ohms, 1 kHz)

Frequency Response: ±0.3 dB (20 Hz – 20 kHz, Tone Defeat ON)

Treble: ± 5dB at 10 kHz

Bass: ± 8 dB at 100 Hz

Channel Separation: >70 dB (1 kHz)

Maximum Input Level: 4.3V (1 kHz THD 0.1%)

Input Sensitivity (for 40 W in 8 ohms): 200 mVStandby power<0.5 W

Standby Power: <0.5 W

Phono In / Speaker Out

THD (20 Hz – 20 kHz: )<0.03 % (1 W to 40 W, 8 ohms and 4 ohms)

Signal-to-Noise Ratio: >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)

Frequency response (RIAA deviation): +0.3 dB (20 Hz – 20 kHz, Tone Defeat ON)

Maximum Input Level: 71 mV (1 kHz THD 0.1%)

Input Sensitivity (for 40 W in 8 ohms): 2.95 mV

Dimension:17 ⅛” W x 3 9/16” H x 11 ¼” D

Product Weight: 12.1 lbs

Shipping Weight: 14.1 lbs

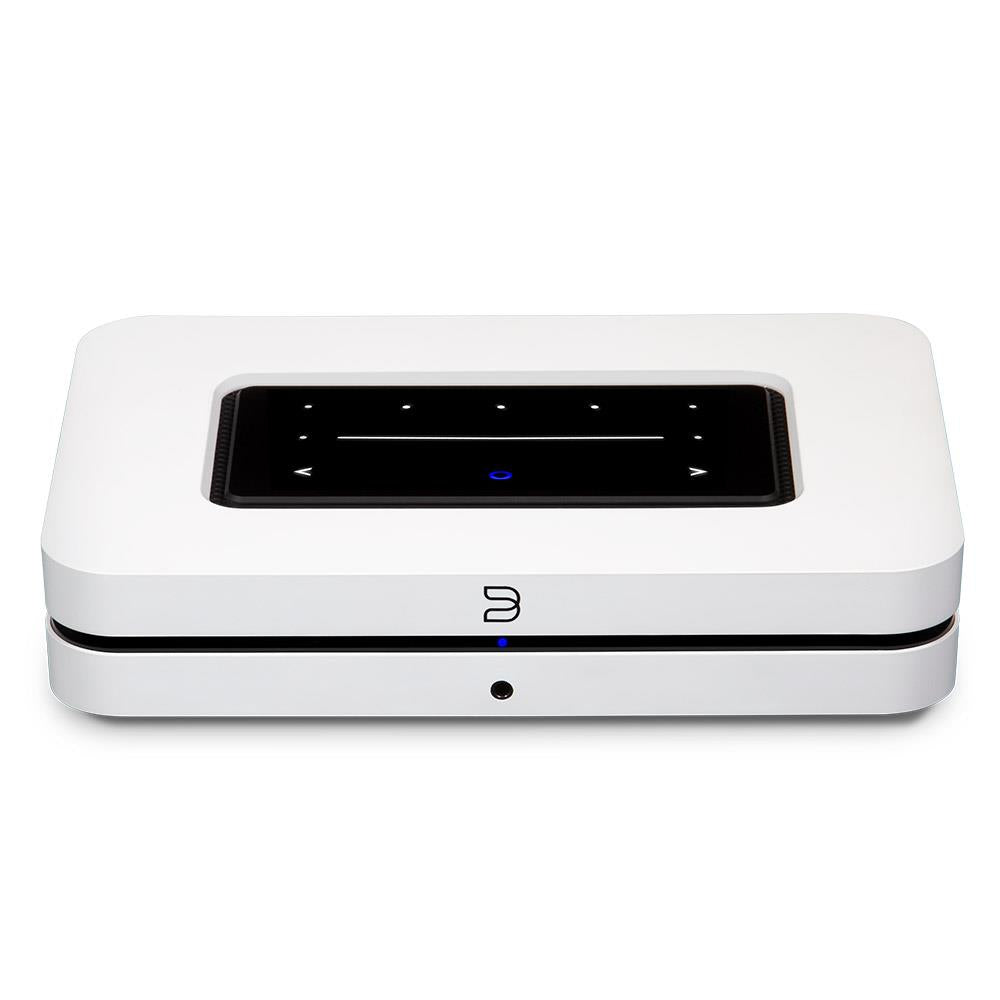

The Bluesound NODE music streamer

opens the gateway to high-resolution music streaming and multi-room audio, seamlessly integrating into your current HiFi systems or preferred powered speakers. Explore an extensive catalog of recorded music, featuring access to numerous internet radio stations, various streaming music services, and your personal digital music library—all effortlessly managed with a simple tap through the BluOS Controller app on iOS, Android, or Mac/PC computers.

Bluesound Node Hi-Res Music Streamer Features
Establish connections with any existing stereo amplifier, AV receiver, or powered audio system.
Empowered by a cutting-edge Quad-Core 1.8GHz ARM® Cortex™ A53 processor and a premium 32-bit/384kHz DAC design.
Benefit from HDMI eARC connectivity and a range of digital, optical, and analog input/output options, complemented by wired and wireless headphone as well as subwoofer outputs.
Immerse yourself in high-resolution audio streaming, granting access to Internet radio stations, cloud music services, and your personal local music library.
Ensure uninterrupted music playback with dual-band Wi-Fi, Gigabit Ethernet, and 2-way Bluetooth aptX HD connectivity.
Effortlessly create and manage a cohesive multi-room system using the user-friendly BluOS Controller app.

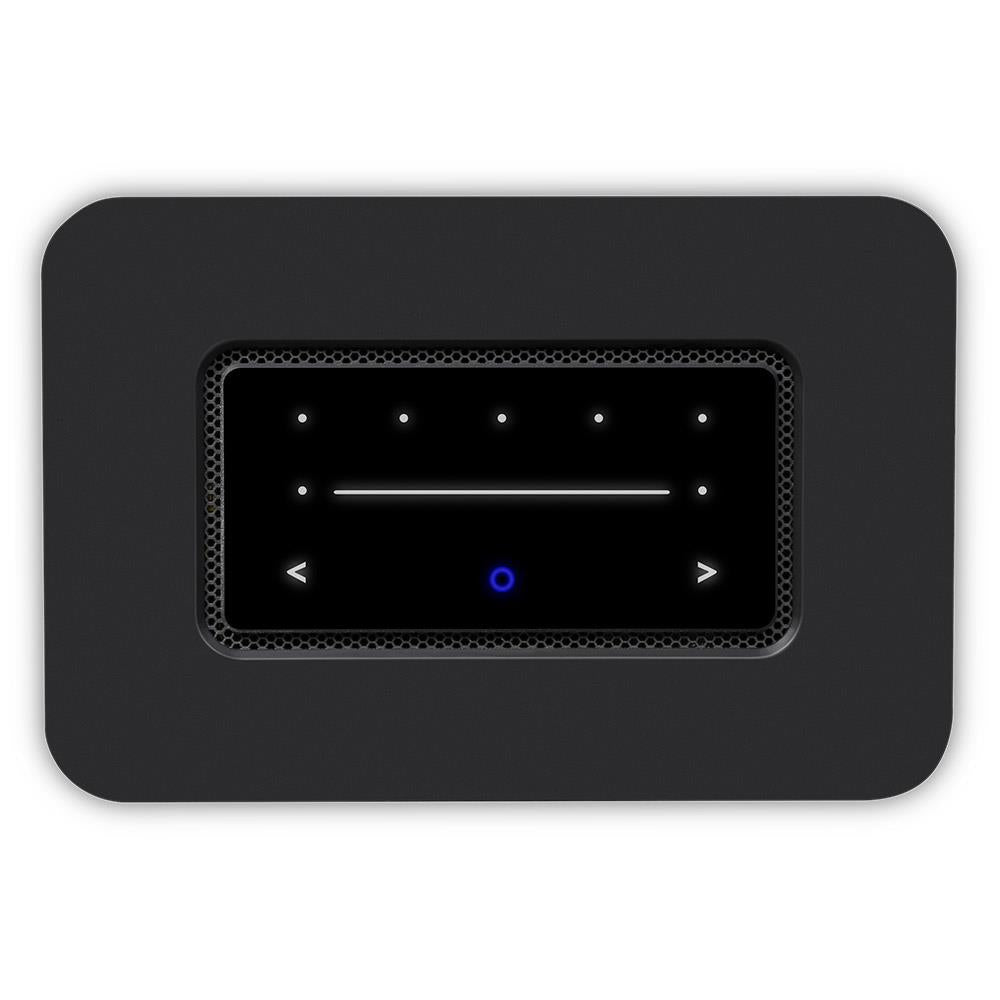

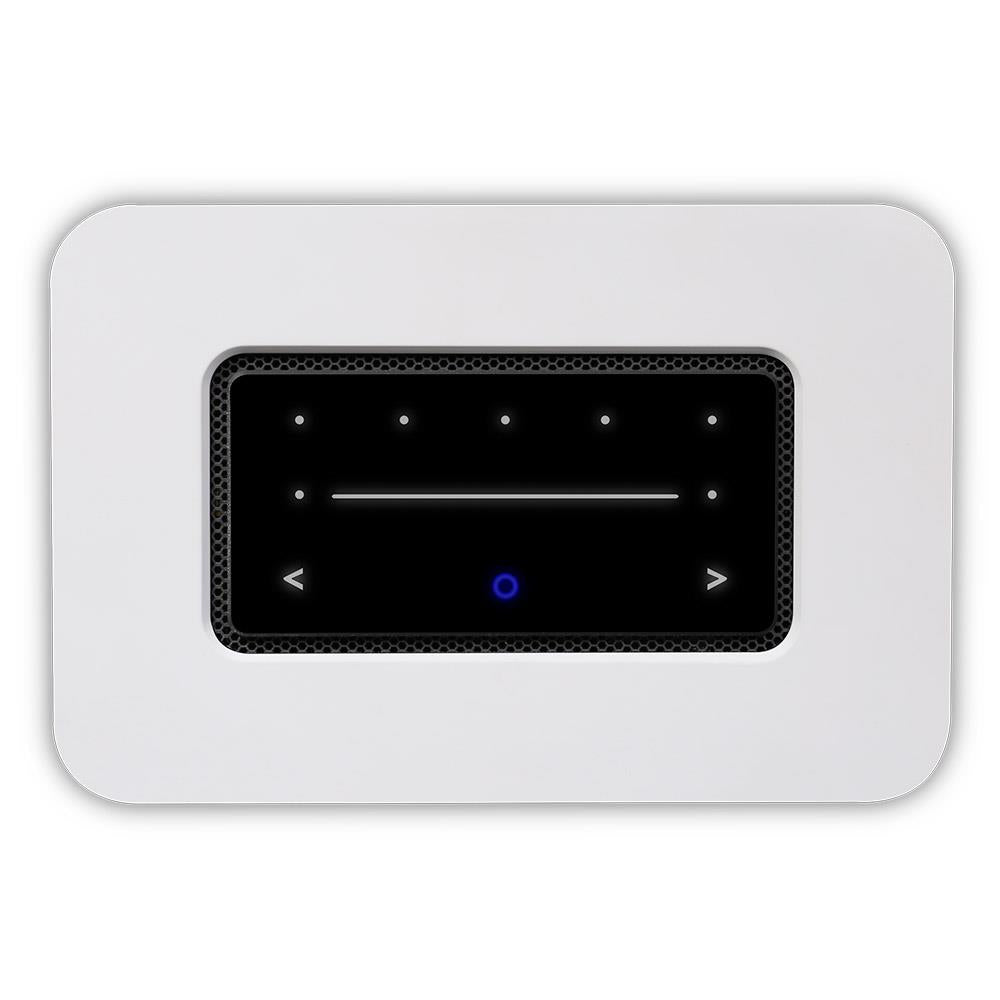

Navigate with ease using top panel touch controls featuring presets for added convenience.
Utilize IR input and remote learning capabilities, providing control options with the optional Bluesound RC1 Remote Controller.
Seamlessly integrate with the BluVoice skill in the Alexa app, enabling control through Amazon's Alexa voice assistant for Players throughout your home.
Experience synchronized music or podcast playback across wireless stereo components with AirPlay 2 throughout your house.

Bluesound Node Hi-Res Music Streamer Specifications:

Input(s): Optical, Analog audio, HDMI

Works With: Amazon Alexa & Google Assistant

High-Resolution Audio: Yes

App Compatible: Yes

Adjustable Controls: Volume

Outputs: Coaxial digital audio, USB

Ethernet Input: Yes

Wireless Connectivity: Bluetooth

Dimension: 1.8" H x 5.7" W x 8.7" D

Weight: 2.4 lbs.
