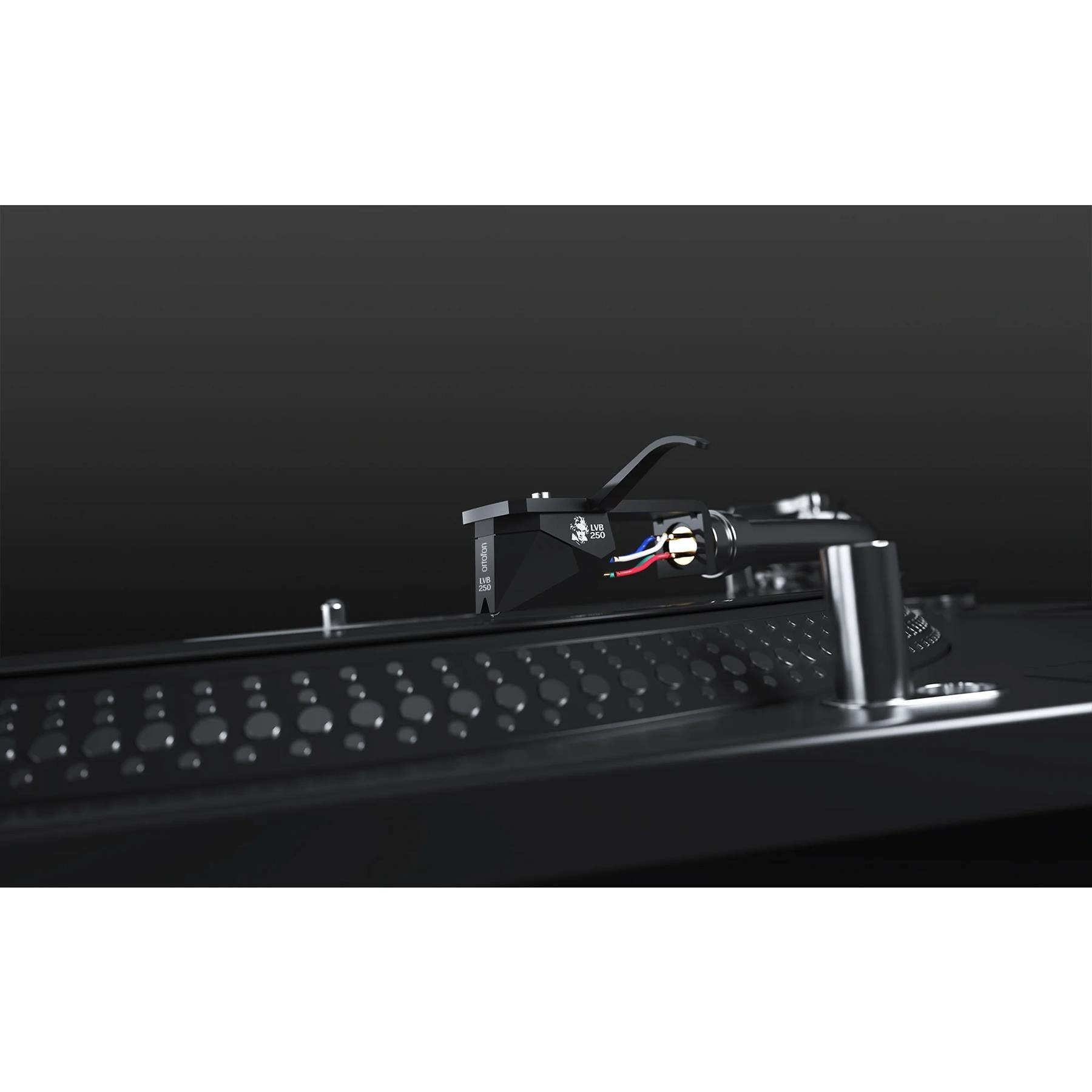

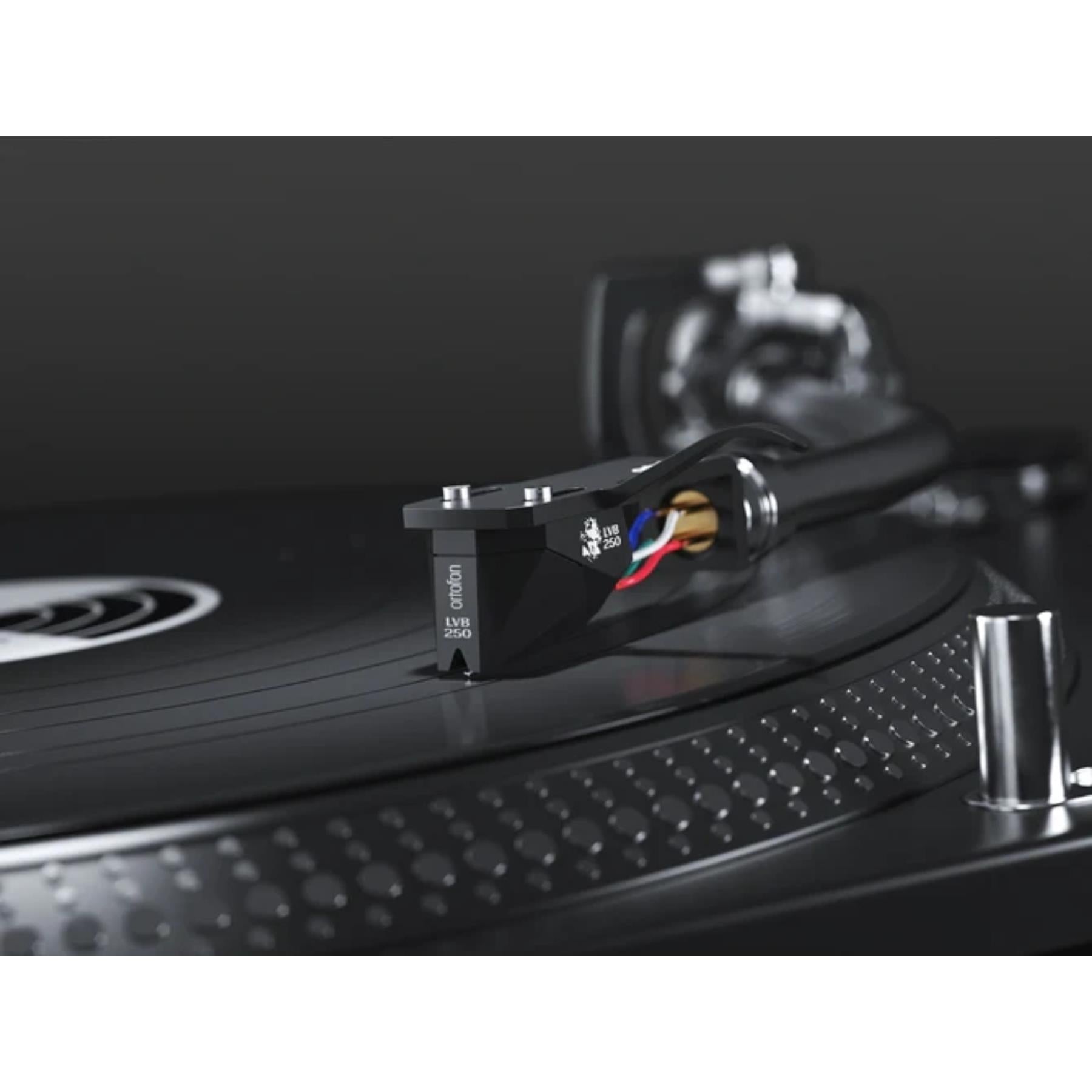

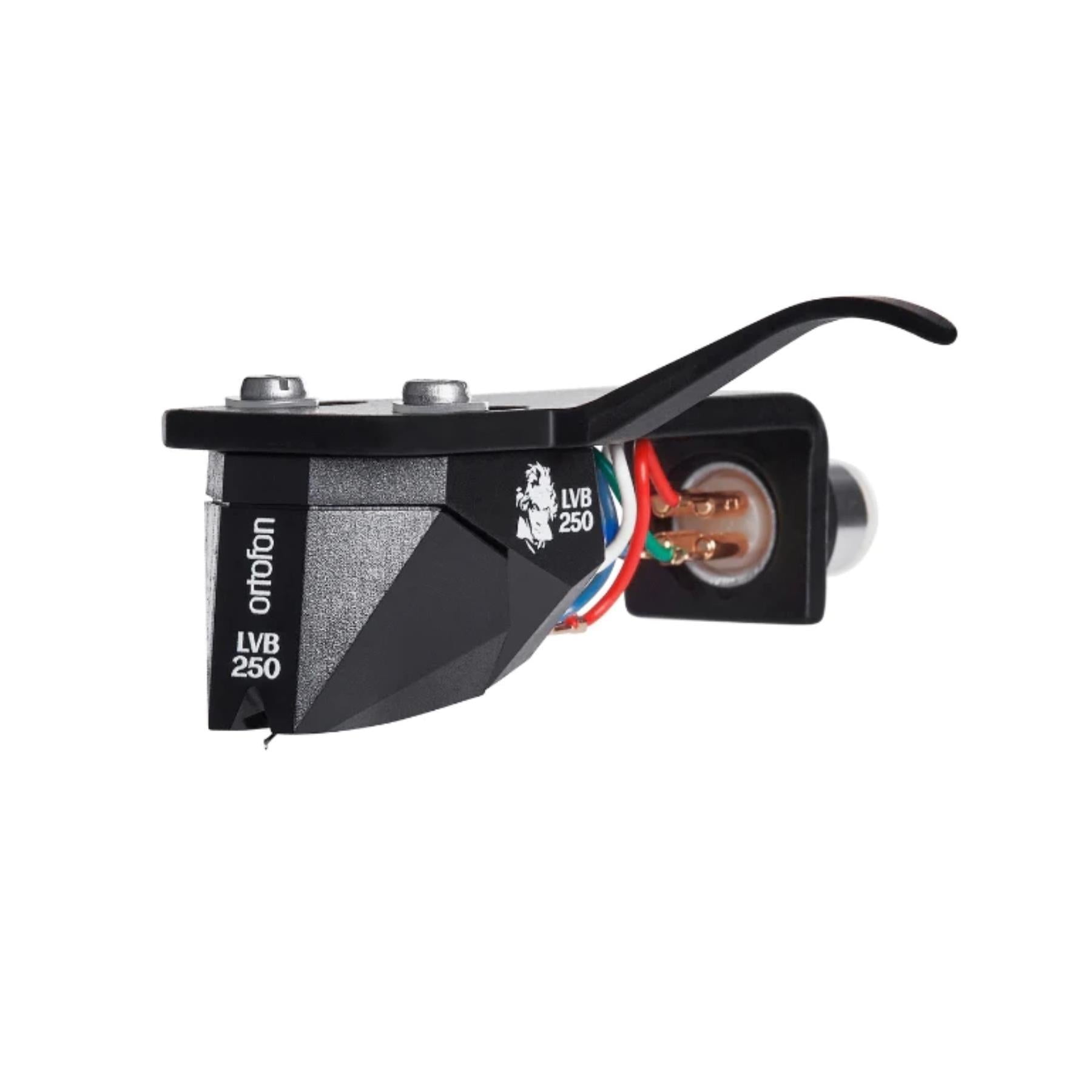

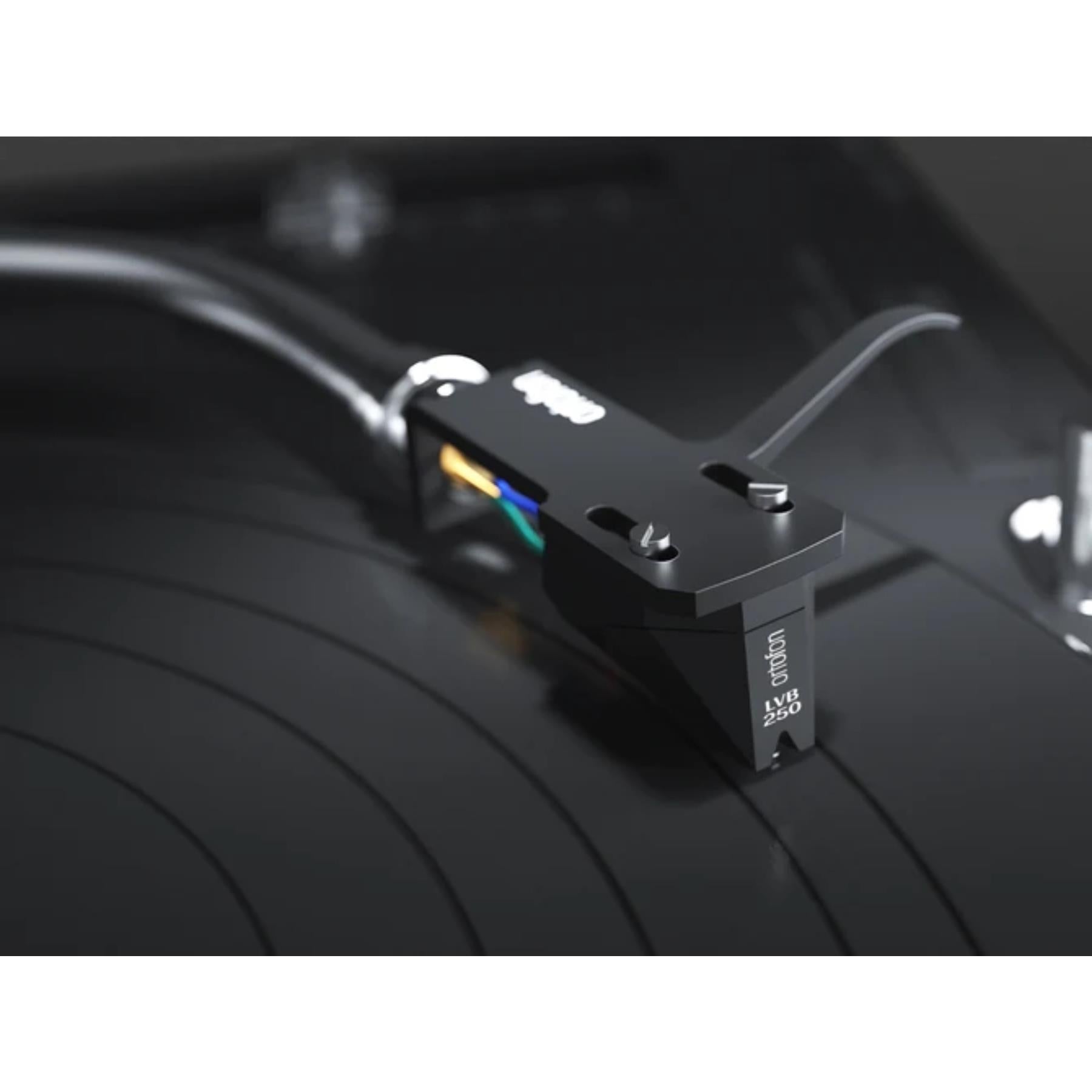

Ortofon 2M Black LVB 250 Premounted HiFi Cartridge

Upgrade your audio game with the Ortofon 2M Black LVB 250 Premounted Cartridge, a pinnacle in moving magnet technology. Crafted with precision and audiophiles in mind, this cartridge boasts a boron cantilever and Ortofon's proprietary Nano Tube suspension system for unparalleled sound quality.

Features:

• Boron Cantilever and Nano Tube Suspension: The 2M Black LVB 250 takes the exceptional build of the 2M Black to new heights with a boron cantilever and our advanced Nano Tube suspension system, resulting in a precise and detailed sound that brings the artist into your living room.

• Stylus Excellence: Equipped with a Nude Shibata diamond on a boron cantilever, the cartridge achieves remarkable transparency, speed, and responsiveness. The slim, polished profile of the Nude Shibata stylus ensures detailed reproduction across the entire audio spectrum, including the highest frequencies.

• Optimized Suspension System: The cartridge features a new rubber compound for the suspension system, incorporating Multi Wall Carbon Nano Tubes (MWCNT) for optimal compliance and damping. This formula enhances mechanical properties, ensuring improved damping and overall cartridge performance.

Ortofon 2M Black LVB 250 Specifications:

• Channel Balance at 1 kHz: 1 dB
• Output Voltage at 1 kHz, 5cm/sec: 5 mV
• Channel Separation at 1 kHz: 27 dB
• Channel Separation at 15 kHz: 15 dB
• Frequency Response: 20 Hz - 20 kHz (+2 / -1 dB)
• Tracking Ability at 315Hz (Recommended Tracking Force): 80 µm
• Compliance, Dynamic, Lateral: 22 µm/mN
• Stylus Type: Nude Shibata
• Stylus Tip Radius: r/R 6/50 µm
• Tracking Force Range: 1.5-1.7 g (15-17 mN)
• Tracking Force, Recommended: 1.6 g (16 mN)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 1.2 kOhm
• Cartridge Color: Black/Black
• Cartridge Weight: 7.2 g
• Premounted Cartridge Weight: 16.7 g
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 630 mH
• Recommended Load Capacitance: 150-300 pF

Elevate your listening experience with the Ortofon 2M Black LVB 250 – where precision meets perfection. Order now for an unparalleled audio journey.

Ortofon 2M Black LVB 250 Downloads
