Description
OREI 4K HDMI Over 1G IP Extender with ARC-PRO
- Ultra low latency and high definition transmission.
- Extend 4K@60Hz HDR HDMI signal up to 120m over Cat6/6A/7 cable.

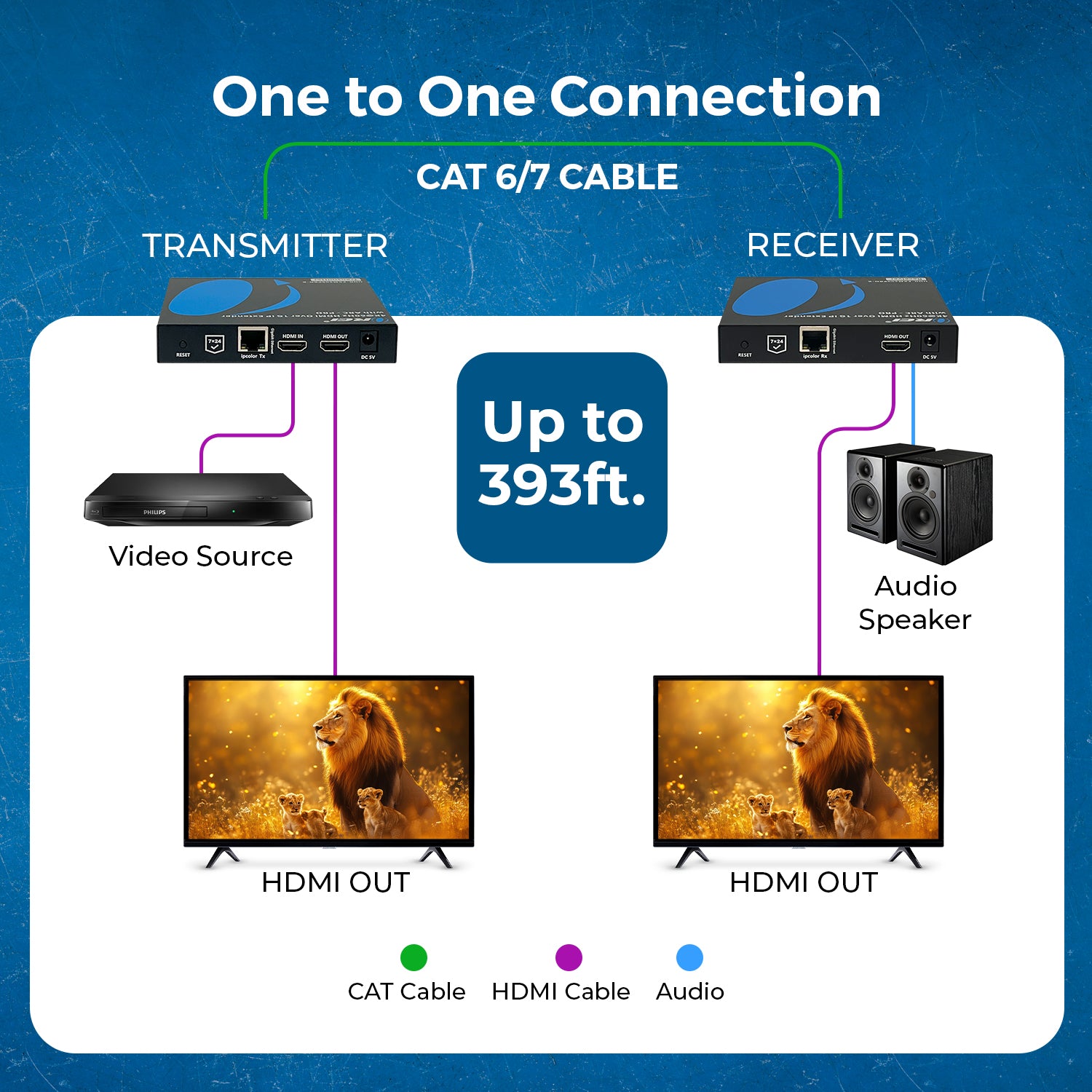

- Support one-to-many connection through the gigabit switch.
- Support HDMI ARC and HDMI CEC.
- Support RS-232 passthrough and command control.
- The transmitter supports HDMI loop out.
- Support bi-directional IR passthrough.
- The receiver can output the source audio additionally through the S/PDIF port.
- Support firmware upgrade via micro USB.
- Lightning protection, surge protection, ESD protection.
This UHD-EXM500PRO-K HDMI Extender includes a transmitter unit and a receiver unit and allows the HDMI signal to be transmitted up to 70 meters at 1080P@60Hz resolution,and up to 40 meters at 4K@30Hz resolution while using a single Cat6/6A/7 network cable. lt adopts a point-to-point connection configuration, supports lR pass-back and POC (power over cable), power supply adapter is only needed for transmistter. It is perfect video transmission solution for outdoor advertising, monitor system, home entertainment, conference, etc.
[shortdes]
- 4K Over 1G IP Extender
- HDMI ARC & HDMI CEC
- Control via RS-232 commands
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: | INPUT: | 1 × HDMI |
| OUTPUT: | 1 × HDMI | |
| 1 × RJ45 | ||
| Receiver: | INPUT: | 1 × RJ45 |
| OUTPUT: | 1x HDMI |
PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 10 x IR Receiver Extension Cable |
| 1x IR Blaster Extension Cable |
| 4x Mounting Ear |
| 10x Screw |
| 2x Terminal block (RS-232) |
| 1x Grounding Screw |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: | We recommend you use round shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
| 4K@60Hz: | 500 Feet |
VIDEO OUTPUT
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz |
LOOP-OUT/LOCAL PORT
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
COMPLIANCES
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 1.4/HDCP 2.2 |
POWER
| Power Consumption: | TX:＜7.5W & RX: ＜7.5W | |
| Power Supply: | Input: DC 5V/2A | |
| Output: DC 5V/2A |
DIMENSIONS & WEIGHT
| Transmitter: | Length: | 124.6 mm |
| Width: | 115 mm | |
| Height: | 21.3 mm | |
| Weight: | 369g | |
| Receiver: | Length: | 124.6 mm |
| Width: | 115 mm | |
| Height: | 21.3 mm | |
| Weight: | 368g |
PROPERTIES
| Color: | Black |
| Housing: | lron |
| Protection: | ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 |
Operating Environment
| Working temperature: | -20℃~50℃ |
| Storage temperature: | -30℃~70℃ |
| Humidity: | 0~90% RH (no condensation) |
Command Signal
| Receiving range: | ≤ 5m |
| Infrared frequency: | 20kHz~60kHz |
| CEC: | Supported |
| RS-232 (GND/RxD/TxD): | Default baud rate: 115200 Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
