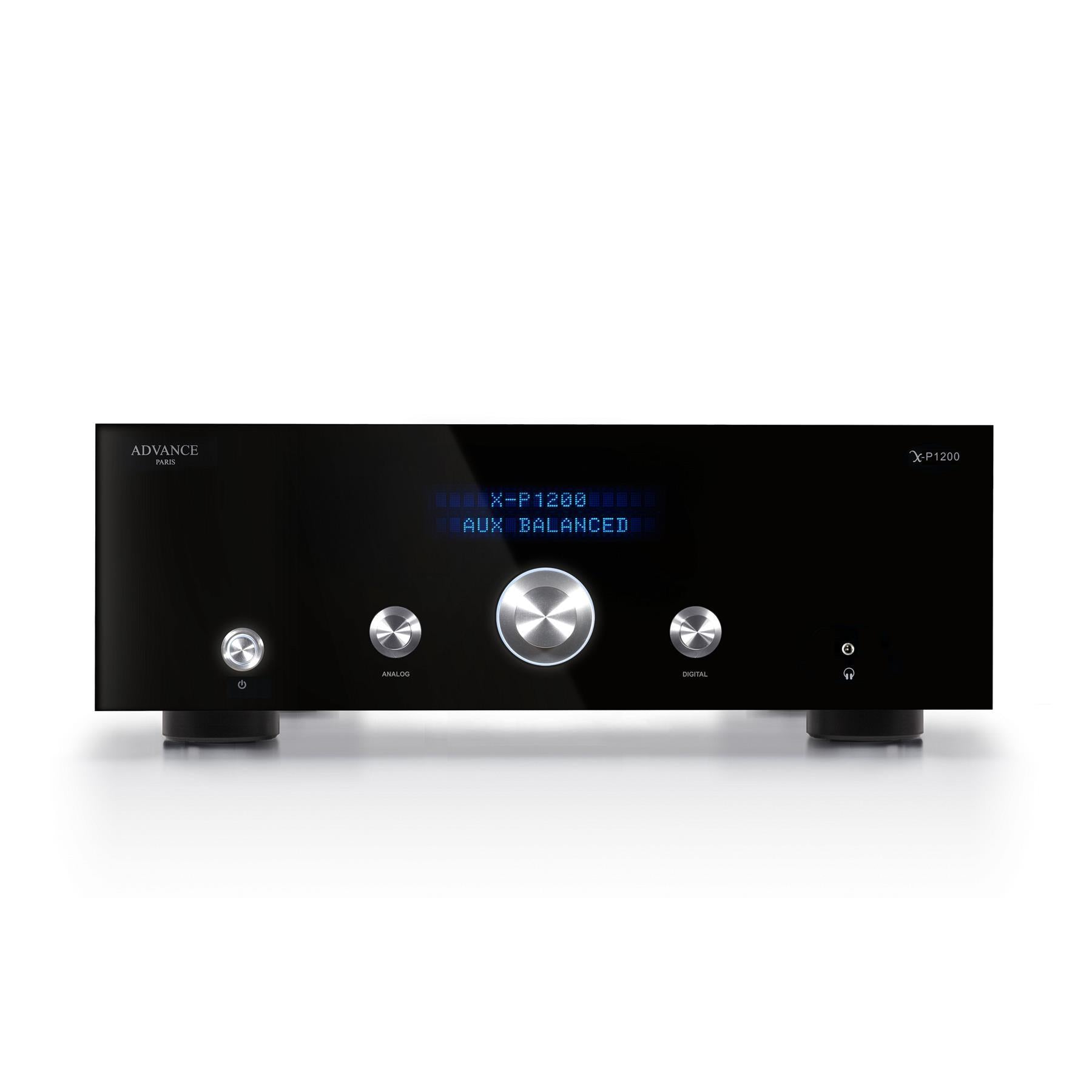

Advance Paris X-P1200 Stereo Preamplifier

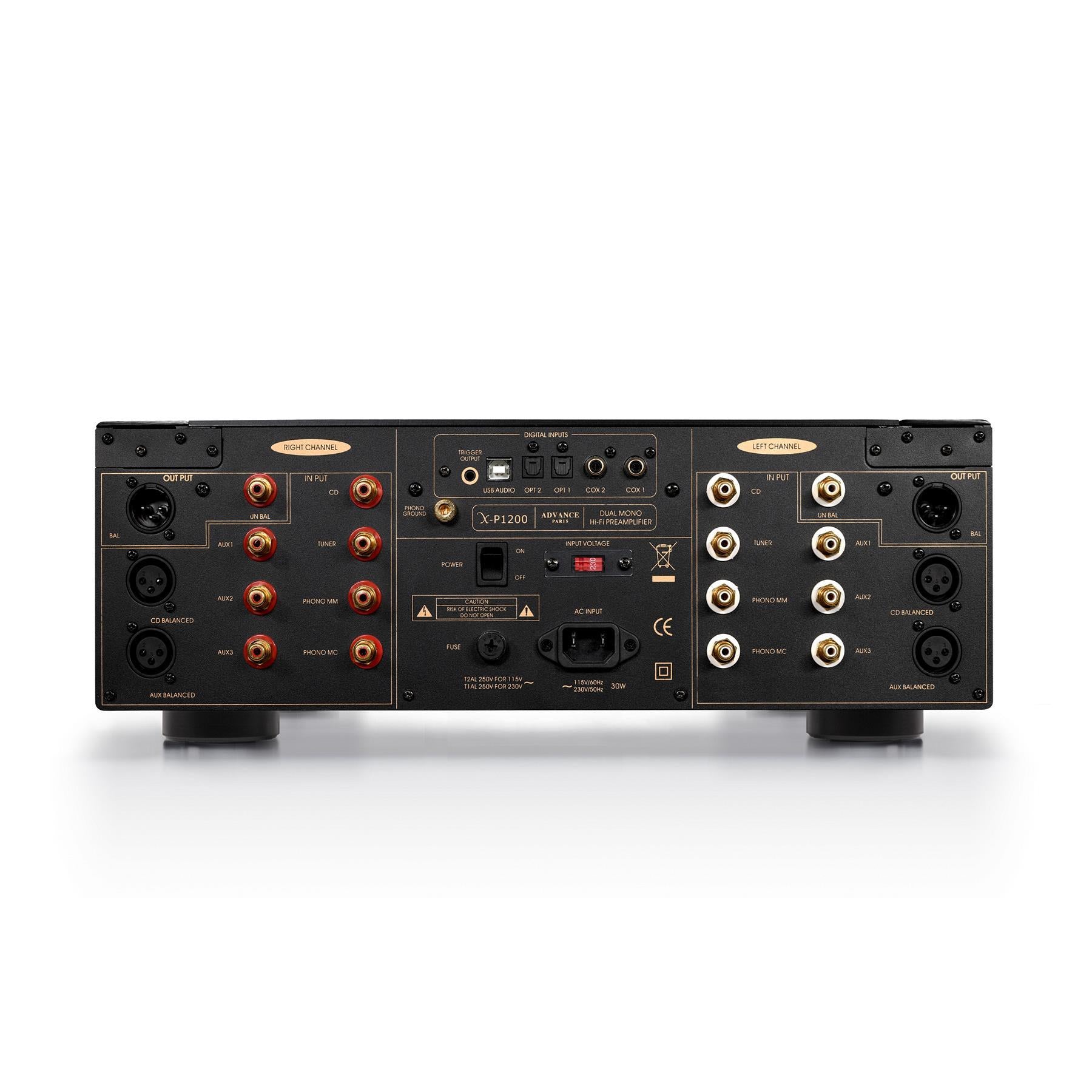

The Advance Paris X-P1200 Stereo Preamplifier represents the pinnacle of audio engineering, designed to elevate any high-fidelity system with superior sound quality and versatility. Built as a dual-mono configuration, it comprises two fully independent mono preamplifiers housed in a single, compartmentalized chassis, maximizing channel separation and enhancing the stereo image. Its dual power supply system features two dedicated toroidal transformers for left and right channels, ensuring minimal interference and maximum clarity. With 9 analog inputs, including USB B (XMOS), 2 coaxial, and 2 digital inputs, the X-P1200 provides extensive connectivity for a wide range of audio sources. Equipped with both balanced XLR and unbalanced RCA outputs, it integrates seamlessly with advanced audio setups.

The X-P1200’s signal processing capabilities include an Analog Devices AD1955 DAC, delivering an impressive 123 dB signal-to-noise ratio, multi-bit modulation, and high-performance digital interpolation filters for pristine sound quality. Engineered with precision, this preamplifier includes choke filtering, capacitors with 12000uF / 150V, and relay-switched inputs and outputs to maintain optimal signal integrity. Burr-Brown operational amplifiers enhance audio fidelity by desymmetrizing balanced inputs with minimal distortion. USB audio playback is managed by XMOS technology, enabling exceptional audio reproduction from PC or MAC. Pair it with the X-A1200 mono amplifiers to experience unparalleled audio performance in your home Hi-Fi system.

Advance Paris X-P1200 Specifications:

• Output Level: 10.5 +/- 0.5dB
• Frequency Response: 10Hz-150kHz
• Distortion: < 0.01%
• Signal-to-Noise Ratio: ≥ 110 dB
• Channel Separation: ≥ 100 dB
• Unbalanced Input Impedance: 23KΩ
• Balanced Input Impedance: 35KΩ
• Input Level (CD/AUX): < 500mV
• Phono MM/MC Input Level: 48dB/64dB
• Audio Receiver: CS8416
• AC Input: 110-230V
• Max. Power Consumption: ≤ 30W
• Transformers: 2
• Dimensions (W x H x D): 440 x 155 x 430 mm
• Net Weight: 14.2 kg
• Gross Weight: 15.6 kg
• DAC: AD1955
