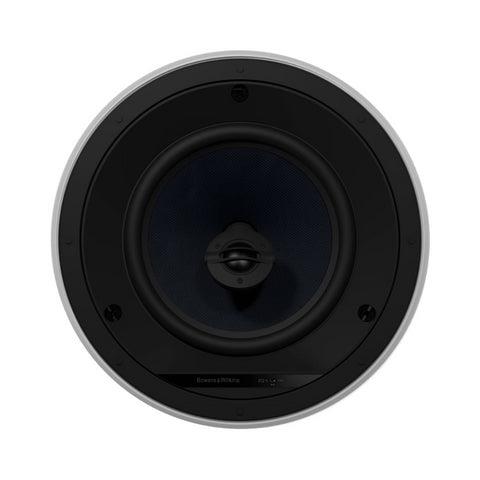

Bowers & Wilkins CCM683 In-Ceiling Speakers: High-Fidelity Sound for Your Home Theater or Multi-Room System

Immerse yourself in high-fidelity sound with the Bowers & Wilkins CCM683 In-Ceiling Speakers. These speakers deliver exceptional performance while maintaining a discreet presence.

Key features:

• Rich, detailed sound: The 8" Kevlar cone bass/midrange driver and Nautilus swirl-loaded aluminum dome tweeter produce a full-bodied soundscape with crisp highs.
• Adjustable sound: The tweeter pivots to direct sound towards your listening area, while a 3-position EQ switch allows for further customization based on speaker placement.
• Seamless integration: The in-ceiling design ensures a clean look that complements your home décor.
• Built to last: Durable construction with a die-cast chassis ensures long-lasting performance.

Ideal for:

• Home theater setups
• Multi-room audio systems
• Anyone who wants high-quality sound without sacrificing space

Bowers & Wilkins CCM683 Specifications

Tweeter: 1 inch aluminum dome tweeter

Woofer: 8 inch blue Aramid Fibre cone bass/midrange

Frequency Range: 35Hz to 50kHz This means the speaker can produce very low bass sounds to very high treble sounds.

Recommended Amplifier Power: 25 watts to 130 watts. This is the amount of power the speaker can handle from your amplifier.

Sensitivity: 88dB. This means the speaker is fairly loud for the amount of power it receives.

Impedance: 8 ohms (minimum 4.5 ohms). This is the electrical resistance of the speaker.

Dimensions:

• Diameter of the speaker frame: 11.4 inches
• Cut-out diameter (the hole you need to make in your ceiling): 9.8 inches
• Depth behind the surface (how far the speaker sticks back into the ceiling): 5.2 inches
• Protrusion (how far the speaker grill sticks out from the ceiling): 0.2 inches

Pre-mount Kit: C8

Back Box: 6C
