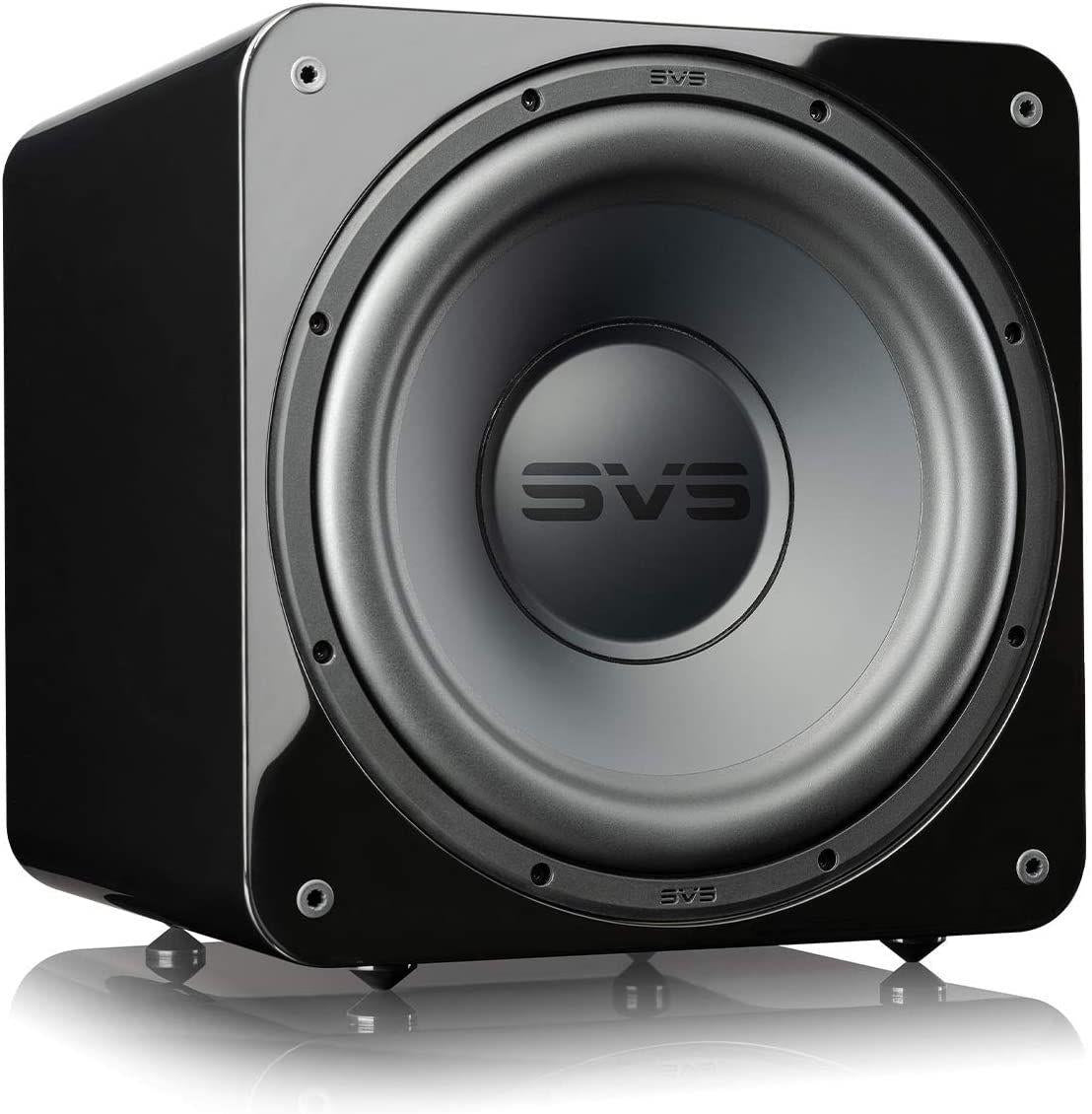

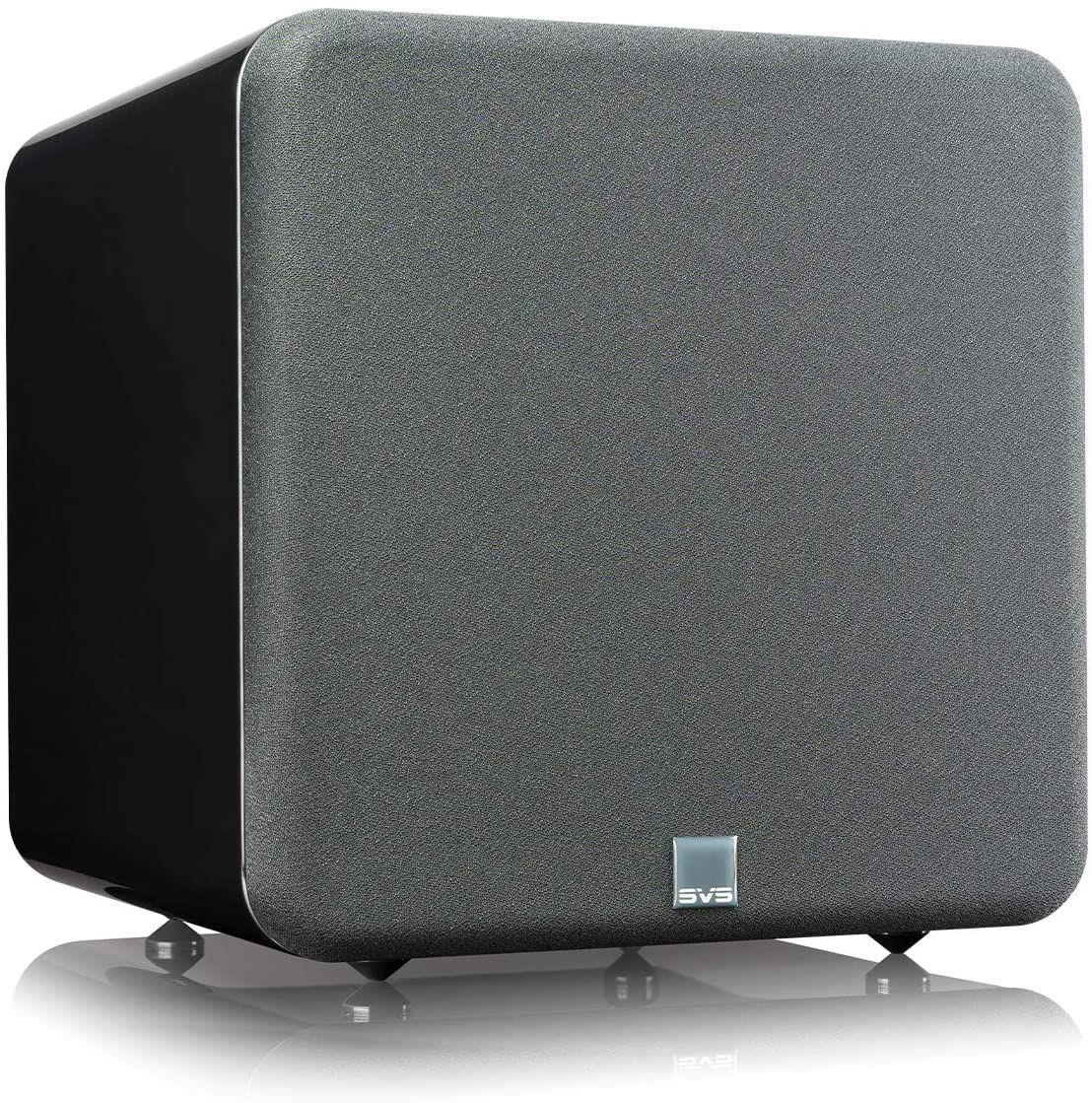

SVS Subwoofer PB1000PRO Ported Subwoofer

delivers jaw-dropping deep bass extension down to 20Hz and massive output with stunning musicality that will delight both audiophiles and home theater fans. Reference subwoofer performance has never been available near this price from a cabinet of this size. SB-1000 Pro is a breakthrough subwoofer in every way.

Multiple innovations were deployed in the high-excursion 12-inch SVS SB-1000 Pro driver to ensure massive subwoofer performance from a relatively compact cabinet. Advances to the cone, surround, voice coil, and motor assembly maximize excursion for room-energizing SPLs at the lowest frequencies, with precision and control.

The SB-1000 Pro features a Sledge STA-325D with 325 watts RMS continuous power (820+ watts peak dynamic power)

amplifier with fully discrete MOSFET output. Harnessing the immense power while ensuring tonal accuracy and driver control for more convincing bass effects is a 50 MHz Analog Devices Audio DSP with frequency response precisely tuned for the SB-1000 Pro.

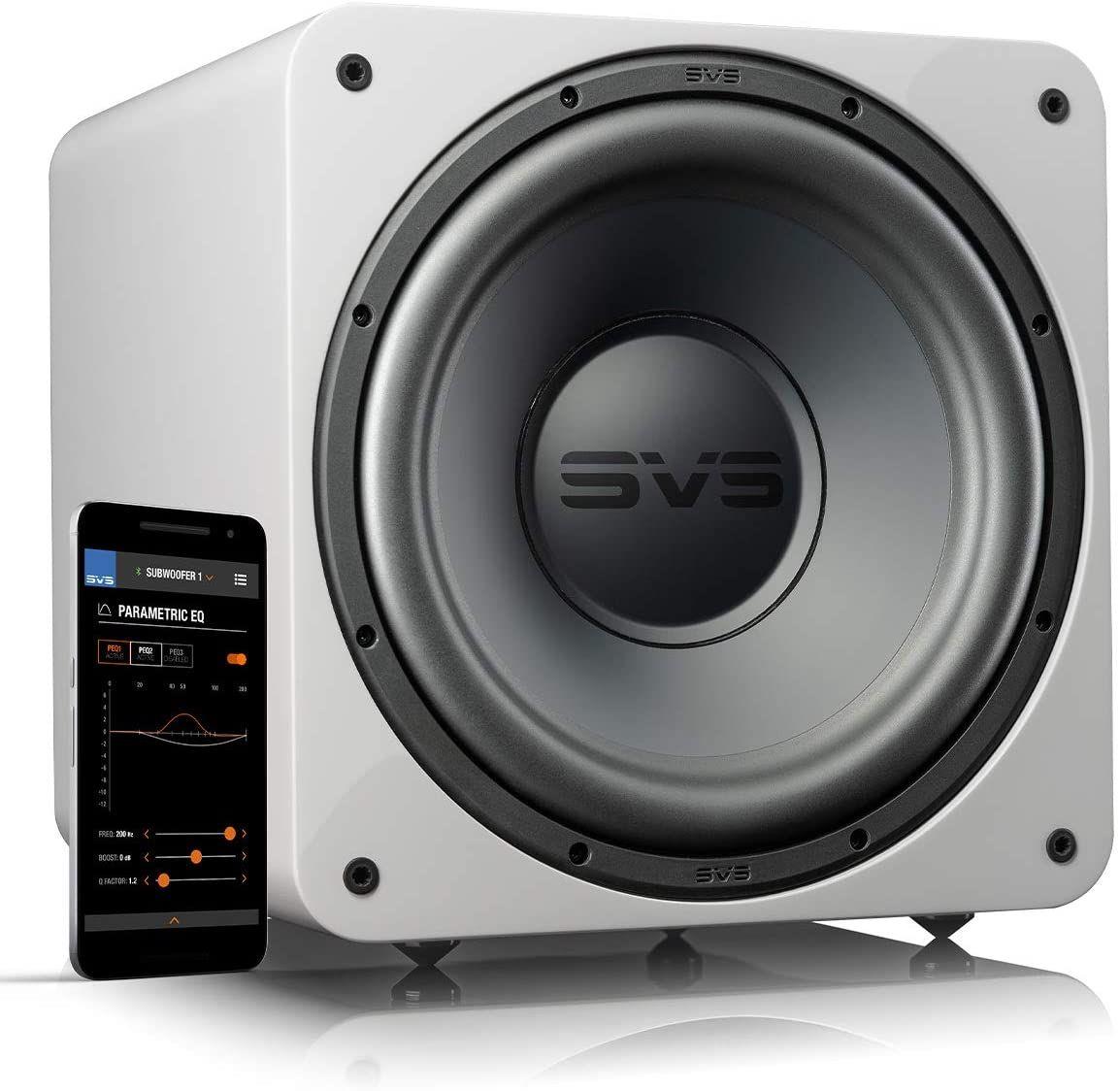

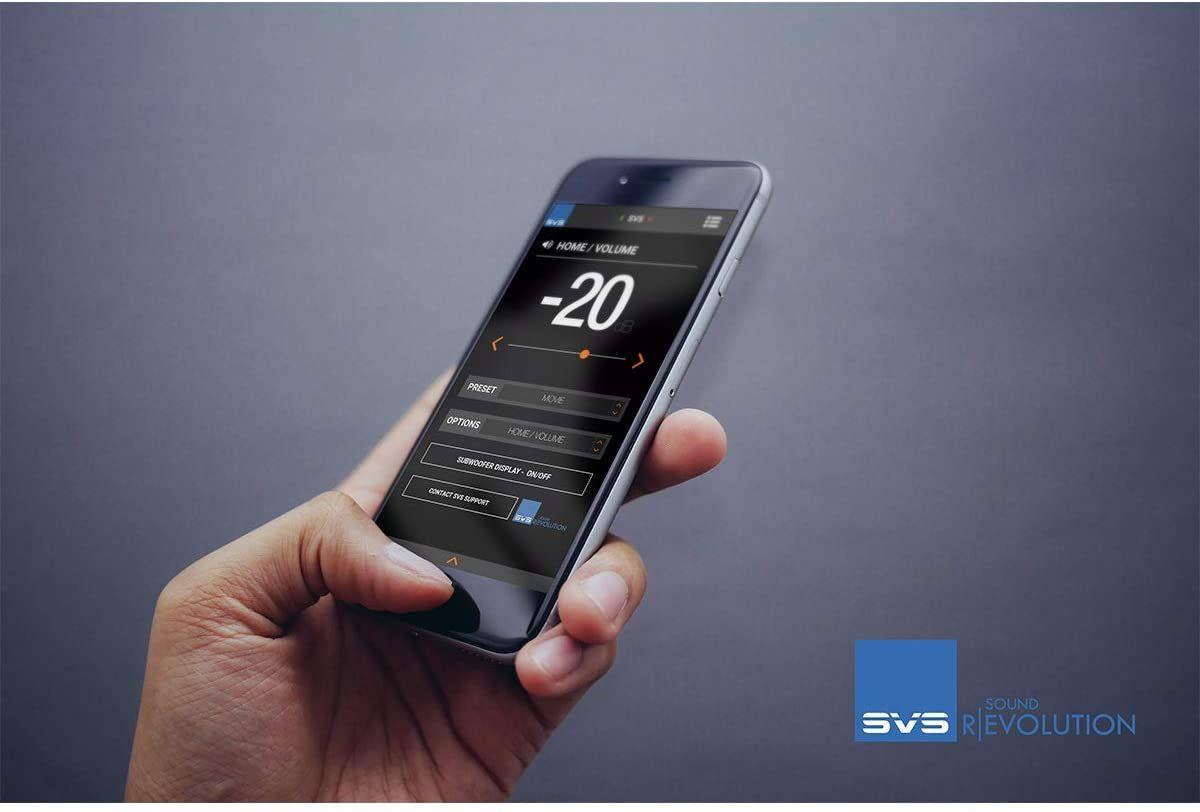

SB-1000 Pro also features the SVS subwoofer smartphone app, the most convenient way to control volume, access multiple DSP functions, and program custom presets. Adjust crossover frequencies, a three-band parametric EQ, polarity, room gain and more, all from your favorite seat.

SVS SB1000PRO Specifications:

Frequency Response: 20-270 Hz +/- 3 dB (Expect 2-3 Hz deeper extension in small to midsize rooms)

Inputs: Unbalanced Stereo RCA & Speaker Level

Outputs: Unbalanced Stereo RCA

Trigger Input: 3-12 Volt AC/DC

Standby Power Consumption: 0.5-watt

Dimensions (w/ grille): 13.5”H x 13”W x 14.76”D

Dimensions (without grille): 13.5”H x 13”W X 13.9”D

Shipped Dimensions: 17.4”H x 17.4”W x 18.4”D

Weight (unboxed): 26lbs with Grille

Shipped Weight: 31.1lbs

SVS SB1000PRO Driver Description & Specifications:

Driver: 12-inch long-throw

Weight: 8.33lb  (5.73lb pounds motor)

13.3mm Xmax, 26.9mm Xmech precision aligned excursion

1.5” diameter Voice Coil with high current 6-layer high-purity copper wire windings

Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion

Two-piece high grade oversized Y30 Ferrite magnet motor

High Temperature 3003-H18 aluminum former/bobbing

6” composite cotton-poly extreme excursion linear spider

Dual 24-strand copper-alloy high-temperature leads

Proprietary injection molded gasket and NBR extreme-excursion surround

Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response

Top plate assembly with low carbon 1010 steel for optimal magnetics

Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics

12” premium powder coated basket with FEA optimized analysis for maximum rigidity, tensile strength, and energy transference

Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed

Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at full range of excursion

SVS SB1000PRO Sledge-325D Amplifier Description & Specifications:

50MHz Analog Devices Audio DSP, high resolution double precision 56bit filtering

Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line level input.

High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency.

Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s

SVS BLE control app for iOS and Android contains 3 complete name-able and customizable User presets, supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ's per preset, adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers.

Customer EQ and DSP limiter settings specifically for the 1000 Pro

Input impedance 16kohm (unbalance RCA)

Input impedance 1kohm (speaker level)

New Intelligent Feature control (IFC) user interface on the amplifier with bright blue 11 LED bar display and easy push-button controls.
