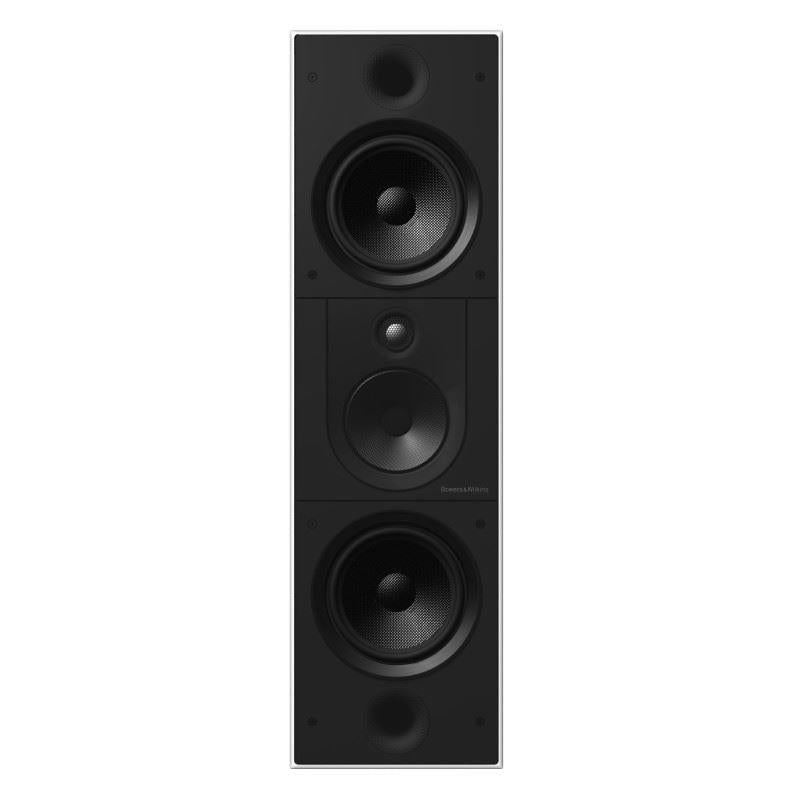

Bowers & Wilkins CWM8.3D In-Wall Speaker *B-Stock

Experience unparalleled in-wall audio with the Bowers & Wilkins CWM8.3D In-Wall Speaker, designed to deliver reference-grade sound in a sleek, nearly invisible form. Ideal for premium home theaters and high-end audio installations, the CWM8.3D combines a 3-way driver configuration with cutting-edge acoustic technologies to reproduce stunning detail across the frequency spectrum.

Equipped with a Diamond Dome tweeter, a Continuum cone midrange driver, and dual Aerofoil bass drivers, this speaker offers exceptional performance that rivals high-end floorstanding speakers. The decoupled aluminum baffle, which can be rotated for vertical or horizontal installation, allows for flexible placement without compromising sound quality. Finished with subtle visual elements like a dark Continuum cone, the CWM8.3D blends seamlessly into any wall for a discreet, high-performance setup.

Specifications

• Drive Units:
  • 1 x 25mm (1 in) Diamond Dome, Nautilus tube-loaded tweeter
  • 1 x 130mm (5 in) Continuum midrange driver
  • 2 x 180mm (7 in) Aerofoil bass drivers
• Design Features:
  • 3-way in-wall speaker
  • Rotatable aluminum baffle
  • Decoupled design to minimize resonance
  • Flowport for enhanced bass response
  • Anti-resonance plug
• Frequency Range (-6dB): 30Hz – 35kHz
• Sensitivity: 89dB
• Nominal Impedance: 8Ω
• Recommended Amplifier Power: 200W
• Dimensions:
  • Frame Height: 880mm (34.6 in)
  • Frame Width: 254mm (10 in)
  • Cut-out Height: 864mm (34 in)
  • Cut-out Width: 238mm (9.4 in)
  • Protrusion: 8mm (0.3 in)
• Net Weight: 10.9 kg
• Optional Accessory: Back Box BB CWM8.3

Key Features List

• Premium 3-Way Configuration: Incorporates a high-performance Diamond Dome tweeter, Continuum midrange driver, and twin Aerofoil bass drivers to deliver full-range, audiophile-grade sound from a discreet in-wall enclosure.
• Rotatable Aluminum Baffle: Easily rotate the baffle 90 degrees to install the speaker in either a vertical or horizontal orientation, enhancing layout flexibility for surround or LCR setups.
• Natural-Sounding Midrange: The Continuum cone driver offers a smooth, open, and precise midrange ideal for dialogue clarity and musical realism.
• Deep, Controlled Bass: Two 7-inch Aerofoil bass drivers deliver room-filling low-end frequencies without distortion, adding depth to music and movie soundtracks.
• Resonance-Free Audio: The decoupled mounting design and anti-resonance plug ensure minimal vibration and coloration, resulting in crystal-clear sound.
• Aesthetic Integration: The dark finish of the Continuum cone and shallow protrusion ensure the speaker disappears into the wall, maintaining the aesthetics of any room.

Q&A Section

Q: What type of installation does the CWM8.3D support?
A: The speaker supports in-wall installation with a rotatable aluminum baffle, allowing for both vertical and horizontal mounting.

Q: What is the benefit of the Diamond Dome tweeter?
A: The Diamond Dome tweeter offers ultra-precise high-frequency detail, making it ideal for high-resolution audio formats and immersive listening.

Q: Can the CWM8.3D be used as a center channel speaker?
A: Yes, its rotatable baffle makes it perfect for use as a center speaker in home theater systems.

Q: What kind of amplifier should I use?
A: A high-quality amplifier rated between 50W and 200W into 8Ω is recommended to fully leverage the speaker’s capabilities.

Q: Is the grille included, and is it paintable?
A: Yes, a magnetic grille is included and it is paintable to match your wall color for discreet integration.

Q: Is a back box necessary for installation?
A: It’s not required but recommended for optimal bass performance and acoustic isolation—the BB CWM8.3 is designed specifically for this model.

Q: Does the speaker support bi-amping?
A: No, the CWM8.3D does not support bi-amping; it is designed as a single-wire in-wall speaker system.

Q: What size cut-out is needed for installation?
A: The cut-out dimensions are 864mm (34 in) in height and 238mm (9.4 in) in width.
