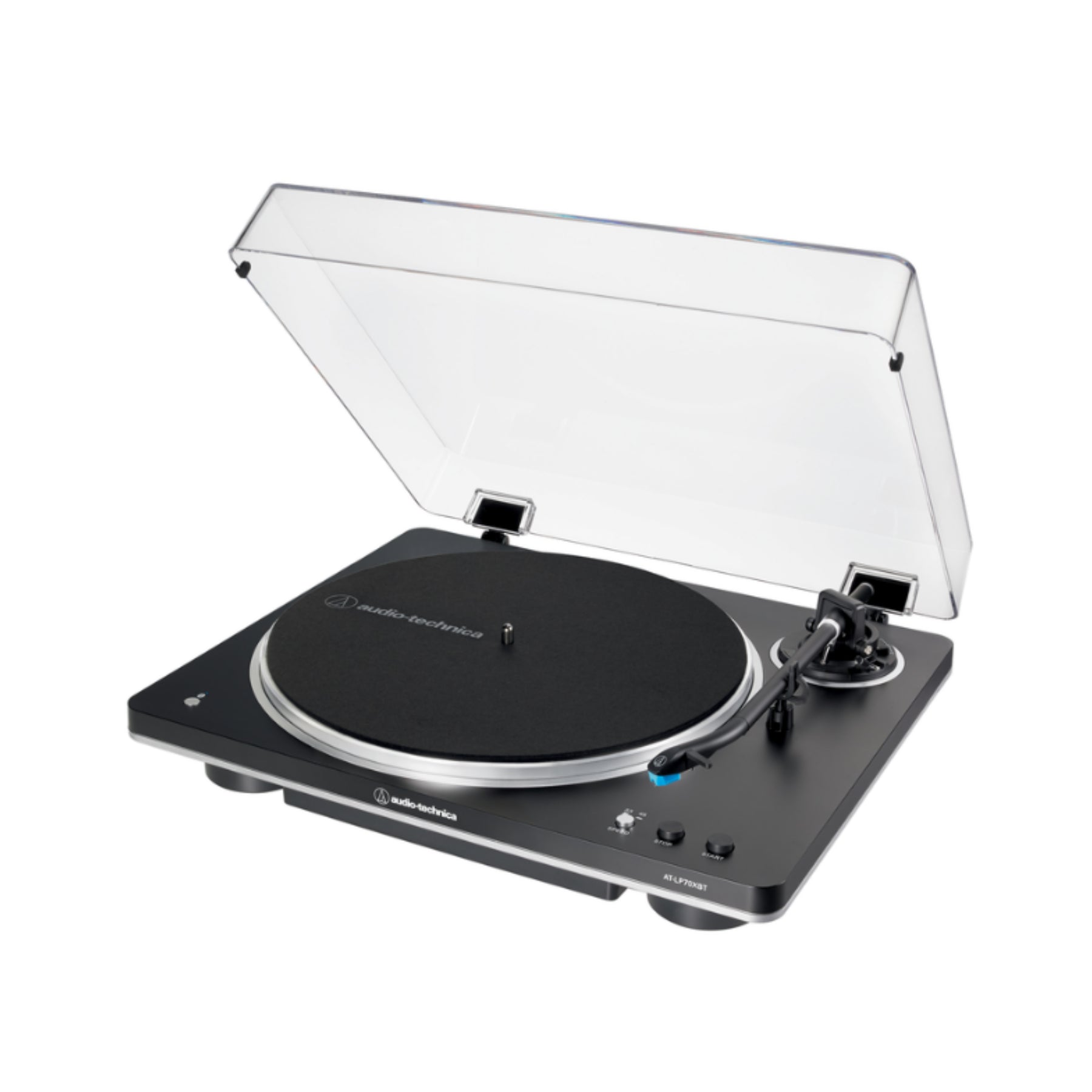

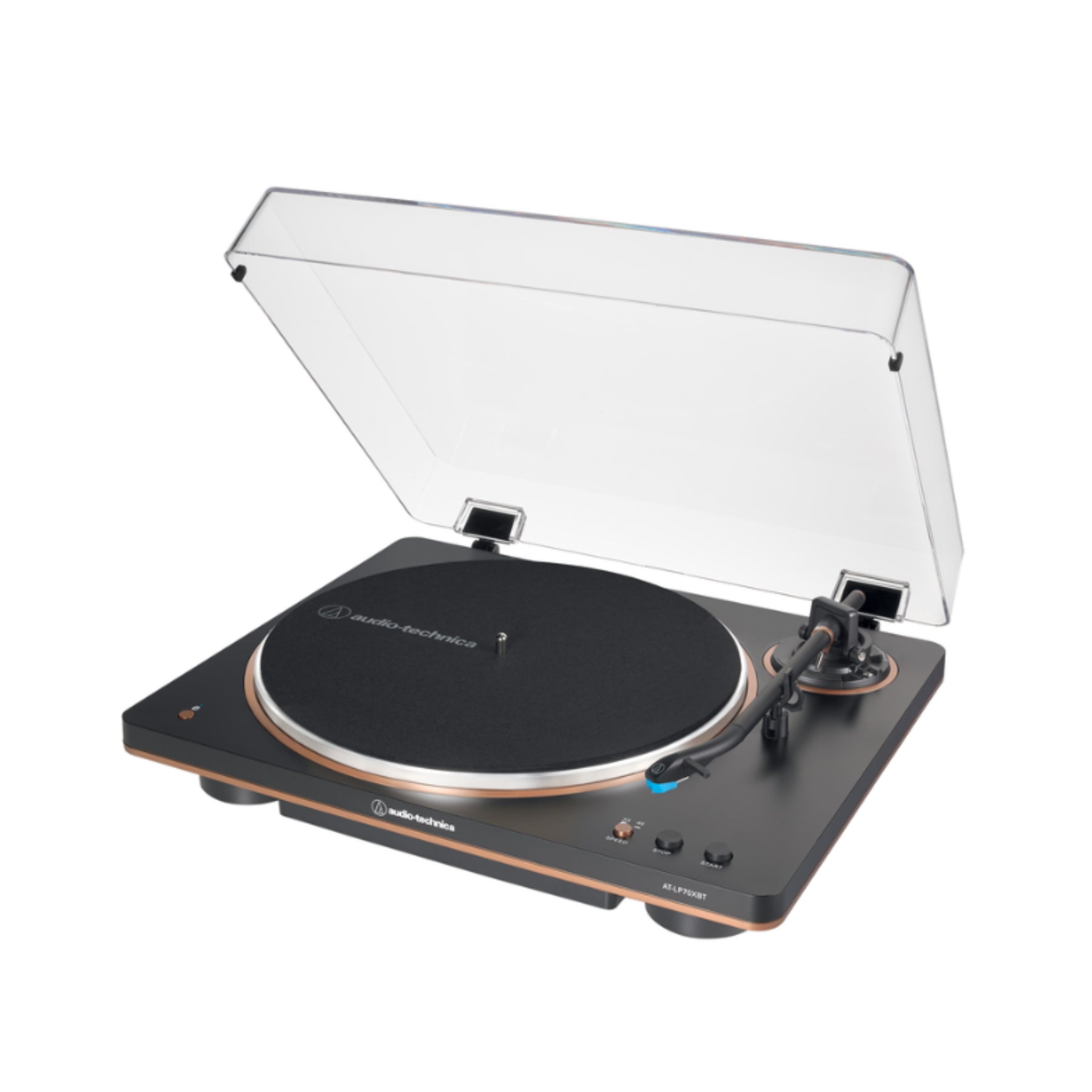

Audio Technica LP70XBT Turntable

The AT-LP70XBT Automatic Wireless Turntable is an ideal choice for beginners embarking on their audiophile journey. It combines the warm, analog audio experience of vinyl with the convenience of Bluetooth® technology. You can enjoy your records through Bluetooth-enabled speakers, headphones, or other devices, including those supporting the high-quality Qualcomm® aptX™ Adaptive audio codec. This user-friendly turntable plays both 33-1/3 and 45 RPM records and features a built-in switchable phono preamp, allowing connection to home stereos, powered speakers, or other components, with or without a dedicated phono input.

At the core of the AT-LP70XBT is a top-tier phono cartridge for unmatched, high-fidelity audio. Leveraging Audio-Technica’s industry-leading expertise, the AT-VM95C cartridge offers superior performance that sets it apart in its class. Integrated into the J-shaped tonearm, the AT-VM95C cartridge with a 0.6 mil conical stylus delivers excellent channel separation and low distortion for outstanding tonal quality. For a personalized listening experience, the stylus can be easily upgraded with other options from the VM95 Series, including elliptical, microlinear, or Shibata styli, offering unprecedented customization for a turntable in this category.

To ensure optimal sound performance, the AT-LP70XBT features a three-piece, anti-resonance chassis that provides a solid foundation to dampen unwanted noise for improved sound quality. The included AC adapter further reduces noise by moving the AC/DC conversion outside the chassis to minimize any unwanted interference.

Key Features:

• Simple, Intuitive Design: The AT-LP70XBT is easy to use, equipped with Bluetooth wireless technology for a straightforward connection to powered speakers and headphones. It plays 33⅓ and 45 RPM records automatically at the press of a button. The J-shaped tonearm features an integrated AT-VM95C cartridge, eliminating the need for installation, balancing, or other tonearm setup.
• Instant Upgrade Path: The unique AT-VM95C Integral Dual Moving Magnet™ phono cartridge is compatible with any VM95 Series replacement stylus, making it easy to replace or upgrade the stylus to enjoy a more refined sound.
• Versatile Playback: Plays 33-1/3 and 45 RPM records.
• Wireless or Wired Connectivity: Offers the flexibility of wireless Bluetooth or wired connections.
• Fully Automatic Operation: Simplifies the listening experience with automatic operation.
• Replaceable/Upgradable Stylus: Compatible with the AT-VM95 Series for easy upgrades.

The AT-LP70XBT ensures a high-quality audio experience with the convenience of modern technology, perfect for any new audiophile.

LP70XBT Specs

Turntable Specifications:

• Motor: DC motor
• Drive Method: Belt-drive
• Speeds: 33-1/3 RPM, 45 RPM
• Turntable Platter: Die-cast aluminium
• Wow and Flutter: < 0.25% (WTD)
• Signal-to-Noise Ratio: > 55 dB

Cartridge:

• Type: AT-VM95C Dual Moving Magnet Stereo Cartridge (non-removable)
• Output Level:
  • PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
  • LINE: 252 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized

Power and Dimensions:

• Power Consumption: 1.6 W
• Dimensions: 400 mm (16") × 330 mm (13") × 110 mm (4.3") (W × D × H)
• Weight: Approx. 2.9 kg (6.4 lbs)

Accessories Included:

• Dust cover
• Felt mat
• Platter (with drive belt)
• Dust cover hinges
• 45 RPM adapter
• RCA audio cable (Approx. 1.0 m / 3.3')
• AC adapter (Approx. 1.5 m / 4.9')

AC Adapter:

• Type: FJ-SW1261200500DN
• Rated Input Voltage: 100 to 240 V AC
• Rated Input Current: 0.4 A max.
• Rated Frequency: 50 Hz / 60 Hz
• Rated Output Voltage: 12 V DC
• Rated Secondary Current: 0.5 A
• Cable Length: Approx. 1.5 m (4.9')

Tonearm:

• Effective Arm Length: 220 mm (8.7")
• Overhang: 18 mm (0.71")
• Tracking Error Angle: Less than 2.0°

Replacement Parts:

• Replacement Stylus: AT-VMN95C (sold separately)
• Replacement Belt: AT-LP70X exclusive belt (sold separately)

Bluetooth:

• Communication System: Bluetooth version 5.2
• Frequency Band: 2.402 GHz to 2.480 GHz
• Maximum RF Output: 2.5 mW EIRP
• Maximum Communication Range: Line of sight - approx. 10 m (33')
• Modulation Method: GFSK, Pi/4DQPSK, 8DPSK
• Compatible Bluetooth Profile: A2DP
• Support Codec: Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC
