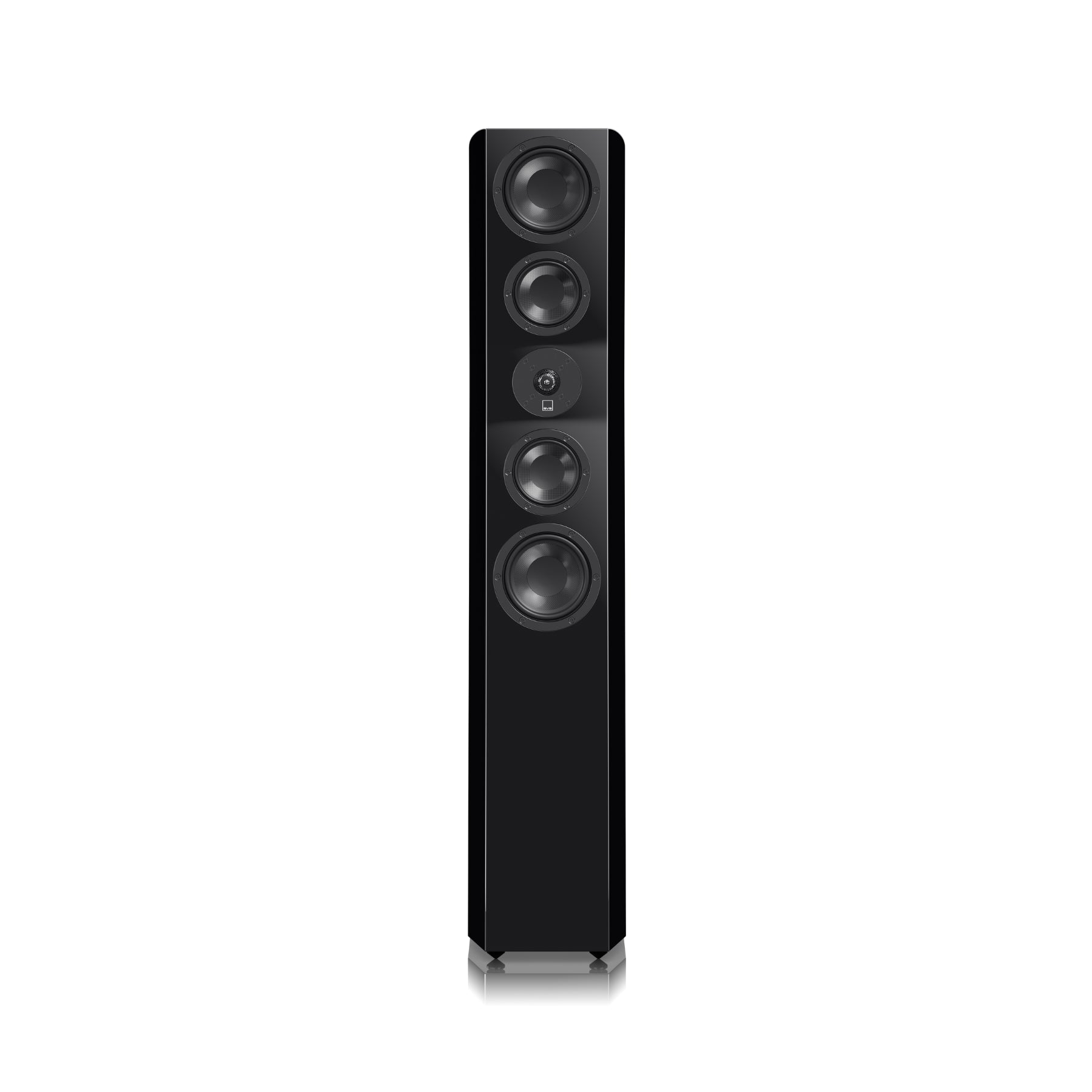

SVS Ultra Evolution Tower Floor-Standing Speakers

are where fine audio and value come together in a tower speaker.

1” Diamond Coated Tweeter:

• FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity
• Cutting-edge vapor-deposition grows a hyper-rigid diamond carbon coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response
• Silver tinsel for optimal signal transfer and power handling

4.5” Glass Fiber Composite Midrange Drivers:

• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass-band
• Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation
• Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response

Quad 5.25” Woofers in Force Balance Array:

• Long stroke motor and suspension for high output
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass-band
• Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation
• Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels

Cabinet:

• Acoustically-centered architecture orients the mid-range and woofer arrays in rotational-symmetry around the tweeter, ensuring that low, mid, and high-frequencies emanate from the same effective point in space, creating a coherent, integrated, faithful acoustic image.
• Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
• Extra-thick 1” (25mm) driver baffles ensure a rigid, resonance-free mounting for all drivers
• FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels

Additional Features:

• Dual gold-plated 5-way binding posts
• Dual 2.5” wide-flared rear-firing ports
• Cloth grille with magnetic retention system
• Elastomer screw-in feet – adjustable for level
• Spiked metal screw-in feet included – adjustable for level
• Finish options: Piano gloss black, piano gloss white, real black oak veneer

SVS Ultra Evolution Tower Specifications:

In-room Frequency Response: 30Hz to 40kHz (+/-3 dB)

Nominal Impedance: 6 ohms

Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)

Recommended amplifier power: 20 – 300 watts

Tweeter-to-Midrange crossover: 1.8 kHz

Midrange-to-woofer crossover: 170 Hz

Cabinet Dimensions: 43.9” (H) x 8.58” (W) x 16.69” (D) / 1115mm (H) x 218mm (W) x 424mm (D)

Overall Dimensions: 44.49” (H) x 8.58” (W) x 16.69” (D) / 1130mm (H) x 218mm (W) x 424mm (D) (includes grille, feet, and binding posts)

Shipped Dimensions: 47.8” (H) x 12.2” (W) x 20.5” (D) / 1215mm (H) x 309mm (W) x 520mm (D)

Weight Packaged: 70.3 pounds / 31.9 kgs

Weight Unboxed: 59.5 pounds / 27.0 kgs
