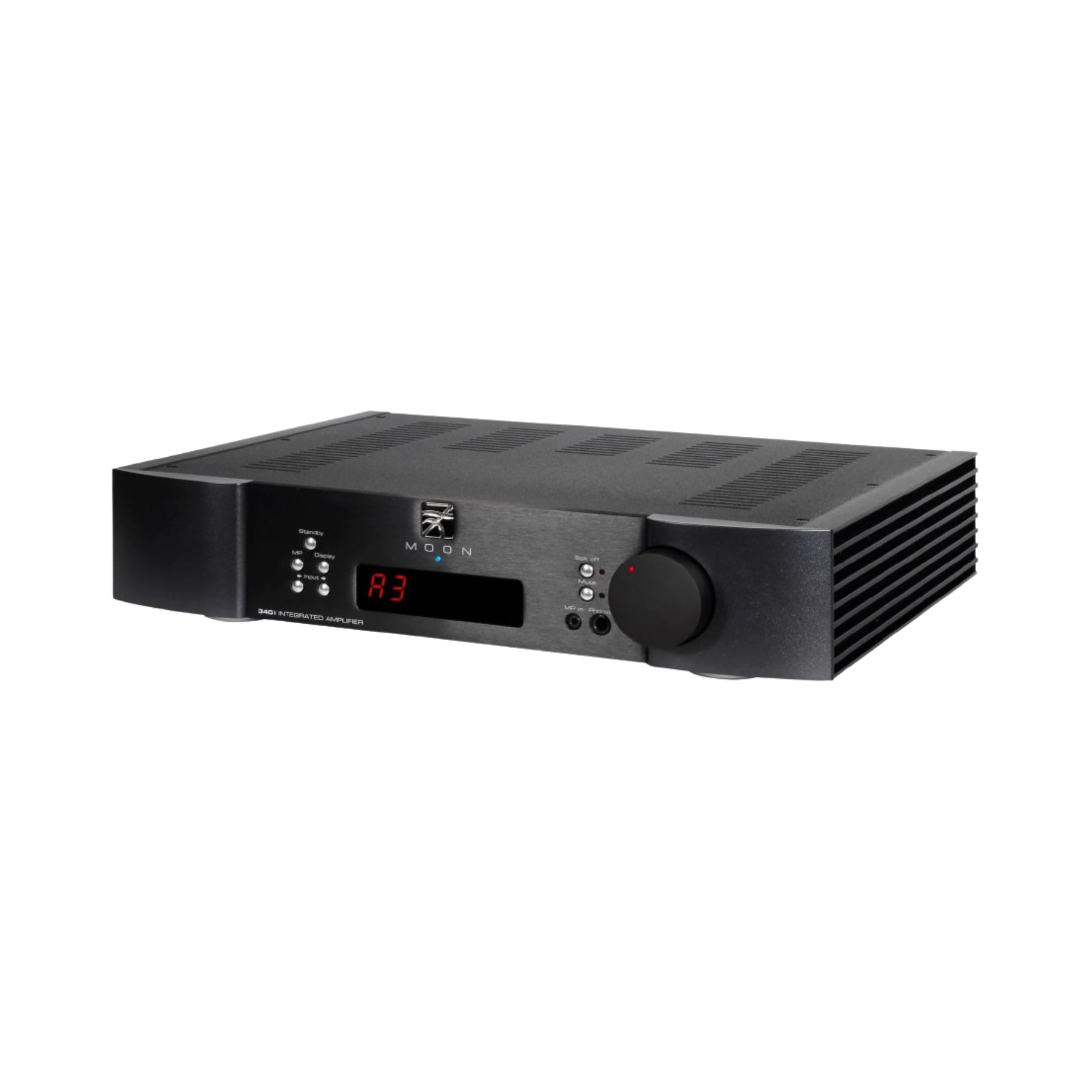

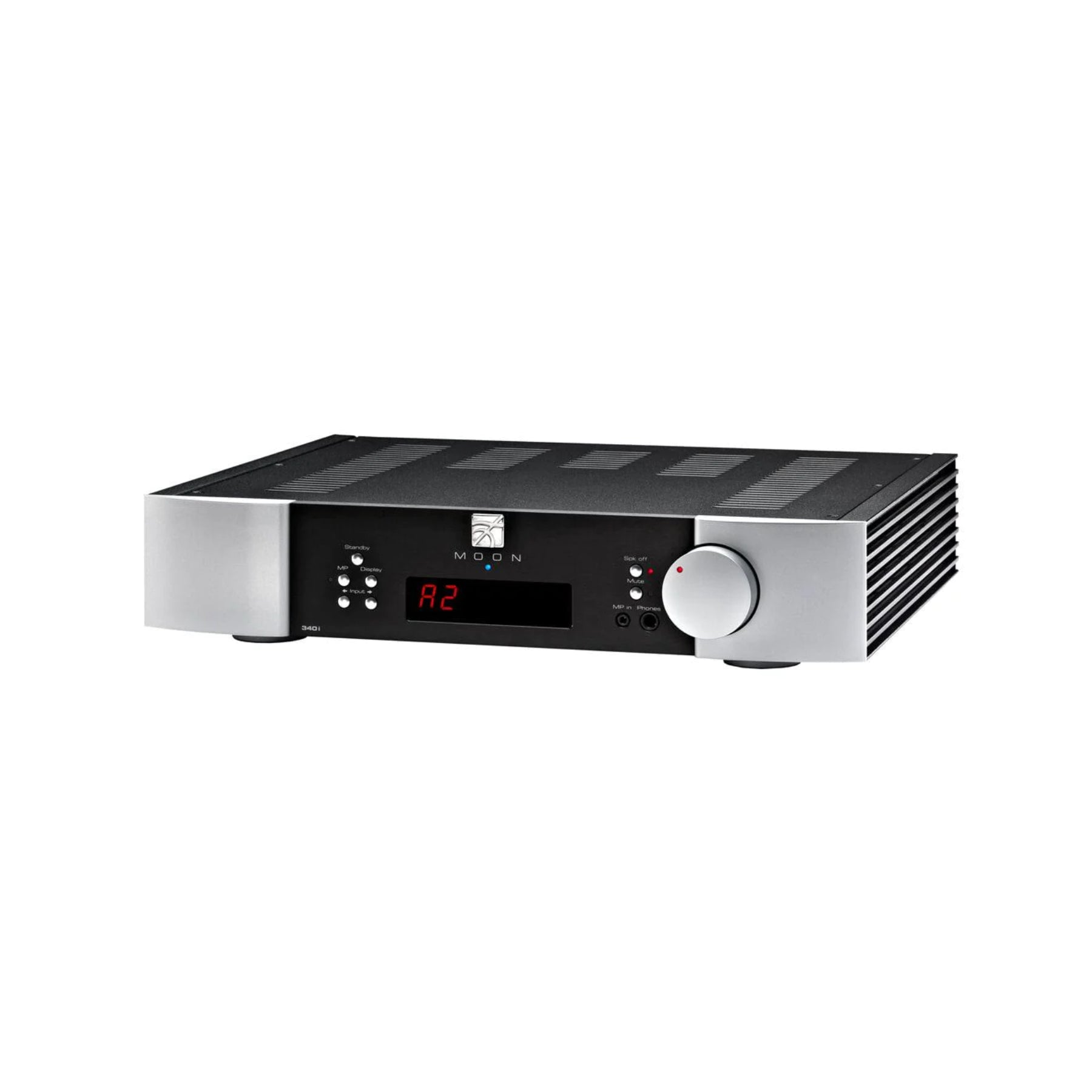

MOON 340i X Stereo Integrated Amplifier

Experience the harmonious blend of innovation and musical authority with the MOON by Simaudio 340i X Integrated Amplifier, where endless possibilities meet exceptional sonic performance. Boasting 100W per channel at 8Ω and 200W per channel at 4Ω, this amplifier redefines the integration of your music system with features like six line-level inputs, balanced input, and precision-matched MOON Bipolar output transistors. The optional upgrade features, including the D3 DAC with DSD support and P PHONO for MC/MM configurations, enhance this amplifier's versatility, while the oversized power supply and thoughtful design elements ensure an immersive and efficient listening experience.

• 6 (six) line-level inputs including a front-mounted 1/8” mini-jack for personal media players.
• 1 (one) pair of balanced input (XLR).
• Headphone output on 1/4” jack located on the front panel.

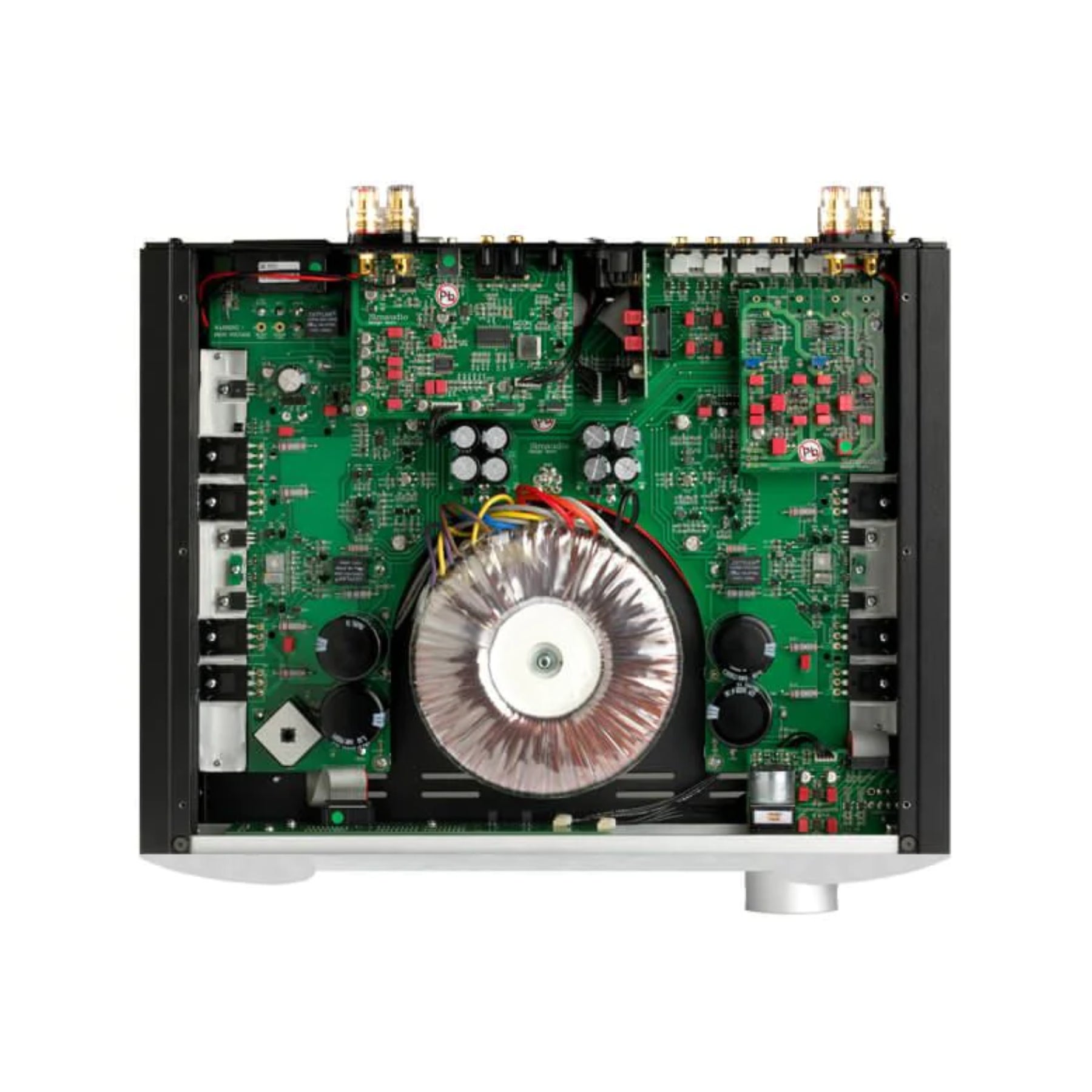

• A massive oversized power supply using a custom toroidal transformer design.
• “Class A” output to 5 watts for greater efficiency.
• One audio input which functions as a “pass-through”, bypassing the gain stage to accommodate components like a home-theater processor, whose own volume control is used instead.

Precision matched proprietary MOON Bipolar output transistors for improved bass response and accurate sonic reproduction.

MOON 340i X Stereo Integrated Amplifier Specs

Output Power:

• 8Ω: 100 W per channel
• 4Ω: 200 W per channel

Input:

• Sensitivity: 370mV - 3.0V RMS
• Impedance: 11,000Ω
• Gain: 37dB

Performance:

• Signal-to-noise Ratio: 110dB @ full power
• Frequency Response (full range): 2Hz - 90kHz +0/-3dB
• Crosstalk: -88dB
• THD (20Hz - 20kHz @ 1W): 0.015%
• THD (20Hz - 20kHz @ 100W): 0.05%
• Intermodulation Distortion: 0.03%

Digital Inputs:

• S/PDIF, USB, Optical
• Maximum PCM Resolution: 32-bit / 384kHz
• DSD Sample Rates: DSD64, DSD128 & DSD256

Shipping:

• Weight: 28 lb / 13 kg

Dimensions:

• Width x Height x Depth: 16.9 x 3.5 x 14.8 in / 42.9 x 8.9 x 37.6 cm
