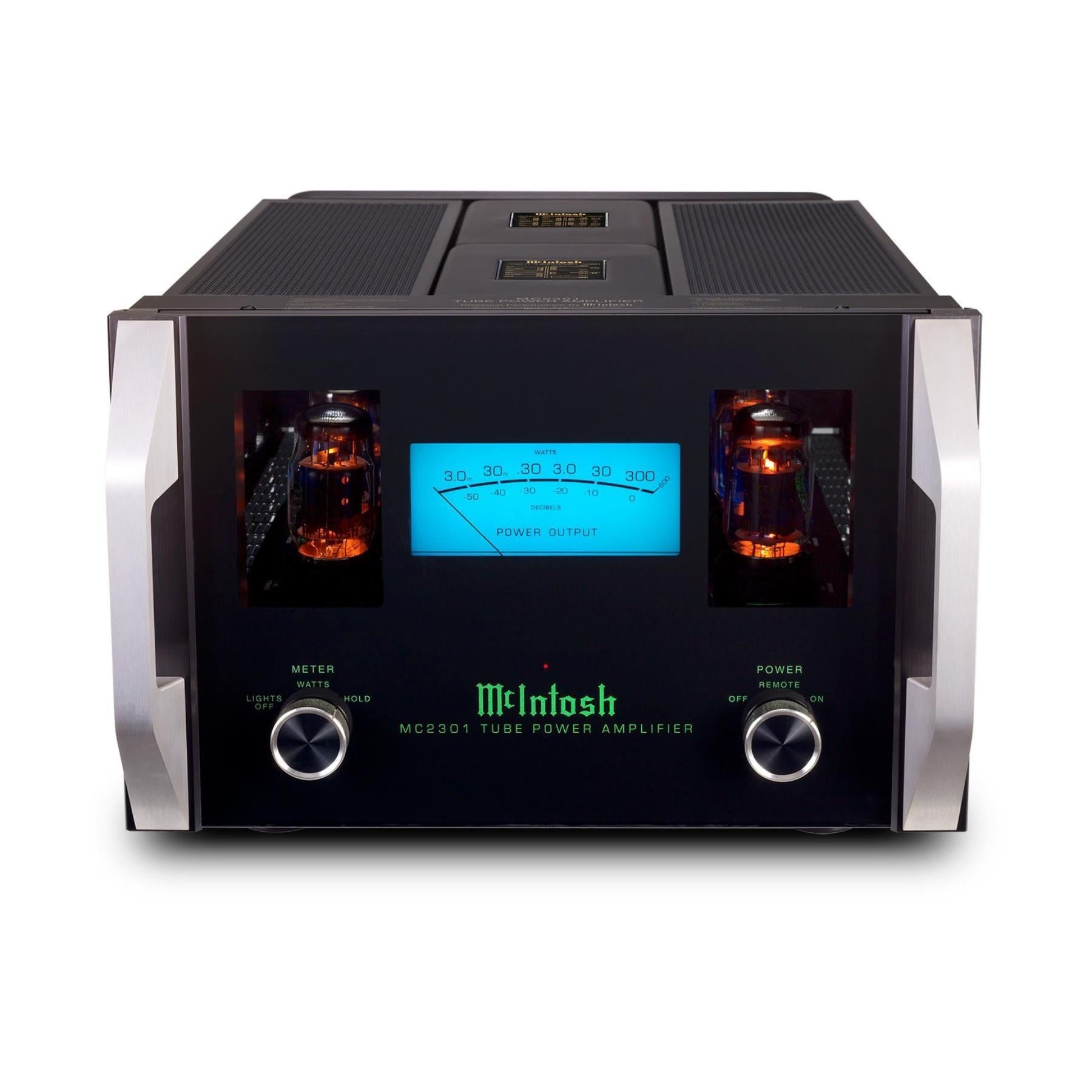

McIntosh MC2301 Vacuum Tube Amplifier - 1-Channel | 300W | Quad Balanced Design

The McIntosh MC2301 1-Channel Vacuum Tube Amplifier. From symphonic orchestrations to pulsating rock anthems, this amplifier delivers unparalleled lifelike sound dynamics. Boasting an impressive 300 Watts of output power, it effortlessly drives even the most demanding loudspeakers. Crafted with McIntosh's patented Unity Coupled Circuit output transformer, it ensures pristine audio delivery to 2, 4, or 8 Ohm speakers.

The MC2301 features McIntosh's innovative Quad Balanced design, effectively eliminating noise and distortion from the audio signal for a pure listening experience, even at higher volumes. Equipped with Sentry Monitor™ technology, it offers fuse-less short-circuit protection, ensuring safe operation under all conditions. The amplifier provides flexibility with inputs for both balanced and unbalanced cables, seamlessly integrating into your audio setup.

Adorned with an iconic blue meter and rows of output vacuum tubes, the MC2301 exudes visual elegance. Its polished stainless steel chassis, complemented by brushed aluminum handles and knobs, adds a touch of sophistication to any stereo music system.

McIntosh MC2301 Specifications:

• Power Output per Channel: 300W @ 2, 4, or 8 Ohms
• Number of Channels: 1
• Total Harmonic Distortion: 0.5% max (250mW to rated power, 20Hz to 20kHz)
• Signal-to-Noise Ratio: 117dB
• Dynamic Headroom: 1.2dB
• Damping Factor: >15 Wideband
• Rated Power Band: 20Hz to 20kHz
• Frequency Response:
  • +0, -0.5dB from 20Hz to 20,000Hz
  • +0, -3.0dB from 10Hz to 100,000Hz

Control:

• Remote Power Control: Yes
• Multi-Channel DB25 Cable: N/A

General Specifications:

• Circuit Configuration: Quad Balanced, Unity Coupled
• Circuit Design: Vacuum Tube
• Mono Bridge: No
• Mono Parallel: No
• Output Type: Unity Coupled Output Transformer
• Meters: Yes
• Meter Light Switch: Yes
• Balanced Input: Yes
• Front Panel: 1/2" Glass with handles
• Illumination: LED Fiber Optic
• Chassis Style: Open Stainless Steel

Connectivity:

• Speaker Binding Post Type: 200 amp, 3-way

Weights & Dimensions:

• Unit Dimensions (W x H x D): 17-3/4" x 12-5/16" x 23" (including front panel and cables)
• Unit Weight: 116 lbs
• Shipping Weight: 141 lbs

Upgrade your audio setup with the McIntosh MC2301 Vacuum Tube Amplifier, where engineering excellence meets timeless design. Experience music like never before.
