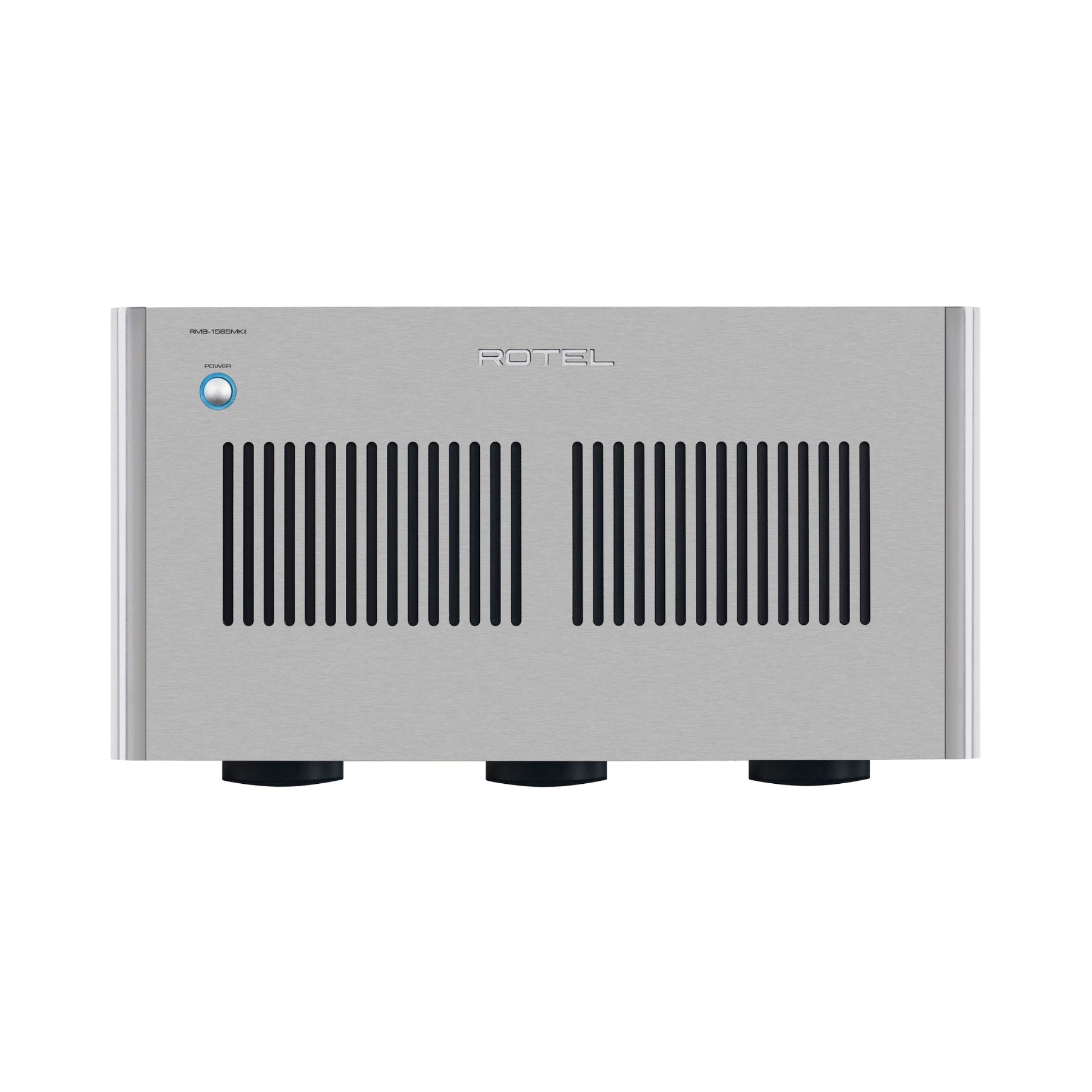

Rotel’s RMB-1585MKII 5-channel amplifier

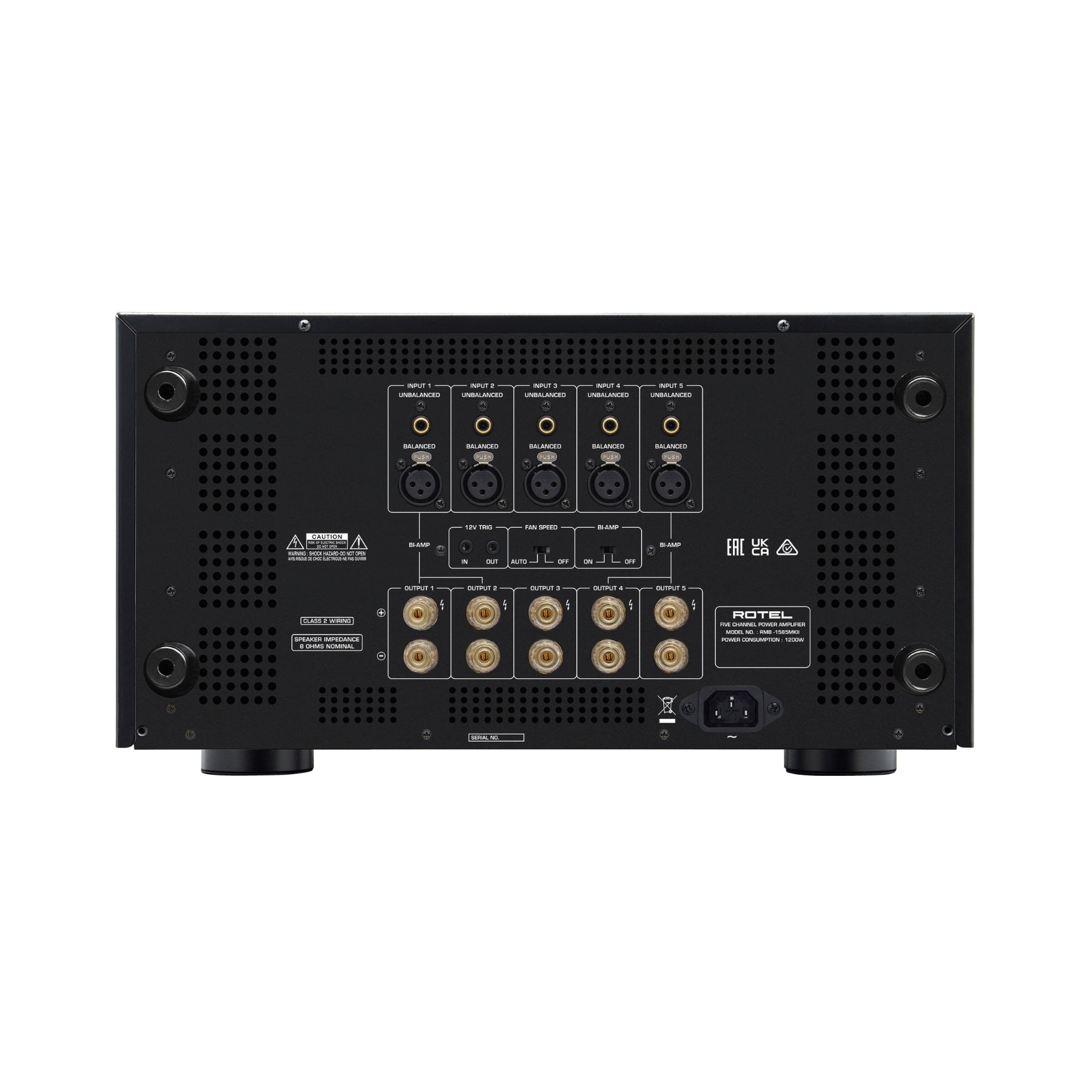

continues their heritage of producing high powered, perfectionist amplifiers for multi-channel systems. Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages achieving ultra-low distortion, high gain amplification and signal isolation rendering multi-channel audio with ultimate precision and exacting clarity. The Class AB RMB-1585MKII is built around two massive in-house manufactured high-current toroidal transformers designed to supply stable current to an array of 8 high-efficiency energy storage capacitors. This power supply architecture delivers rich, deep bass energy with absolute control of low frequencies even when driving the most demanding loudspeakers. To optimize cooling, the RMB-1585MKII is equipped with  four thermostat-controlled, variable-speed ultralow-noise fans. The RMB-1585MKII features a rear panel switch to select normal 5-channel mode, or Bi-Amp mode. In Bi-Amp mode, Channels 1+2 and Channels 4+5 are wired to receive the same input signal, allowing for simple bi-amplification. This unique configuration allows the use of a separate amplifier channel for the Left and Right channel High Frequency (HF) and Low Frequency (LF) drivers, resulting in improved dynamics, and enhanced resolution from compatible loudspeakers. The RMB-1585MKII is purpose built for Home Theaters and custom installation. Convenient auto-switching XLR Balanced and RCA inputs ensure compatibility with any AV Processor or Home Theater receiver preamp output, and a 12 V trigger input and output provides simplified power control. Detachable rack mount hardware is available for mounting in standard19” equipment racks. The RMB-1585MKII is available in both elegant black and stylish silver colors.

Rotel RMB1586MKII Specifications:

Power Output (5ch driven, 8 Ohms) 210 Watts / channel
Power Output (5ch driven, 4 Ohms) 340 Watts / channel
Power Output (2ch driven, 4 Ohms) 440 Watts / channel
Total Harmonic Distortion < 0.03%
Intermodulation Distortion < 0.03%
(60 Hz : 7k Hz, 4:1)
Frequency Response 10 Hz - 100k Hz
(+0.1 dB, –0.3 dB)
Damping Factor (1k Hz, 8 Ohms) 223
Input Impedance/ Sensitivity
Unbalanced 12k Ohms / 1.89 Volt
Balanced 50k Ohms / 4.7 Volt
Gain 26.9 dB
Signal to Noise Ratio (A Weighting) 120 dB
Crosstalk/ Separation > 55 dB
All specifications are accurate at the time of printing.
Rotel reserves the right to make improvements without notice.
Power Requirement
USA 120 Volts, 60 Hz
Power Consumption 1200 Watts
Dimensions (WxHxD) 17" x 9 1/3" x 18"
Weight (net)  82 lbs.
Finish Black or Silver
