OREI UHD-402MV: ULTRA HD 4K@60HZ 4X2 HDMI SWITCH
Key Features:
- HDMI 2.0b, HDCP 2.2, and HDCP 1. x compliant
- 18Gbps uncompressed bandwidth, input and output resolution up to 4K2K@60 4:4:4
- HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
- Supports seamless switching between input channels
- Combined multiple images and independent layouts to display on two UHD TVs
- Up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2)
- Audio de-embedding via analog and optical fiber audio ports
- Control via front panel buttons, IR remote, OSD menu navigation, controller software, RS-232 commands
- Each output port supports the scaler function
- Supports independent audio selection
- Advanced EDID management
- Compact design for easy and flexible installation
The UHD-402MV was developed for the purpose of supporting higher output resolution (4K@60hz and 2K@60Hz) for multiple sources on two screens. It can accept 4 HDMI input digital sources and combine four video signals onto two HDMI UHD or HD monitors independently. Users can manage each input, and create combinations of the four inputs on two displays, as well as adjust the position of any input. This product supports 8 display modes, within the mode range, users can freely switch between 4-channel HD input signals. It can display a single source or a multiview display on a single screen. This product supports the full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems. This Matrix Switcher can be controlled via front panel buttons, IR remote, OSD menu navigation, controller software, and RS-232 commands.
[shortdes]
- 8 Display Mode
- Freely Switch Between 4-Channel
- Video Resolution Up to 4K2K@60Hz 4:4:4
[/shortdes]
[tab]
CONNECTIVITY
| INPUT PORTS: | 4 × HDMI IN [Type A, 19-pin female] |
| OUTPUT PORTS: | 2 × HDMI OUT [Type A, 19-pin female] |
| 2 × L/R OUTPUT [RCA] |
| 2 × OPTICAL OUTPUT [S/PDIF] |
| CONTROL PORTS: | 1 × RS-232 [3pin-3.81mm phoenix connector] |
| 1 × IR EXT [3.5mm Stereo Mini-jack] |
AUDIO AND VIDEO
| Video Bandwidth: | 18Gbps |
| Video Resolution: | Up to 4K2K@60 4:4:4 |
| HDMI Audio Formats: | PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS,DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio |
COMPLIANCES
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
POWER
| Power Consumption: | 15.72W (Max) |
| Power Supply: | Input: AC 100-240V 50/60Hz; Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
FUNCTIONS
| CEC Function: | No |
| ARC Function: | No |
| IR Controller: | Yes |
| Downscaler Function: | No |
| Over Network/IP Function: | No |
| RS-232 Function: | Yes |
| Screen Flip Function: | No |
PROTECTION
| Operation Temperature: | 32-104°F / 0-40°C |
| Storage temperature: | -4-140°F / -20-60°C |
| Relative Humidity: | 20~90% RH (Non-condensing) |

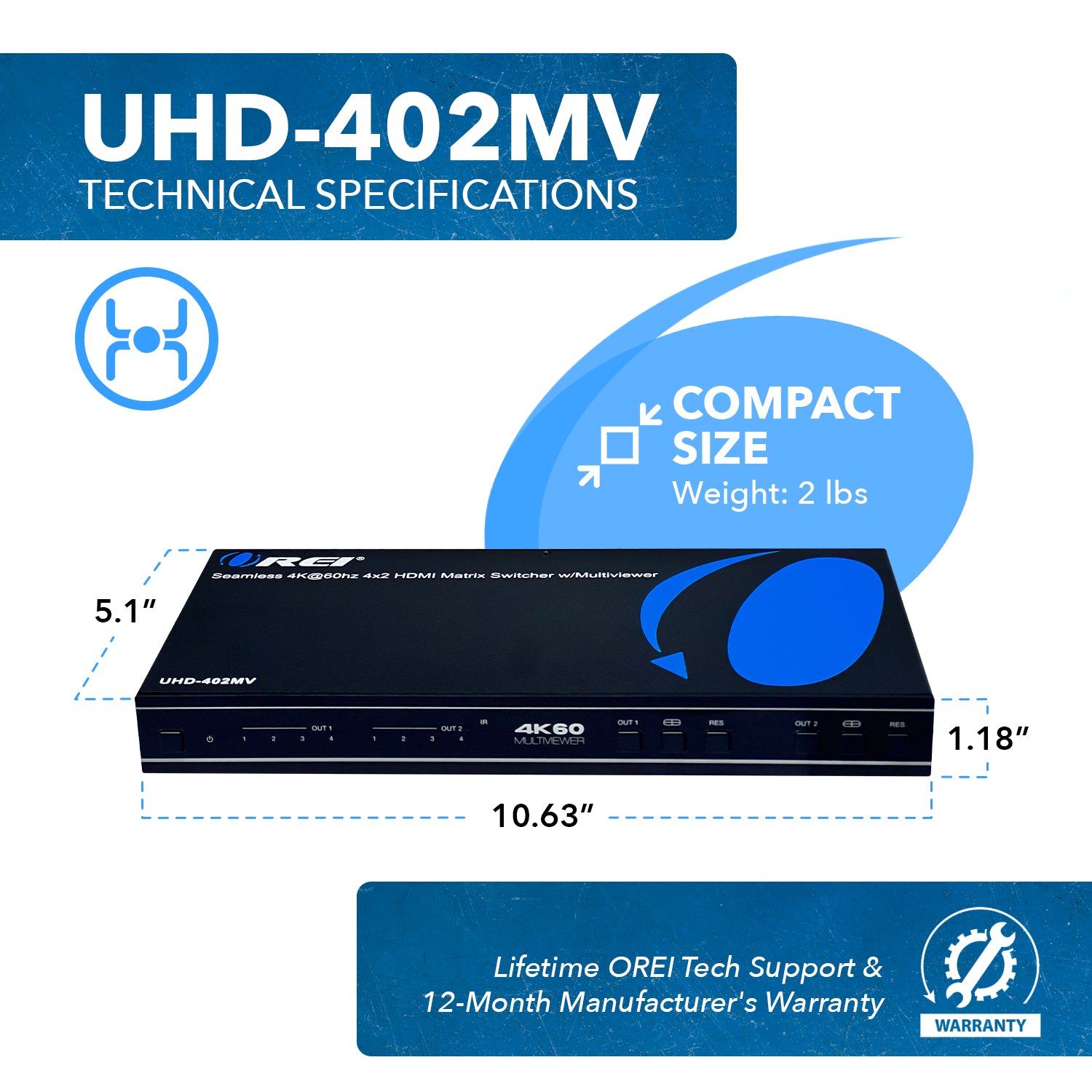

DIMENSIONS & WEIGHT
| Height: | 30mm |
| Width: | 270mm |
| Depth: | 130mm |
| Weight: | 906g |
REGULATORY
PACKAGE CONTENTS
| 1x UHD-402MV |
| 1x IR Remote |
| 1x 3pin-3.81mm Phoenix Connector (male) |
| 1x 38KHz IR Wideband Receiver Cable (1.5m) |
| 2x Mounting Ears |
| 4x Machine Screws (KM3*4) |
| 1x 12V/2.5A Locking Power Adapter |
| 1x User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
[/tab]
