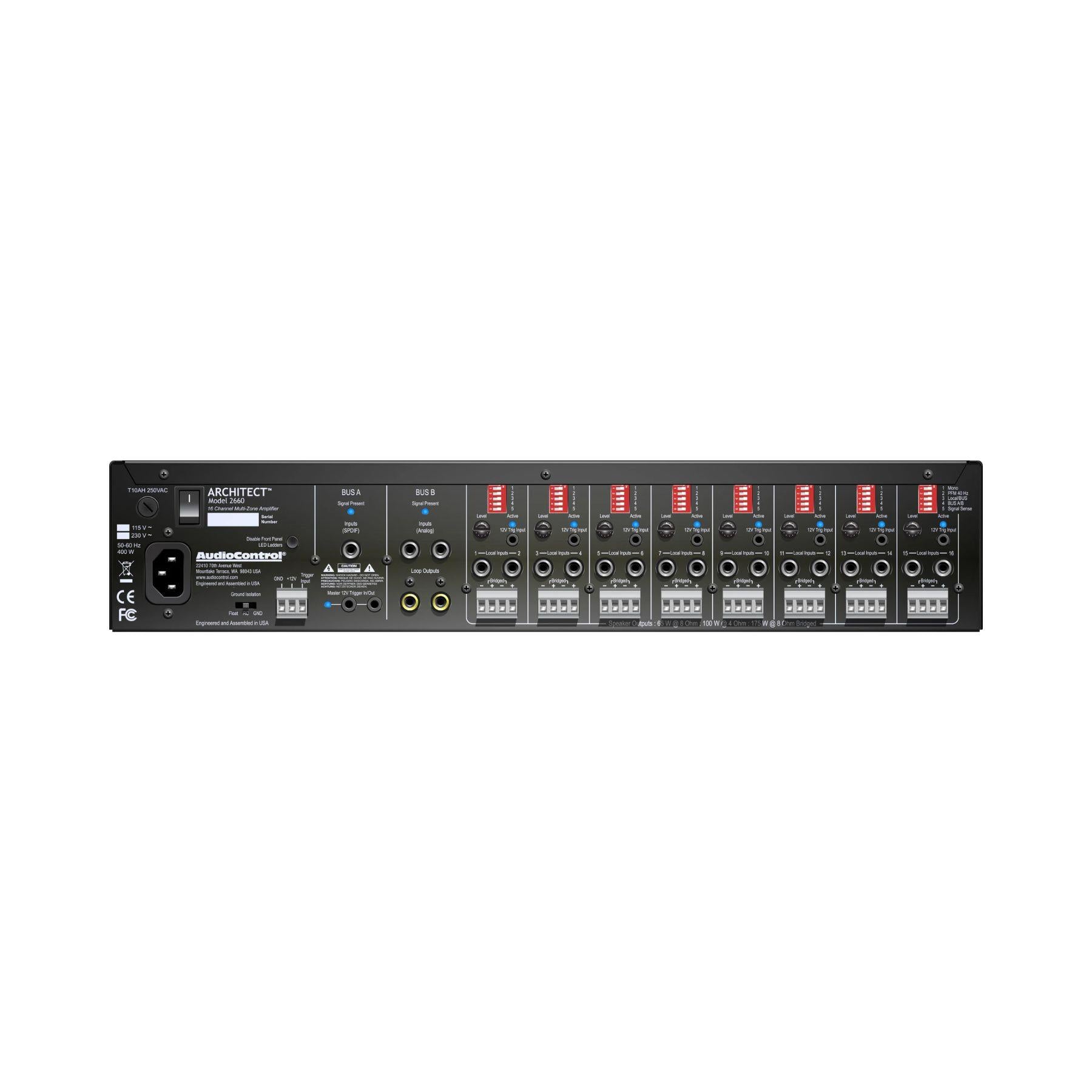

Architect-2660 - 16 Channel Compact 2U Multi-Zone Power Amplifier

Architect 2660 is the latest addition to AudioControl’s highly successful Architect multi-zone amplifier series, which we are proud to say are among the best-selling multi-zone amplifiers worldwide, with the Architect Model 2660 being a stunning addition to this series.

16 channels of high-power amplification are output from the compact 2 U chassis, with the Architect 2660 delivering 65 watts per channel into 8 ohms and 100 watts per channel into 4 ohms, all channels driven. Channel bridging increases power to a remarkable 175 watts into 8 ohms. Benefitting from 35 years of proprietary AudioControl cool-running amplifier design, the Architect 2660 is equipped with features like input bussing, output pass-through, global 12 VDC trigger in/out with local 12 VDC trigger inputs for all zones, and input signal sensing on/off. Bus A includes a coaxial S/PDIF input for a digital source. Amplifier channels and connected loudspeakers are protected by AudioControl’s fast-acting LightDrive anti-clipping circuitry.

• Designed, engineered, and manufactured in the USA
• 16 Channels of AudioControl Power and Performance
• 65 watts per channel into 8 Ohms (All channels driven)
• 100 watts per channel into 4 Ohms (All channels driven)
• Configurable into 8 Bridged Channels
• Bridged Channel Power 175 watts into 8 Ohms
• Energy-Efficient Cool Operation
• Low Standby Current Draw, 1 watt or Less
• Compact Design Fits into 2 Rack Spaces
• LightDrive Anti-Clipping Protection Circuitry

• 2 x Bus Inputs A (Digital) & B (Analog)

• Global 12 VDC Trigger Input and Output

• Remote/Local Zone Input Trigger

• Signal-Sensing On All Channels
• Level Controls for All Input Pairs

• Stereo-to-Mono Switch for Easy Channel Bridging

• Rack Mount Brackets Included
